项目Demo1 NodeMCU ST7735 Weather Station 制作流程
注册申请OpenWeatherAPI

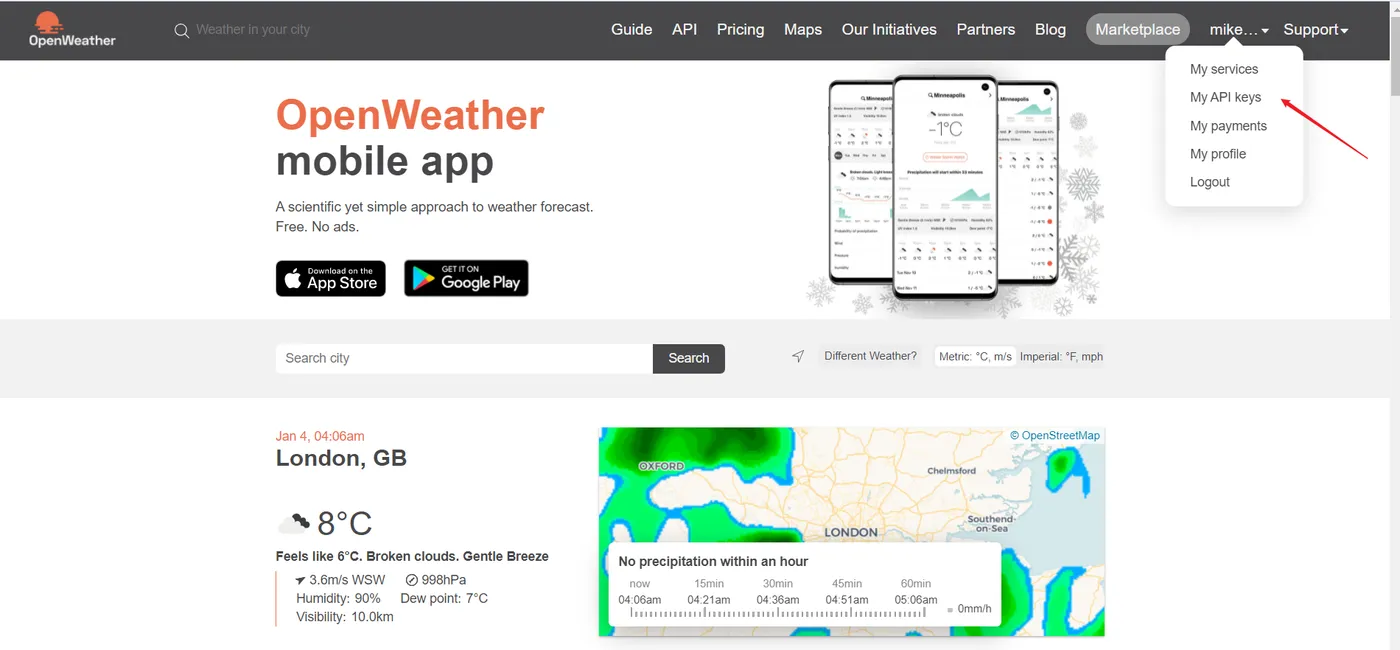

- https://openweathermap.org/ 注册账号
- 申请key复制粘贴到代码中
- 下载城市代码Json文件
#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h>
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClient.h>
#include <Arduino_JSON.h>
#define TFT_RST 0
#define TFT_CS 15
#define TFT_DC 2
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);
const char* ssid = "WIFI ssid ";
const char* password = "WIFI password";
String openWeatherMapApiKey = "a6b294e4393444a050ca038eb616a927*";
String city = "Anqing";
String countryCode = "CN";
unsigned long lastTime = 0;
unsigned long timerDelay = 10000;
String jsonBuffer;
void setup() {
Serial.begin(115200);
WiFi.begin(ssid, password);
Serial.println("Connecting");
while(WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.print("Connected to WiFi network with IP Address: ");
Serial.println(WiFi.localIP());
Serial.println("Timer set to 10 seconds (timerDelay variable), it will take 10 seconds before publishing the first reading.");
tft.initR(INITR_BLACKTAB);
tft.setRotation(1);
uint16_t time = millis();
tft.fillScreen(ST7735_BLACK);
time = millis() - time;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.drawFastHLine(0, 0, tft.width(), ST7735_WHITE);
tft.drawFastHLine(1, 127, tft.width(), ST7735_WHITE);
tft.drawFastVLine(0, 0, tft.height(), ST7735_WHITE);
tft.drawFastVLine(159, 0, tft.height(), ST7735_WHITE);
tft.drawFastVLine(80, 50, 40, ST7735_WHITE);
tft.drawFastHLine(1, 50, tft.width(), ST7735_WHITE);
tft.drawFastHLine(1, 90, tft.width(), ST7735_WHITE);
tft.setTextColor(ST7735_WHITE);
tft.setCursor(10, 10);
tft.setTextSize(2);
tft.print(city);
tft.setTextSize(1);
tft.setCursor(10, 35);
tft.print(countryCode);
tft.setTextSize(1);
tft.setTextColor(ST7735_RED);
tft.setCursor(15, 60);
tft.print("Pressure");
tft.setCursor(90, 60);
tft.print("Humidity");
tft.setCursor(10, 105);
tft.print("Wind Speed");
tft.setTextColor(ST7735_GREEN);
tft.setCursor(140, 10);
tft.print(" C");
tft.setTextColor(ST7735_YELLOW);
tft.setCursor(42, 75);
tft.print(" Hpa");
tft.setCursor(115, 75);
tft.print("%");
tft.setCursor(115, 105);
tft.print("m/s");
delay(1000);
}
int temp;
int pres;
int hum;
String wind;
void loop() {
if ((millis() - lastTime) > timerDelay) {
if(WiFi.status()== WL_CONNECTED){
String serverPath = "http://api.openweathermap.org/data/2.5/weather?q=" + city + "," + countryCode + "&APPID=" + openWeatherMapApiKey;
jsonBuffer = httpGETRequest(serverPath.c_str());
Serial.println(jsonBuffer);
JSONVar myObject = JSON.parse(jsonBuffer);
if (JSON.typeof(myObject) == "undefined") {
Serial.println("Parsing input failed!");
return;
}
String jsonString = JSON.stringify(myObject["main"]["temp"]);
temp = jsonString.toInt();
temp = (temp - 273);
jsonString = JSON.stringify(myObject["main"]["pressure"]);
pres = jsonString.toInt();
jsonString = JSON.stringify(myObject["main"]["humidity"]);
hum = jsonString.toInt();
jsonString = JSON.stringify(myObject["wind"]["speed"]);
wind = jsonString;
Serial.println();
Serial.print("JSON object = ");
Serial.println(myObject);
Serial.print("Temperature: ");
Serial.println(temp);
Serial.print("Pressure: ");
Serial.println(pres);
Serial.print("Humidity: ");
Serial.println(hum);
Serial.print("Wind Speed: ");
Serial.println(wind);
tft.fillRect(105, 8 , 38, 30, ST7735_BLACK);
tft.fillRect(12, 70 , 32, 15, ST7735_BLACK);
tft.fillRect(97, 70 , 16, 15, ST7735_BLACK);
tft.fillRect(87, 103 , 25, 15, ST7735_BLACK);
tft.setTextColor(ST7735_GREEN);
tft.setTextSize(3);
tft.setCursor(108, 10);
tft.print(temp);
tft.setTextColor(ST7735_YELLOW);
tft.setTextSize(1);
tft.setCursor(15, 75);
tft.print(pres);
tft.setCursor(100, 75);
tft.print(hum);
tft.setCursor(90, 105);
tft.print(wind);
}
else {
Serial.println("WiFi Disconnected");
}
lastTime = millis();
}
}
String httpGETRequest(const char* serverName) {
WiFiClient client;
HTTPClient http;
http.begin(client, serverName);
int httpResponseCode = http.GET();
String payload = "{}";
if (httpResponseCode>0) {
Serial.print("HTTP Response code: ");
Serial.println(httpResponseCode);
payload = http.getString();
}
else {
Serial.print("Error code: ");
Serial.println(httpResponseCode);
}
http.end();
return payload;
}

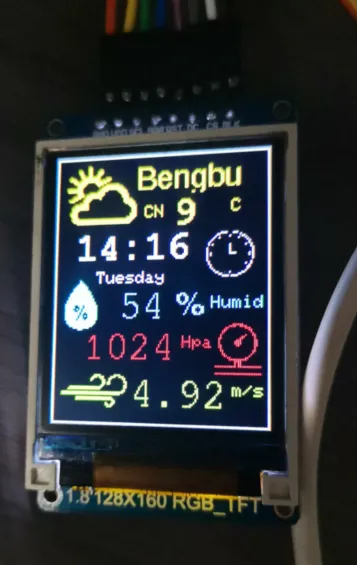

项目Demo2 NodeMCU ST7735 Time Weather Station 制作流程
#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h>
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClient.h>
#include <WiFiUdp.h>
#include <Arduino_JSON.h>
#include <NTPClient.h>
#include <Fonts/FreeMonoBold12pt7b.h>
#include <Fonts/FreeMono12pt7b.h>
#include <Fonts/FreeSans9pt7b.h>
#define TFT_RST 0
#define TFT_CS 15
#define TFT_DC 2
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);
const char* ssid = "dele";
const char* password = "11111111";
String openWeatherMapApiKey = "a6b294e4393444a050ca038eb616a927*";
String city = "Anqing";
String countryCode = "CN";
unsigned long lastTime = 0;
unsigned long timerDelay = 10000;
String jsonBuffer;
char daysOfTheWeek[7][12] = {
"Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"};
WiFiUDP ntpUDP;
int timeZone = 8;
NTPClient timeClient(ntpUDP, "ntp1.aliyun.com", timeZone*3600, 60000);
const unsigned char cloud[] PROGMEM = {
B00000000,B00000000,B00000000,B00000000,B00000000,B00000000,
B00000000,B00000011,B00000000,B00000000,B00000000,B00000000,
B00000000,B00000011,B00000000,B00000000,B00000000,B00000000,
B00000000,B11000011,B00000110,B00000000,B00000000,B00000000,
B00000000,B11000011,B00001110,B00000000,B00000000,B00000000,
B00000000,B01100011,B00001100,B00000000,B00000000,B00000000,
B00000000,B01100011,B00011000,B00000000,B00000000,B00000000,
B00010000,B00111111,B11111000,B00000000,B00000000,B00000000,
B00111100,B00111111,B11110000,B01110000,B00000000,B00000000,
B00001110,B01111111,B11111101,B11100000,B00000000,B00000000,
B00000111,B11111000,B00111111,B10000000,B00000000,B00000000,
B00000001,B11110000,B00011110,B00000000,B00000000,B00000000,
B00000001,B11100000,B00001000,B01111111,B10000000,B00000000,
B00000001,B11000000,B00000001,B11111111,B11100000,B00000000,
B01111111,B11000000,B00000011,B11111111,B11110000,B00000000,
B01111111,B11000000,B00000111,B11000000,B11111000,B00000000,
B00000001,B11000000,B00001111,B00000000,B01111100,B00000000,
B00000001,B11100001,B11111111,B00000000,B00111100,B00000000,
B00000001,B11100111,B11111110,B00000000,B00011110,B00000000,
B00000111,B10001111,B11111100,B00000000,B00011110,B00000000,
B00001110,B00001111,B00000100,B00000000,B00001110,B00000000,
B00111000,B00011110,B00000000,B00000000,B00001111,B10000000,
B00000000,B00011100,B00000000,B00000000,B00001111,B11000000,
B00000000,B01111100,B00000000,B00000000,B00000111,B11100000,
B00000011,B11111100,B00000000,B00000000,B00000001,B11100000,
B00000111,B11111100,B00000000,B00000000,B00000000,B11110000,
B00001111,B11111100,B00000000,B00000000,B00000000,B01110000,
B00001111,B00000000,B00000000,B00000000,B00000000,B01110000,
B00001110,B00000000,B00000000,B00000000,B00000000,B01110000,
B00011110,B00000000,B00000000,B00000000,B00000000,B01110000,
B00011110,B00000000,B00000000,B00000000,B00000000,B11110000,
B00001110,B00000000,B00000000,B00000000,B00000000,B11110000,
B00001111,B00000000,B00000000,B00000000,B00000011,B11100000,
B00001111,B11111111,B11111111,B11111111,B11111111,B11000000,
B00000111,B11111111,B11111111,B11111111,B11111111,B10000000,
B00000001,B11111111,B11111111,B11111111,B11111111,B00000000,
B00000000,B00000000,B00000000,B00000000,B00000000,B00000000,
B00000000,B00000000,B00000000,B00000000,B00000000,B00000000
};
const unsigned char CLOCK[] PROGMEM = {
B00000000,B00000000,B00000000,B00000000,
B00000000,B00111100,B01110000,B00000000,
B00000000,B11000000,B00000100,B00000000,
B00000001,B00000001,B00000011,B00000000,
B00000010,B01000000,B00001000,B10000000,
B00000100,B00000000,B00000000,B01000000,
B00001000,B00000000,B00000000,B00100000,
B00010000,B00000000,B00000000,B00100000,
B00010100,B00000001,B00000000,B10010000,
B00000000,B00000001,B00000000,B00010000,
B00100000,B00000001,B00000000,B00001000,
B00100000,B00000001,B00000000,B00001000,
B00100000,B00000001,B00000000,B00001000,
B00101000,B00000001,B11100000,B00101000,
B00101000,B00000000,B00000000,B00101000,
B00100000,B00000000,B00000000,B00001000,
B00100000,B00000000,B00000000,B00001000,
B00100000,B00000000,B00000000,B00000000,
B00010000,B00000000,B00000000,B00010000,
B00010000,B00000000,B00000000,B10010000,
B00001000,B00000000,B00000000,B00100000,
B00001000,B00000000,B00000000,B01100000,
B00000100,B00000000,B00000000,B01000000,
B00000010,B00000000,B00000000,B10000000,
B00000001,B10000001,B00000011,B00000000,
B00000000,B01100000,B00001100,B00000000,
B00000000,B00011110,B11110000,B00000000,
B00000000,B00000000,B00000000,B00000000
};
const unsigned char humid[] PROGMEM = {
B00000000,B00100000,B00000000,
B00000000,B00110000,B00000000,
B00000000,B01111000,B00000000,
B00000000,B11111100,B00000000,
B00000001,B11111110,B00000000,
B00000011,B11111110,B00000000,
B00000011,B11111111,B00000000,
B00000111,B11111111,B10000000,
B00001111,B11111111,B10000000,
B00001111,B11111111,B11000000,
B00011111,B11111111,B11000000,
B00011111,B11111111,B11100000,
B00111111,B11111111,B11100000,
B00111111,B11111111,B11110000,
B01111111,B11111111,B11110000,
B01111110,B01110111,B11111000,
B01111110,B00110111,B11111000,
B01111100,B10101111,B11111000,
B01111110,B01101111,B11111000,
B01111111,B11011011,B11111000,
B01111111,B11010001,B11111000,
B01111111,B10110101,B11111000,
B01111111,B10110001,B11111000,
B01111111,B01111011,B11111000,
B00111111,B11111111,B11110000,
B00111111,B11111111,B11110000,
B00011111,B11111111,B11100000,
B00001111,B11111111,B11000000,
B00000011,B11111111,B00000000,
B00000000,B01110000,B00000000
};
const unsigned char pressure[] PROGMEM = {
B00000000,B00000000,B00000000,B00000000,
B00000000,B00001111,B11000000,B00000000,
B00000000,B00111100,B11110000,B00000000,
B00000000,B11000000,B00011100,B00000000,
B00000001,B10000000,B00000110,B00000000,
B00000011,B00000000,B00000010,B00000000,
B00000010,B00000000,B00000001,B00000000,
B00000100,B00000000,B00010001,B10000000,
B00000100,B00000000,B01100000,B10000000,
B00001100,B00000000,B11000000,B10000000,
B00001000,B00000011,B10000000,B11000000,
B00001000,B00000111,B10000000,B11000000,
B00001000,B00000111,B10000000,B11000000,
B00001100,B00000011,B00000000,B11000000,
B00001100,B00000000,B00000000,B10000000,
B00000100,B00000000,B00000000,B10000000,
B00000110,B00000000,B00000001,B10000000,
B00000010,B00000000,B00000001,B00000000,
B00000011,B00000000,B00000010,B00000000,
B00000001,B10000000,B00000100,B00000000,
B00000000,B01100000,B00011000,B00000000,
B00000000,B00111111,B11110000,B00000000,
B00000000,B00000111,B10000000,B00000000,
B00000000,B00000101,B10000000,B00000000,
B00000000,B00000101,B10000000,B00000000,
B00111111,B11111101,B11111111,B11110000,
B00000000,B00000000,B00000000,B00000000,
B00000000,B00000000,B00000000,B00000000,
B00000000,B00000000,B00000000,B00000000,
B00111111,B11111111,B11111111,B11110000
};
const unsigned char windS[] PROGMEM = {
B00000000,B00000000,B00001111,B00000000,B11110000,
B00000000,B00000000,B00011101,B11000011,B10011100,
B00000000,B00000000,B00110000,B11000110,B00000110,
B00000000,B00000000,B00100000,B01100100,B00000010,
B00000000,B00000000,B00000000,B01101100,B00000011,
B00000000,B00000000,B00000000,B01101100,B00000001,
B00000000,B00000000,B00000000,B11000000,B00000011,
B00000111,B11111111,B11111111,B10000000,B00000011,
B00001111,B11111111,B11111111,B00000000,B00000010,
B00000000,B00000000,B00000000,B00000000,B00000110,
B11111111,B11111111,B11111111,B11111111,B11111100,
B11111111,B11111111,B11111111,B11111111,B11110000,
B00000000,B00000000,B00000000,B00000000,B00000000,
B00000000,B01111111,B11111111,B11111110,B00000000,
B00000000,B01111111,B11111111,B11111111,B00000000,
B00000000,B00000000,B00000000,B00000001,B10000000,
B00000000,B00000000,B00000000,B00010001,B10000000,
B00000000,B00000000,B00000000,B00011011,B00000000,
B00000000,B00000000,B00000000,B00001110,B00000000
};
void setup(void)
{
Serial.begin(115200);
WiFi.begin(ssid, password);
Serial.println("Connecting");
while(WiFi.status() != WL_CONNECTED)
{
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.print("Connected to WiFi network with IP Address: ");
Serial.println(WiFi.localIP());
Serial.println("Timer set to 10 seconds (timerDelay variable), it will take 10 seconds before publishing the first reading.");
timeClient.begin();
tft.initR(INITR_BLACKTAB);
uint16_t time = millis();
tft.fillScreen(ST7735_BLACK);
time = millis() - time;
delay(500);
tft.fillScreen(ST7735_BLACK);
tft.drawFastHLine(0, 0, tft.width(), ST7735_WHITE);
tft.drawFastHLine(1, 159, tft.width(), ST7735_WHITE);
tft.drawFastVLine(0, 0, tft.height(), ST7735_WHITE);
tft.drawFastVLine(127, 0, tft.height(), ST7735_WHITE);
tft.drawBitmap(6, 5, cloud, 45, 38,ST7735_YELLOW);
tft.drawBitmap(90, 47, CLOCK, 30, 28,ST7735_WHITE);
tft.drawBitmap(6, 75, humid, 22, 30,0x07FF);
tft.drawBitmap(95, 100, pressure, 30, 30,ST7735_RED);
tft.drawBitmap(6, 131, windS, 40, 19,0xAFE5);
tft.setFont(&FreeSans9pt7b);
tft.setTextColor(ST7735_YELLOW);
tft.setCursor(50,20);
tft.setTextSize(1);
tft.print(city);
tft.setFont();
tft.setTextSize(1);
tft.setCursor(55,31);
tft.print(countryCode);
tft.setCursor(100,29);
tft.print(" C");
tft.setTextColor(0x07FF);
tft.setFont(&FreeSans9pt7b);
tft.setTextSize(1);
tft.setCursor(74,95);
tft.print("%");
tft.setFont();
tft.setTextColor(0x07FF);
tft.setCursor(95,85);
tft.setTextSize(1);
tft.print("Hum");
tft.setTextColor(0xAFE5);
tft.setTextSize(1);
tft.setCursor(107,135);
tft.print("m/s");
tft.setTextColor(ST7735_RED);
tft.setCursor(72,108);
tft.print(" Hpa");
delay(1000);
}
int temp;
int pres;
int hum;
String wind;
void loop()
{
timeClient.update();
int hours = timeClient.getHours();
int minu = timeClient.getMinutes();
if ((millis() - lastTime) > timerDelay) {
if(WiFi.status()== WL_CONNECTED){
String serverPath = "http://api.openweathermap.org/data/2.5/weather?q=" + city + "," + countryCode + "&APPID=" + openWeatherMapApiKey;
jsonBuffer = httpGETRequest(serverPath.c_str());
Serial.println(jsonBuffer);
JSONVar myObject = JSON.parse(jsonBuffer);
if (JSON.typeof(myObject) == "undefined") {
Serial.println("Parsing input failed!");
return;
}
String jsonString = JSON.stringify(myObject["main"]["temp"]);
temp = jsonString.toInt();
temp = (temp - 273);
jsonString = JSON.stringify(myObject["main"]["pressure"]);
pres = jsonString.toInt();
jsonString = JSON.stringify(myObject["main"]["humidity"]);
hum = jsonString.toInt();
jsonString = JSON.stringify(myObject["wind"]["speed"]);
wind = jsonString;
Serial.printf("hour:%d minu:%d \n", hours,minu);
Serial.println();
Serial.print("JSON object = ");
Serial.println(myObject);
Serial.print("Temperature: ");
Serial.println(temp);
Serial.print("Pressure: ");
Serial.println(pres);
Serial.print("Humidity: ");
Serial.println(hum);
Serial.print("Wind Speed: ");
Serial.println(wind);
tft.fillRect(14, 45 , 68, 28, ST7735_BLACK);
tft.fillRect(24, 70 , 55, 10, ST7735_BLACK);
tft.fillRect(73, 24 , 25, 21, ST7735_BLACK);
tft.fillRect(40, 80 , 26, 21, ST7735_BLACK);
tft.fillRect(20, 105 , 55, 18, ST7735_BLACK);
tft.fillRect(50, 130 , 45, 19, ST7735_BLACK);
tft.setTextColor(ST7735_YELLOW);
tft.setFont(&FreeMonoBold12pt7b);
tft.setTextSize(1);
tft.setCursor(72,42);
tft.print(temp);
tft.setTextColor(ST7735_WHITE);
tft.setCursor(13,62);
tft.print(hours);
tft.print(":");
tft.print(minu+1);
tft.setFont();
tft.setTextSize(1);
tft.setCursor(26,70);
tft.print(daysOfTheWeek[timeClient.getDay()]);
tft.setTextColor(0x07FF);
tft.setFont(&FreeMono12pt7b);
tft.setTextSize(1);
tft.setCursor(40,97);
tft.print(hum);
tft.setTextColor(ST7735_RED);
tft.setCursor(18,121);
tft.print(pres);
tft.setTextColor(0xAFE5);
tft.setCursor(48,148);
tft.print(wind);
}
else {
Serial.println("WiFi Disconnected");
}
lastTime = millis();
}
}
String httpGETRequest(const char* serverName) {
WiFiClient client;
HTTPClient http;
http.begin(client, serverName);
int httpResponseCode = http.GET();
String payload = "{}";
if (httpResponseCode>0) {
Serial.print("HTTP Response code: ");
Serial.println(httpResponseCode);
payload = http.getString();
}
else {
Serial.print("Error code: ");
Serial.println(httpResponseCode);
}
http.end();
return payload;
}
效果
