概述
回想下我们在使用Eureka 和 Ribbon的时候是怎么调用注册在Eureka Server上的微服务的地址呢?
可以看到其实是通过拼接的方式,当然了我们上面的这个例子只有一个参数 id,看起来没有这麻烦。
设想下如果有多个参数呢?
假设URL如下
http://localhost:8080/search?name=小工匠&age=20&username=artisan
那我们用RestTemplate如何调用对方的微服务呢? 可以采用如下方式
@GetMapping("/searchUser") public User searchUser(String name ,String age ,String username) { Map<String, Object> paraMap = new HashMap<String ,Object>() { { put("name",name); put("age",age); put("username",username); } }; return this.restTemplate.getForObject("http://microservice-provider-user/search?name={name}&age={age}&username={username}", User.class, paraMap); }
是不是已经很麻烦了?
Spring Cloud为我们整合了Fegin解决上述苦恼。
Feign是Netflix开发的声明模板化的HTTP客户端。 在Spring Cloud中使用Feign,只需要创建一个接口,并在接口上添加一些注解即可。 Spring Cloud对Feign进行了增强,使Feign支持了SpringMVC的总结,并整合了Ribbon和Eureka。
实例
新建工程

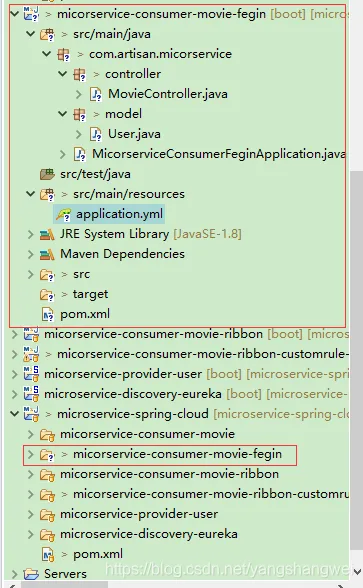

在父工程上右键,新建Maven Module ,如下
下面根据官方文档操作即可
增加maven依赖
<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> </dependency>
创建一个Feign接口,并添加@FeignClient注解
package com.artisan.micorservice.feignclient; import org.springframework.cloud.openfeign.FeignClient; import org.springframework.web.bind.annotation.PathVariable; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestMethod; import com.artisan.micorservice.model.User; @FeignClient("microservice-provider-user") public interface UserFeignClient { @RequestMapping(method = RequestMethod.GET, value = "/user/{id}") public User findById(@PathVariable Long id); }
FeignClient中的microservice-provider-user是要调用的微服务的名称,用于创建Ribbon负载均衡器。
因为我们这里使用了Eureka,所以Ribbon会把microservice-provider-user解析成Eureka Server中注册的服务。
另外,也可以通过url属性指定请求的URL ,比如 @FeignClient("microservice-provider-user", url="http://localhost:8900/")
修改Controller层,将RestTemplate改为调用Feign接口
package com.artisan.micorservice.controller; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.PathVariable; import org.springframework.web.bind.annotation.RestController; import com.artisan.micorservice.feignclient.UserFeignClient; import com.artisan.micorservice.model.User; @RestController public class MovieController { @Autowired private UserFeignClient userClient; @GetMapping("/movie/{id}") public User findById(@PathVariable Long id) { return userClient.findById(id); } }
启动类增加@EnableFeiginClients注解
package com.artisan.micorservice; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.openfeign.EnableFeignClients; @EnableDiscoveryClient @SpringBootApplication @EnableFeignClients public class MicorserviceConsumerFeginApplication { public static void main(String[] args) { SpringApplication.run(MicorserviceConsumerFeginApplication.class, args); } }
测试
- 启动eureka server微服务
- 启动2个 provider-user微服务
- 启动该微服务

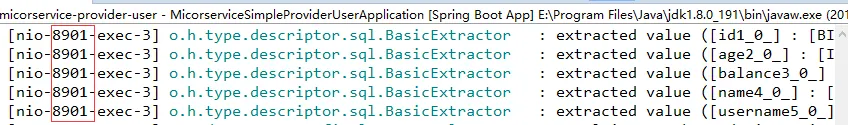

2次请求http://localhost:7901/movie/1 ,观察 provider-user微服务的日志打印情况。
8900端口
8901端口
通过日志可以看到不仅实现了声明式的REST API调用,同时也实现了客户端的负载均衡。
