⛄ 内容介绍
——合作探索水平表面三维标量场
——分布式传感器融合标量场映射使用移动传感器网络
——合作在移动传感器网络和主动传感标量场映射
⛄ 部分代码
addpath("utils")
addpath("utils/control_strategies")
addpath("utils/estimation_strategies")
clear all; close all; clc % clear all is absolutely 100% necessary to clear persistent variables.
% Define the system parameters
% 2 is okay.
num_drones = int32(3);
system_parameters = SystemParameters(int32(1), num_drones, 0.001, 1, deg2rad(10), int32(2), 4, deg2rad(20), 0.00025*32, int32(200), int32(200), 0.1);
x = linspace(-double(system_parameters.grid_cols) * system_parameters.grid_unit_length / 2, double(system_parameters.grid_cols) * system_parameters.grid_unit_length / 2, system_parameters.grid_cols);
y = linspace(-double(system_parameters.grid_rows) * system_parameters.grid_unit_length / 2, double(system_parameters.grid_rows) * system_parameters.grid_unit_length / 2, system_parameters.grid_rows);
% Define initial condition of numerical simulation
initial_state = State(system_parameters);
rng(10); % assign same random seed! (random seeds tried: 10, 11, 12)
initial_state = initial_state.randomize(system_parameters); % randomize locations / initial velocities of UAVs + ROVs
initial_state.drones_state(1,1) = initial_state.rovs_state(1,1) - 0.1;
initial_state.drones_state(1,3) = initial_state.rovs_state(1,3) + 0.1;
initial_state.drones_state(1,5) = 5;
% Define the time span of the numerical simulation
t0 = 0; tfinal = 100;
sample_time = 0.1; % in seconds
samples = t0:sample_time:tfinal;
% Define the control strategy and the estimation strategy
control_strategy = FormationWaypointFollowing(sample_time, system_parameters);
estimation_strategy = FormationEstimation(sample_time, system_parameters, 1);
% Define control algorithm as the aggregate of a "control strategy" and an
% "estimation strategy"
controller = Controller(control_strategy, estimation_strategy);
% Discrete-Time simulation...
states = {initial_state};
theta_bar_vector = zeros(length(samples), system_parameters.num_drones);
for k = 1:length(samples)
current_state = states{k};
next_state = State(system_parameters);
% Update ROV probability matrix to account
% filter_radius = ceil(system_parameters.rov_max_speed / system_parameters.grid_unit_length); % yeah
% conv_filter = fspecial('disk', filter_radius);
% convoluted = conv2(current_state.rov_probability_matrix, conv_filter, 'same');
% next_state.rov_probability_matrix = convoluted;
% next_state.rov_probability_matrix = next_state.rov_probability_matrix / sum(sum(next_state.rov_probability_matrix)); % renormalize
% assert(abs(sum(sum(next_state.rov_probability_matrix)) - 1.0) < 1e-12);
% Compute Intensity of each Drone (i.e. each receiver)
% - the intensity of any given receiver is just a function of relative
% position of drones and ROVs
for ii = 1:system_parameters.num_drones
next_state.laser_intensity(ii) = compute_laser_intensity(current_state, system_parameters, ii);
end
% Modify ROV probability matrix to account for observations
% no_detect_previous_probability = 0; % name this something better...
% no_detect_modified_squares = ones(size(next_state.rov_probability_matrix));
found_target = false;
% area_detected = polyshape;
for ii = 1:system_parameters.num_drones
[~, drones_state, ~] = current_state.get_state;
[~, ~, rov_probability_matrix] = next_state.get_state;
% assert(sum(sum(rov_probability_matrix - 1 < 1e-12)));
drone_state_ii = drones_state(ii,:);
drone_state_ii = drone_state_ii';
% find the radius of the FOV projected on the surface of the
% water.
% z = drone_state_ii(5); % vertical distance of drone "ii" above water
% FOV_radius = z * tan(system_parameters.drone_fov);
% FOV_prj_water_surface = polyshape_circle(FOV_radius, drone_state_ii(1), drone_state_ii(3), 100); % 100 seems pretty good
% min_x = drone_state_ii(1) - FOV_radius;
% max_x = + drone_state_ii(1) + FOV_radius;
% min_y = drone_state_ii(3) - FOV_radius;
% max_y = drone_state_ii(3) + FOV_radius;
%
% min_x_index = find(sign(x - min_x) - 1, 1, 'last'); % find the last negative diff btw x and min_x
% max_x_index = find(sign(x - max_x) + 1, 1, 'first');
% min_y_index = find(sign(y - min_y) - 1, 1, 'last'); % find the last negative diff btw x and min_x
% max_y_index = find(sign(y - max_y) + 1, 1, 'first');
%
% min_x_index = max([1, min_x_index]);
% max_x_index = min([length(x)-1, max_x_index]);
% min_y_index = max([1, min_y_index]);
% max_y_index = min([length(y)-1, max_y_index]);
% if min_x_index >= max_x_index || min_y_index >= max_y_index
% disp("outside arena")
% assert(min_x_index < max_x_index);
% assert(min_y_index < max_y_index);
% % continue;
% end
% if the laser intensity for drone 'ii' is > threshold, then we
% have detected an ROV
if next_state.laser_intensity(ii) > 2.58 * system_parameters.laser_noise_std % 99% of 0.0025 = sigma, assuming Gaussian, which it is?
found_target = true;
disp("Drone " + num2str(ii) + " found target.")
% controller.guidance_phase = GuidancePhase.Track;
% drone "ii" detected an ROV
% if more than 1 drone detects an ROV, then the area will just
% be the area of the last ROV in the for-loop to detect a
% laser!
% rov_probability_matrix = zeros(size(rov_probability_matrix)); % this assumes single ROV. must modify later
% modified_squares = zeros(size(rov_probability_matrix));
%
% all_intersected_area = polyshape;
% for jj = min_y_index:max_y_index
% for kk = min_x_index:max_x_index
% grid_jk = polyshape([x(kk) x(kk+1) x(kk+1) x(kk)], [y(jj) y(jj) y(jj+1) y(jj+1)]);
% intersection = intersect(grid_jk, FOV_prj_water_surface);
% assert(intersection.NumRegions == 0 || intersection.NumRegions == 1);
% if intersection.NumRegions == 1
% all_intersected_area = union(all_intersected_area, intersection);
% area_ratio = area(intersection) / area(FOV_prj_water_surface);
%
% % what this means is, if area_ratio = 0.0042, for
% % example, then 0.42% of the area of the FOV is
% % taken up by this current grid.
%
% rov_probability_matrix(jj, kk) = area_ratio; % now this assumes single ROV, must modify later
% modified_squares(jj, kk) = 1.0;
% end
% end
% end
%
% rov_probability_matrix = rov_probability_matrix .* modified_squares;
%
% assert(sum(sum(rov_probability_matrix)) - 1.0 < 1e-12);
% next_state.rov_probability_matrix = rov_probability_matrix;
% else
% % drone "ii" did not detect an ROV
% for jj = min_y_index:max_y_index
% for kk = min_x_index:max_x_index
% grid_jk = polyshape([x(kk) x(kk+1) x(kk+1) x(kk)], [y(jj) y(jj) y(jj+1) y(jj+1)]);
% intersection = intersect(grid_jk, FOV_prj_water_surface);
% assert(intersection.NumRegions == 0 || intersection.NumRegions == 1);
% if intersection.NumRegions == 1
% % if the intersection is non-empty set, then...
% area_ratio = area(intersection) / area(grid_jk); % this is at most 1.0
%
% % what this means is, if area_ratio = 0.0042, for
% % example, then 0.42% of the area of the grid is
% % taken up by the current FOV.
% if no_detect_modified_squares(jj, kk) - 1.0 < 1e-12
% % if no_detect_modified_squares(jj,kk) isn't
% % already 0.0,
% no_detect_previous_probability = no_detect_previous_probability + rov_probability_matrix(jj, kk) * area_ratio;
% no_detect_modified_squares(jj, kk) = 0.0;
% end
% end
% end
% end
end
end
% if ~found_target
% none of the drones found targets, so
% [r,c] = find(no_detect_modified_squares == 0); % zero entries of no_detect_modified_squares
% probability_increment = no_detect_previous_probability / length(find(no_detect_modified_squares));
% assert(sum(sum(next_state.rov_probability_matrix)) - 1.0 < 1e-12);
% next_state.rov_probability_matrix = next_state.rov_probability_matrix + probability_increment * no_detect_modified_squares;
% for ii = 1:length(r)
% next_state.rov_probability_matrix(r(ii),c(ii)) = 0.0;
% end
% assert(sum(sum(next_state.rov_probability_matrix)) - 1.0 < 1e-12);
% end
% Update ROV state for next sample time (shouldn't touch anymore)
for ii = 1:system_parameters.num_rovs
[rovs_state, ~, ~] = current_state.get_state;
rov_state_ii = rovs_state(ii, :);
rov_state_ii = rov_state_ii'; % turn row vector into column vector
% x[k+1] = A[k] x[k] + w[k], w[k] ~ N(0,Q), Q = q * [T^3/3 T^2/2; T^2/2 T]
A = [1 sample_time 0 0 0 0; 0 1 0 0 0 0; 0 0 1 sample_time 0 0; 0 0 0 1 0 0; 0 0 0 0 1 sample_time; 0 0 0 0 0 1];
T = sample_time;
Q = system_parameters.rov_noise_level * [T^3/3 T^2/2 0 0 0 0; T^2/2 T 0 0 0 0; 0 0 T^3/3 T^2/2 0 0; 0 0 T^2/2 T 0 0; 0 0 0 0 T^3/3 T^2/2; 0 0 0 0 T^2/2 T];
w = mvnrnd(zeros(6,1), Q, 1)';
% bounds check all the position variables of the ROV, if any fall
% outside the "arena" then just make their corresponding velocity
% go inside the arena at the same magnitude as the randomly
% generated point... this "might" violate randomness assumptions,
% but I think it's fine.
if rov_state_ii(1) < x(1)
rov_state_ii(2) = abs(rov_state_ii(2));
end
if rov_state_ii(1) > x(end)
rov_state_ii(2) = -abs(rov_state_ii(2));
end
if rov_state_ii(3) < y(1)
rov_state_ii(4) = abs(rov_state_ii(4));
end
if rov_state_ii(3) > y(end)
rov_state_ii(4) = -abs(rov_state_ii(4));
end
if rov_state_ii(5) < -10 % arbitrary lower bound on z
rov_state_ii(6) = abs(rov_state_ii(6));% / 10;
end
if rov_state_ii(5) > -0.1
rov_state_ii(6) = -abs(rov_state_ii(6));
end
next_state_ii = A * rov_state_ii + w;
% Update "next_state" object
next_state.rovs_state(ii,:) = next_state_ii';
end
% Update drone state for next sample time (shouldn't touch anymore)
[u,theta_bar] = controller.get_control(k, current_state, next_state.laser_intensity);
theta_bar_vector(k,:) = theta_bar';
for ii = 1:system_parameters.num_drones
[~, drones_state, ~] = current_state.get_state;
drone_state_ii = drones_state(ii,:);
drone_state_ii = drone_state_ii';
% x[k+1] = A[k] x[k] + B[k] u[k]
A = [1 sample_time 0 0 0 0; 0 1 0 0 0 0; 0 0 1 sample_time 0 0; 0 0 0 1 0 0; 0 0 0 0 1 sample_time; 0 0 0 0 0 1];
T = sample_time;
B = [0 0 0; 1 0 0; 0 0 0; 0 1 0; 0 0 0; 0 0 1];
next_state_ii = A * drone_state_ii + B * u(ii,:)';
% update "next_state" object
next_state.drones_state(ii,:) = next_state_ii';
end
states{k+1} = next_state; % must remain as final line of iteration
disp(k / length(samples) * 100 + "% Done");
end
%% Plot the result
% plot_rov_data(samples(1:length(states)-1), {states{2:end}}, 1);
plot_drone_data(samples(1:length(states)-1), {states{2:end}}, 2);
plot_laser_intensity_data(samples(1:length(states)-1), {states{2:end}}, 3);
animate_system({states{2:length(states)}}, system_parameters)
% create_gif({states{2:length(states)}}, system_parameters)
% animate_entropy({states{2:length(states)}}, system_parameters)
%% Compute control metrics
[metric_1, metric_2] = compute_control_metrics({states{2:end}}, system_parameters);
figure(5)
plot(samples(1:length(states)-1), metric_2, 'k', 'LineWidth', 1.5); grid on; title("Distance between Receiver and Laser-Beam Axis over Time"); xlabel("Time [seconds]"); ylabel("Distance [m]")

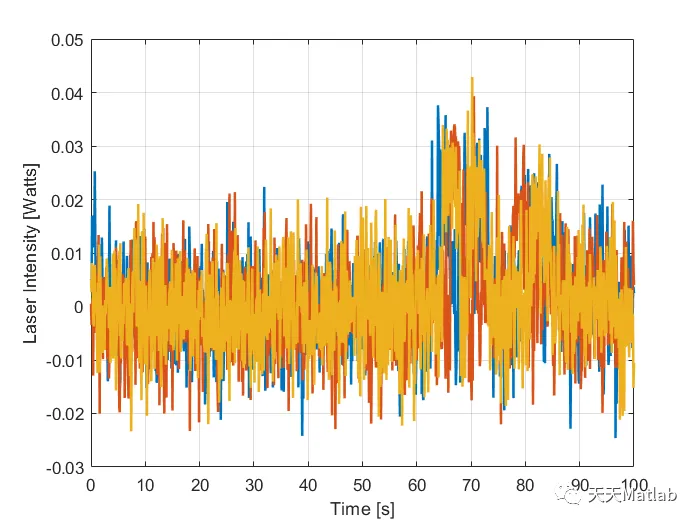

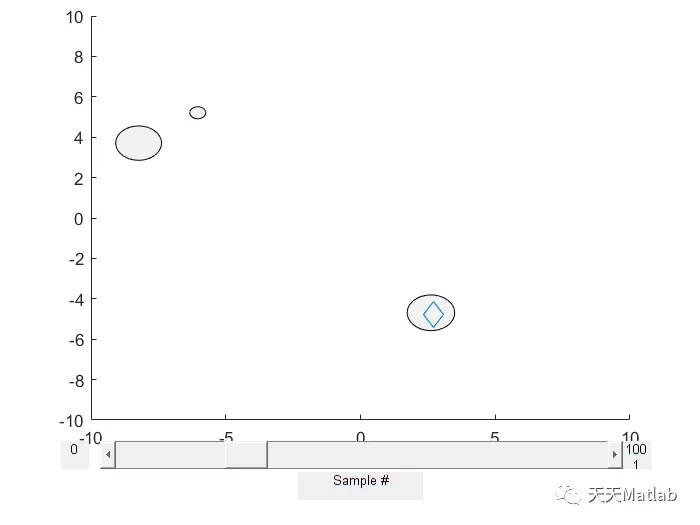

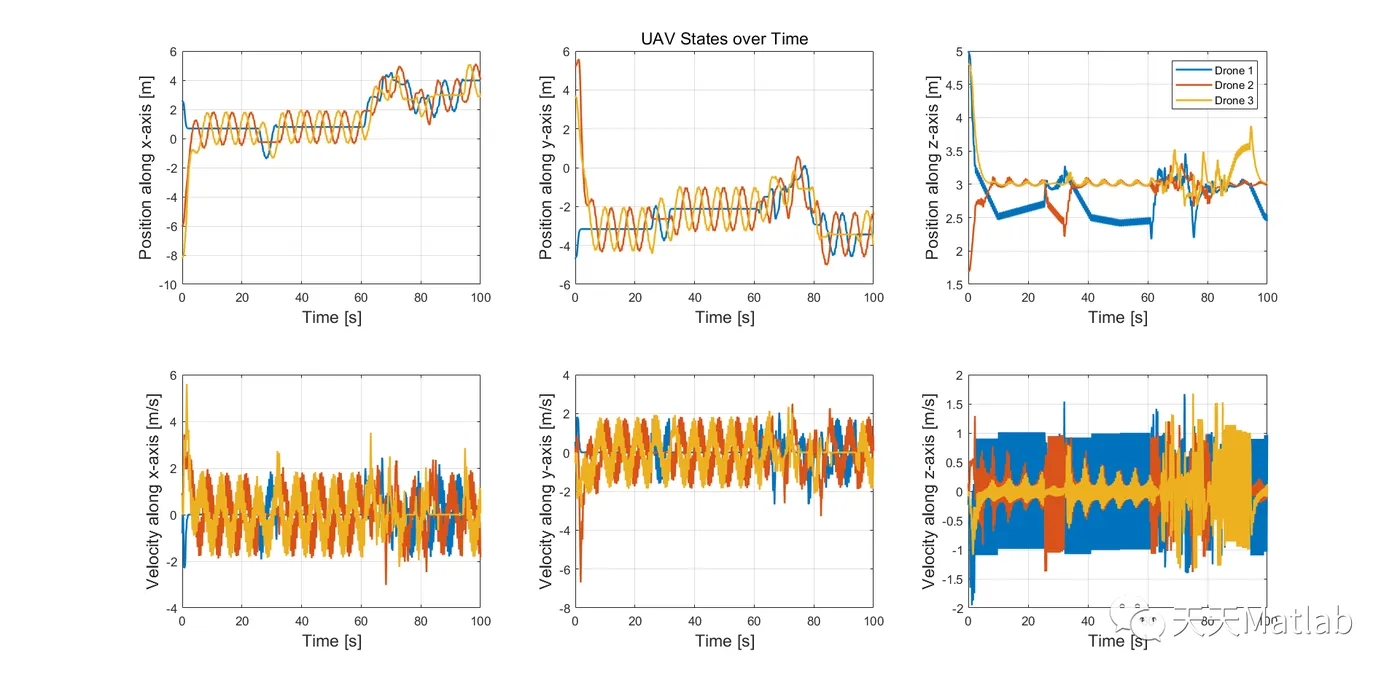

⛄ 运行结果
⛄ 参考文献
[1] 薛明旭. 基于MATLAB的无人机飞行控制系统设计与仿真[J]. 电光系统, 2010(4):4.
[2] 施秀萍, 王嘉梅, 虎雁华. 基于MATLAB的系统辨识及离散时间全通系统[J]. 云南民族学院学报(自然科学版), 2003, 12(1):44-46.
[3] 徐淑芳, 周子赟, 李琳琳,等. 无人机群协同目标搜索中的动态路径规划方法及系统:, CN113848987A[P]. 2021.
[4] 邵士凯, 石伟龙, 杜云. 基于粒子群算法的固定时间多约束无人机轨迹规划[J]. 河北科技大学学报, 2022(043-003).
