新春之际,很高兴在此时宣布 Sealer[1] 0.9 版本的正式发布。Sealer 是一款致力于探索面向分布式应用的快速打包、交付和运行的解决方案。2021 年5月 Sealer 项目正式开源;短短一年时间,Sealer 在 2022 年 4 月成为 CNCF Sandbox 项目。
Sealer 0.9 版本中,其在核心定位上由专注 “集群维度的 Build,Share,Run” 升级为 “以集群为基础,以应用为中心,帮助集群和分布式应用实现 Build, Share,Run”,并重点增强了对应用的支持能力。
版本详解
增强对应用的支持
应用与集群解耦
Docker Image 很好的解决了单机应用的打包交付问题,而 Sealer Image[2]尝试在集群维度,解决类 Kubernetes 集群以及分布式应用的打包交付问题。Sealer Image 基于包含内容将 Sealer Image 分为集群镜像和应用镜像。其中:

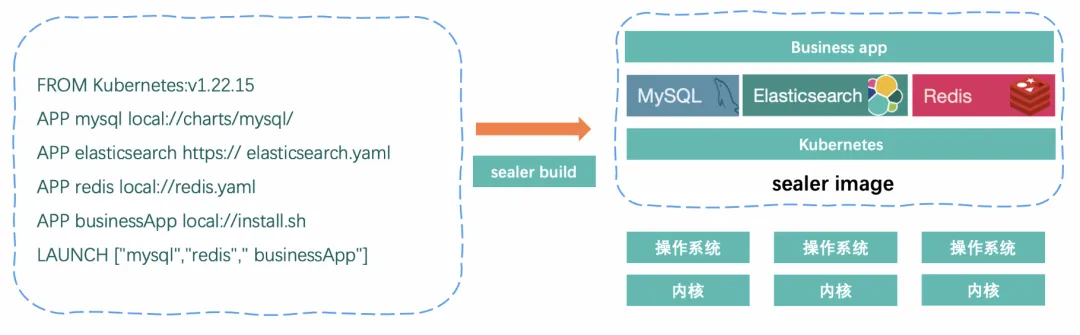

- 集群镜像,表示一个镜像包含 cluster runtime,如 Kubernetes、K0S、K3S 等。Run 阶段既会安装集群也会安装应用(如果包含了应用)

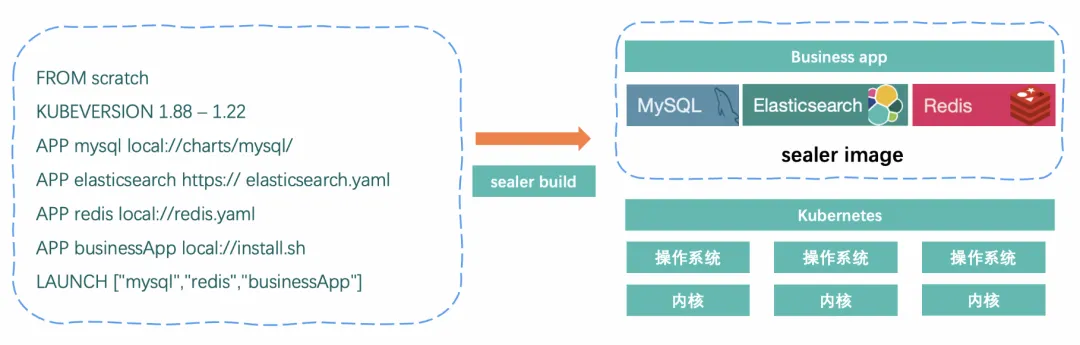

- 应用镜像,表示一个镜像未包含 cluster runtime,其需要基于已有的集群进行安装。
Kubefile 支持 LABEL & KUBEVERSION 指令
Kubefile 中 LABEL 指令类似 Dockerfile LABEL 指令,允许用户针对 `Sealer Image` 指定一些元数据信息,这些元数据信息在构建完成后可通过 sealer inspect 命令查看。
其中,Sealer 官方保留以 *sealer.io/ 为前缀的 label key,如:
针对集群镜像,通过 LABEL 可声明集群镜像支持的能力列表等信息
- cluster.alpha.sealer.io/cluster-runtime-type,支持的集群类型,如 kubernetes, k0s, k3s 等
- cluster.alpha.sealer.io/cluster-runtime-version,支持的集群 runtime 的版本,如 kubernetes 版本
- cluster.alpha.sealer.io/container-runtime-type,支持的 container runtime 类型,如 docker,containerd 等
- cluster.alpha.sealer.io/container-runtime-version,支持的 container runtime 版本,如 docker 版本
- cluster.alpha.sealer.io/kube-cni,支持的 CNI 列表,如 calico,flannel 等
- cluster.alpha.sealer.io/kube-csi,支持的 CSI 列表,如 alibaba-cloud-csi-driver 等
针对应用镜像,通过 LABEL 可声明应用镜像兼容的 kube runtime 版本等信息,通过声明解耦集群镜像
- app.alpha.sealer.io/supported-kube-version,应用镜像支持的 kube runtime 版本,其值定义 Semantic Versioning 2.0.0[3]。另外,Kubefile 中也可通过 KUBEVERSION 指令快捷定义该 label 的值。
集群镜像 Kubefile:
FROM sealerio/kubernetes:v1.22.15 # Add some metadata to an image just like `Dockerfile LABEL instruction`. # An image can have more than one label. You can specify multiple labels on a single line. # # NOTE: # 1. In general, a base image should declare supported cluster runtimes, container runtimes, etc. # 2. Sealer reserves all label keys prefixed with `sealer.io`. # 3. All labels will be inherited by child image. # LABEL <key>=<value> <key>=<value> <key>=<value> ... # LABEL <key>=<value> \ # <key>=<value> \ # <key>=<value> ... LABEL "cluster.alpha.sealer.io/cluster-runtime-version"="v1.22.15" # such as kubernetes, k0s, k3s, etc LABEL "cluster.alpha.sealer.io/cluster-runtime-type"="kubernetes" LABEL "cluster.alpha.sealer.io/container-runtime-type"="docker" LABEL "cluster.alpha.sealer.io/container-runtime-version"="20.10.14" ......
应用镜像 Kubefile:
FROM scratch # A SemVer range of compatible Kubernetes versions by the applications. # If there are multiple apps in the `Kubefile`, you should take the intersection of the cluster versions they support # The label `app.alpha.sealer.io/supported-kube-version` will be gernetated with `KUBEVERSION`. # For a detailed explanation of supported semver constraints see [Masterminds/semver](https://github.com/Masterminds/semver). KUBEVERSION 1.22 - 1.24 LABEL "created-by"="sealer.io" ......
Build 支持打标镜像类型
为了让使用者在获取到一个镜像后,能够清晰的知道一个镜像包含的内容以及行为。在 build image 阶段,Sealer 可以通过 sealer build --type kube-installer | app-installer 为构建出来的 Sealer Image 打标。
- kube-installer,集群镜像。
- app-installer,应用镜像。
Run 简简单单运行应用镜像
针对应用镜像(sealer build --type app-installer),部署在基于 Sealer 集群镜像部署的集群内,仅需简单单单一条命令即可,用户也不需要再关心集群节点信息等。
TODO: 针对应用镜像声明支持的 KUBEVERSION,运行应用镜像时验证此版本约束
sealer run {{.appImageName}}
Kubefile 让应用定义更简单
Kubefile 新增加APP 指令,其允许用户定义一个 APP 虚拟对象,通过 CNI、CSI 指令分别支持 CNI,CSI 插件的管理,通过 APPCMDS 指令为 APP 指定安装命令,并可以通过 LAUNCH 指令,以 APP 对象为维度选择启动对象。
APP 指令
APP 指令格式 APP APP_NAME scheme:path1 scheme:path2,其中:
- APP 指令在 Kubefile 范围内可定义多次
- APP_NAME 在 Sealer Image 范围内需保证唯一
- schema 目前支持如下格式:
- local://path_rel_2_build_context (build context 中的文件,文件路径为基于 build context 的相对路径)
- http(s)://example.yaml (http(s) 远程地址,会在 build 节点自动下载)
- path 的目录/文件类型目前支持如下类型:
- .sh,shell 脚本
- .yaml | .yml,kubernetes YAML 文件
- Helm Chart 目录
CNI/CSI 指令
PS: CSI 与 CNI 基本类似,此处不再赘述
CNI 指令格式 CNI CNI_NAME scheme:path1 scheme:path2,通过 CNI 指令可以以一种更规范的方式定义/操作 Kubernetes CNI 插件,其中:
- CNI 指令本质上是指定了 CNI 网络插件类型的 APP,所有特性与 APP 指令相同
- CNI 指令相比 APP 指令,会自动生成 label key cluster.alpha.sealer.io/kube-cni 声明镜像支持的 CNI 网络插件列表,例如: "cluster.alpha.sealer.io/kube-cni": ["calico", "flannel"]
APPCMDS 指令
APPCMDS 指令格式 APPCMDS APP_NAME ["executable","param1","param2"],其中:
- 类似 Dockerfile CMD 指令,但其作用域为 APP 维度
- 针对同一个 APP_NAME,如果有多个 APPCMDS 被指定,仅最后一个生效
LAUNCH 指令
LAUNCH 指令格式 LAUNCH ["APP_NAME_1", "APP_NAME_2"],其中:
- LAUNCH 指令在 Kubefile 范围内仅可定义一份
- 如果 APPCMDS 未指定,则 LAUNCH 指令会尝试自动解析文件类型,并自动生成执行行为
- FROM 镜像中包含的 LAUCH 指令不生效,仅最后一个 LAUNCH 指令生效(例如:对于子镜像,如果需要,需要在子镜像中重新填写父镜像中的 LAUNCH 指令 )
- APP_NAME 可以是 Sealer Image 范围内的,允许指定 FROM 镜像中声明的 APP_NAME
Kubefile 预览
集群镜像 Kubefile:
FROM sealerio/kubernetes:v1.22.15 # Override or provide CNI plugins, the syntax is same with `APP`. In fact, we can think of CNI as a special kind of `APP`. # And multiple `CNI` definitions can be specified. If the name is the same, the last one takes precedence. # In addition, the CNI plugin is not only an app, but also reflected in the label `cluster.alpha.sealer.io/kube-cni`. CNI calico local://install-calico.sh CNI calico local://install-calico-new.sh CNI flannel local://flannel.yaml # Override or provide CRI plugins just like `CNI`. # In addition, the CNI plugin is not only an app, but also reflected in the label `cluster.alpha.sealer.io/kube-csi`. CSI alibaba-c
应用镜像 Kubefile:
FROM scratch # A SemVer range of compatible Kubernetes versions by the applications. # If there are multiple apps in the `Kubefile`, you should take the intersection of the cluster versions they support # NOTE: This value will not be inherited. # The label `app.alpha.sealer.io/supported-kube-version` will be gernetated with `KUBEVERSION`. # For a detailed explanation of supported semver constraints see [Masterminds/semver](https://github.com/Masterminds/semver). KUBEVERSION 1.22 - 1.24 # add redis app # ["kubectl apply -f redis.yaml"] will be executed APP redis local://redis.yaml # add nginx app # ["kubectl apply -f nginx.yaml -n nginx-namespace"] will be executed APP nginx local://nginx.yaml # `APPCMDS` specify the cmds for a specified app and the context is the dir of specified app. # The `APPCMDS` instruction format: ["executable","param1","param2"] # If there are more than one `APPCMDS` for a `APP` then only the last `APPCMDS` will take effect. APPCMDS nginx ["kubectl apply -f nginx.yaml -n nginx-namespace"] # add mysql app # ["helm install mysql . -f values.yaml --set key=value"] will be executed APP mysql local://charts/mysql/ local://values.yaml # `APPCMDS` must be specified when the app has multiple files APPCMDS mysql ["helm install mysql .", "-f values.yaml", "--set key=value"] LABEL <key>=<value> <key>=<value> <key>=<value> ... LABEL "created-by"="sealer.io" # The following operation will be executed: # ["kubectl apply -f nginx.yaml -n nginx-namespace", "helm install mysql . -f values.yaml --set key=value"] LAUNCH ["nginx", "mysql"]
Clusterfile 扩展支持应用配置
Clusterfile 中,同样可以以 APP 为维度进行运行前的配置变更。
- 通过 ClusterSpec.appNames 覆盖 Kubefile 中的 LAUNCH 指令值,如下所示,Kubefile 中包含了 nginx,mysql 两个 APP,在 appNames 中只需一条简单的配置 appNames: [ "nginx" ],即可变更运行镜像的启动行为为只运行 nginx 这个 APP。
- 通过 Application Config,同样可以非常便捷的覆盖 Kubefile 中针对 APP 指定的 APPCMDS 内容,在运行态自定义启动命令。(同时社区也正在推进支持 APP 包含的文件的修改能力,详情可参考 #1969[4] )
apiVersion: sealer.cloud/v2 kind: Cluster metadata: name: my-cluster spec: image: myimage-with-nginx-mysql:v1 appNames: [ "nginx" ] ...... --- apiVersion: sealer.io/v2 kind: Application metadata: name: my-apps spec: configs: - name: app1 launch: cmds: - kubectl apply -f ns.yaml - kubectl apply -f nginx.yaml -n namespace - name: app2 launch: cmds: - helm install my-nginx bitnami/nginx - name: app3 launch: cmds: - bash nginx.sh
其他值得关注点
镜像引擎升级,Sealer Image 拥抱 OCI 标准

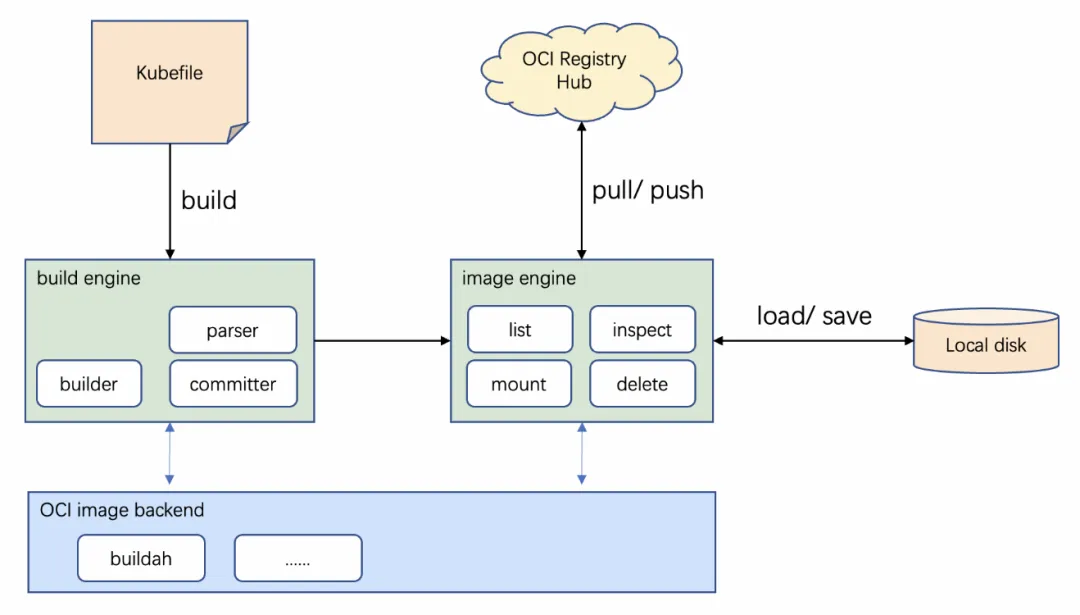

本着追求开放生态的初心,在开放性和标准划上 Sealer 社区也尝试更进一步。基于轻量化 buildah[5]升级 Sealer 镜像引擎,全面兼容 OCI 标准。
基于标准的 K8S webhook 能力实现 image policy,不再有 hack
私有化交付场景下,如何将依赖的所有容器镜像,在用户无感知的情况下带入到私有化环境中并使用。
之前版本中, Sealer 社区尝试通过定制化 docker 配置项,在 docker daemon 层面实现镜像优先从内置镜像仓库拉取,内置镜像仓库不存在则从远程仓库拉取。
//daemon.json定义 { "mirror-registries":[ { "domain": "*", "mirrors": ["http://sea.hub:5000", "https://mirror.test2.com"] } ], "insecure-registries": ["sea.hub:5000", "mirror.test1.com"] }
上述方案确实很好的解决了镜像代理的问题,但其有一定的局限性:
- 不兼容用户已有 docker,要求环境内不存在或者卸载 docker
- 针对自定义 Docker 需求,同样需要进行如上的定制化配置
- 上述方案仅针对 Docker Engine 有效,对 containerd 等其他 container runtime 需要另做处理

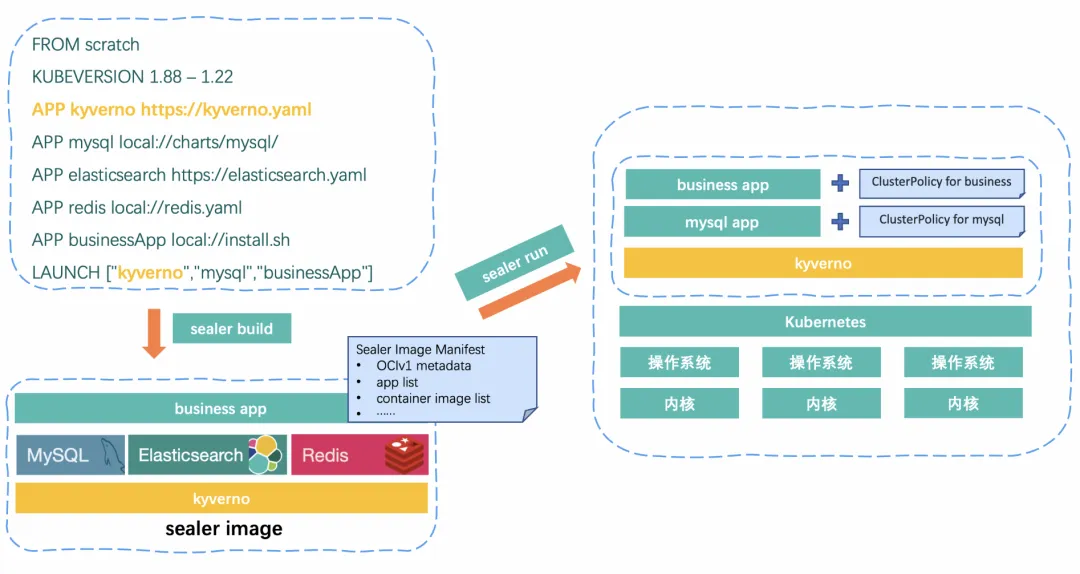

经过探索,Sealer 社区讨论后考虑基于社区标准的 kubernetes 扩展机制来解决上述问题。经过调研, Kyverno[6]是一款 Kubernetes policy 引擎,其可以以一种非常简单的配置方式支持对 Kubernetes 资源进行校验和修改能力,同时其针对 K0s,K3s 等 cluster runtime 同样适用。
未来规划
接下来,Sealer 将会继续秉持 以集群为基础,以应用为中心,继续在打包、交付和运行的道路上持续探索。
- 以应用为中心,构建完善的分布式应用协作生态。
- 丰富应用模型,支持应用基于声明能力一键化部署
- 覆盖应用全生命周期,甚至运维监控能力
- 扩大生态,如支持更多 APP 类型,如 helm chart/ kube resource/kustomize/shell/ OAM 应用等
- 打造社区版 Sealer Image Hub,为基于 Sealer Image 的协作提供平台
- 以集群为基础,构建稳定易用的集群交付能力。
- 一键支撑大规模集群,解决大规模集群的安装部署、镜像分发等问题
- 丰富 container runtime,cluster runtime 支持生态
- 目前社区同学已经正在推进 containerd container runtime 和 k0s、k3s cluster runtime 的支持
- 丰富集群运行时运维工具箱,例如证书签发、健康检查、OS 审计等
- 支持集群镜像的升级能力,帮助用户可以持续使用最新最稳定的集群镜像
