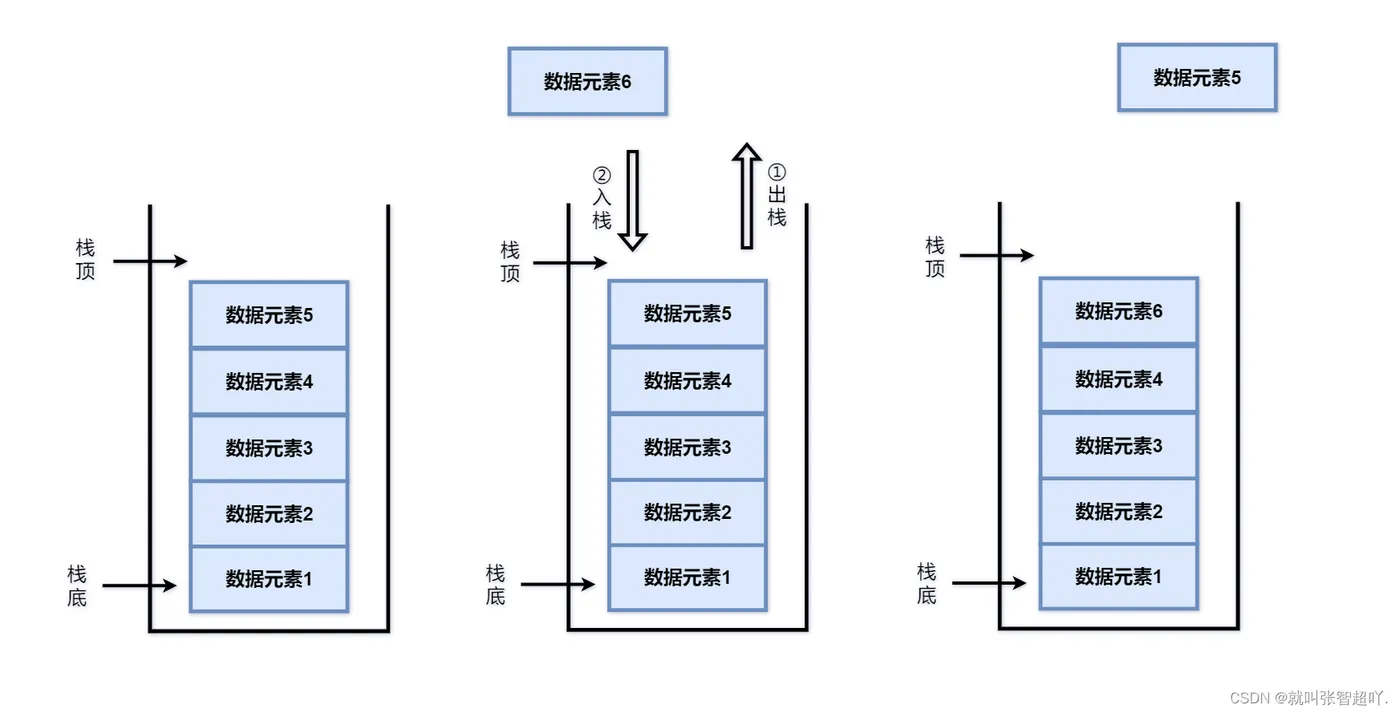

图示（以顺序栈为例）
●栈的类型定义
1.顺序栈存储结构的定义
typedef struct{ Selemtype *base; //栈底指针 Selemtype *top; // 栈顶指针 int stacksize; }Sqstack;
实例如下：
typedef struct { char key[10]; //学号 char name[20]; //姓名 int age; //年龄 }Selemtype; typedef struct{ Selemtype *base; Selemtype *top; int stacksize; }Sqstack;
2.链式栈存储结构的定义（对照与链式表理解记忆http://t.csdn.cn/ypvSH）
typedef struct Stacknode { Selemtype data; struct Stacknode* next; }Stacknode, * Linkstack; 实例如下： typedef struct { char key[10]; char name[20]; int age; }Selemtype; typedef struct Stacknode { Selemtype data; struct Stacknode* next; }Stacknode, * Linkstack;
●栈常用的基本操作
●顺序栈
1.顺序栈的初始化
int Initstack(Sqstack& S) { S.base = new Selemtype[maxsize]; if (!S.base) exit(0); S.top = S.base; S.stacksize = maxsize; return 1; }
2.判断顺序栈是否为空
int Stackempty(Sqstack& S) { if (S.top == S.base) return 1; else return 0; }
3.求顺序栈的长度
int Stacklength(Sqstack& S) { return (S.top - S.base); }
4.清空顺序栈
int Clearstack(Sqstack &S) { if (S.base) S.top = S.base; return 1; }
5.销毁顺序栈
int Destorystack(Sqstack& S) { if (S.base) { delete S.base; S.stacksize = 0; S.base = S.top = NULL; } return 1; }
6.顺序栈的入栈
int push(Sqstack& S, Selemtype e) { if (S.top - S.base == S.stacksize) return 0; *S.top = e; S.top++; return 1; }
7.顺序栈的出栈
int pop(Sqstack& S, Selemtype e) { if (S.top == S.base) return 0; --S.top; e = *S.top; return 1; }
●链式栈
1. 链栈的初始化
int Initstack(Linkstack& S) { S = NULL; return 1; }
2. 判断链栈是否为空
int Stackempty(Linkstack S) { if (S == NULL) return 1; else return 0; }
3. 链式栈的入栈
int Push(Linkstack& S, Selemtype e) { Linkstack p; p = new Stacknode; p->data = e; p->next = S; S = p; return 1; }
4. 链式栈的出栈
int Pop(Linkstack& S, Selemtype e) { if (S == NULL) return 0; Linkstack p; e = S->data; p = S; S = S->next; delete p; return 1; }
5.取栈顶元素
Selemtype Gettop(Linkstack &S) { if (S != NULL) return S->data; }
●简单案例

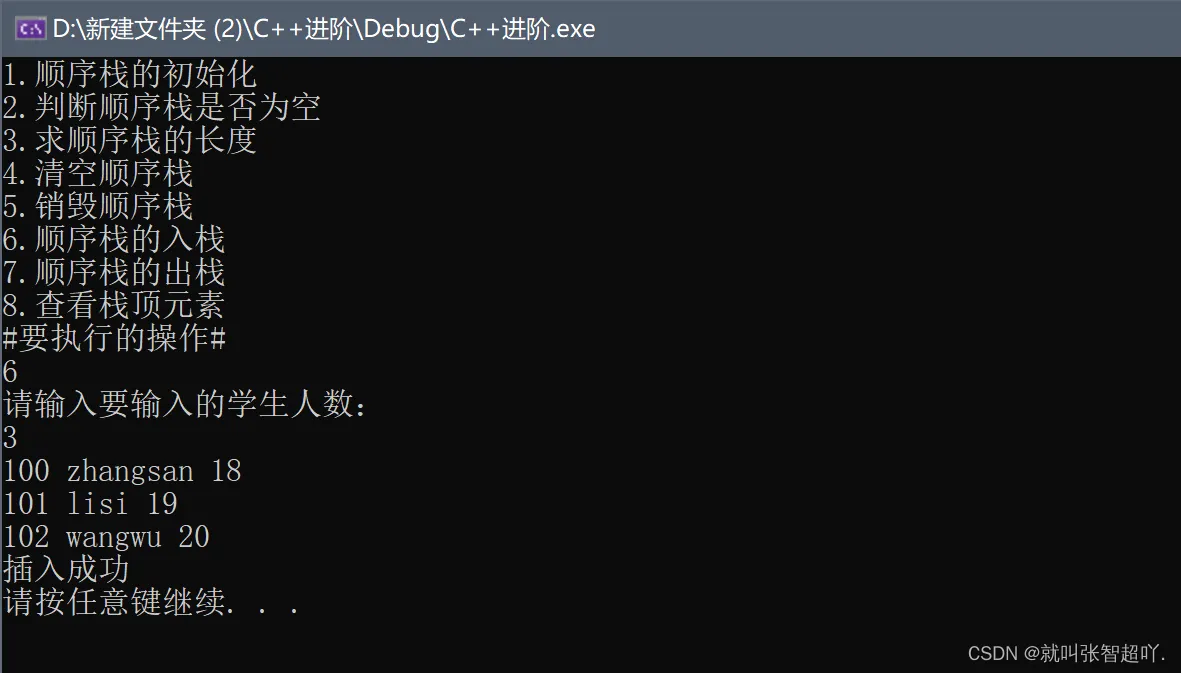

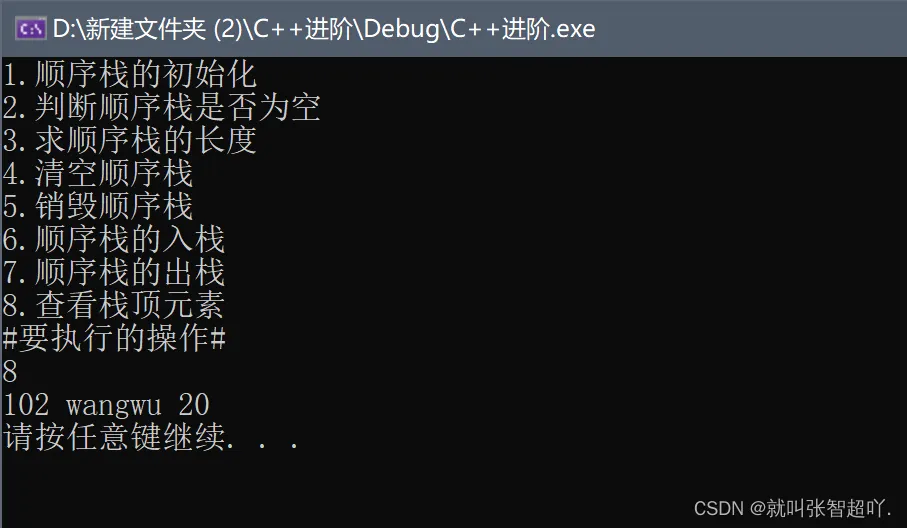

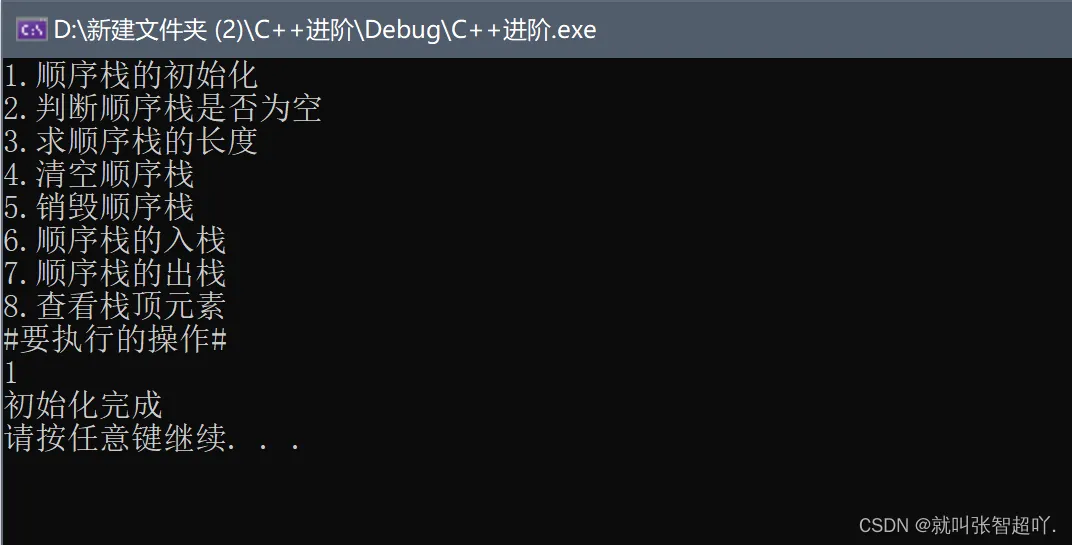

1.顺序栈（这里只实现用顺序栈存储3个学生的学号、姓名、年龄并且将其输出查看。若进行其他操作，对代码进行简单修改即可）
#include<iostream> #define maxsize 100 using namespace std; //数据准备 typedef struct { char key[10]; char name[20]; int age; }Selemtype; typedef struct{ Selemtype* top; Selemtype* base; int stacksize; }Sqstack; //顺序栈的初始化 int Initstack(Sqstack& S) { S.base = new Selemtype[maxsize]; if (!S.base) exit(0); S.top = S.base; S.stacksize = maxsize; return 1; } //判断顺序栈是否为空 int Stackempty(Sqstack& S) { if (S.top == S.base) return 1; else return 0; } //求顺序栈的长度 int Stacklength(Sqstack& S) { return (S.top - S.base); } //清空顺序栈 int Clearstack(Sqstack &S) { if (S.base) S.top = S.base; return 1; } //销毁顺序栈 int Destorystack(Sqstack& S) { if (S.base) { delete S.base; S.stacksize = 0; S.base = S.top = NULL; } return 1; } //顺序栈的入栈 int push(Sqstack& S, Selemtype e) { if (S.top - S.base == S.stacksize) return 0; *S.top = e; S.top++; return 1; } //顺序栈的出栈 int pop(Sqstack& S, Selemtype e) { if (S.top == S.base) return 0; --S.top; e = *S.top; return 1; } //查看栈顶元素 void top(Sqstack& S) { if (S.top == 0) exit(0); S.top--; cout << S.top->key << " " << S.top->name << " " << S.top->age << endl; } void showfunc() { cout << "1.顺序栈的初始化" << endl; cout << "2.判断顺序栈是否为空" << endl; cout << "3.求顺序栈的长度" << endl; cout << "4.清空顺序栈" << endl; cout << "5.销毁顺序栈" << endl; cout << "6.顺序栈的入栈" << endl; cout << "7.顺序栈的出栈" << endl; cout << "8.查看栈顶元素" << endl; } void text() { Sqstack S; Selemtype data; while(1) { showfunc(); cout << "#要执行的操作#" << endl; int n; cin >> n; switch (n) { case 1: Initstack(S); cout << "初始化完成" << endl; break; case 6: cout << "请输入要输入的学生人数：" << endl; int num; cin >> num; for (int i = 1; i <= num; i++) { cin >> data.key >> data.name >> data.age; push(S,data); } cout << "插入成功" << endl; break; case 8: top(S); break; } system("pause"); system("cls"); } } int main() { text(); }

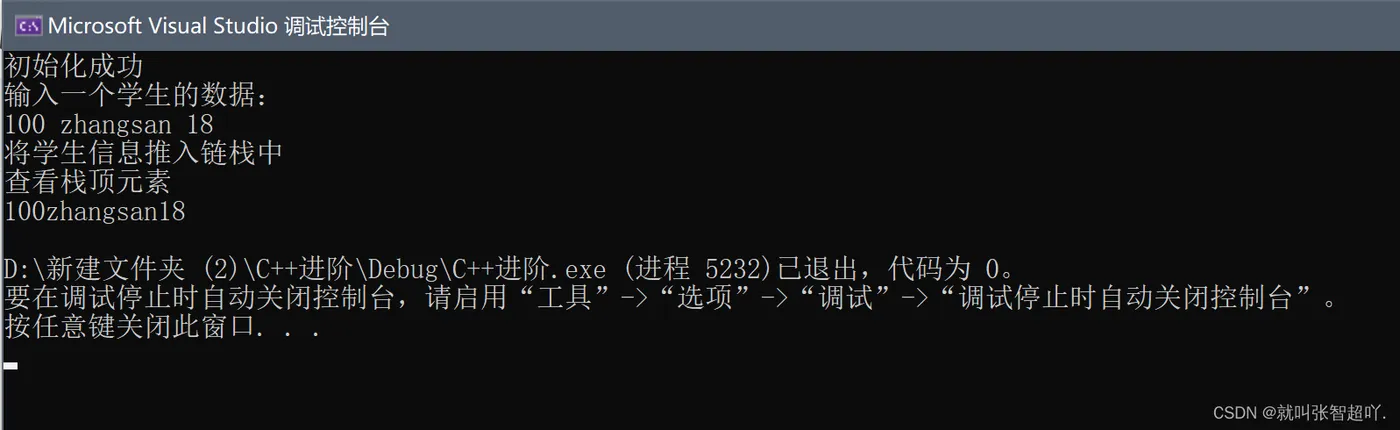

2.链式栈（不做过多演示，对代码进行简单操作即可。如：输入一个学生的信息，并查看）
#include<iostream> using namespace std; typedef struct { char key[10]; char name[20]; int age; }Selemtype; typedef struct Stacknode { Selemtype data; struct Stacknode* next; }Stacknode, * Linkstack; //链栈的初始化 int Initstack(Linkstack& S) { S = NULL; return 1; } //判断链栈是否为空 int Stackempty(Linkstack S) { if (S == NULL) return 1; else return 0; } //链式栈的入栈 int Push(Linkstack& S, Selemtype e) { Linkstack p; p = new Stacknode; p->data = e; p->next = S; S = p; return 1; } //链式栈的出栈 int Pop(Linkstack& S, Selemtype e) { if (S == NULL) return 0; Linkstack p; e = S->data; p = S; S = S->next; delete p; return 1; } //取栈顶元素 void Gettop(Linkstack &S) { if (S != NULL) cout << S->data.key<< S->data.name << S->data.age << endl; } void text() { //不做过多演示，对代码进行简单操作即可 Linkstack S; Selemtype Data; Initstack(S); cout << "初始化成功" << endl; cout << "输入一个学生的数据：" << endl; cin >> Data.key >> Data.name >> Data.age; cout << "将学生信息推入链栈中" << endl; Push(S,Data); cout << "查看栈顶元素" << endl; Gettop(S); } int main() { text(); }
