kubernetes 部署工具:sealos
tags: 部署
文章目录
kubernetes 部署工具:sealos
1. 简介
2. 特性
3. 安装 sealos
3.1 先决条件
3.2 二进制安装
3.2.1 amd64
3.2.2 arm64
3.3 apt 安装
3.4 yum 安装
3.5 源码安装
4. sealo 命令
4.1 参数
5. sealos 安装 kubernetes 集群
5.1 单机在线安装
5.2 多机在线安装
5.3 多机离线安装
5.3.1 新版本离线安装
5.3.2 旧版本离线安装
5.4 自定义安装
6. sealos 管理
6.1 部署应用
6.2 构建镜像
6.2.1 下载 helm chart
6.2.2 添加镜像列表
6.2.3 编写 Dockerfile
6.2.4 定制应用镜像
6.2.5 推送到镜像至 registry
6.2.6 运行集群镜像
6.3 增加节点
6.3.1 增加 node 节点
6.3.2 增加 master 节点
6.4 删除节点
6.4.1 删除 node 节点
6.4.2 删除 master 节点
6.5 清理集群
1. 简介
sealos 是以 kubernetes 为内核的云操作系统发行版

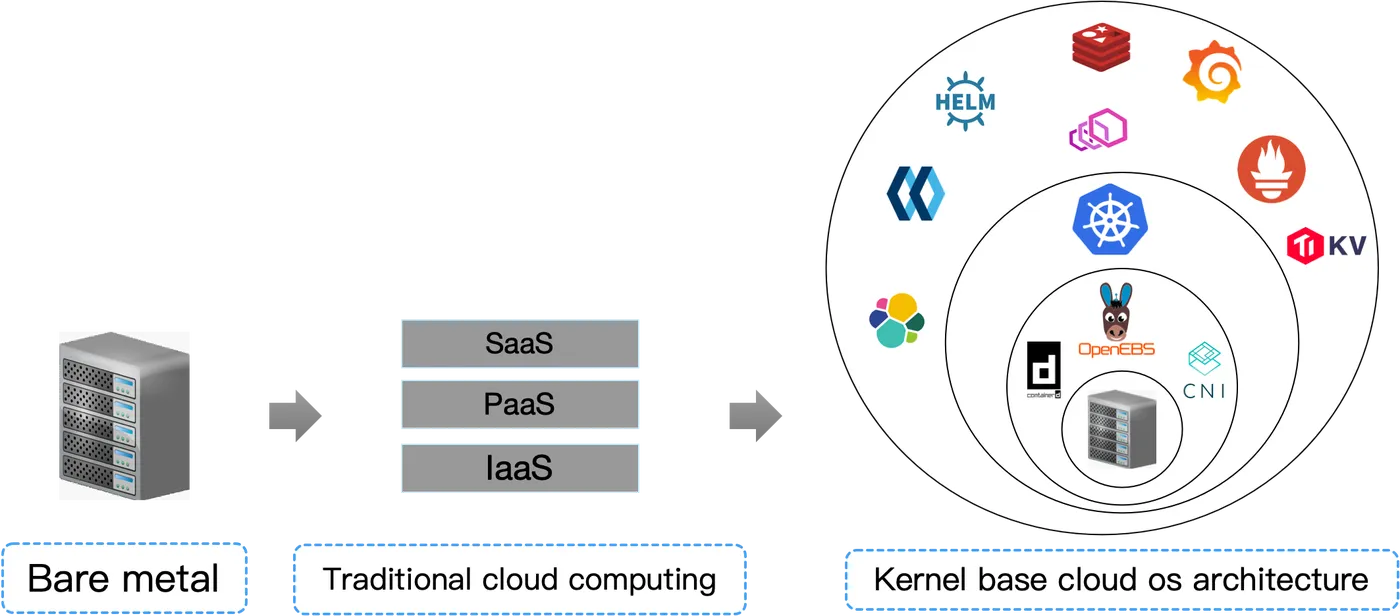

早期单机操作系统也是分层架构,后来才演变成 linux windows 这种内核架构,云操作系统从容器诞生之日起分层架构被击穿,未来也会朝着高内聚的"云内核"架构迁移
从现在开始,把你数据中心所有机器想象成一台"抽象"的超级计算机,sealos 就是用来管理这台超级计算机的操作系统,kubernetes 就是这个操作系统的内核!
云计算从此刻起再无 IaaS PaaS SaaS 之分,只有云操作系统驱动(CSI CNI CRI 实现) 云操作系统内核(kubernetes) 和 分布式应用组成。
2. 特性
管理集群生命周期
快速安装高可用 Kubernetes 集群
添加/删除节点
清理集群、备份与自动恢复等
下载和使用完全兼容 OCI 标准的分布式应用
OpenEBS, MinIO, Ingress, PostgreSQL, MySQL, Redis 等
定制化分布式应用
用 Dockerfile 构建分布式应用镜像,保存所有的依赖
发布分布式应用镜像到 Docker Hub
融合多个应用构建专属的云平台
sealos desktop
像使用 win11 一样使用云 (2022.9 惊艳上线)
3. 安装 sealos
3.1 先决条件
sealos 是一个简单的 go 二进制文件,可以安装在大多数 Linux 操作系统中。
以下是一些基本的安装要求:
每个集群节点应该有不同的主机名。 主机名不要带下划线。
所有节点的时间同步。
在kubernetes集群的第一个节点上运行sealos run命令,目前集群外的节点不支持集群安装。
建议使用干净的操作系统来创建集群。不要自己装 Docker
支持大多数 Linux 发行版,例如:Ubuntu CentOS Rocky linux。
在 dockerhub 支持 kubernetes 版本。
支持容器运行时是 containerd。发布的 CPU 架构架构是 amd64 和 arm64。
3.2 二进制安装
3.2.1 amd64
$ wget https://github.com/labring/sealos/releases/download/v4.0.0/sealos_4.0.0_linux_amd64.tar.gz \ && tar zxvf sealos_4.0.0_linux_amd64.tar.gz sealos && chmod +x sealos && mv sealos /usr/bin
3.2.2 arm64
$ wget https://github.com/labring/sealos/releases/download/v4.0.0/sealos_4.0.0_linux_arm64.tar.gz \ && tar zxvf sealos_4.0.0_linux_arm64.tar.gz sealos && chmod +x sealos && mv sealos /usr/bin
3.3 apt 安装
echo "deb [trusted=yes] https://apt.fury.io/labring/ /" | sudo tee /etc/apt/sources.list.d/labring.list sudo apt update sudo apt install sealos
3.4 yum 安装
sudo cat > /etc/yum.repos.d/labring.repo << EOF [fury] name=labring Yum Repo baseurl=https://yum.fury.io/labring/ enabled=1 gpgcheck=0 EOF sudo yum update sudo yum install sealos
3.5 源码安装
源码安装
前置依赖
- git
- golang 1.19+
- libgpgme-dev libbtrfs-dev libdevmapper-dev
如果在 arm64 环境下需要添加 :arm64 后缀
打包
# git clone the repo git clone https://github.com/labring/sealos.git # just make it make build
4. sealo 命令
4.1 参数
sealos -h simplest way install kubernetes tools. Usage: sealos [command] Available Commands: add add some nodes apply apply a kubernetes cluster build build an cloud image from a Kubefile completion Generate the autocompletion script for the specified shell create create a cluster without running the CMD delete delete some node docs generate API reference exec exec a shell command or script on all node. gen generate a Clusterfile help Help about any command images list cloud image inspect inspect the configuration of a application or image load load cloud image login login image repository logout logout image repository prune prune image pull pull cloud image push push cloud image reset simplest way to reset your cluster rmi remove one or more cloud images run simplest way to run your kubernetes HA cluster save save cloud image to a tar file scp copy local file to remote on all node. tag tag a image as a new one version version Flags: --cluster-root string cluster root directory (default "/var/lib/sealos") --debug enable debug logger -h, --help help for sealos Use "sealos [command] --help" for more information about a command.
5. sealos 安装 kubernetes 集群
5.1 单机在线安装
$ sealos run labring/kubernetes:v1.25.0 labring/calico:v3.24.1 --masters 192.168.10.61 -p redhat
输出:
2022-10-14T15:58:43 info Start to create a new cluster: master [192.168.10.61], worker [] 2022-10-14T15:58:43 info Executing pipeline Check in CreateProcessor. 2022-10-14T15:58:43 info checker:hostname [192.168.10.61:22] 2022-10-14T15:58:43 info checker:timeSync [192.168.10.61:22] 2022-10-14T15:58:43 info Executing pipeline PreProcess in CreateProcessor. c66205961bc8f650543cee92361987ce5e1ad77de4c85fc39e2b609734c6f3e8 e2122fc58fd32f1c93ac75da5c473aed746f1ad9b31a73d1f81a0579b96e775b default-8ehumfes default-ya7t5b2p 2022-10-14T15:58:43 info Executing pipeline RunConfig in CreateProcessor. 2022-10-14T15:58:43 info Executing pipeline MountRootfs in CreateProcessor. which: no docker in (/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/usr/local/go/bin:/root/go/bin:/root/bin) INFO [2022-10-14 15:58:47] >> check root,port,cri success Created symlink from /etc/systemd/system/multi-user.target.wants/containerd.service to /etc/systemd/system/containerd.service. INFO [2022-10-14 15:58:52] >> Health check containerd! INFO [2022-10-14 15:58:52] >> containerd is running INFO [2022-10-14 15:58:52] >> init containerd success Created symlink from /etc/systemd/system/multi-user.target.wants/image-cri-shim.service to /etc/systemd/system/image-cri-shim.service. INFO [2022-10-14 15:58:52] >> Health check image-cri-shim! INFO [2022-10-14 15:58:52] >> image-cri-shim is running INFO [2022-10-14 15:58:52] >> init shim success * Applying /usr/lib/sysctl.d/00-system.conf ... net.bridge.bridge-nf-call-ip6tables = 0 net.bridge.bridge-nf-call-iptables = 0 net.bridge.bridge-nf-call-arptables = 0 * Applying /usr/lib/sysctl.d/10-default-yama-scope.conf ... * Applying /usr/lib/sysctl.d/50-default.conf ... kernel.sysrq = 16 kernel.core_uses_pid = 1 kernel.kptr_restrict = 1 net.ipv4.conf.default.rp_filter = 1 net.ipv4.conf.all.rp_filter = 1 net.ipv4.conf.default.accept_source_route = 0 net.ipv4.conf.all.accept_source_route = 0 net.ipv4.conf.default.promote_secondaries = 1 net.ipv4.conf.all.promote_secondaries = 1 fs.protected_hardlinks = 1 fs.protected_symlinks = 1 * Applying /etc/sysctl.d/99-sysctl.conf ... * Applying /etc/sysctl.d/ipv6.conf ... net.ipv6.conf.all.disable_ipv6 = 1 * Applying /etc/sysctl.d/k8s.conf ... net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 net.ipv4.conf.all.rp_filter = 0 * Applying /etc/sysctl.conf ... net.ipv4.ip_forward = 1 INFO [2022-10-14 15:58:53] >> init kube success INFO [2022-10-14 15:58:53] >> init containerd rootfs success 2022-10-14T15:58:54 info Executing pipeline Init in CreateProcessor. 2022-10-14T15:58:54 info start to copy kubeadm config to master0 2022-10-14T15:58:55 info start to generate cert and kubeConfig... 2022-10-14T15:58:55 info start to generator cert and copy to masters... 2022-10-14T15:58:55 info apiserver altNames : {map[apiserver.cluster.local:apiserver.cluster.local kubernetes:kubernetes kubernetes.default:kubernetes.default kubernetes.default.svc:kubernetes.default.svc kubernetes.default.svc.cluster.local:kubernetes.default.svc.cluster.local localhost:localhost master1:master1] map[10.103.97.2:10.103.97.2 10.96.0.1:10.96.0.1 127.0.0.1:127.0.0.1 192.168.10.61:192.168.10.61]} 2022-10-14T15:58:55 info Etcd altnames : {map[localhost:localhost master1:master1] map[127.0.0.1:127.0.0.1 192.168.10.61:192.168.10.61 ::1:::1]}, commonName : master1 2022-10-14T15:59:04 info start to copy etc pki files to masters 2022-10-14T15:59:04 info start to create kubeconfig... 2022-10-14T15:59:07 info start to copy kubeconfig files to masters 2022-10-14T15:59:07 info start to copy static files to masters 2022-10-14T15:59:07 info start to apply registry Created symlink from /etc/systemd/system/multi-user.target.wants/registry.service to /etc/systemd/system/registry.service. INFO [2022-10-14 15:59:07] >> Health check registry! INFO [2022-10-14 15:59:07] >> registry is running INFO [2022-10-14 15:59:07] >> init registry success 2022-10-14T15:59:07 info start to init master0... 2022-10-14T15:59:07 info registry auth in node 192.168.10.61:22 2022-10-14T15:59:08 info domain sealos.hub:192.168.10.61 append success 2022-10-14T15:59:08 info domain apiserver.cluster.local:192.168.10.61 append success W1014 15:59:08.761092 19002 initconfiguration.go:119] Usage of CRI endpoints without URL scheme is deprecated and can cause kubelet errors in the future. Automatically prepending scheme "unix" to the "criSocket" with value "/run/containerd/containerd.sock". Please update your configuration! [init] Using Kubernetes version: v1.25.0 [preflight] Running pre-flight checks [WARNING FileExisting-socat]: socat not found in system path [preflight] Pulling images required for setting up a Kubernetes cluster [preflight] This might take a minute or two, depending on the speed of your internet connection [preflight] You can also perform this action in beforehand using 'kubeadm config images pull' [certs] Using certificateDir folder "/etc/kubernetes/pki" [certs] Using existing ca certificate authority [certs] Using existing apiserver certificate and key on disk [certs] Using existing apiserver-kubelet-client certificate and key on disk [certs] Using existing front-proxy-ca certificate authority [certs] Using existing front-proxy-client certificate and key on disk [certs] Using existing etcd/ca certificate authority [certs] Using existing etcd/server certificate and key on disk [certs] Using existing etcd/peer certificate and key on disk [certs] Using existing etcd/healthcheck-client certificate and key on disk [certs] Using existing apiserver-etcd-client certificate and key on disk [certs] Using the existing "sa" key [kubeconfig] Using kubeconfig folder "/etc/kubernetes" [kubeconfig] Using existing kubeconfig file: "/etc/kubernetes/admin.conf" [kubeconfig] Using existing kubeconfig file: "/etc/kubernetes/kubelet.conf" W1014 15:59:53.929922 19002 kubeconfig.go:249] a kubeconfig file "/etc/kubernetes/controller-manager.conf" exists already but has an unexpected API Server URL: expected: https://192.168.10.61:6443, got: https://apiserver.cluster.local:6443 [kubeconfig] Using existing kubeconfig file: "/etc/kubernetes/controller-manager.conf" W1014 15:59:54.931774 19002 kubeconfig.go:249] a kubeconfig file "/etc/kubernetes/scheduler.conf" exists already but has an unexpected API Server URL: expected: https://192.168.10.61:6443, got: https://apiserver.cluster.local:6443 [kubeconfig] Using existing kubeconfig file: "/etc/kubernetes/scheduler.conf" [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Starting the kubelet [control-plane] Using manifest folder "/etc/kubernetes/manifests" [control-plane] Creating static Pod manifest for "kube-apiserver" [control-plane] Creating static Pod manifest for "kube-controller-manager" [control-plane] Creating static Pod manifest for "kube-scheduler" [etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests" [wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s [apiclient] All control plane components are healthy after 13.505355 seconds [upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace [kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster [upload-certs] Skipping phase. Please see --upload-certs [mark-control-plane] Marking the node master1 as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers] [mark-control-plane] Marking the node master1 as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule] [bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles [bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes [bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials [bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token [bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster [bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace [kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key [addons] Applied essential addon: CoreDNS [addons] Applied essential addon: kube-proxy Your Kubernetes control-plane has initialized successfully! To start using your cluster, you need to run the following as a regular user: mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config Alternatively, if you are the root user, you can run: export KUBECONFIG=/etc/kubernetes/admin.conf You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ You can now join any number of control-plane nodes by copying certificate authorities and service account keys on each node and then running the following as root: kubeadm join apiserver.cluster.local:6443 --token <value withheld> \ --discovery-token-ca-cert-hash sha256:31904857384ceab70b28116385948f8d3381bf0de4c2951136cfbed1978e0bee \ --control-plane --certificate-key <value withheld> Then you can join any number of worker nodes by running the following on each as root: kubeadm join apiserver.cluster.local:6443 --token <value withheld> \ --discovery-token-ca-cert-hash sha256:31904857384ceab70b28116385948f8d3381bf0de4c2951136cfbed1978e0bee 2022-10-14T16:00:10 info Executing pipeline Join in CreateProcessor. 2022-10-14T16:00:10 info start to get kubernetes token... 2022-10-14T16:00:12 info Executing pipeline RunGuest in CreateProcessor. 2022-10-14T16:00:12 info guest cmd is kubectl create namespace tigera-operator namespace/tigera-operator created 2022-10-14T16:00:12 info guest cmd is helm install calico charts/calico --namespace tigera-operator NAME: calico LAST DEPLOYED: Fri Oct 14 16:00:16 2022 NAMESPACE: tigera-operator STATUS: deployed REVISION: 1 TEST SUITE: None 2022-10-14T16:00:20 info succeeded in creating a new cluster, enjoy it! 2022-10-14T16:00:20 info ___ ___ ___ ___ ___ ___ /\ \ /\ \ /\ \ /\__\ /\ \ /\ \ /::\ \ /::\ \ /::\ \ /:/ / /::\ \ /::\ \ /:/\ \ \ /:/\:\ \ /:/\:\ \ /:/ / /:/\:\ \ /:/\ \ \ _\:\~\ \ \ /::\~\:\ \ /::\~\:\ \ /:/ / /:/ \:\ \ _\:\~\ \ \ /\ \:\ \ \__\ /:/\:\ \:\__\ /:/\:\ \:\__\ /:/__/ /:/__/ \:\__\ /\ \:\ \ \__\ \:\ \:\ \/__/ \:\~\:\ \/__/ \/__\:\/:/ / \:\ \ \:\ \ /:/ / \:\ \:\ \/__/ \:\ \:\__\ \:\ \:\__\ \::/ / \:\ \ \:\ /:/ / \:\ \:\__\ \:\/:/ / \:\ \/__/ /:/ / \:\ \ \:\/:/ / \:\/:/ / \::/ / \:\__\ /:/ / \:\__\ \::/ / \::/ / \/__/ \/__/ \/__/ \/__/ \/__/ \/__/ Website :https://www.sealos.io/ Address :github.com/labring/sealos
如果安装失败,类似以下情况:
2022-10-14T15:18:06 info sync new version copy pki config: /var/lib/sealos/data/default/pki /root/.sealos/default/pki 2022-10-14T15:18:06 info sync new version copy etc config: /var/lib/sealos/data/default/etc /root/.sealos/default/etc 2022-10-14T15:18:06 info start to install app in this cluster 2022-10-14T15:18:06 info succeeded install app in this cluster: no change apps 2022-10-14T15:18:06 info start to scale this cluster 2022-10-14T15:18:06 info succeeded in scaling this cluster: no change nodes 2022-10-14T15:18:06 info ___ ___ ___ ___ ___ ___ /\ \ /\ \ /\ \ /\__\ /\ \ /\ \ /::\ \ /::\ \ /::\ \ /:/ / /::\ \ /::\ \ /:/\ \ \ /:/\:\ \ /:/\:\ \ /:/ / /:/\:\ \ /:/\ \ \ _\:\~\ \ \ /::\~\:\ \ /::\~\:\ \ /:/ / /:/ \:\ \ _\:\~\ \ \ /\ \:\ \ \__\ /:/\:\ \:\__\ /:/\:\ \:\__\ /:/__/ /:/__/ \:\__\ /\ \:\ \ \__\ \:\ \:\ \/__/ \:\~\:\ \/__/ \/__\:\/:/ / \:\ \ \:\ \ /:/ / \:\ \:\ \/__/ \:\ \:\__\ \:\ \:\__\ \::/ / \:\ \ \:\ /:/ / \:\ \:\__\ \:\/:/ / \:\ \/__/ /:/ / \:\ \ \:\/:/ / \:\/:/ / \::/ / \:\__\ /:/ / \:\__\ \::/ / \::/ / \/__/ \/__/ \/__/ \/__/ \/__/ \/__/ Website :https://www.sealos.io/ Address :github.com/labring/sealos
执行:sealos reset
重置清理失败的介质, 再根据具体报错纠正,尝试重新执行安装命令:
sealos run labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1 --masters 192.168.10.61 -p redhat
也可以创建集群的同时部署其他工具应用,例如:labring/helm:v3.8.2
sealos run labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1 --masters 192.168.10.61 -p redhat
查看集群状态
$ kubectl get pods -A -w #等待pod全部启动正常 $ kubectl get pods -A NAMESPACE NAME READY STATUS RESTARTS AGE calico-apiserver calico-apiserver-8d6558cbd-qf2sk 1/1 Running 0 2m54s calico-apiserver calico-apiserver-8d6558cbd-x6n8g 1/1 Running 0 2m54s calico-system calico-kube-controllers-85666c5b94-hbqcl 1/1 Running 0 3m47s calico-system calico-node-p4cq2 1/1 Running 0 3m47s calico-system calico-typha-5c9dd767c7-ww7fb 1/1 Running 0 3m47s calico-system csi-node-driver-tlcr4 2/2 Running 0 3m18s kube-system coredns-565d847f94-89v7j 1/1 Running 0 3m57s kube-system coredns-565d847f94-gmn9v 1/1 Running 0 3m57s kube-system etcd-master1 1/1 Running 1 4m9s kube-system kube-apiserver-master1 1/1 Running 1 4m9s kube-system kube-controller-manager-master1 1/1 Running 1 4m9s kube-system kube-proxy-jzjk4 1/1 Running 0 3m57s kube-system kube-scheduler-master1 1/1 Running 1 4m9s tigera-operator tigera-operator-6675dc47f4-9nw5f 1/1 Running 0 3m57s $ kubectl get no NAME STATUS ROLES AGE VERSION master1 Ready control-plane 97s v1.25.0
5.2 多机在线安装
安装一个高可用的 kubernetes 集群,并用 calico 作为网络插件
这里的 kubernetes:v1.25.0
和 calico:v3.24.1
就是存在 registry
里的集群镜像,完全兼容 OCI
标准
sealos run labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1 --masters 192.168.10.61 --nodes 192.168.10.62,192.168.10.63 -p redhat
5.3 多机离线安装
5.3.1 新版本离线安装
首先在有网络的环境中 save 安装包:
$ sealos pull labring/kubernetes:v1.25.0 $ labring/helm:v3.8.2 $ labring/calico:v3.24.1 $ sealos save -o kubernetes.tar labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1
拷贝 kubernetes.tar 到离线环境, 使用 load 命令导入镜像即可:
$ sealos load -i kubernetes.tar
剩下的安装方式与在线安装一致。
$ sealos images # 查看集群镜像是否导入成功 $ sealos run labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1 --masters 192.168.10.61 --nodes 192.168.10.62,192.168.211.63 -p redhat
5.3.2 旧版本离线安装
下载离线安装包:https://github.com/sealstore/cloud-kernel/releases/
该离线安装包更新截止2019年5月08日,版本已经较为老旧,建议采用在线安装。
下载sealos旧版本命令:
wget -c https://github.com/fanux/sealos/releases/download/v3.3.8/sealos && chmod +x sealos && mv sealos /usr/bin/
最新版本(4.1.3)sealos与旧版本参数已经有了很多的区别。
多 master HA 只需执行以下命令:
$ sealos init --master 192.168.10.61 \ --master 192.168.10.62 \ --master 192.168.10.63 \ --node 192.168.10.64 \ --user root \ --passwd your-server-password \ --version v1.14.1 \ --pkg-url /root/kube1.14.1.tar.gz
单 master 多 node:
$ sealos init --master 192.168.0.2 \ --node 192.168.0.5 \ --user root \ --passwd your-server-password \ --version v1.14.1 \ --pkg-url /root/kube1.14.1.tar.gz
使用免密钥或者密钥对:
$ sealos init --master 172.16.198.83 \ --node 172.16.198.84 \ --pkg-url https://sealyun.oss-cn-beijing.aliyuncs.com/free/kube1.15.0.tar.gz \ --pk /root/kubernetes.pem # this is your ssh private key file \ --version v1.15.0
查看集群状态
$ kubectl get node NAME STATUS ROLES AGE VERSION izj6cdqfqw4o4o9tc0q44rz Ready master 2m25s v1.14.1 izj6cdqfqw4o4o9tc0q44sz Ready master 119s v1.14.1 izj6cdqfqw4o4o9tc0q44tz Ready master 63s v1.14.1 izj6cdqfqw4o4o9tc0q44uz Ready <none> 38s v1.14.1 $ kubectl get pod --all-namespaces NAMESPACE NAME READY STATUS RESTARTS AGE kube-system calico-kube-controllers-5cbcccc885-9n2p8 1/1 Running 0 3m1s kube-system calico-node-656zn 1/1 Running 0 93s kube-system calico-node-bv5hn 1/1 Running 0 2m54s kube-system calico-node-f2vmd 1/1 Running 0 3m1s kube-system calico-node-tbd5l 1/1 Running 0 118s kube-system coredns-fb8b8dccf-8bnkv 1/1 Running 0 3m1s kube-system coredns-fb8b8dccf-spq7r 1/1 Running 0 3m1s kube-system etcd-izj6cdqfqw4o4o9tc0q44rz 1/1 Running 0 2m25s kube-system etcd-izj6cdqfqw4o4o9tc0q44sz 1/1 Running 0 2m53s kube-system etcd-izj6cdqfqw4o4o9tc0q44tz 1/1 Running 0 118s kube-system kube-apiserver-izj6cdqfqw4o4o9tc0q44rz 1/1 Running 0 2m15s kube-system kube-apiserver-izj6cdqfqw4o4o9tc0q44sz 1/1 Running 0 2m54s kube-system kube-apiserver-izj6cdqfqw4o4o9tc0q44tz 1/1 Running 1 47s kube-system kube-controller-manager-izj6cdqfqw4o4o9tc0q44rz 1/1 Running 1 2m43s kube-system kube-controller-manager-izj6cdqfqw4o4o9tc0q44sz 1/1 Running 0 2m54s kube-system kube-controller-manager-izj6cdqfqw4o4o9tc0q44tz 1/1 Running 0 63s kube-system kube-proxy-b9b9z 1/1 Running 0 2m54s kube-system kube-proxy-nf66n 1/1 Running 0 3m1s kube-system kube-proxy-q2bqp 1/1 Running 0 118s kube-system kube-proxy-s5g2k 1/1 Running 0 93s kube-system kube-scheduler-izj6cdqfqw4o4o9tc0q44rz 1/1 Running 1 2m43s kube-system kube-scheduler-izj6cdqfqw4o4o9tc0q44sz 1/1 Running 0 2m54s kube-system kube-scheduler-izj6cdqfqw4o4o9tc0q44tz 1/1 Running 0 61s kube-system kube-sealyun-lvscare-izj6cdqfqw4o4o9tc0q44uz 1/1 Running 0 86s
5.4 自定义安装
运行 sealos gen
生成一个 Clusterfile
。 例如:
$ sealos gen labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1 \ --masters 192.168.10.61,192.168.10.62,192.16.10.63 \ --nodes 192.168.10.64,192.168.10.65,192.168.10.66 --passwd xxx > Clusterfile
将 calico Clusterfile 追加到生成的 Clusterfile 后,然后更新集群配置。例如,要修改 pods 的 CIDR 范围,就可以修改 networking.podSubnet 和 spec.data.spec.calicoNetwork.ipPools.cidr 字段。 最终的 Clusterfile 会像是这样:
apiVersion: apps.sealos.io/v1beta1 kind: Cluster metadata: creationTimestamp: null name: default spec: hosts: - ips: - 192.168.0.2:22 - 192.168.0.3:22 - 192.168.0.4:22 roles: - master - amd64 - ips: - 192.168.0.5:22 - 192.168.0.6:22 - 192.168.0.7:22 roles: - node - amd64 image: - labring/kubernetes:v1.25.0 - labring/helm:v3.8.2 - labring/calico:v3.24.1 ssh: passwd: xxx pk: /root/.ssh/id_rsa port: 22 user: root status: {} --- apiVersion: kubeadm.k8s.io/v1beta2 kind: ClusterConfiguration networking: podSubnet: 10.160.0.0/12 --- apiVersion: apps.sealos.io/v1beta1 kind: Config metadata: name: calico spec: path: manifests/calico.yaml data: | apiVersion: operator.tigera.io/v1 kind: Installation metadata: name: default spec: # Configures Calico networking. calicoNetwork: # Note: The ipPools section cannot be modified post-install. ipPools: - blockSize: 26 # Note: Must be the same as podCIDR cidr: 10.160.0.0/12 encapsulation: IPIP natOutgoing: Enabled nodeSelector: all() nodeAddressAutodetectionV4: interface: "eth.*|en.*"
