2.3.2.5 IMX6ULL特殊的地方
Daisy Chain select IMX6ULL还有一个“Daisy Chain select”功能，

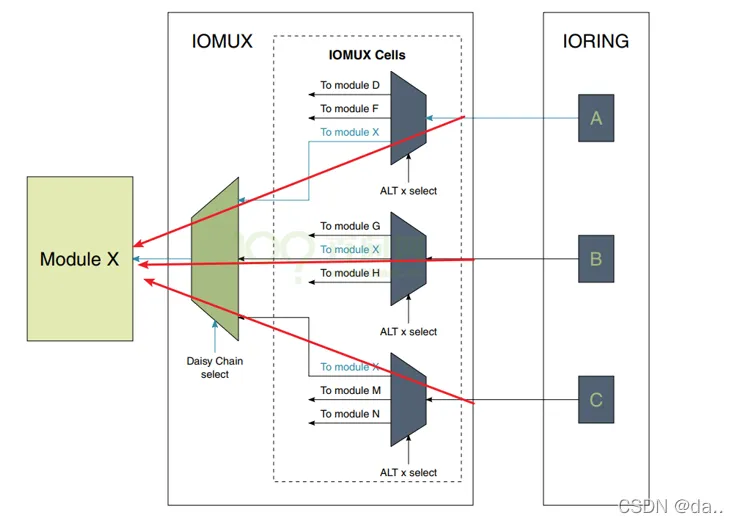

比如下图中： A、B、C三个引脚都可以连接到Module X，它们都可以驱动Module X。
使用哪一个引脚呢？还需要设置“Daisy Chain
select”，用来选择A、B、C之一。
Daisy Chain Select有什么用处呢？ 比如UART，它只有TXD、RXD两个引脚：RXD有外部电路输入。
能否让UART的TXD直接给RXD提供数据？可以！这就是回环，方便调试。 怎么做？

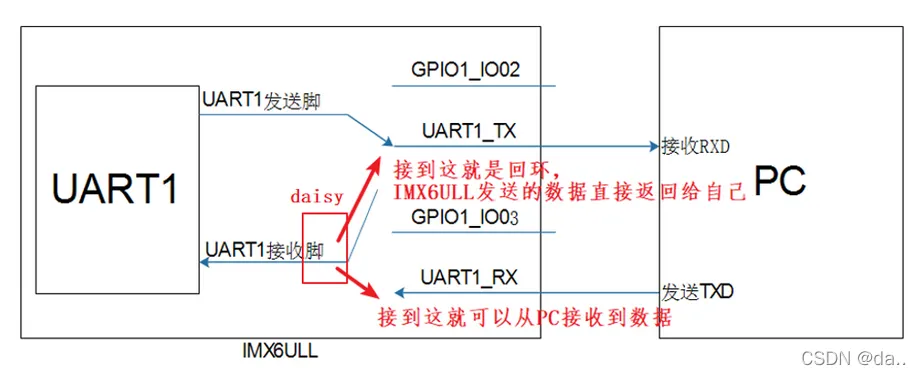

可以在外部电路把TXD接到RXD，也可以在芯片内部让RXD可以选择数据来源，如下图所示：

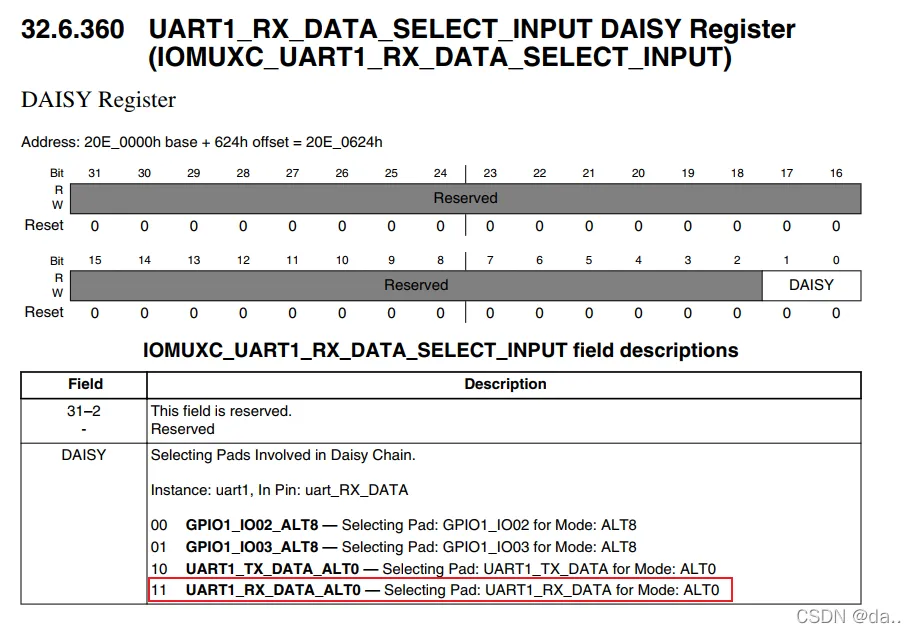

UART1_RX的输入选择
2.3.3 设置串口参数
2.3.3.1 设置波特率
波特率算公式：

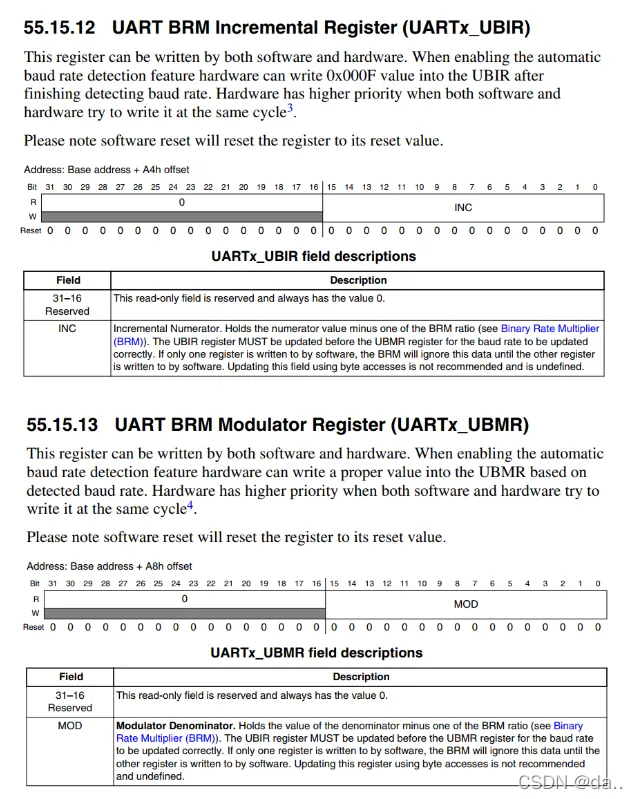

上述公式中，Ref Freq为80MHZ，BUMR和UBIR在寄存器中设置。
要先设置UBIR，再设置BUMR
UBIR、BUMR中的值，是实际值减1

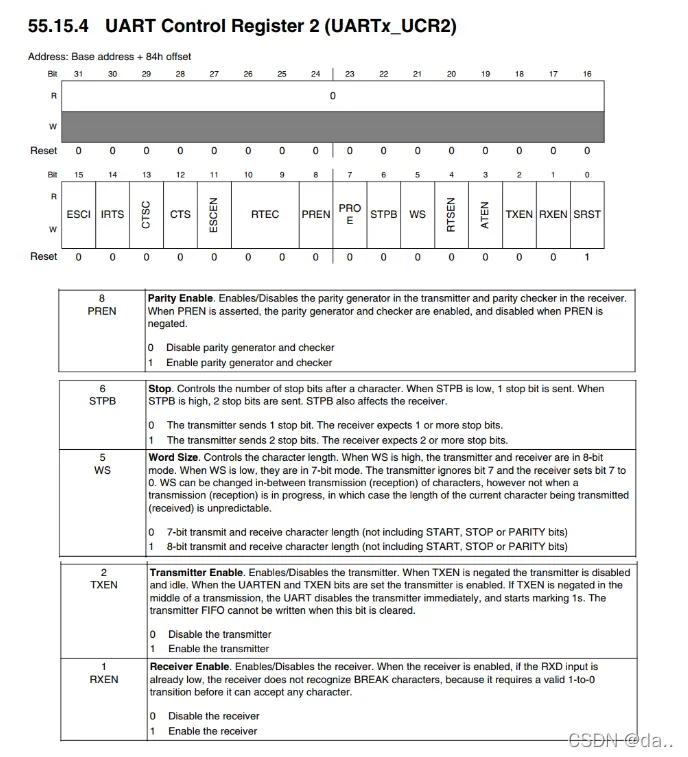

2.3.3.2 设置数据格式
比如数据位设置为8，无校验位，停止位设置为1。
2.3.3.3 IMX6ULL芯片要求必须设置

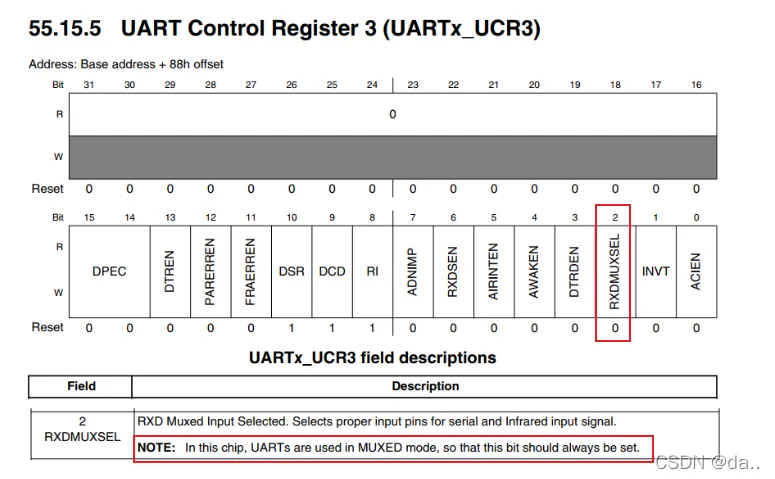

对于UART1_UCR3的bit2，必须设置为1，芯片要求的，没什么道理可讲：
2.3.4 根据状态寄存器读写数据
2.3.4.1 状态寄存器

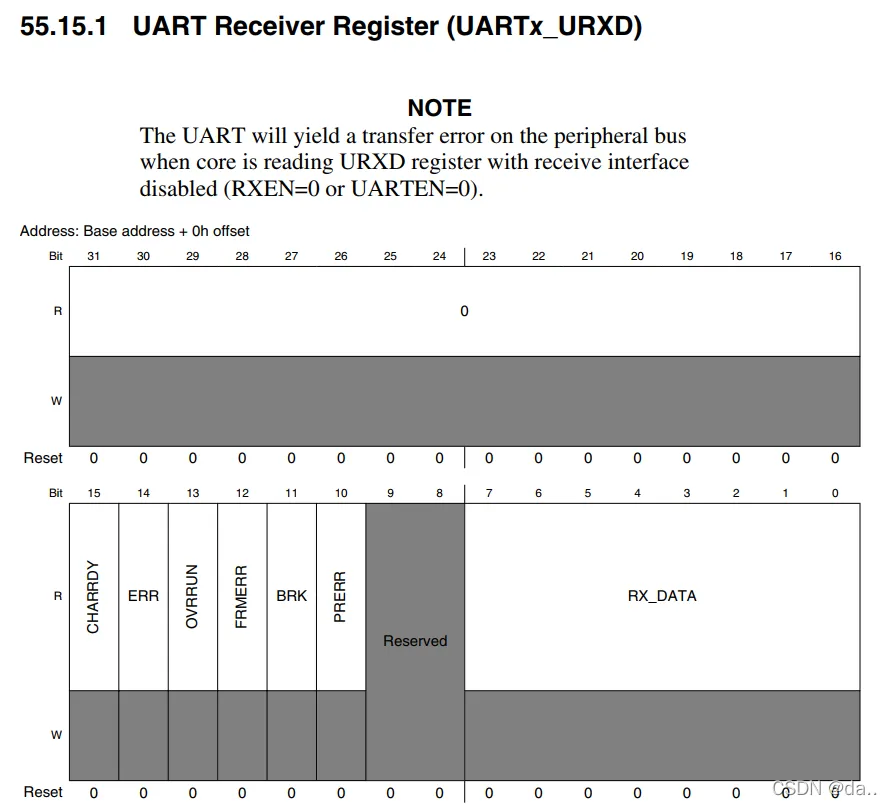

2.3.4.2 接收数据寄存器
读这个寄存器，就可读取串口数据，如下图：

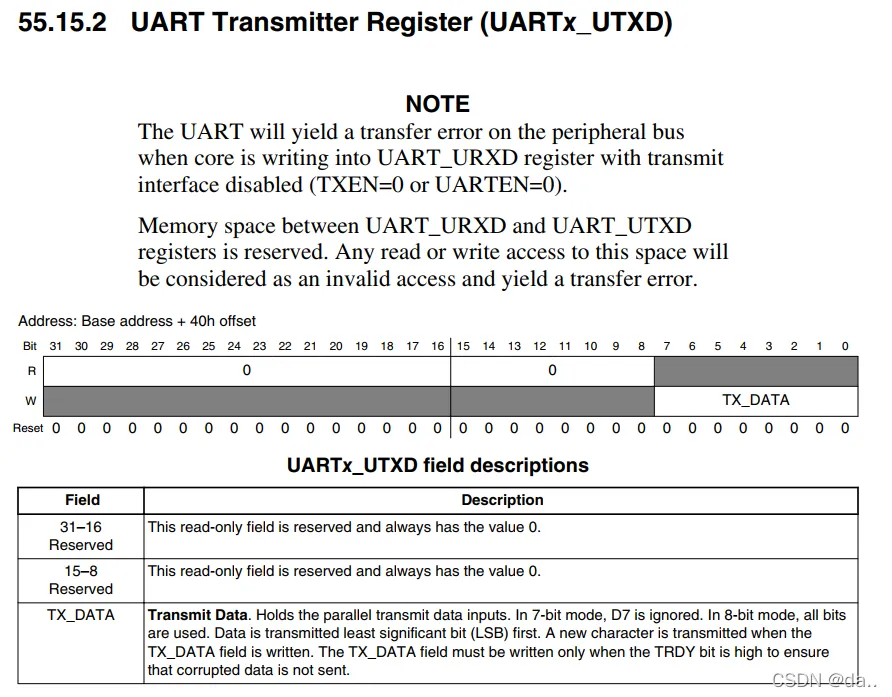

2.3.4.3 发送数据寄存器
2.3.4 寄存器地址
其他寄存器地址 用到的寄存器，从C代码定义如下：
volatile unsigned int *IOMUXC_SW_MUX_CTL_PAD_UART1_TX_DATA ; volatile unsigned int *IOMUXC_SW_MUX_CTL_PAD_UART1_RX_DATA ; volatile unsigned int *IOMUXC_UART1_RX_DATA_SELECT_INPUT ; volatile unsigned int *CCM_CSCDR1; volatile unsigned int *CCM_CCGR5; IOMUXC_SW_MUX_CTL_PAD_UART1_TX_DATA = (volatile unsigned int *)(0x20E0084); IOMUXC_SW_MUX_CTL_PAD_UART1_RX_DATA = (volatile unsigned int *)(0x20E0088); IOMUXC_UART1_RX_DATA_SELECT_INPUT = (volatile unsigned int *)(0x20E0624); CCM_CSCDR1 = (volatile unsigned int *)(0x020C4024); CCM_CCGR5 = (volatile unsigned int *)(0x020C407C);
UART1寄存器
UART1基地址：0x02020000，里面的寄存器用结构体来表示比较方便：
/*根据IMX6ULL芯片手册<<55.15 UART Memory Map/Register Definition>>的3608页，定义UART的结构体,*/ typedef struct { volatile unsigned int URXD; /**< UART Receiver Register, offset: 0x0 串口接收寄存器，偏移地址0x0 */ unsigned char RESERVED_0[60]; volatile unsigned int UTXD; /**< UART Transmitter Register, offset: 0x40 串口发送寄存器，偏移地址0x40*/ unsigned char RESERVED_1[60]; volatile unsigned int UCR1; /**< UART Control Register 1, offset: 0x80 串口控制寄存器1，偏移地址0x80*/ volatile unsigned int UCR2; /**< UART Control Register 2, offset: 0x84 串口控制寄存器2，偏移地址0x84*/ volatile unsigned int UCR3; /**< UART Control Register 3, offset: 0x88 串口控制寄存器3，偏移地址0x88*/ volatile unsigned int UCR4; /**< UART Control Register 4, offset: 0x8C 串口控制寄存器4，偏移地址0x8C*/ volatile unsigned int UFCR; /**< UART FIFO Control Register, offset: 0x90 串口FIFO控制寄存器，偏移地址0x90*/ volatile unsigned int USR1; /**< UART Status Register 1, offset: 0x94 串口状态寄存器1，偏移地址0x94*/ volatile unsigned int USR2; /**< UART Status Register 2, offset: 0x98 串口状态寄存器2，偏移地址0x98*/ volatile unsigned int UESC; /**< UART Escape Character Register, offset: 0x9C 串口转义字符寄存器，偏移地址0x9C*/ volatile unsigned int UTIM; /**< UART Escape Timer Register, offset: 0xA0 串口转义定时器寄存器 偏移地址0xA0*/ volatile unsigned int UBIR; /**< UART BRM Incremental Register, offset: 0xA4 串口二进制倍率增加寄存器 偏移地址0xA4*/ volatile unsigned int UBMR; /**< UART BRM Modulator Register, offset: 0xA8 串口二进制倍率调节寄存器 偏移地址0xA8*/ volatile unsigned int UBRC; /**< UART Baud Rate Count Register, offset: 0xAC 串口波特率计数寄存器 偏移地址0xAC*/ volatile unsigned int ONEMS; /**< UART One Millisecond Register, offset: 0xB0 串口一毫秒寄存器 偏移地址0xB0*/ volatile unsigned int UTS; /**< UART Test Register, offset: 0xB4 串口测试寄存器 偏移地址0xB4*/ volatile unsigned int UMCR; /**< UART RS-485 Mode Control Register, offset: 0xB8 串口485模式控制寄存器 偏移地址0xB8*/ } UART_Type; UART_Type *uart1 = (UART_Type *)0x02020000;
