import keras keras.__version__
首先加载之前保存的模型

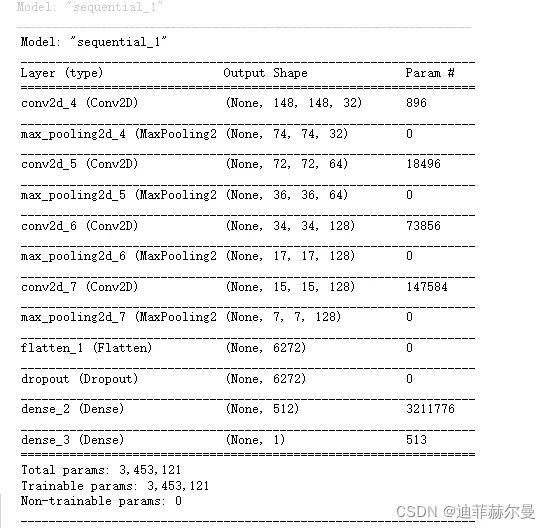

from keras.models import load_model model = load_model('cats_and_dogs_small_2.h5') model.summary() # As a reminder.
预处理单张图像
img_path = 'C:/Users/15790/Deep_Learning _with_Python/conv/cats_and_dogs_small/test/cats/cat.1700.jpg' # We preprocess the image into a 4D tensor from keras.preprocessing import image import numpy as np img = image.load_img(img_path, target_size=(150, 150)) img_tensor = image.img_to_array(img) img_tensor = np.expand_dims(img_tensor, axis=0) # Remember that the model was trained on inputs # that were preprocessed in the following way: img_tensor /= 255. # Its shape is (1, 150, 150, 3) print(img_tensor.shape)
#其形状为（1，150，150，3）
显示测试图像
import matplotlib.pyplot as plt plt.imshow(img_tensor[0]) plt.show()
用一个输入张量和一个输出张量列表将模型实例化
from keras import models # Extracts the outputs of the top 8 layers: layer_outputs = [layer.output for layer in model.layers[:8]] # Creates a model that will return these outputs, given the model input: activation_model = models.Model(inputs=model.input, outputs=layer_outputs)
以预测模式运行模型
# This will return a list of 5 Numpy arrays: # one array per layer activation activations = activation_model.predict(img_tensor)
对于输入的猫图像，第一个卷积层的激活如下：
first_layer_activation = activations[0] print(first_layer_activation.shape) （1，148，148，32）
这是一个大小为148 * 148 的特征图，有32个通道
将第四个通道可视化
import matplotlib.pyplot as plt plt.matshow(first_layer_activation[0, :, :, 3], cmap='viridis') plt.show()
将第七个通道可视化
plt.matshow(first_layer_activation[0, :, :, 30], cmap='viridis') plt.show()

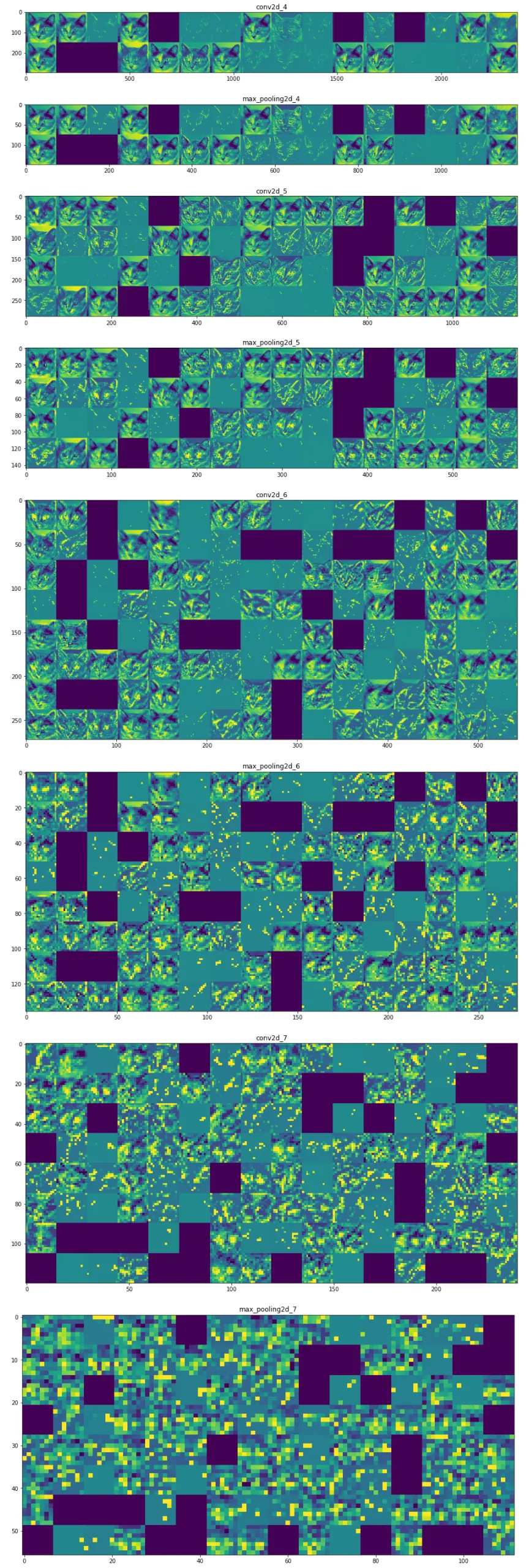

将每个中间激活的所有通道可视化
import keras # These are the names of the layers, so can have them as part of our plot layer_names = [] for layer in model.layers[:8]: layer_names.append(layer.name) images_per_row = 16 # Now let's display our feature maps for layer_name, layer_activation in zip(layer_names, activations): # This is the number of features in the feature map n_features = layer_activation.shape[-1] # The feature map has shape (1, size, size, n_features) size = layer_activation.shape[1] # We will tile the activation channels in this matrix n_cols = n_features // images_per_row display_grid = np.zeros((size * n_cols, images_per_row * size)) # We'll tile each filter into this big horizontal grid for col in range(n_cols): for row in range(images_per_row): channel_image = layer_activation[0, :, :, col * images_per_row + row] # Post-process the feature to make it visually palatable channel_image -= channel_image.mean() channel_image /= channel_image.std() channel_image *= 64 channel_image += 128 channel_image = np.clip(channel_image, 0, 255).astype('uint8') display_grid[col * size : (col + 1) * size, row * size : (row + 1) * size] = channel_image # Display the grid scale = 1. / size plt.figure(figsize=(scale * display_grid.shape[1], scale * display_grid.shape[0])) plt.title(layer_name) plt.grid(False) plt.imshow(display_grid, aspect='auto', cmap='viridis') plt.show()
为过滤器的可视化定义损失张量
from keras.applications.vgg16 import VGG16 from keras import backend as K model = VGG16(weights='imagenet', include_top=False) layer_name = 'block3_conv1' filter_index = 0 layer_output = model.get_layer(layer_name).output loss = K.mean(layer_output[:, :, :, filter_index])
获取损失相对于输入的梯度
grads = K.gradients(loss, model.input)[0]
梯度标准化
grads /= (K.sqrt(K.mean(K.square(grads))) + 1e-5)
给定Numpy输入值，得到Numpy的输出值
iterate = K.function([model.input], [loss, grads]) # Let's test it: import numpy as np loss_value, grads_value = iterate([np.zeros((1, 150, 150, 3))])
通过随机梯度下降让损失最大化
# We start from a gray image with some noise input_img_data = np.random.random((1, 150, 150, 3)) * 20 + 128. # Run gradient ascent for 40 steps step = 1. # this is the magnitude of each gradient update for i in range(40): # Compute the loss value and gradient value loss_value, grads_value = iterate([input_img_data]) # Here we adjust the input image in the direction that maximizes the loss input_img_data += grads_value * step
将张量转换为有效图像的使用函数
def deprocess_image(x): # normalize tensor: center on 0., ensure std is 0.1 x -= x.mean() x /= (x.std() + 1e-5) x *= 0.1 # clip to [0, 1] x += 0.5 x = np.clip(x, 0, 1) # convert to RGB array x *= 255 x = np.clip(x, 0, 255).astype('uint8') return x
生成过滤器可视化的函数
def generate_pattern(layer_name, filter_index, size=150): # Build a loss function that maximizes the activation # of the nth filter of the layer considered. layer_output = model.get_layer(layer_name).output loss = K.mean(layer_output[:, :, :, filter_index]) # Compute the gradient of the input picture wrt this loss grads = K.gradients(loss, model.input)[0] # Normalization trick: we normalize the gradient grads /= (K.sqrt(K.mean(K.square(grads))) + 1e-5) # This function returns the loss and grads given the input picture iterate = K.function([model.input], [loss, grads]) # We start from a gray image with some noise input_img_data = np.random.random((1, size, size, 3)) * 20 + 128. # Run gradient ascent for 40 steps step = 1. for i in range(40): loss_value, grads_value = iterate([input_img_data]) input_img_data += grads_value * step img = input_img_data[0] return deprocess_image(img)
生成某一层中所有过滤波器响应模式组成的网络
for layer_name in ['block1_conv1', 'block2_conv1', 'block3_conv1', 'block4_conv1']: size = 64 margin = 5 # This a empty (black) image where we will store our results. results = np.zeros((8 * size + 7 * margin, 8 * size + 7 * margin, 3)) for i in range(8): # iterate over the rows of our results grid for j in range(8): # iterate over the columns of our results grid # Generate the pattern for filter `i + (j * 8)` in `layer_name` filter_img = generate_pattern(layer_name, i + (j * 8), size=size) # Put the result in the square `(i, j)` of the results grid horizontal_start = i * size + i * margin horizontal_end = horizontal_start + size vertical_start = j * size + j * margin vertical_end = vertical_start + size results[horizontal_start: horizontal_end, vertical_start: vertical_end, :] = filter_img # Display the results grid plt.figure(figsize=(20, 20)) plt.imshow(results) plt.show()
