kubeadm部署k8s高可用集群 Kubernetes 1.18.14（其他版本替换版本号1.18.14即可）
集群角色
角色 |
IP地址 | 主机名 |
| master1 | 192.168.26.100 | k8s-01 |
| master2/node | 192.168.26.120 | k8s-02 |
| master3/node | 192.168.26.130 | k8s-03 |
| node | 192.168.26.170 | k8s-04 |
vip |
192.168.26.150 |
在192.168.26.100这台master操作
这里写个脚本
我们用master1机器做ssh免密
快速修改hosts和主机名
##先添加hosts文件 cat >> /etc/hosts <<EOF 192.168.26.100 k8s-01 192.168.26.120 k8s-02 192.168.26.130 k8s-03 192.168.26.170 k8s-04 EOF
[root@localhost ~]# yum -y install expect ##4台都安装 [root@localhost ~]# ssh-keygen ##一顿回车 生成公钥
vim ssh-hosts.sh #!/bin/bash ##下方ip地址和主机名修改成自己的 ##656768是密码也修改成自己的 for i in 192.168.26.100 192.168.26.120 192.168.26.130 192.168.26.170 k8s-02 k8s-03 k8s-04;do expect -c " spawn ssh-copy-id -i /root/.ssh/id_rsa.pub root@$i expect { \"*yes/no*\" {send \"yes\r\"; exp_continue} \"*password*\" {send \"656768\r\"; exp_continue} \"*Password*\" {send \"656768\r\";} } " done for host_name in k8s-02 k8s-03 k8s-04;do scp /etc/hosts $host_name:/etc/ done
上面的脚本已经同步了hosts文件，下一步修改对应的主机名
hostnamectl set-hostname k8s-01 ##先修改自己的主机名 ssh k8s-02 ##第二台 hostnamectl set-hostname k8s-02 exit ssh k8s-03 ##第三台 hostnamectl set-hostname k8s-03 exit ssh k8s-04 ##第四台 hostnamectl set-hostname k8s-04 exit 回来100节点 ping检查以下是否有误 [root@k8s-01 ~]# ping k8s-01 PING k8s-01 (192.168.26.100) 56(84) bytes of data. 64 bytes from k8s-01 (192.168.26.100): icmp_seq=1 ttl=64 time=0.020 ms [root@k8s-01 ~]# ping k8s-02 PING k8s-02 (192.168.26.120) 56(84) bytes of data. 64 bytes from k8s-02 (192.168.26.120): icmp_seq=1 ttl=64 time=0.252 ms [root@k8s-01 ~]# ping k8s-03 PING k8s-03 (192.168.26.130) 56(84) bytes of data. 64 bytes from k8s-03 (192.168.26.130): icmp_seq=1 ttl=64 time=0.234 ms [root@k8s-01 ~]# ping k8s-04 PING k8s-04 (192.168.26.170) 56(84) bytes of data. 64 bytes from k8s-04 (192.168.26.170): icmp_seq=1 ttl=64 time=0.151 ms
ok 初始环境准备完事，开始修改各节点系统配置
1. 配置系统环境 （全部机器执行）
以下操作默认每台机器都要执行
##可以每个步骤手敲，也可以直接建个脚本scp到各台机器，自动部署 vim k8s_init.sh #!/bin/bash ##安装相关软件 yum install -y epel-release conntrack ipvsadm ipset jq sysstat curl iptables libseccomp wait ##关闭防火墙firewalld systemctl stop firewalld && systemctl disable firewalld wait ##关闭iptables iptables -F && iptables -X && iptables -F -t nat && iptables -X -t nat && iptables -P FORWARD ACCEPT wait ##关闭防火墙SELINUX setenforce 0 sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config wait ##关闭swap分区 swapoff -a sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab wait ##开启网络转发 cat > /etc/sysconfig/modules/ipvs.modules <<EOF #!/bin/bash modprobe -- ip_vs modprobe -- ip_vs_rr modprobe -- ip_vs_wrr modprobe -- ip_vs_sh modprobe -- nf_conntrack_ipv4 modprobe -- br_netfilter EOF wait chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules wait ##系统配置 cat << EOF | tee /etc/sysctl.d/k8s.conf net.bridge.bridge-nf-call-iptables=1 net.bridge.bridge-nf-call-ip6tables=1 net.ipv4.ip_forward=1 net.ipv4.tcp_tw_recycle=0 vm.swappiness=0 vm.overcommit_memory=1 vm.panic_on_oom=0 fs.inotify.max_user_watches=89100 fs.file-max=52706963 fs.nr_open=52706963 net.ipv6.conf.all.disable_ipv6=1 net.netfilter.nf_conntrack_max=2310720 EOF wait sysctl -p /etc/sysctl.d/k8s.conf ##安装docker环境 yum remove -y docker \ docker-client \ docker-client-latest \ docker-common \ docker-latest \ docker-latest-logrotate \ docker-logrotate \ docker-selinux \ docker-engine-selinux \ docker-engine wait yum install -y yum-utils device-mapper-persistent-data lvm2 yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo yum makecache fast yum list docker-ce --showduplicates | sort -r yum -y install docker-ce-18.09.9-3.el7 systemctl start docker systemctl enable docker sed -i "13i ExecStartPost=/usr/sbin/iptables -P FORWARD ACCEPT" /usr/lib/systemd/system/docker.service wait ##配置加速器 tee /etc/docker/daemon.json <<-'EOF' { "registry-mirrors": ["https://bk6kzfqm.mirror.aliyuncs.com"], "exec-opts": ["native.cgroupdriver=systemd"], "log-driver": "json-file", "log-opts": { "max-size": "100m" }, "storage-driver": "overlay2", "storage-opts": [ "overlay2.override_kernel_check=true" ] } EOF wait ##重启docker systemctl daemon-reload systemctl restart docker wait #安装k8s组件 cat <<EOF > /etc/yum.repos.d/kubernetes.repo [kubernetes] name=Kubernetes baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/ enabled=1 gpgcheck=0 repo_gpgcheck=0 gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg EOF #重建yum缓存，输入y添加证书认证 wait yum makecache fast wait yum install -y kubelet-1.18.14 kubectl-1.18.14 kubeadm-1.18.14 wait ##将 Container Runtime、kubelet 配置成使用 systemd 来作为 cgroup 驱动 echo "KUBELET_EXTRA_ARGS=--cgroup-driver=systemd" > /etc/sysconfig/kubelet wait systemctl daemon-reload systemctl restart kubelet systemctl enable --now kubelet systemctl status kubelet #安装bash自动补全插件 yum install bash-completion -y #设置kubectl与kubeadm命令补全，下次login生效 kubectl completion bash > /etc/bash_completion.d/kubectl kubeadm completion bash > /etc/bash_completion.d/kubeadm
2.master节点配置高可用 （3台master机器执行）
1.安装/配置keepalived haproxy
yum install keepalived haproxy -y
##修改配置文件 ##修改k8s-01的配置文件 vim /etc/keepalived/keepalived.conf
global_defs { router_id LVS_DEVEL_01 //此处变量应保持唯一 } vrrp_script chk_apiserver { script "/etc/keepalived/check_apiserver.sh" //健康检查脚本 interval 8 weight -5 fall 3 rise 2 } vrrp_instance VI_1 { state MASTER //主节点 interface eth0 //网卡名 mcast_src_ip 192.168.26.100 //本机ip virtual_router_id 51 //两台主机需保持一致 priority 150 //权重，主节点应大于备份节点 advert_int 1 authentication { auth_type PASS auth_pass K8SHA_KA_AUTH } virtual_ipaddress { 192.168.26.150/24 //虚拟ip } track_script { chk_apiserver } }
k8s-02和k8s-03类似
#vi /etc/keepalived/keepalived.conf global_defs { router_id LVS_DEVEL_02 } vrrp_script chk_apiserver { script "/etc/keepalived/check_apiserver.sh" interval 8 weight -5 fall 3 rise 2 } vrrp_instance VI_1 { state BACKUP //备份节点 interface eth0 mcast_src_ip 192.168.26.120 virtual_router_id 51 priority 100 advert_int 1 authentication { auth_type PASS auth_pass K8SHA_KA_AUTH } virtual_ipaddress { 192.168.26.150/24 } track_script { chk_apiserver } }
2.编辑3台master的检测脚本
#vi /etc/keepalived/check_apiserver.sh err=0 for k in $(seq 1 5) do check_code=$(pgrep kube-apiserver) if [[ $check_code == "" ]]; then err=$(expr $err + 1) sleep 5 continue else err=0 break fi done if [[ $err != "0" ]]; then echo "systemctl stop keepalived" /usr/bin/systemctl stop keepalived exit 1 else exit 0 fi
3.配置haproxy.cfg (3台master都要操作)
cat > /etc/haproxy/haproxy.cfg << EOF #--------------------------------------------------------------------- # Global settings #--------------------------------------------------------------------- global # to have these messages end up in /var/log/haproxy.log you will # need to: # 1) configure syslog to accept network log events. This is done # by adding the '-r' option to the SYSLOGD_OPTIONS in # /etc/sysconfig/syslog # 2) configure local2 events to go to the /var/log/haproxy.log # file. A line like the following can be added to # /etc/sysconfig/syslog # # local2.* /var/log/haproxy.log # log 127.0.0.1 local2 chroot /var/lib/haproxy pidfile /var/run/haproxy.pid maxconn 4000 user haproxy group haproxy daemon # turn on stats unix socket stats socket /var/lib/haproxy/stats #--------------------------------------------------------------------- # common defaults that all the 'listen' and 'backend' sections will # use if not designated in their block #--------------------------------------------------------------------- defaults mode http log global option httplog option dontlognull option http-server-close option forwardfor except 127.0.0.0/8 option redispatch retries 3 timeout http-request 10s timeout queue 1m timeout connect 10s timeout client 1m timeout server 1m timeout http-keep-alive 10s timeout check 10s maxconn 3000 #--------------------------------------------------------------------- # kubernetes apiserver frontend which proxys to the backends #--------------------------------------------------------------------- frontend kubernetes-apiserver mode tcp bind *:16443 option tcplog default_backend kubernetes-apiserver #--------------------------------------------------------------------- # round robin balancing between the various backends #--------------------------------------------------------------------- backend kubernetes-apiserver mode tcp balance roundrobin server k8s-01 192.168.26.100:6443 check server k8s-02 192.168.26.120:6443 check server k8s-03 192.168.26.130:6443 check #--------------------------------------------------------------------- # collection haproxy statistics message #--------------------------------------------------------------------- listen stats bind *:1080 stats auth admin:awesomePassword stats refresh 5s stats realm HAProxy\ Statistics stats uri /admin?stats EOF
4.启动和检查两个服务
systemctl enable keepalived.service systemctl start keepalived.service systemctl status keepalived.service ip a s eth0 [root@k8s-01 ~]# ip a s eth0 2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000 link/ether 00:0c:29:bf:bf:a5 brd ff:ff:ff:ff:ff:ff inet 192.168.26.100/24 brd 192.168.26.255 scope global noprefixroute eth0 valid_lft forever preferred_lft forever inet 192.168.26.150/24 scope global secondary eth0 valid_lft forever preferred_lft forever
systemctl enable haproxy systemctl start haproxy systemctl status haproxy ss -anput |grep haproxy [root@k8s-01 ~]# ss -anput |grep haproxy udp UNCONN 0 0 *:56573 *:* users:(("haproxy",pid=69064,fd=6),("haproxy",pid=69063,fd=6)) tcp LISTEN 0 128 *:1080 *:* users:(("haproxy",pid=69064,fd=7)) tcp LISTEN 0 128 *:16443 *:* users:(("haproxy",pid=69064,fd=5))
3.初始化集群（k8s-01操作)
kubeadm init \ --control-plane-endpoint "192.168.26.150:16443" \ --kubernetes-version "1.18.14" \ --pod-network-cidr "10.0.0.0/8" \ --service-cidr "172.16.0.0/16" \ --token "abcdef.0123456789abcdef" \ --token-ttl "0" \ --image-repository registry.aliyuncs.com/google_containers \ --upload-certs ##上面的命令会有格式问题请勿直接粘贴，用下面粘贴版本 kubeadm init --control-plane-endpoint "192.168.26.150:16443" --kubernetes-version "1.18.14" --pod-network-cidr "10.0.0.0/8" --service-cidr "172.16.0.0/16" --token "abcdef.0123456789abcdef" --token-ttl "0" --image-repository registry.aliyuncs.com/google_containers --upload-certs ##初始命令会拉取集群镜像根据网络不同，等待时间不同，耐心等待
参数解释：
–control-plane-endpoint：为控制平面指定一个固定的虚拟IP地址。其值应与负载均衡vip一致，若负载均衡与master位于同一主机，请指定与6443不同的端口号。
–kubernetes-version：指定kubernetes版本号。
–pod-network-cidr：指定pod网络的IP地址集。
–service-cidr：为service VIPs指定IP地址集。
–token：用于控制平面和节点之间建立双向结构。
–token-ttl：设置token过期时间。“0”表示不过期。
–image-repository ：指定拉取控制平面镜像的仓库。
–upload-certs：上传控制平面证书到kubeadm-certs Secret。
##输出以下结果说明成功 ##如果失败，检查vip是否启动成功 ##kubeadm reset 后重新执行初始化 Your Kubernetes control-plane has initialized successfully! To start using your cluster, you need to run the following as a regular user: ##这段用来配置kubectl管理集群（只要安装了kubectl就能配置管理集群） mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config ##提示没有admin.conf 就从master机器scp一份 sudo chown $(id -u):$(id -g) $HOME/.kube/config You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ You can now join any number of the control-plane node running the following command on each as root: ##这段用来加入master节点 kubeadm join 192.168.26.150:16443 --token abcdef.0123456789abcdef \ --discovery-token-ca-cert-hash sha256:e7fd94ec50ce57faea088f3358808f7155ffab364cac8ee2a4c8e66a8f7b6f8f \ --control-plane --certificate-key 0b6faa9d215fd51d97587ece45480abe58b88607c8cb776fc85d0edd354c8dab Please note that the certificate-key gives access to cluster sensitive data, keep it secret! As a safeguard, uploaded-certs will be deleted in two hours; If necessary, you can use "kubeadm init phase upload-certs --upload-certs" to reload certs afterward. Then you can join any number of worker nodes by running the following on each as root: ##这段用来加入node节点 kubeadm join 192.168.26.150:16443 --token abcdef.0123456789abcdef \ --discovery-token-ca-cert-hash sha256:e7fd94ec50ce57faea088f3358808f7155ffab364cac8ee2a4c8e66a8f7b6f8f
##配置kubectl管理 mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config
master节点用这段
node节点复制这段
4.其他节点加入集群
k8s-02
kubeadm join 192.168.26.150:16443 --token abcdef.0123456789abcdef \ --discovery-token-ca-cert-hash sha256:e7fd94ec50ce57faea088f3358808f7155ffab364cac8ee2a4c8e66a8f7b6f8f \ --control-plane --certificate-key 0b6faa9d215fd51d97587ece45480abe58b88607c8cb776fc85d0edd354c8dab
##配置kubectl管理 mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config
k8s-03
kubeadm join 192.168.26.150:16443 --token abcdef.0123456789abcdef \ --discovery-token-ca-cert-hash sha256:e7fd94ec50ce57faea088f3358808f7155ffab364cac8ee2a4c8e66a8f7b6f8f \ --control-plane --certificate-key 0b6faa9d215fd51d97587ece45480abe58b88607c8cb776fc85d0edd354c8dab
##配置kubectl管理 mkdir -p $HOME/.kube cp -i /etc/kubernetes/admin.conf $HOME/.kube/config chown $(id -u):$(id -g) $HOME/.kube/config
k8s-04（node节点）
kubeadm join 192.168.26.150:16443 --token abcdef.0123456789abcdef \ --discovery-token-ca-cert-hash sha256:e7fd94ec50ce57faea088f3358808f7155ffab364cac8ee2a4c8e66a8f7b6f8f
如果需要在node节点管理集群 也可以同上配置kubectl管理即可
这里我就跳过
查看集群状态，NotReady说明正常，因为还没配置网络
5.配置网络calico （k8s-01执行）
wget https://docs.projectcalico.org/v3.15/manifests/calico.yaml vim calico.yaml ## 搜ip地址192 大概是3580行 修改成刚刚初始化的pod网段后删除掉注释 保存退出

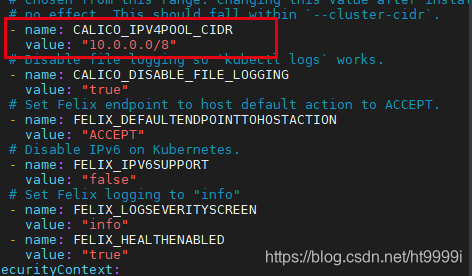

修改后效果
kubectl apply -f calico.yaml ##等待calico的pod启动成功 需要下载镜像 kubectl get nodes ##查看集群网络状态 $ kubectl get nodes NAME STATUS ROLES AGE VERSION k8s-01 Ready master 19m v1.18.14 k8s-02 Ready master 14m v1.18.14 k8s-03 Ready master 14m v1.18.14 k8s-04 Ready <none> 6m30s v1.18.14
6.修改标签，并且清除污点让master节点能运行pod
kubectl taint nodes <node-name> node-role.kubernetes.io/master- ##删除污点
kubectl label nodes <node-name> node-role.kubernetes.io/node= ##给节点打标签
kubectl get nodes ##查看集群状态 NAME STATUS ROLES AGE VERSION k8s-01 Ready master 19m v1.18.14 k8s-02 Ready master,node 14m v1.18.14 k8s-03 Ready master,node 14m v1.18.14 k8s-04 Ready node 6m30s v1.18.14
