建造者模式实例数据拼接 java生成真实XML文件

导出数据的应用框架，通常对于具体的导出内容和格式是有要求的：
分成三部分，文件头、文件体、文件尾
文件头：分公司编号、导出数据的日期，对于文本格式，中间用逗号分离
文件体：表名称，然后分条描述数据。。。。
文件尾：输出人
不管是输出文本文件，还是输出XML文件，步骤基本一致
先拼接文件头的内容
然后拼接文件体的内容
在拼接文件尾的内容
最后把拼接好的内容输出去成为文件

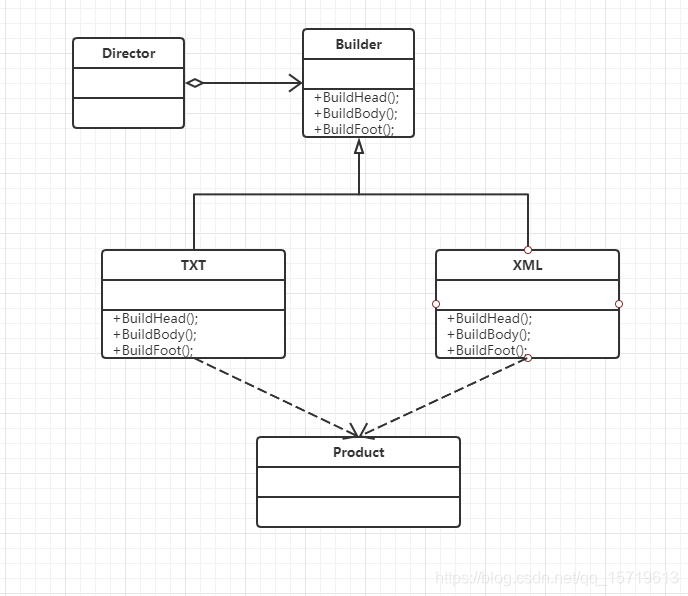

Builder

package 建造者模式;

public abstract class Builder {
    protected String id;
    protected String date;
    protected String TableName;
    protected String data;
    protected String Person;


    public Builder(String id, String date, String tableName, String data,String person)
    {
        this.id = id;
        this.date = date;
        TableName = tableName;
        this.data = data;
        Person = person;
    }
    public abstract void BuildHead();
    public abstract void BuildBody();
    public abstract void BuildFoot();
}

TXT

package 建造者模式;

import java.io.BufferedWriter;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;

public class TXT extends Builder {
    public TXT(String id, String date, String tableName, String data,
            String person) {
        super(id, date, tableName, data, person);
    }
private String str="";

@Override
public void BuildHead() {
    str+=id+","+date+"\r\n";

}
@Override
public void BuildBody() {
    str+=TableName+"\r\n";
    str+=data+"\r\n";

}
@Override
public void BuildFoot() {
    str+=Person+"\r\n";

}
public void Result() throws IOException{
    File f1=new File("c:\\a.txt");
    FileWriter fw=new FileWriter(f1);
    BufferedWriter bw=new BufferedWriter(fw);
            bw.write(str);
            bw.close();


}
}

XML

package 建造者模式;

import java.io.File;
import javax.xml.parsers.*;
import javax.xml.transform.*;
import javax.xml.transform.dom.DOMSource;
import javax.xml.transform.stream.StreamResult;

import org.w3c.dom.*;

public class XML extends Builder {
    private Document document;
    private Element container;
public XML(String id, String date, String tableName, String data,
            String person) throws ParserConfigurationException
            {
        super(id, date, tableName, data, person);
        DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
        DocumentBuilder db = factory.newDocumentBuilder();
         document = db.newDocument();
    }


    @Override
    public void BuildHead() {
        document.setXmlStandalone(true);
        container=document.createElement("Conatiner");
        Element head=document.createElement("Head");

        Element Id = document.createElement("Id");
        Id.setTextContent(id);

        Element Date = document.createElement("Date");
        Date.setTextContent(date);
        head.appendChild(Id);
        head.appendChild(Date);
    container.appendChild(head);


    }


    @Override
    public void BuildBody() {

        Element Body=document.createElement("body");
        Element tname = document.createElement("TableName");
        tname.setTextContent(TableName);

        Element Data = document.createElement("Data");
        Data.setTextContent(data);
        Body.appendChild(Data);
        Body.appendChild(tname);
        container.appendChild(Body);

    }


    @Override
    public void BuildFoot() {


        Element foot=document.createElement("foot");
        Element per = document.createElement("Person");
        per.setTextContent(Person);
        foot.appendChild(per);
        container.appendChild(foot);
        document.appendChild(container);
    }
    public void Result() throws TransformerException
    {TransformerFactory tff = TransformerFactory.newInstance();

    Transformer tf = tff.newTransformer();

    tf.setOutputProperty(OutputKeys.INDENT, "yes");
    tf.transform(new DOMSource(document), new StreamResult(new File("g:/shujv.xml")));
    }
}

Director

package 建造者模式;

public class Director {

private Builder eb;

public Director(Builder eb) {

    this.eb = eb;
}
public void Build(){
    eb.BuildHead();
    eb.BuildBody();
    eb.BuildFoot();
}
}

Test

package 建造者模式;

import java.io.IOException;

import javax.xml.parsers.ParserConfigurationException;
import javax.xml.transform.TransformerException;

public class Test {
public static void main(String args[]) throws IOException, ParserConfigurationException, TransformerException{
    TXT tb=new TXT("001","2020/4/16","数目","20","张三");
        Director dr=new Director(tb);
        dr.Build();
        tb.Result();
        XML ex=new XML("002","2020/4/17","价格","30","李四");
    dr=new Director(ex);
    dr.Build();
    ex.Result();
    }
}
