1 可视化网络结构
打印模型基础信息：使用print()函数，只能打印出基础构件的信息，不能显示每一层的shape和对应参数量的大小
import torchvision.models as models model = models.resnet18() print(model) ResNet( (conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False) (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False) (layer1): Sequential( (0): BasicBlock( (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) (1): BasicBlock( (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (layer2): Sequential( (0): BasicBlock( (conv1): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False) (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (downsample): Sequential( (0): Conv2d(64, 128, kernel_size=(1, 1), stride=(2, 2), bias=False) (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (1): BasicBlock( (conv1): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (layer3): Sequential( (0): BasicBlock( (conv1): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False) (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (downsample): Sequential( (0): Conv2d(128, 256, kernel_size=(1, 1), stride=(2, 2), bias=False) (1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (1): BasicBlock( (conv1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (layer4): Sequential( (0): BasicBlock( (conv1): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False) (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (downsample): Sequential( (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False) (1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (1): BasicBlock( (conv1): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (relu): ReLU(inplace=True) (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False) (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) ) ) (avgpool): AdaptiveAvgPool2d(output_size=(1, 1)) (fc): Linear(in_features=512, out_features=1000, bias=True) )
可视化网络结构：使用torchinfo库进行模型网络的结构输出，可以得到更加详细的信息，包括模块信息（每一层的类型、输出shape和参数量）、模型整体的参数量、模型大小、一次前向或者反向传播需要的内存大小等
import torchvision.models as models from torchinfo import summary resnet18 = models.resnet18() # 实例化模型 # 其中batch_size为1，图片的通道数为3，图片的高宽为224 summary(model, (1, 3, 224, 224)) ========================================================================================== Layer (type:depth-idx) Output Shape Param # ========================================================================================== ResNet -- -- ├─Conv2d: 1-1 [1, 64, 112, 112] 9,408 ├─BatchNorm2d: 1-2 [1, 64, 112, 112] 128 ├─ReLU: 1-3 [1, 64, 112, 112] -- ├─MaxPool2d: 1-4 [1, 64, 56, 56] -- ├─Sequential: 1-5 [1, 64, 56, 56] -- │ └─BasicBlock: 2-1 [1, 64, 56, 56] -- │ │ └─Conv2d: 3-1 [1, 64, 56, 56] 36,864 │ │ └─BatchNorm2d: 3-2 [1, 64, 56, 56] 128 │ │ └─ReLU: 3-3 [1, 64, 56, 56] -- │ │ └─Conv2d: 3-4 [1, 64, 56, 56] 36,864 │ │ └─BatchNorm2d: 3-5 [1, 64, 56, 56] 128 │ │ └─ReLU: 3-6 [1, 64, 56, 56] -- │ └─BasicBlock: 2-2 [1, 64, 56, 56] -- │ │ └─Conv2d: 3-7 [1, 64, 56, 56] 36,864 │ │ └─BatchNorm2d: 3-8 [1, 64, 56, 56] 128 │ │ └─ReLU: 3-9 [1, 64, 56, 56] -- │ │ └─Conv2d: 3-10 [1, 64, 56, 56] 36,864 │ │ └─BatchNorm2d: 3-11 [1, 64, 56, 56] 128 │ │ └─ReLU: 3-12 [1, 64, 56, 56] -- ├─Sequential: 1-6 [1, 128, 28, 28] -- │ └─BasicBlock: 2-3 [1, 128, 28, 28] -- │ │ └─Conv2d: 3-13 [1, 128, 28, 28] 73,728 │ │ └─BatchNorm2d: 3-14 [1, 128, 28, 28] 256 │ │ └─ReLU: 3-15 [1, 128, 28, 28] -- │ │ └─Conv2d: 3-16 [1, 128, 28, 28] 147,456 │ │ └─BatchNorm2d: 3-17 [1, 128, 28, 28] 256 │ │ └─Sequential: 3-18 [1, 128, 28, 28] 8,448 │ │ └─ReLU: 3-19 [1, 128, 28, 28] -- │ └─BasicBlock: 2-4 [1, 128, 28, 28] -- │ │ └─Conv2d: 3-20 [1, 128, 28, 28] 147,456 │ │ └─BatchNorm2d: 3-21 [1, 128, 28, 28] 256 │ │ └─ReLU: 3-22 [1, 128, 28, 28] -- │ │ └─Conv2d: 3-23 [1, 128, 28, 28] 147,456 │ │ └─BatchNorm2d: 3-24 [1, 128, 28, 28] 256 │ │ └─ReLU: 3-25 [1, 128, 28, 28] -- ├─Sequential: 1-7 [1, 256, 14, 14] -- │ └─BasicBlock: 2-5 [1, 256, 14, 14] -- │ │ └─Conv2d: 3-26 [1, 256, 14, 14] 294,912 │ │ └─BatchNorm2d: 3-27 [1, 256, 14, 14] 512 │ │ └─ReLU: 3-28 [1, 256, 14, 14] -- │ │ └─Conv2d: 3-29 [1, 256, 14, 14] 589,824 │ │ └─BatchNorm2d: 3-30 [1, 256, 14, 14] 512 │ │ └─Sequential: 3-31 [1, 256, 14, 14] 33,280 │ │ └─ReLU: 3-32 [1, 256, 14, 14] -- │ └─BasicBlock: 2-6 [1, 256, 14, 14] -- │ │ └─Conv2d: 3-33 [1, 256, 14, 14] 589,824 │ │ └─BatchNorm2d: 3-34 [1, 256, 14, 14] 512 │ │ └─ReLU: 3-35 [1, 256, 14, 14] -- │ │ └─Conv2d: 3-36 [1, 256, 14, 14] 589,824 │ │ └─BatchNorm2d: 3-37 [1, 256, 14, 14] 512 │ │ └─ReLU: 3-38 [1, 256, 14, 14] -- ├─Sequential: 1-8 [1, 512, 7, 7] -- │ └─BasicBlock: 2-7 [1, 512, 7, 7] -- │ │ └─Conv2d: 3-39 [1, 512, 7, 7] 1,179,648 │ │ └─BatchNorm2d: 3-40 [1, 512, 7, 7] 1,024 │ │ └─ReLU: 3-41 [1, 512, 7, 7] -- │ │ └─Conv2d: 3-42 [1, 512, 7, 7] 2,359,296 │ │ └─BatchNorm2d: 3-43 [1, 512, 7, 7] 1,024 │ │ └─Sequential: 3-44 [1, 512, 7, 7] 132,096 │ │ └─ReLU: 3-45 [1, 512, 7, 7] -- │ └─BasicBlock: 2-8 [1, 512, 7, 7] -- │ │ └─Conv2d: 3-46 [1, 512, 7, 7] 2,359,296 │ │ └─BatchNorm2d: 3-47 [1, 512, 7, 7] 1,024 │ │ └─ReLU: 3-48 [1, 512, 7, 7] -- │ │ └─Conv2d: 3-49 [1, 512, 7, 7] 2,359,296 │ │ └─BatchNorm2d: 3-50 [1, 512, 7, 7] 1,024 │ │ └─ReLU: 3-51 [1, 512, 7, 7] -- ├─AdaptiveAvgPool2d: 1-9 [1, 512, 1, 1] -- ├─Linear: 1-10 [1, 1000] 513,000 ========================================================================================== Total params: 11,689,512 Trainable params: 11,689,512 Non-trainable params: 0 Total mult-adds (G): 1.81 ========================================================================================== Input size (MB): 0.60 Forward/backward pass size (MB): 39.75 Params size (MB): 46.76 Estimated Total Size (MB): 87.11 ========================================================================================== Copy to clipboardErrorCopied
2 CNN可视化
CNN卷积核可视化
model = models.vgg11(pretrained=True) dict(model.features.named_children()) {'0': Conv2d(3, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '1': ReLU(inplace=True), '2': MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False), '3': Conv2d(64, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '4': ReLU(inplace=True), '5': MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False), '6': Conv2d(128, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '7': ReLU(inplace=True), '8': Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '9': ReLU(inplace=True), '10': MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False), '11': Conv2d(256, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '12': ReLU(inplace=True), '13': Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '14': ReLU(inplace=True), '15': MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False), '16': Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '17': ReLU(inplace=True), '18': Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)), '19': ReLU(inplace=True), '20': MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)} import matplotlib.pyplot as plt conv1 = dict(model.features.named_children())['3'] # 得到第3层的卷积层参数 kernel_set = conv1.weight.detach() num = len(conv1.weight.detach()) print(kernel_set.shape) # 该代码仅可视化其中一个维度的卷积核，第3层的卷积核有128*64个 for i in range(0, 1): i_kernel = kernel_set[i] plt.figure(figsize=(20, 17)) if (len(i_kernel)) > 1: for idx, filer in enumerate(i_kernel): plt.subplot(9, 9, idx+1) plt.axis('off') plt.imshow(filer[ :, :].detach(),cmap='bwr') torch.Size([128, 64, 3, 3])
CNN特征图可视化：使用PyTorch提供的hook结构，得到网络在前向传播过程中的特征图。
CNN class activation map可视化：用于在CNN可视化场景下，判断图像中哪些像素点对预测结果是重要的，可使用grad-cam库进行操作
使用FlashTorch快速实现CNDD可视化：可以使用flashtorch库，可视化梯度和卷积核
3 使用TensorBoard可视化训练过程
可视化基本逻辑：TensorBoard记录模型每一层的feature map、权重和训练loss等，并保存在用户指定的文件夹中，通过网页形式进行可视化展示
模型结构可视化：使用add_graph方法，在TensorBoard下展示模型结构
import torch.nn as nn class Net(nn.Module): def __init__(self): super(Net, self).__init__() self.conv1 = nn.Conv2d(in_channels=3,out_channels=32,kernel_size = 3) self.pool = nn.MaxPool2d(kernel_size = 2,stride = 2) self.conv2 = nn.Conv2d(in_channels=32,out_channels=64,kernel_size = 5) self.adaptive_pool = nn.AdaptiveMaxPool2d((1,1)) self.flatten = nn.Flatten() self.linear1 = nn.Linear(64,32) self.relu = nn.ReLU() self.linear2 = nn.Linear(32,1) self.sigmoid = nn.Sigmoid() def forward(self,x): x = self.conv1(x) x = self.pool(x) x = self.conv2(x) x = self.pool(x) x = self.adaptive_pool(x) x = self.flatten(x) x = self.linear1(x) x = self.relu(x) x = self.linear2(x) y = self.sigmoid(x) return y model = Net() print(model) Net( (conv1): Conv2d(3, 32, kernel_size=(3, 3), stride=(1, 1)) (pool): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) (conv2): Conv2d(32, 64, kernel_size=(5, 5), stride=(1, 1)) (adaptive_pool): AdaptiveMaxPool2d(output_size=(1, 1)) (flatten): Flatten(start_dim=1, end_dim=-1) (linear1): Linear(in_features=64, out_features=32, bias=True) (relu): ReLU() (linear2): Linear(in_features=32, out_features=1, bias=True) (sigmoid): Sigmoid() ) from torch.utils.tensorboard import SummaryWriter writer = SummaryWriter('./runs') writer.add_graph(model, input_to_model = torch.rand(1, 3, 224, 224)) writer.close()

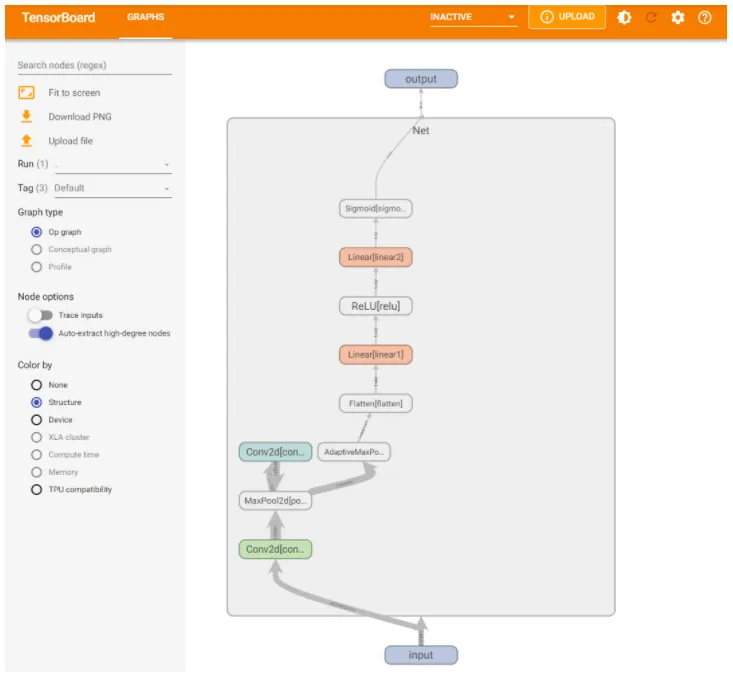

在当前目录下，执行tensorboard --logdir=./runs命令，打开TensorBoard可视化页面，看到模型网络结构。
图像可视化：
对于单张图片的显示使用add_image
对于多张图片的显示使用add_images
有时需要使用torchvision.utils.make_grid将多张图片拼成一张图片后，用writer.add_image显示
连续变量可视化：使用add_scalar方法，对连续变量（或时序变量）的变化过程进行可视化展示
for i in range(500): x = i y = x ** 2 writer.add_scalar("x", x, i) #日志中记录x在第step i 的值 writer.add_scalar("y", y, i) #日志中记录y在第step i 的值 writer.close() Copy to clipboardErrorCopied
参数分布可视化：使用add_histogram方法，对参数（或变量）的分布进行可视化展示
import numpy as np
# 创建正态分布的张量模拟参数矩阵 def norm(mean, std): t = std * torch.randn((100, 20)) + mean return t for step, mean in enumerate(range(-10, 10, 1)): w = norm(mean, 1) writer.add_histogram("w", w, step) writer.flush() writer.close() Copy to clipboardErrorCopied
4 总结
本次任务，主要介绍了PyTorch可视化，包括可视化网络结构、CNN卷积层可视化和使用TensorBoard可视化训练过程。
使用torchinfo库，可视化模型网络结构，展示模块信息（每一层的类型、输出shape和参数量）、模型整体的参数量、模型大小、一次前向或者反向传播需要的内存大小等。
使用grad-cam库，可视化重要像素点，能够快速确定重要区域，进行可解释性分析或模型优化改进。
通过TensorBoard工具，调用相关方法创建训练记录，可视化模型结构、图像、连续变量和参数分布等。
