语义分割是在像素级别上的分类，属于同一类的像素都要被归为一类，因此语义分割是从像素级别来理解图像的。The Oxford-IIIT Pet Dataset是一个宠物图像数据集，包含37种宠物，每种宠物200张左右宠物图片，并同时包含宠物轮廓标注信息。下面就是tensorflow2.0的对该数据集的语义分割实现。本文基于TF2.0 , 谷歌Colab平台。
from google.colab import drive drive.mount('/content/gdrive') import os os.chdir("/content/gdrive/My Drive/Colab Notebooks/tensorflow")
Mounted at /content/gdrive • 1
1.导入相关的包
import tensorflow as tf import matplotlib.pyplot as plt import numpy as np import os import glob tf.__version__
'2.2.0' • 1
2.数据的预处理
首先我们打印出一个图片和对应的分割图象

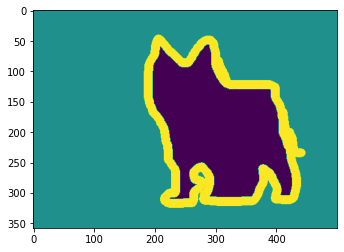

print(os.listdir("./DS/the-oxfordiiit-pet-dataset/annotations/annotations/trimaps/")[-5:]) img = tf.io.read_file("./DS/the-oxfordiiit-pet-dataset/annotations/annotations/trimaps/yorkshire_terrier_99.png") img = tf.image.decode_png(img) img = tf.squeeze(img) plt.imshow(img)
['._Bombay_27.png', '._Birman_91.png', '._Bombay_154.png', '._Bombay_22.png', '._Birman_93.png'] • 1

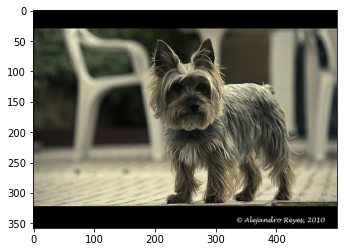

img1 = tf.io.read_file("./DS/the-oxfordiiit-pet-dataset/images/images/yorkshire_terrier_99.jpg") img1 = tf.image.decode_png(img1) plt.imshow(img1)
其次我们读取图片的路径和分割图片的的路径，并对其排序保证其一一对应，并随机打乱
#读取所有的图片 images = glob.glob("./DS/the-oxfordiiit-pet-dataset/images/images/*.jpg") print(len(images)) anno = glob.glob("./DS/the-oxfordiiit-pet-dataset/annotations/annotations/trimaps/*.png") print(len(anno)) images.sort(key=lambda x :x.split("\\")[-1].split(".jpg")[0]) anno.sort(key=lambda x :x.split("\\")[-1].split(".png")[0]) #打乱 np.random.seed(2019) index = np.random.permutation(len(images)) images = np.array(images)[index] anno = np.array(anno)[index]
7390 7390 • 1
构建图片载入方法，主要包括读取原图像(jpg格式)，分割图像(png格式)，归一化函数和图像载入四个函数
def read_jpg(path): img = tf.io.read_file(path) img = tf.image.decode_jpeg(img,channels=3) return img def read_png(path): img = tf.io.read_file(path) img = tf.image.decode_png(img,channels=1) return img # 归一化函数 def normal_img(input_images,input_anno): input_images = tf.cast(input_images,tf.float32) input_images = input_images/127.5 - 1 input_anno = input_anno -1 return input_images,input_anno def load_image(input_images_path,input_anno_path): input_images = read_jpg(input_images_path) input_anno = read_png(input_anno_path) input_images = tf.image.resize(input_images,(224,224)) input_anno = tf.image.resize(input_anno,(224,224)) return normal_img(input_images,input_anno)
构建训练集和测试集，训练集的大小占总数据集的80%,bachsize=8，训练集有样本5912个，测试集有样本1478个。
AUTOTUNE = tf.data.experimental.AUTOTUNE dataset = tf.data.Dataset.from_tensor_slices((images,anno)) dataset = dataset.map(load_image,num_parallel_calls=AUTOTUNE) #%%设置训练数据和验证集数据的大小 test_count = int(len(images)*0.2) train_count = len(images) - test_count print(test_count,train_count) #跳过test_count个 train_dataset = dataset.skip(test_count) test_dataset = dataset.take(test_count) batch_size = 8 # 设置一个和数据集大小一致的 shuffle buffer size（随机缓冲区大小）以保证数据被充分打乱。 train_ds = train_dataset.shuffle(buffer_size=train_count).repeat().batch(batch_size) train_ds = train_ds.prefetch(buffer_size=tf.data.experimental.AUTOTUNE) test_ds = test_dataset.batch(batch_size) test_ds = test_ds.prefetch(buffer_size=tf.data.experimental.AUTOTUNE)
1478 5912 • 1
图片载入可视化实例
for image,anno in train_ds.take(1): plt.subplot(1,2,1) plt.imshow(tf.keras.preprocessing.image.array_to_img(image[0])) plt.subplot(1,2,2) plt.imshow(tf.keras.preprocessing.image.array_to_img(anno[0]))
3.模型构建与训练
我们采用的VGG16作为预训练模型，输入的图像为(224,224,3)，采用全卷积网络（fully convolutional network，FCN）实现了从图像像素到像素类别的变换。与之前介绍的卷积神经网络有所不同，全卷积网络通过转置卷积（transposed convolution）层将中间层特征图的高和宽变换回输入图像的尺寸，从而令预测结果与输入图像在空间维（高和宽）上一一对应：给定空间维上的位置，通道维的输出即该位置对应像素的类别预测。
vgg16 = tf.keras.applications.VGG16(input_shape=(224, 224, 3), include_top=False, weights='imagenet') vgg16.summary()
Model: "vgg16" _________________________________________________________________ Layer (type) Output Shape Param # ================================================================= input_5 (InputLayer) [(None, 224, 224, 3)] 0 _________________________________________________________________ block1_conv1 (Conv2D) (None, 224, 224, 64) 1792 _________________________________________________________________ block1_conv2 (Conv2D) (None, 224, 224, 64) 36928 _________________________________________________________________ block1_pool (MaxPooling2D) (None, 112, 112, 64) 0 _________________________________________________________________ block2_conv1 (Conv2D) (None, 112, 112, 128) 73856 _________________________________________________________________ block2_conv2 (Conv2D) (None, 112, 112, 128) 147584 _________________________________________________________________ block2_pool (MaxPooling2D) (None, 56, 56, 128) 0 _________________________________________________________________ block3_conv1 (Conv2D) (None, 56, 56, 256) 295168 _________________________________________________________________ block3_conv2 (Conv2D) (None, 56, 56, 256) 590080 _________________________________________________________________ block3_conv3 (Conv2D) (None, 56, 56, 256) 590080 _________________________________________________________________ block3_pool (MaxPooling2D) (None, 28, 28, 256) 0 _________________________________________________________________ block4_conv1 (Conv2D) (None, 28, 28, 512) 1180160 _________________________________________________________________ block4_conv2 (Conv2D) (None, 28, 28, 512) 2359808 _________________________________________________________________ block4_conv3 (Conv2D) (None, 28, 28, 512) 2359808 _________________________________________________________________ block4_pool (MaxPooling2D) (None, 14, 14, 512) 0 _________________________________________________________________ block5_conv1 (Conv2D) (None, 14, 14, 512) 2359808 _________________________________________________________________ block5_conv2 (Conv2D) (None, 14, 14, 512) 2359808 _________________________________________________________________ block5_conv3 (Conv2D) (None, 14, 14, 512) 2359808 _________________________________________________________________ block5_pool (MaxPooling2D) (None, 7, 7, 512) 0 ================================================================= Total params: 14,714,688 Trainable params: 14,714,688 Non-trainable params: 0 _________________________________________________________________
