人脸识别考勤系统使用说明书
此系统是人脸识别考勤系统的后台管理系统，考勤数据从人脸识别机器上获取，自动识别员工信息记录考勤。系统基于JSP/SERVLET来开发实现，开发工具采用IDEA或ECLIPSE，数据库采用MYSQL数据库。Util包中jdbcinfo.properties文件进行数据库连接的相关配置修改。
访问路径为：faceattendsystem为发布的虚拟目录

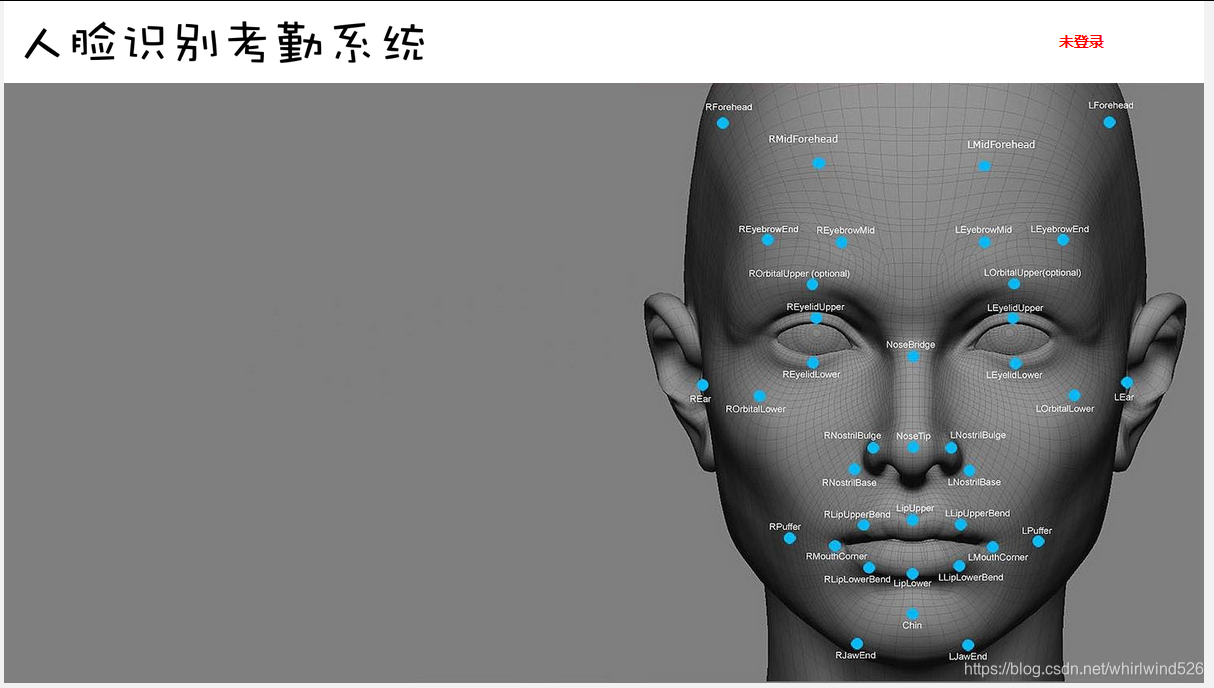

1. 进入主页，点击未登录。如下图：
编辑

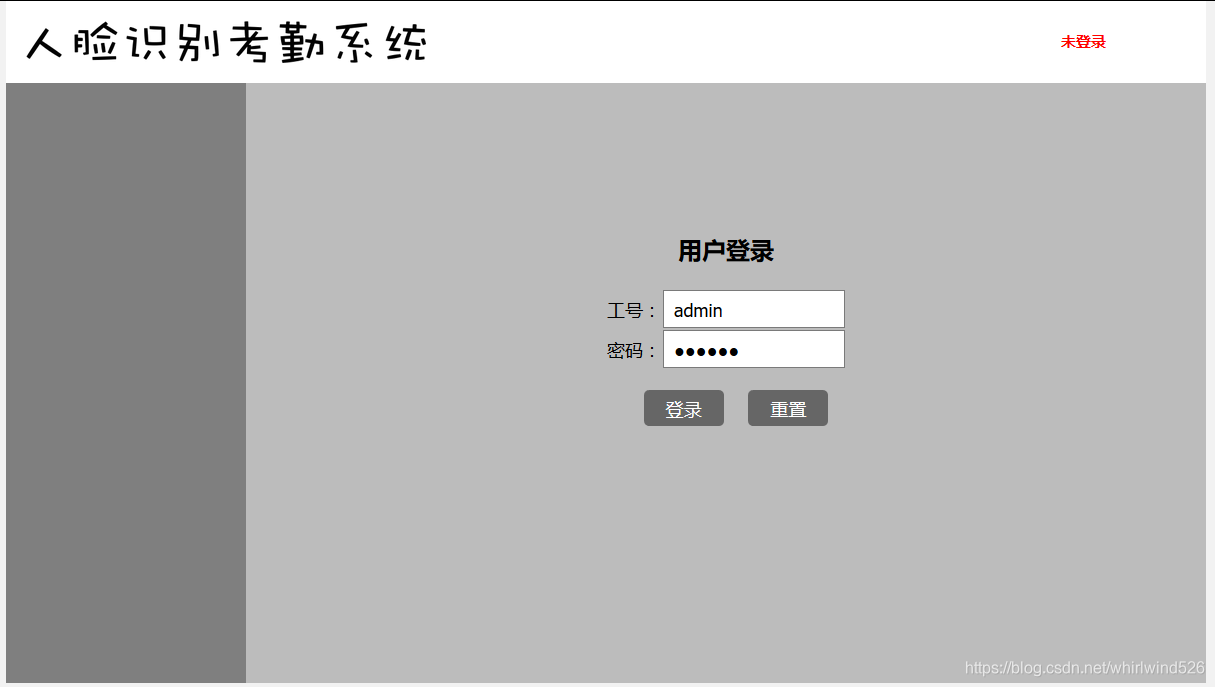

2. 输入工号和密码，点击【登录】按钮。管理员默认工号是admin，密码是111111。如下图：
编辑

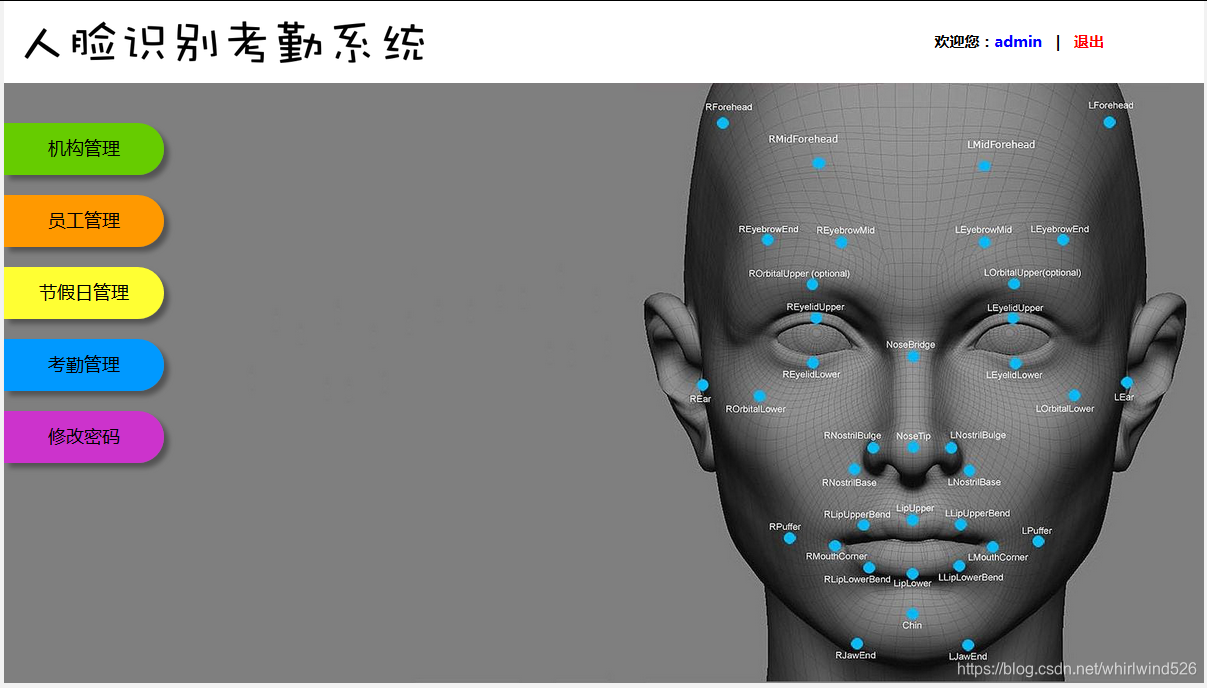

3. 登录成功后，进入后台管理页面。如下图：
编辑

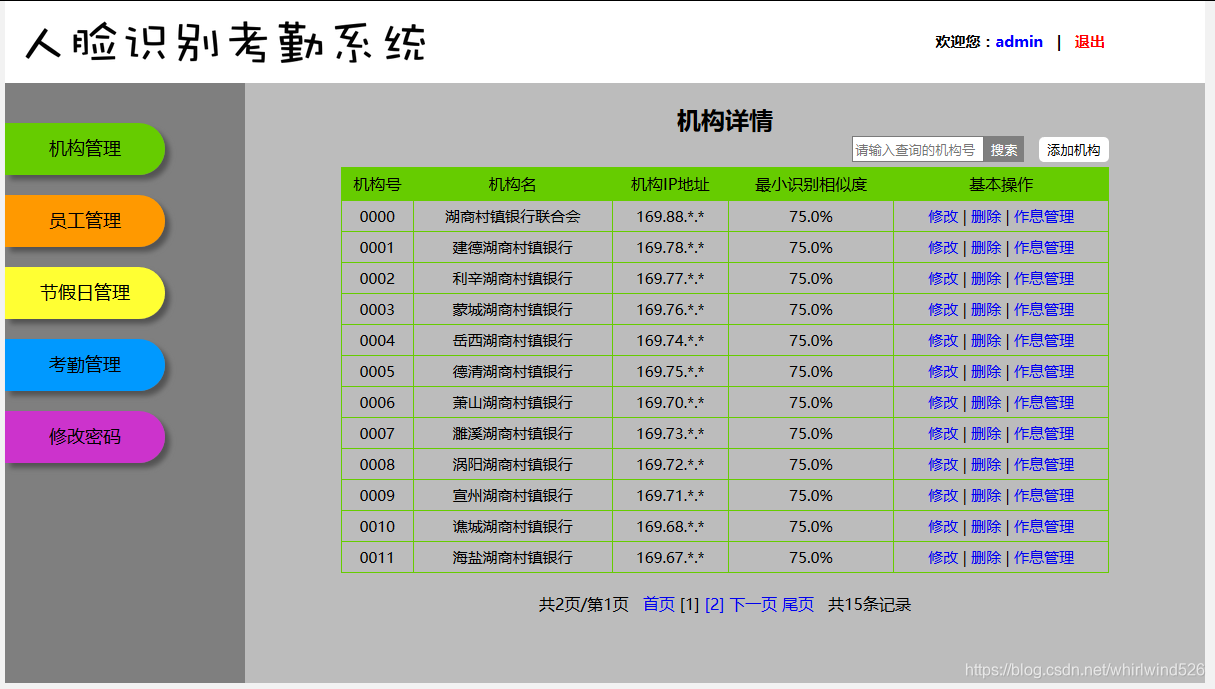

4. 点击【机构管理】，进入机构详情页面。该页面可添加机构、搜索机构、修改机构、删除机构和设置机构的作息管理。
编辑
5. 点击【添加机构】按钮，进入添加机构页面。根据文本框提示的信息进行输入信息，点击【添加】按钮。（*是必填项）如下图：
编辑

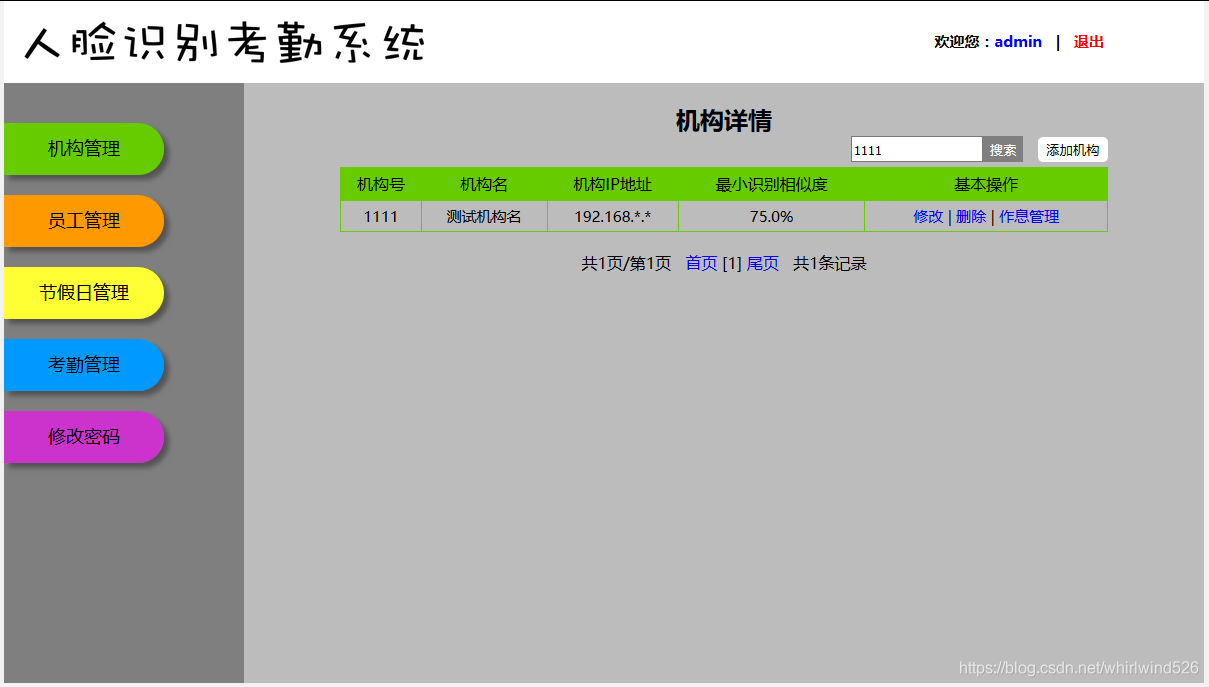

6. 添加成功后，输入1111，点击【搜索】按钮。如下图：
编辑

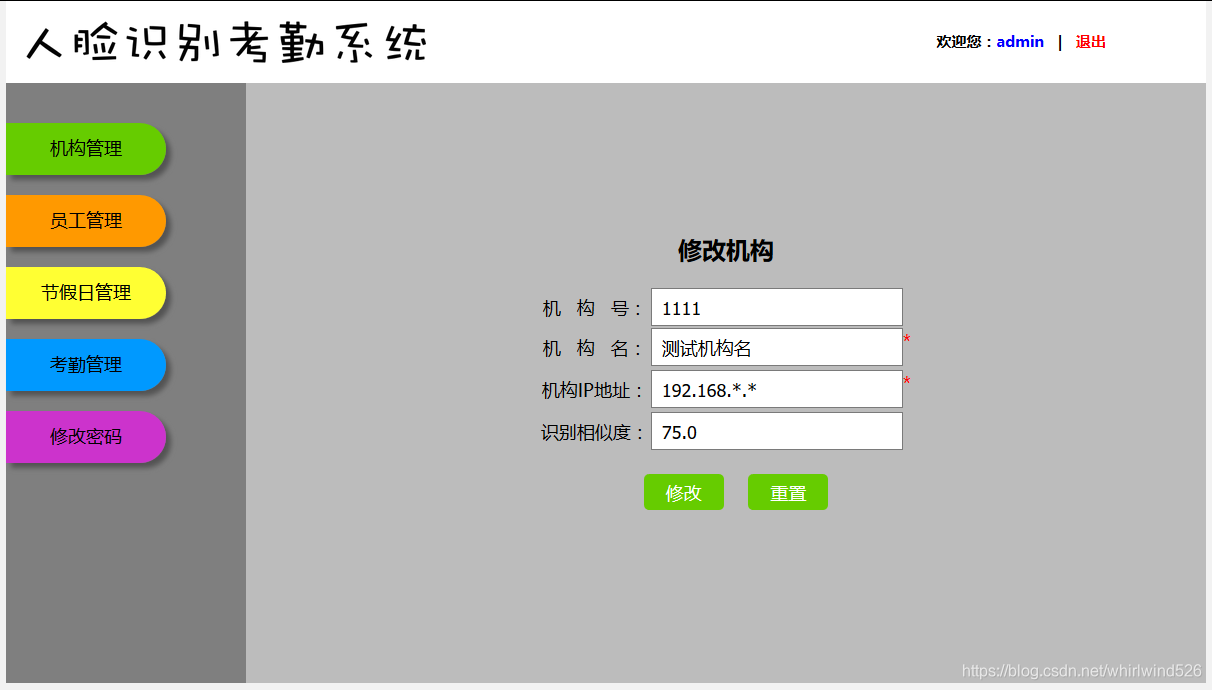

7. 点击【修改】，进入修改机构页面。修改信息后，点击【修改】按钮。（机构号不能修改）如下图：
编辑
8. 点击【删除】，删除该机构。
9. 点击【作息管理】，进入作息时间页面。该页面可添加作息和搜索日期。如下图：
编辑

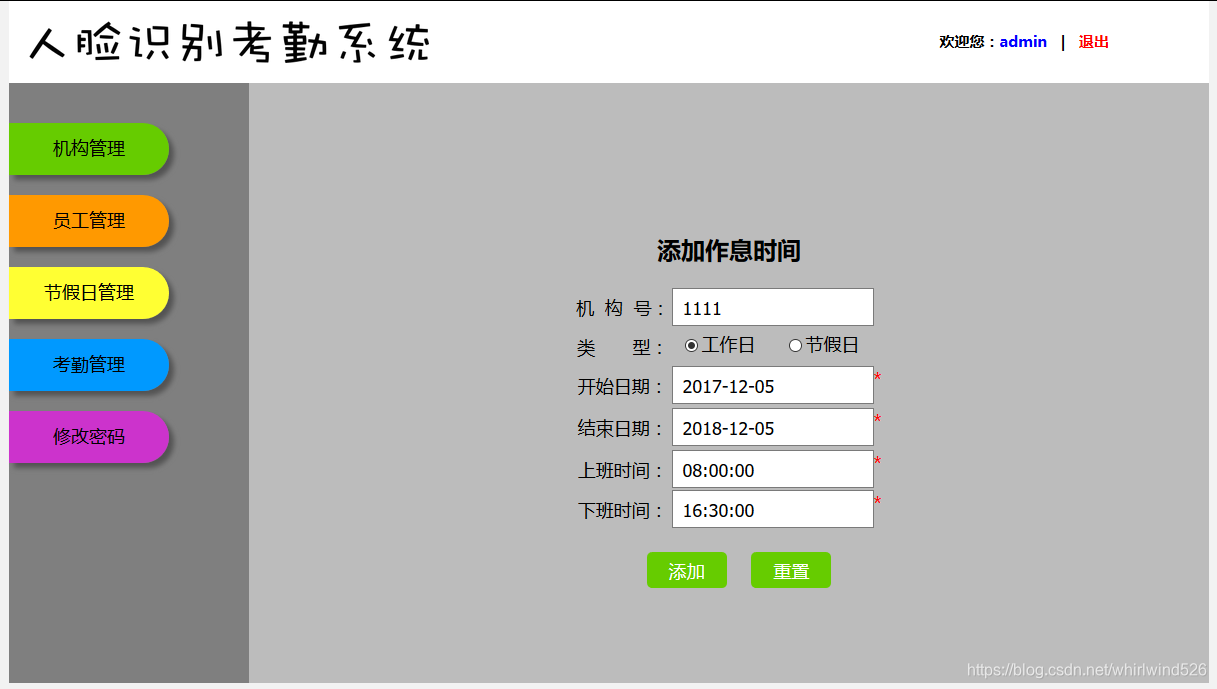

10. 点击【添加作息】，进入添加作息页面。根据文本框提示输入信息，点击【添加】按钮。如下图：
编辑

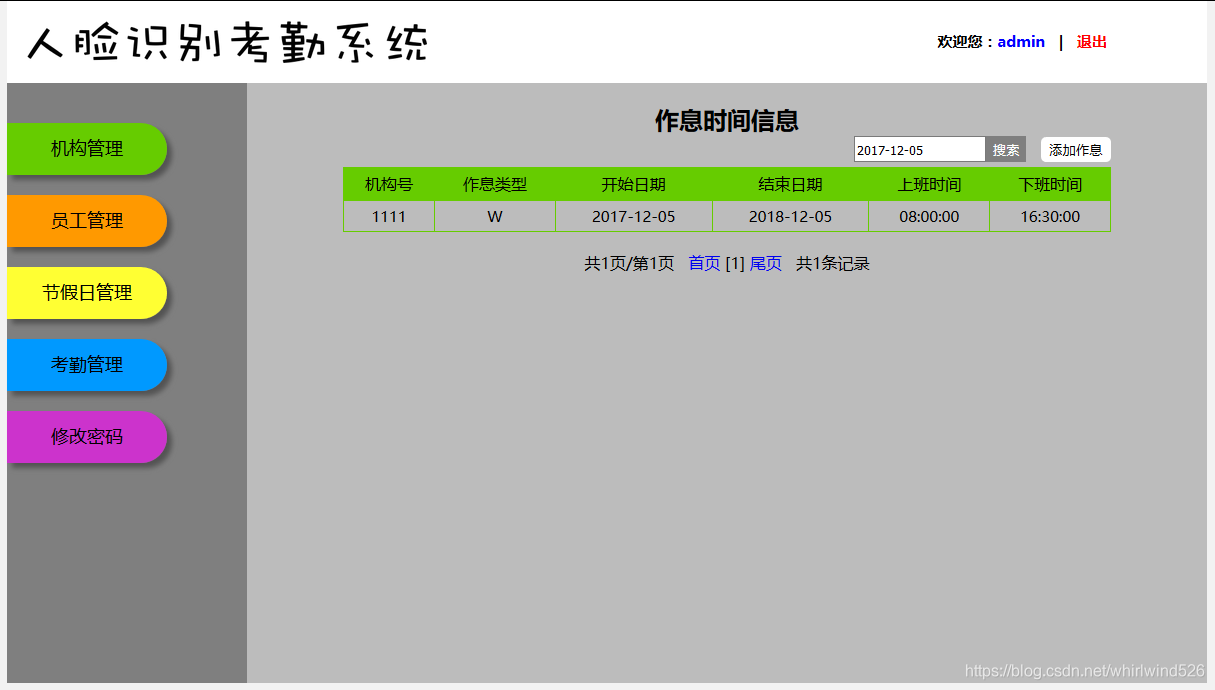

11. 添加成功后，输入2017-12-05，点击【搜索】按钮。如下图：
编辑

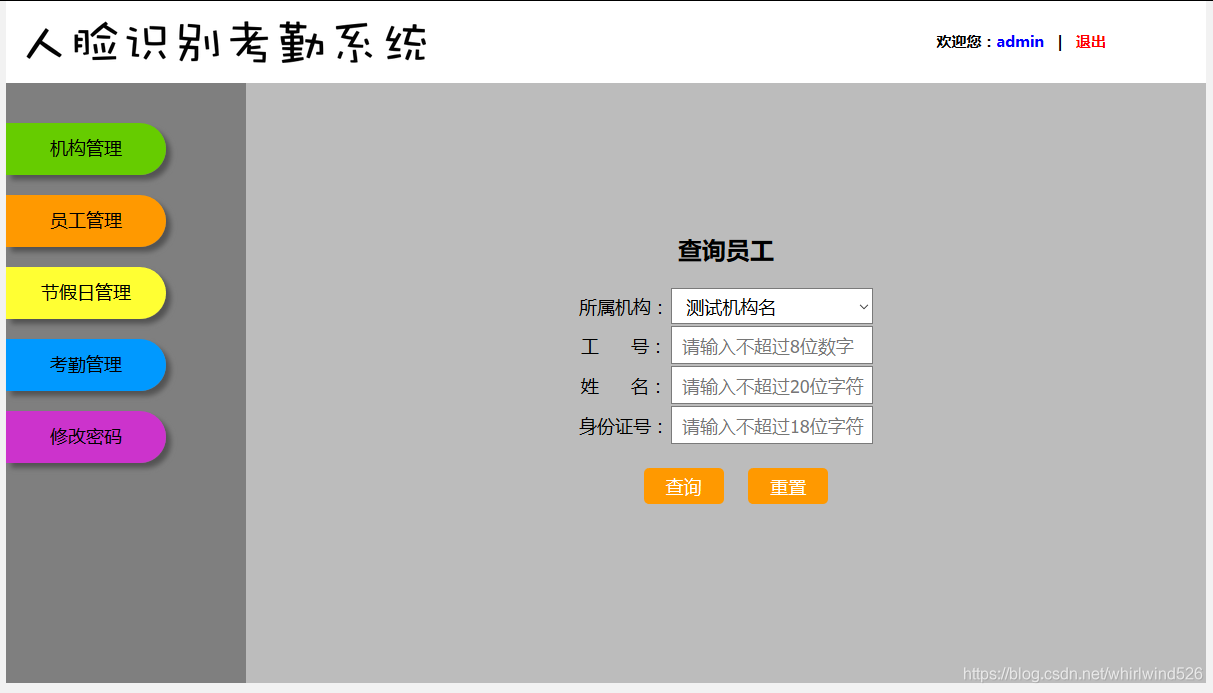

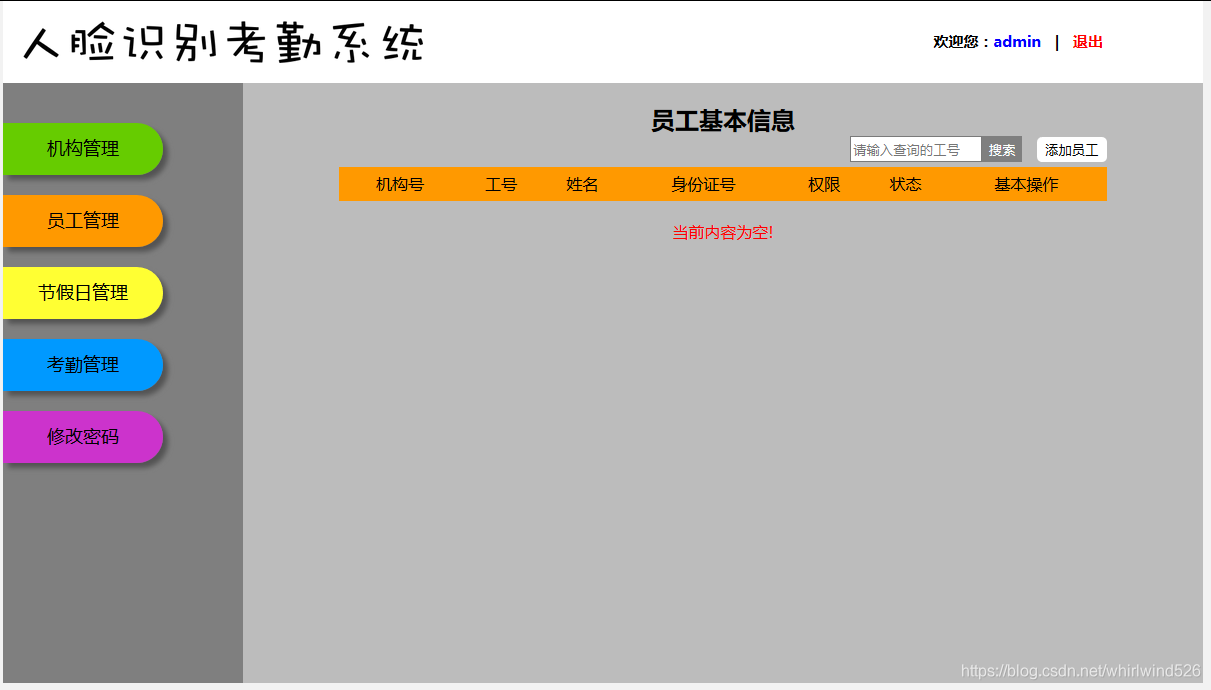

12. 点击【员工管理】，进入查询员工页面。选择刚添加的机构，点击【查询】按钮。如下图：
编辑
13. 查询成功后，进入员工信息页面。该页面可添加员工、搜索员工、修改员工和删除员工。如下图：
编辑

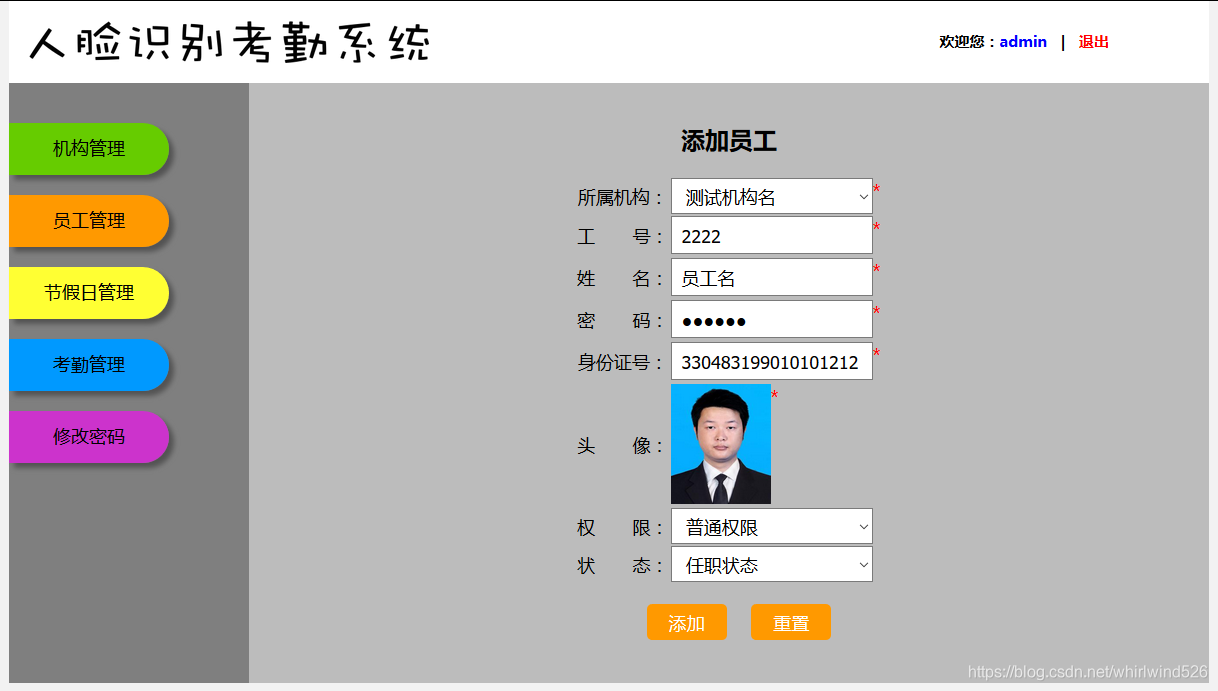

14. 点击【添加员工】按钮，进入添加员工页面。根据文本框的提示输入信息，点击【添加】按钮。如下图：
编辑
15. 添加员工成功后，在搜索框输入2222，点击【搜索】按钮。如下图：
编辑

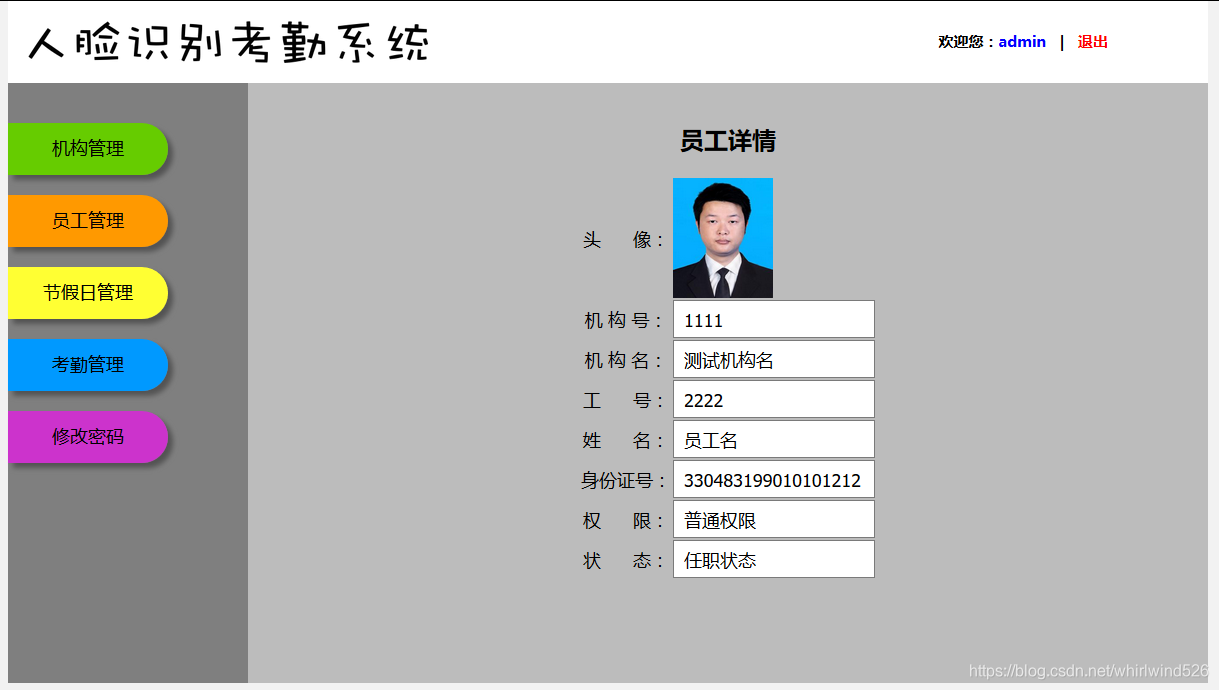

16. 点击【详情】，进入员工详情页面。如下图：
编辑

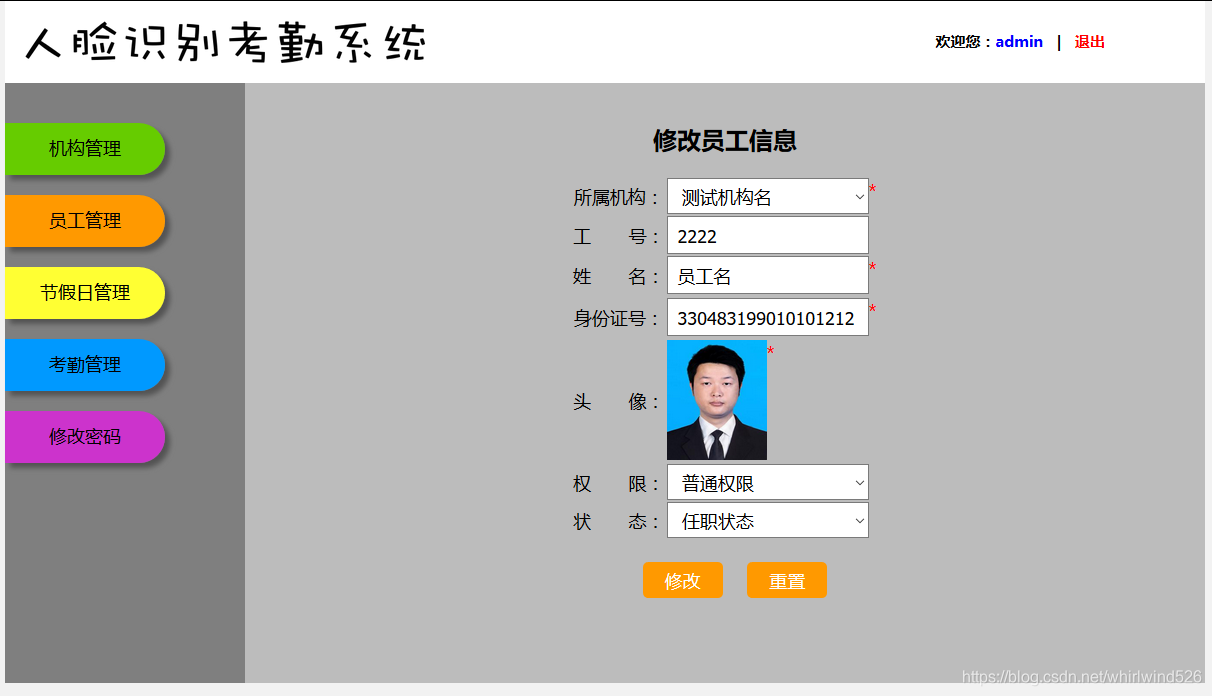

17. 点击【修改】，进入员工修改页面。修改信息后，点击【修改】按钮。如下图：
编辑
18. 点击【删除】，删除该员工。

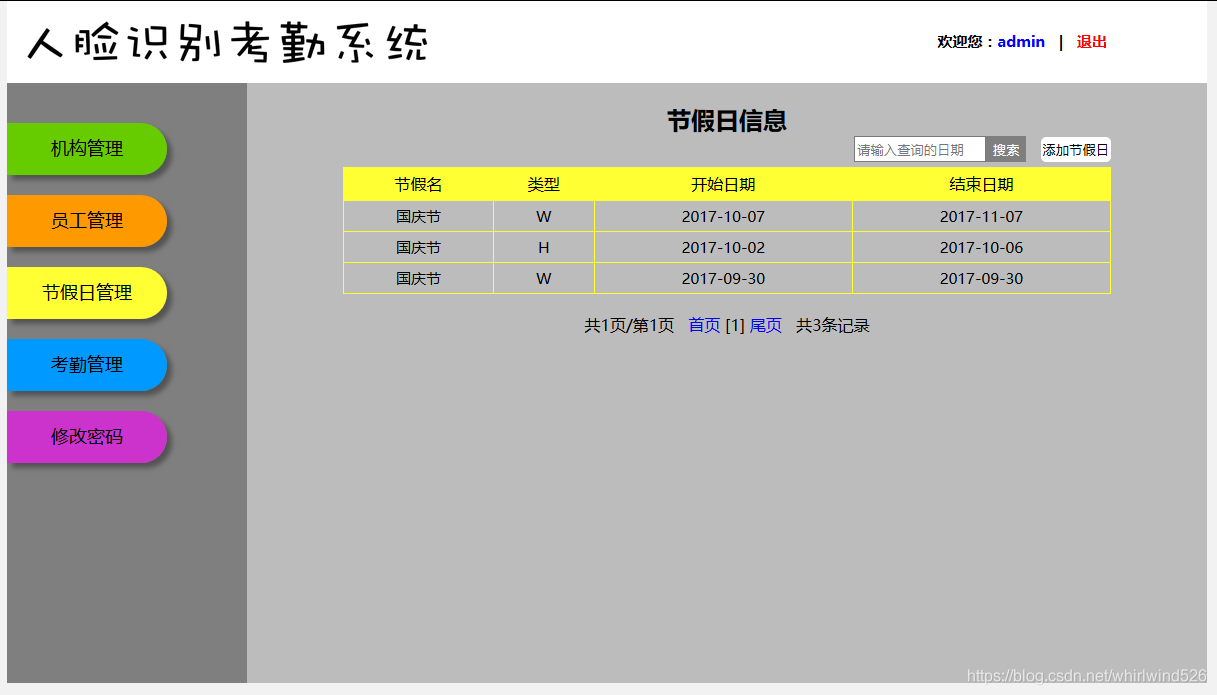

19. 点击【节假日管理】，进入节假日页面。该页面可添加节假日和搜索日期。如下图：
编辑

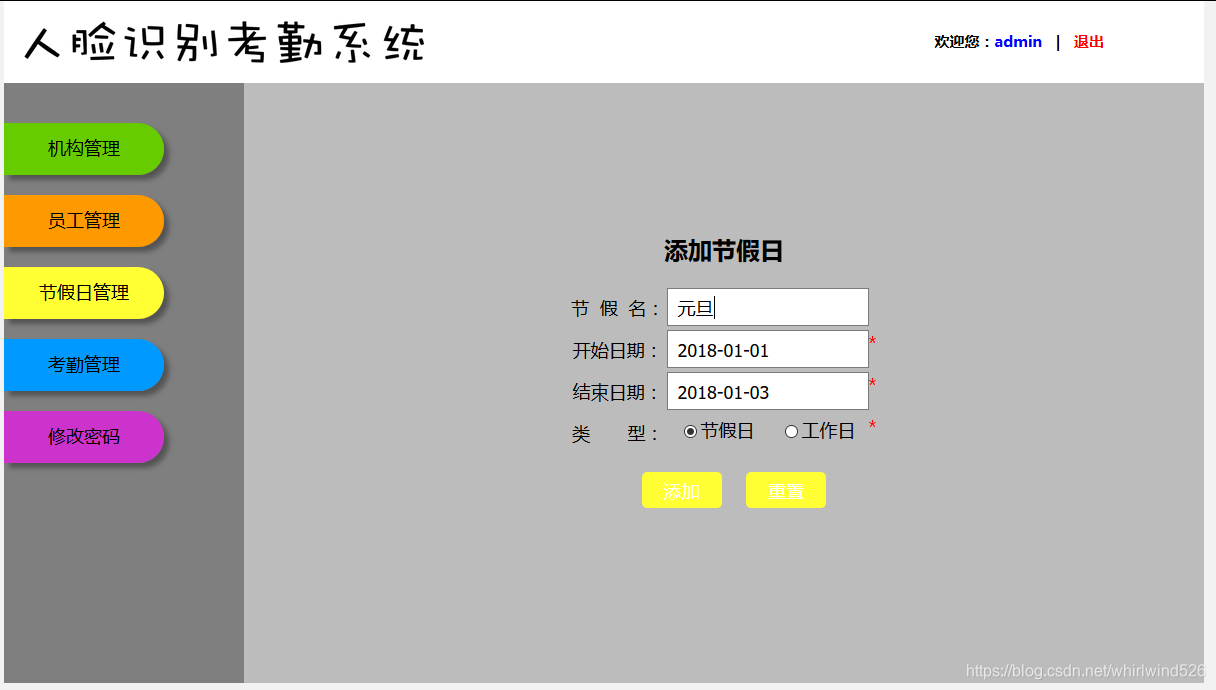

20. 点击【添加节假日】按钮，进入添加节假日页面。根据文本框提示输入信息，点击【添加】按钮。如下图：
编辑
21. 添加成功后，在搜索框输入2018-01-01，点击【搜索】按钮。如下图：
编辑

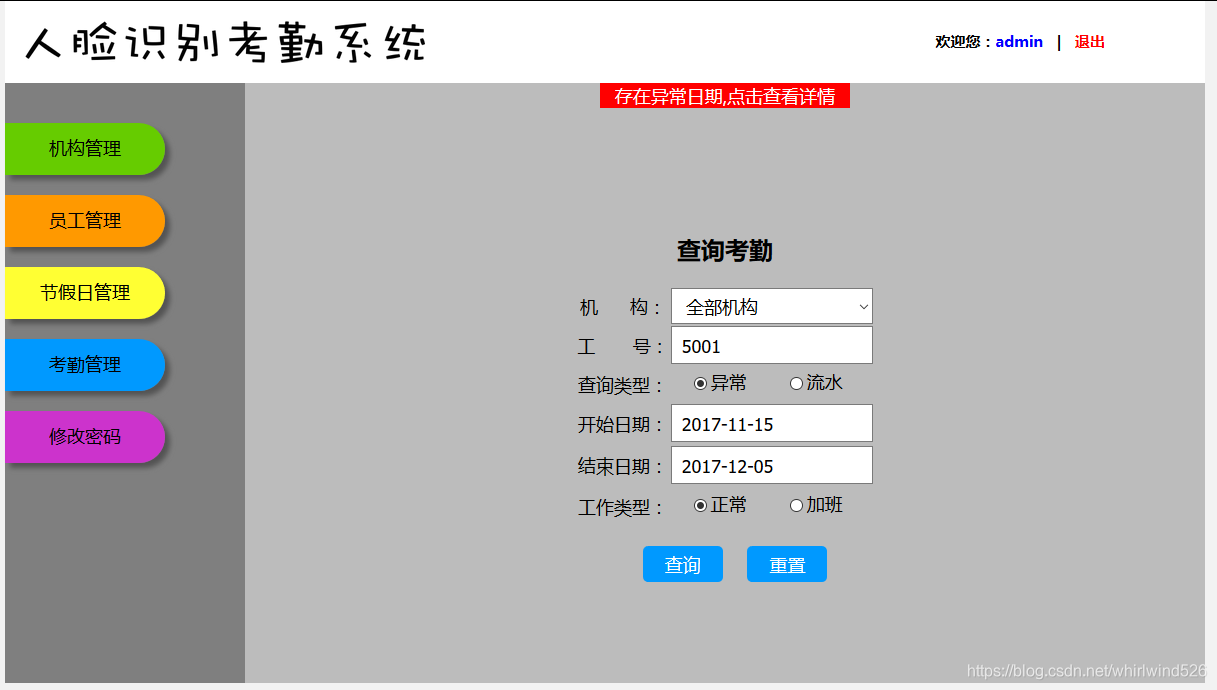

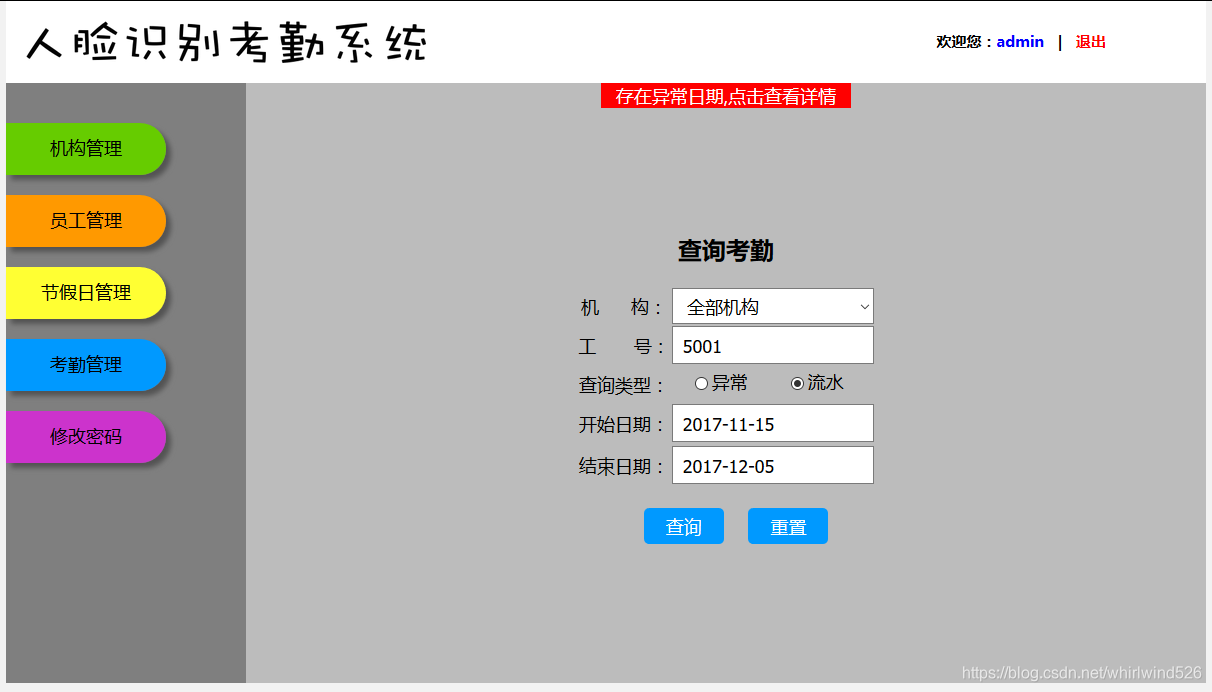

22. 点击【考勤管理】，进入查询考勤页面。如下图：
编辑

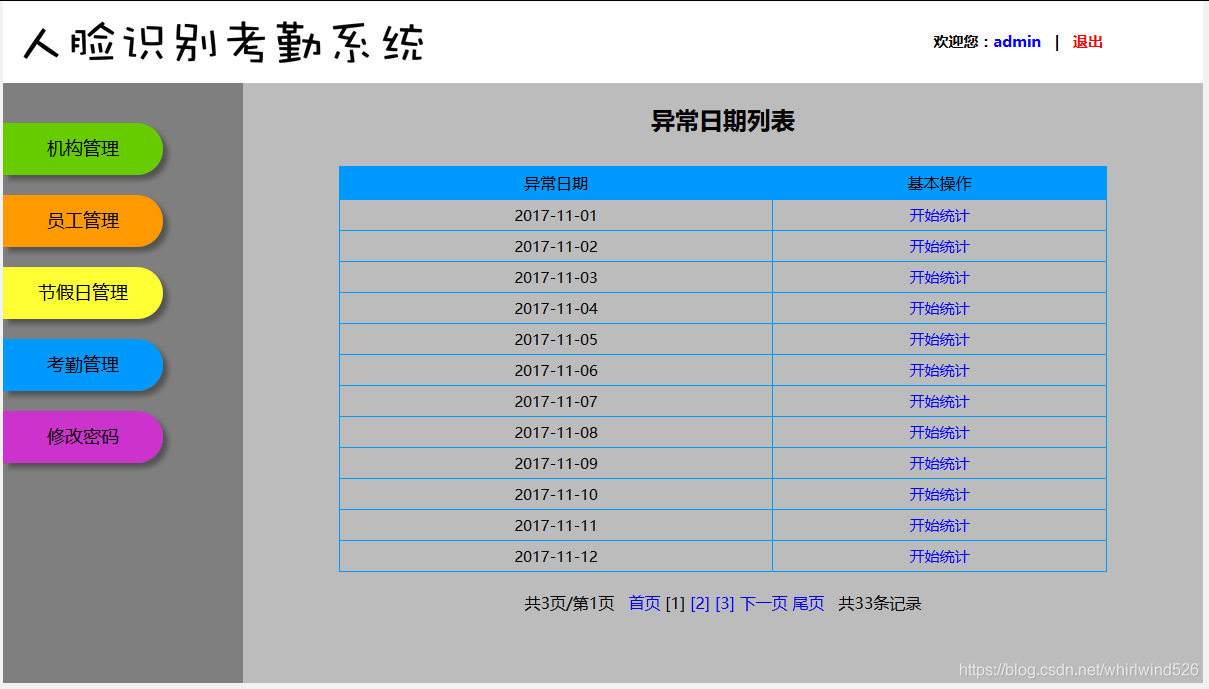

23. 点击【存在异常日期，点击查看详情】，进入异常日期页面。点击【开始统计】，则服务器会跑当前的日期的考勤。如下图：
编辑

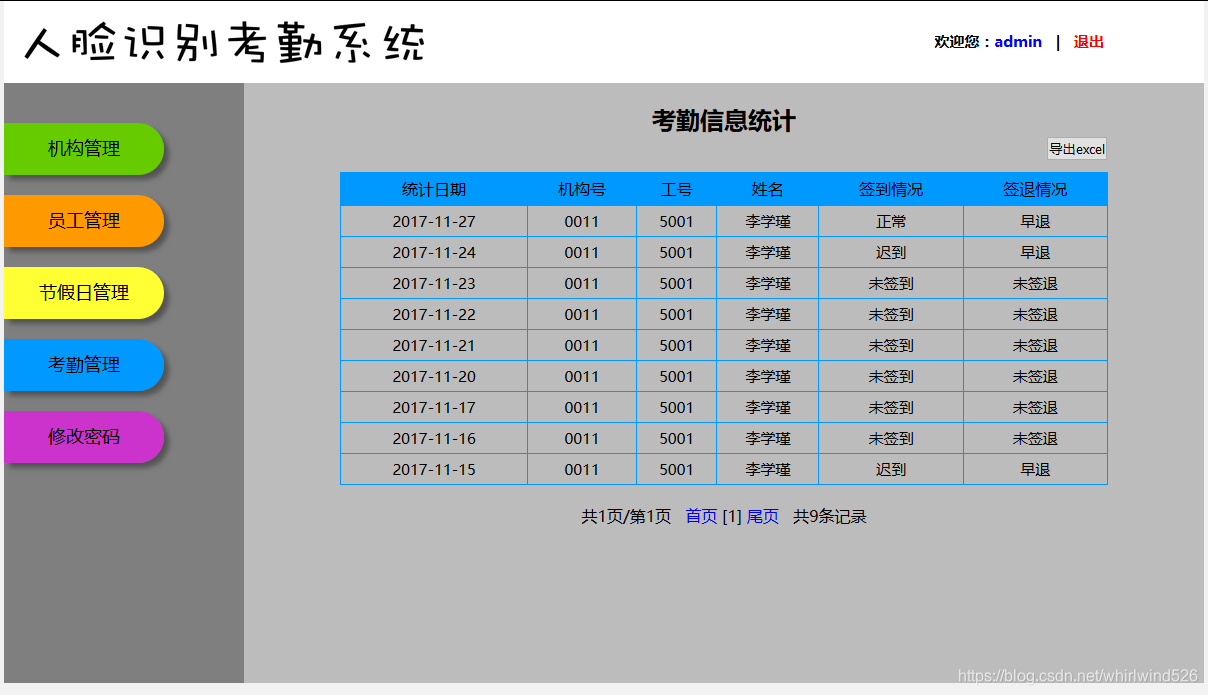

24. 若根据文本框提示输入信息，选择异常，点击【查询】按钮。进入异常的考勤统计页面。如下图：
编辑

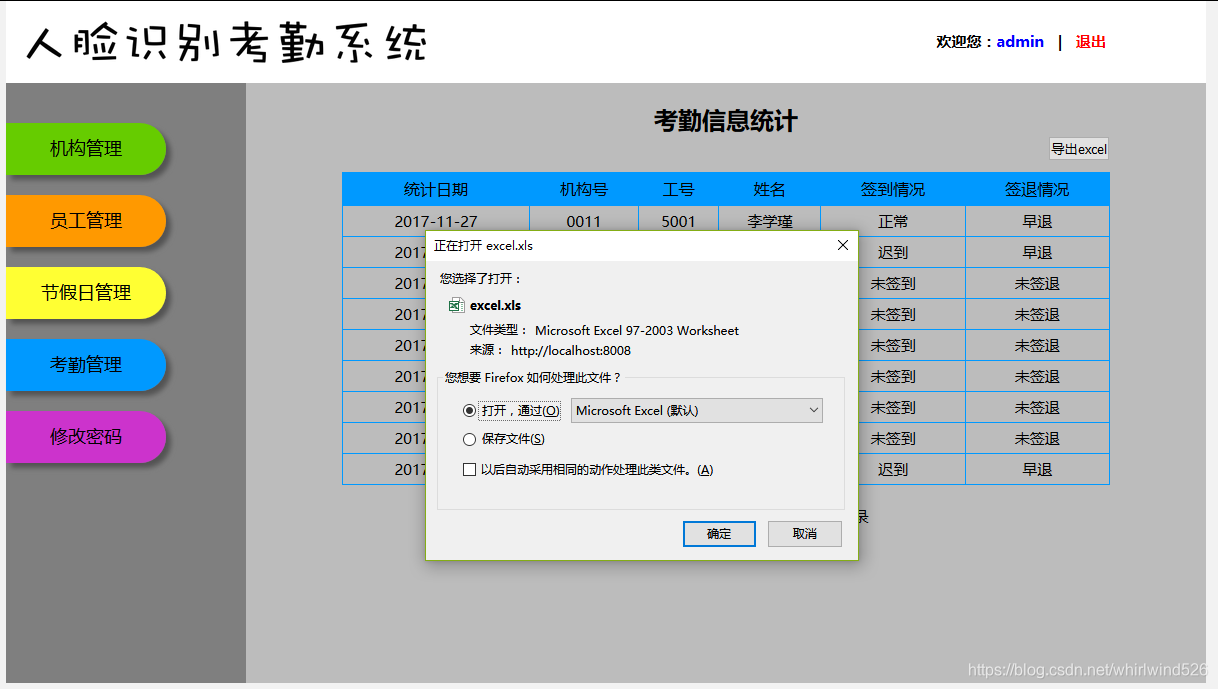

25. 若要把查询数据导出，则点击【导出excel】按钮。如下图：
编辑
25. 若根据文本框提示输入信息，选择流水，点击【查询】按钮。如下图：
编辑

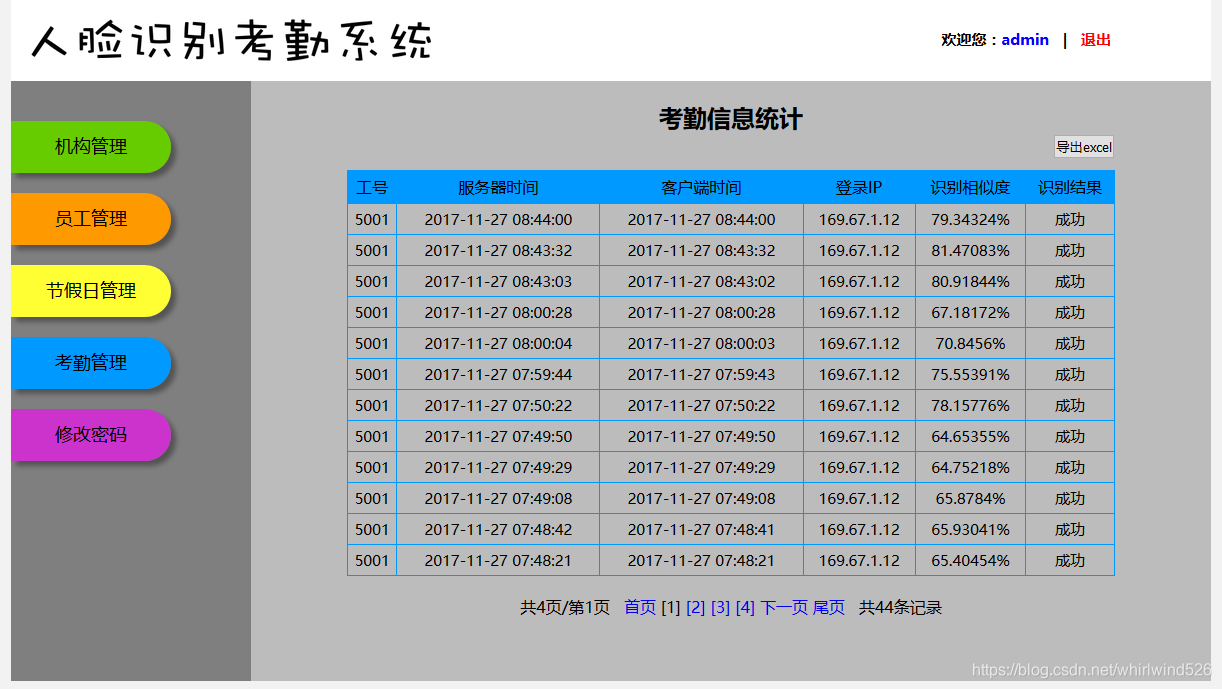

26. 进入流水的考勤统计页面。如下图：
编辑

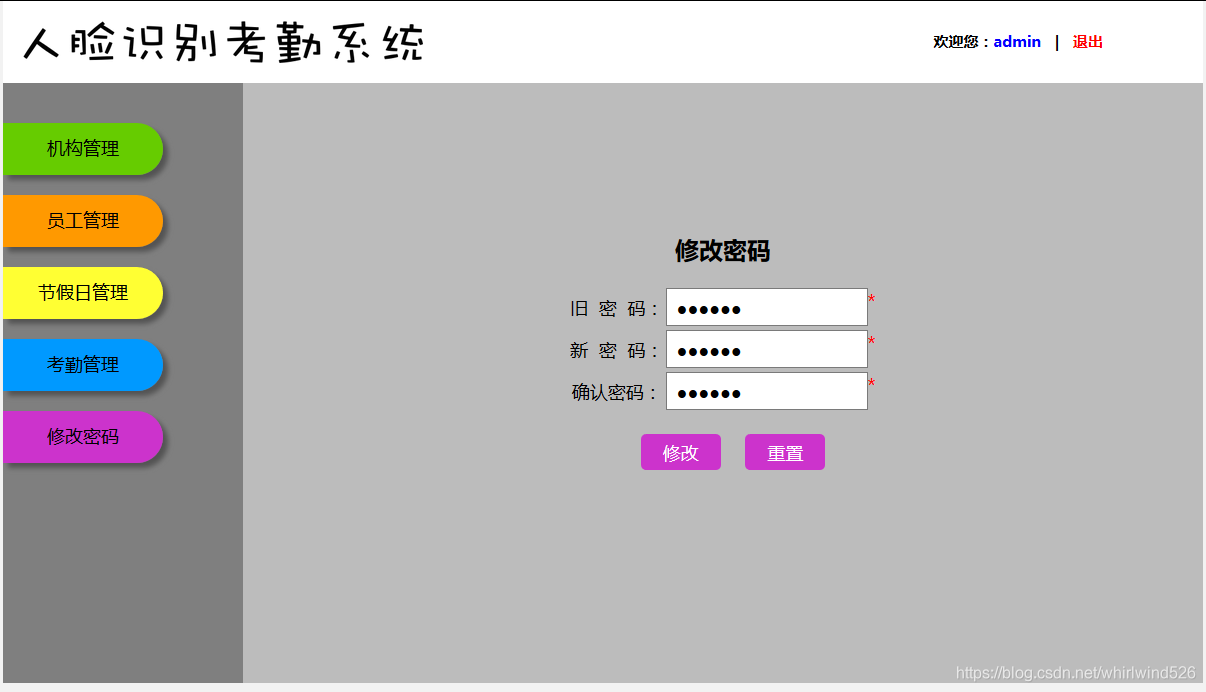

27. 点击【修改密码】，进入修改密码页面。根据文本框提示输入信息后，点击【修改】按钮。如下图：
编辑
以上是基于人脸识别的考勤系统的说明
package faceattendsystem.serviceImpl; import java.sql.Date; import java.util.List; import faceattendsystem.dao.IDaytimeDao; import faceattendsystem.dao.IMechanismDao; import faceattendsystem.daoImpl.DaytimeDaoImpl; import faceattendsystem.daoImpl.MechanismDaoImpl; import faceattendsystem.entity.Daytime; import faceattendsystem.entity.PageBean; import faceattendsystem.service.IDaytimeService; public class DaytimeServiceImpl implements IDaytimeService { private IDaytimeDao daytimeDao = new DaytimeDaoImpl(); private IMechanismDao mechanismDao = new MechanismDaoImpl(); @Override public int add(Daytime daytime) { return daytimeDao.add(daytime); } @Override public int update(Daytime daytime) { return daytimeDao.update(daytime); } @Override public PageBean<Daytime> queryByMechid(String mechid, int pc, int ps) { PageBean<Daytime> pb =daytimeDao.queryByMechid(mechid, pc, ps); List<Daytime> daytimeList = pb.getBeanList(); for(Daytime daytime:daytimeList){ daytime.setMechanism(mechanismDao.queryByMechid(mechid)); daytime.setBegintime(getRealTime(daytime.getBegintime())); daytime.setEndtime(getRealTime(daytime.getEndtime())); } return pb; } private String getRealTime(String time){ while(time.length()<6){ time = "0"+time; } time = time.substring(0,2)+":"+time.substring(2,4)+":"+time.substring(4,6); return time; } @Override public int isRepeatDate(Daytime daytime) { return daytimeDao.isRepeatDate(daytime); } @Override public Daytime queryByMechid(String mechid, Date nowdate) { Daytime daytime = daytimeDao.queryByMechid(mechid, nowdate); daytime.setMechanism(mechanismDao.queryByMechid(mechid)); return daytime; } @Override public PageBean<Daytime> query(Daytime daytime, int pc, int ps) { PageBean<Daytime> pb =daytimeDao.query(daytime, pc, ps); List<Daytime> daytimeList = pb.getBeanList(); for(Daytime d:daytimeList){ d.setMechanism(mechanismDao.queryByMechid(d.getMechanism().getMechid())); d.setBegintime(getRealTime(d.getBegintime())); d.setEndtime(getRealTime(d.getEndtime())); } return pb; } }
package faceattendsystem.serviceImpl; import java.util.List; import faceattendsystem.dao.IEmployeeDao; import faceattendsystem.dao.IMechanismDao; import faceattendsystem.daoImpl.EmployeeDaoImpl; import faceattendsystem.daoImpl.MechanismDaoImpl; import faceattendsystem.entity.Employee; import faceattendsystem.entity.Mechanism; import faceattendsystem.entity.PageBean; import faceattendsystem.service.IEmployeeService; public class EmployeeServiceImpl implements IEmployeeService { private IEmployeeDao employeeDao = new EmployeeDaoImpl(); private IMechanismDao mechanismDao = new MechanismDaoImpl(); @Override public int add(Employee employee) { return employeeDao.add(employee); } @Override public int delete(String empid) { return employeeDao.delete(empid); } @Override public int update(Employee employee) { return employeeDao.update(employee); } @Override public int updatePw(String empid,String npw) { return employeeDao.updatePw(empid,npw); } @Override public Employee queryByEmpid(String empid) { Employee employee = employeeDao.queryByEmpid(empid); employee.setMechanism(mechanismDao.queryByMechid(employee.getMechanism().getMechid())); return employee; } @Override public PageBean<Employee> queryByMechid(String mechid, int pc, int ps) { return employeeDao.queryByMechid(mechid, pc, ps); } @Override public List<Employee> queryAll() { return employeeDao.queryAll(); } @Override public PageBean<Employee> query(Employee employee, int pc, int ps) { PageBean<Employee> pb = employeeDao.query(employee,pc,ps); List<Employee> employeeList = pb.getBeanList(); for(Employee e : employeeList){ e.setMechanism(mechanismDao.queryByMechid(e.getMechanism().getMechid())); } pb.setBeanList(employeeList); return pb; } @Override public List<Employee> queryByMechid(String mechid) { List<Employee> employeeList = employeeDao.queryByMechid(mechid); for(Employee emp : employeeList){ Mechanism mechanism = mechanismDao.queryByMechid(emp.getMechanism().getMechid()); emp.setMechanism(mechanism); } return employeeList; } @Override public boolean isRepeatEmpid(String empid) { Employee employee = employeeDao.queryByEmpid(empid); return employee!=null?true:false; } @Override public Employee isEmployee(String empid) { Employee employee = employeeDao.queryByEmpid(empid); if(employee!=null){ employee.setMechanism(mechanismDao.queryByMechid(employee.getMechanism().getMechid())); } return employee; } @Override public Employee isRepeatIdnumber(String idnumber) { return employeeDao.queryByIdnumber(idnumber); } }
package faceattendsystem.serviceImpl; import java.util.List; import faceattendsystem.dao.IEmployeeDao; import faceattendsystem.dao.IErrorsheetDao; import faceattendsystem.dao.IMechanismDao; import faceattendsystem.daoImpl.EmployeeDaoImpl; import faceattendsystem.daoImpl.ErrorsheetDaoImpl; import faceattendsystem.daoImpl.MechanismDaoImpl; import faceattendsystem.entity.Errorsheet; import faceattendsystem.entity.PageBean; import faceattendsystem.service.IErrorsheetService; public class ErrorsheetServiceImpl implements IErrorsheetService { IErrorsheetDao errorsheetDao = new ErrorsheetDaoImpl(); IMechanismDao mechanismDao = new MechanismDaoImpl(); IEmployeeDao employeeDao = new EmployeeDaoImpl(); @Override public PageBean<Errorsheet> query(Errorsheet errorsheet, String bdate, String edate, int pc, int ps) { PageBean<Errorsheet> pb = errorsheetDao.query(errorsheet, bdate, edate, pc, ps); List<Errorsheet> errorsheetList = pb.getBeanList(); for (Errorsheet e : errorsheetList) { e.setMechanism(mechanismDao.queryByMechid(e.getMechanism().getMechid())); e.setEmployee(employeeDao.queryByEmpid(e.getEmployee().getEmpid())); } pb.setBeanList(errorsheetList); return pb; } @Override public int add(Errorsheet errorsheet) { return errorsheetDao.add(errorsheet); } @Override public List<Errorsheet> queryAll() { return errorsheetDao.queryAll(); } @Override public PageBean<Errorsheet> queryAll(Errorsheet errorsheet, String bdate, String edate) { PageBean<Errorsheet> pb = errorsheetDao.queryAll(errorsheet, bdate, edate); List<Errorsheet> errorsheetList = pb.getBeanList(); for (Errorsheet e : errorsheetList) { e.setMechanism(mechanismDao.queryByMechid(e.getMechanism().getMechid())); e.setEmployee(employeeDao.queryByEmpid(e.getEmployee().getEmpid())); } pb.setBeanList(errorsheetList); return pb; } }
package faceattendsystem.serviceImpl; import java.sql.Date; import java.util.List; import faceattendsystem.dao.IEmployeeDao; import faceattendsystem.dao.IFlowsheetDao; import faceattendsystem.daoImpl.EmployeeDaoImpl; import faceattendsystem.daoImpl.FlowsheetDaoImpl; import faceattendsystem.entity.Employee; import faceattendsystem.entity.Flowsheet; import faceattendsystem.entity.PageBean; import faceattendsystem.service.IFlowsheetService; public class FlowsheetServiceImpl implements IFlowsheetService { IFlowsheetDao flowsheetDao = new FlowsheetDaoImpl(); IEmployeeDao employeeDao = new EmployeeDaoImpl(); @Override public List<Flowsheet> query(Date date, String empid) { return flowsheetDao.query(date,empid); } @Override public Date getMindate(Employee employee) { return flowsheetDao.getMindate(employee); } @Override public PageBean<Flowsheet> query(String empid, String bdate, String edate, int pc, int ps) { PageBean<Flowsheet> pb = flowsheetDao.query(empid,bdate,edate,pc,ps); List<Flowsheet> flowsheetList = pb.getBeanList(); for(Flowsheet fs:flowsheetList){ fs.setEmployee(employeeDao.queryByEmpid(fs.getEmployee().getEmpid())); fs.setLogtime(getRealTime(fs.getLogtime())); fs.setClientdatetime(getDatetime(fs.getClientdatetime())); //fs.setSimilarity(getExactValue(fs.getSimilarity())); } return pb; } @Override public PageBean<Flowsheet> queryAll(String empid, String bdate, String edate) { PageBean<Flowsheet> pb = flowsheetDao.queryAll(empid,bdate,edate); List<Flowsheet> flowsheetList = pb.getBeanList(); for(Flowsheet fs:flowsheetList){ fs.setEmployee(employeeDao.queryByEmpid(fs.getEmployee().getEmpid())); fs.setLogtime(getRealTime(fs.getLogtime())); fs.setClientdatetime(getDatetime(fs.getClientdatetime())); } return pb; } /** * 添加打卡记录 * @param flowsheet */ public void addSheet(Flowsheet flowsheet){ flowsheetDao.addSheet(flowsheet); } /* private float getExactValue(float similarity) { return (Math.round(similarity*100)/100); }*/ private String getDatetime(String datetime) { String date = datetime.substring(0,8); date = date.substring(0,4)+"-"+date.substring(4,6)+"-"+date.substring(6); String time = datetime.substring(8); time = getRealTime(time); datetime = date+" "+time; return datetime; } private String getRealTime(String time){ while(time.length()<6){ time = "0"+time; } time = time.substring(0,2)+":"+time.substring(2,4)+":"+time.substring(4); return time; } }
