图形的适用场景
关注分类变量各分类的比例，用饼图 关注变量的频率分布，用直方图 关注变量的变化趋势，用折线图 关注两个变量的相关，用散点图 展示一个变量的集中趋势和离散趋势，用箱图
导入库
# -*- coding: utf-8 -*- # @File : pylot_demo.py # @Date : 2018-05-14 import numpy as np import matplotlib.pyplot as plt
饼图的绘制

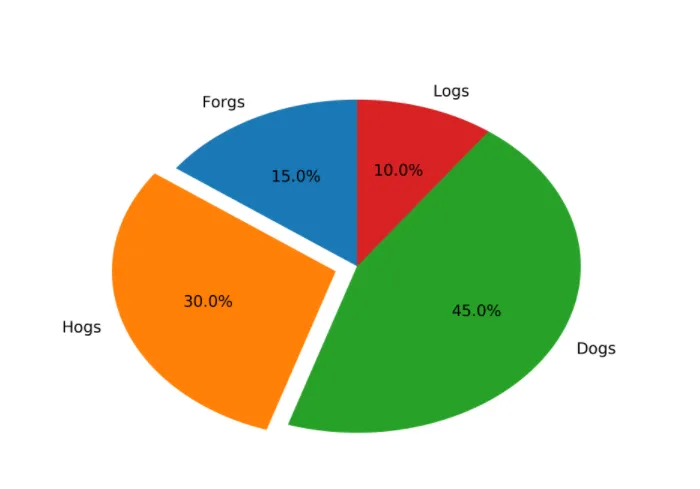

def plot_pie1(): labels = "Forgs", "Hogs", "Dogs", "Logs" sizes = [15, 30, 45, 10] explode = (0, 0.1, 0, 0) plt.pie(sizes, explode, labels, autopct='%1.1f%%', shadow=False, startangle=90) plt.savefig("pie1", dpi=600) plt.show()

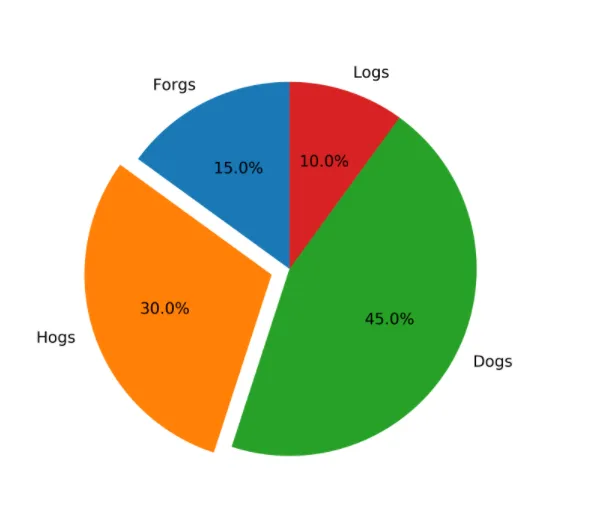

def plot_pie2(): labels = "Forgs", "Hogs", "Dogs", "Logs" sizes = [15, 30, 45, 10] explode = (0, 0.1, 0, 0) plt.pie(sizes, explode, labels, autopct='%1.1f%%', shadow=False, startangle=90) plt.axis("equal") plt.savefig("pie2", dpi=600) plt.show()

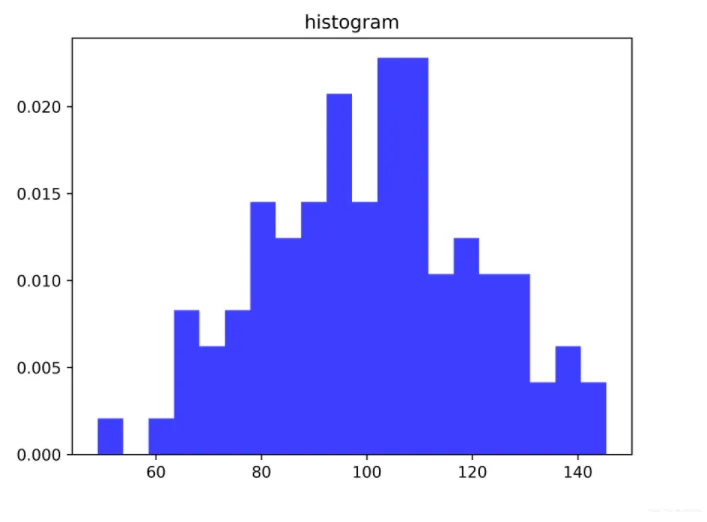

直方图的绘制
def plot_hist(): np.random.seed(0) mu, sigma = 100, 20 # 均值和标准差 a = np.random.normal(mu, sigma, size=100) # bins直方图的个数 plt.hist(a, 20, normed=1, histtype="stepfilled", facecolor="b", alpha=0.75) plt.title("histogram") plt.savefig("hist", dpi=600) plt.show()
绘制极坐标图
def plot_polar(): N = 20 theta = np.linspace(0.0, 2*np.pi, N, endpoint=False) radii = 20 * np.random.randn(N) width = np.pi / 4 * np.random.randn(N) ax = plt.subplot(111, projection="polar") bars = ax.bar(theta, radii, width=width, bottom=0.0) for r, bar in zip(radii, bars): bar.set_facecolor(plt.cm.viridis(r/10.)) bar.set_alpha(0.5) plt.savefig("polar", dpi=600) plt.show()

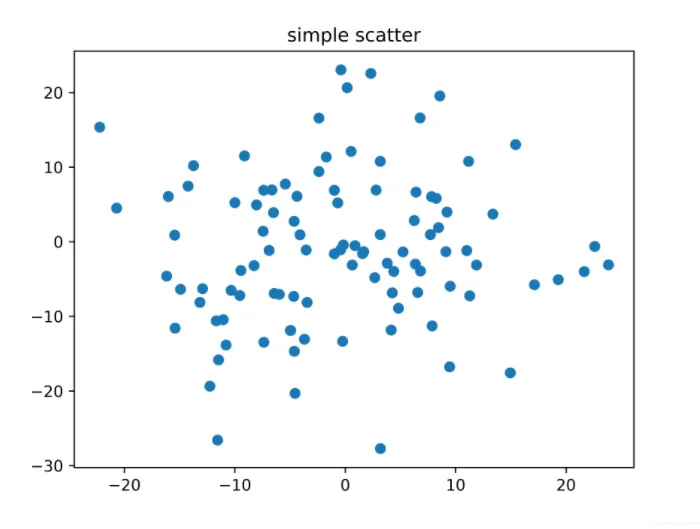

绘制散点图
def plot_scatter(): fig, ax = plt.subplots() ax.plot(10*np.random.randn(100), 10*np.random.randn(100), "o") ax.set_title("simple scatter") plt.savefig("scatter", dpi=600) plt.show()
