简介: 微服务学习笔记七 Spring Cloud Feign负载均衡及服务熔断

**Feign:**

与Ribbon一样,Feign也是由Netflix提供的,Feign是一个声明式、

模块化的Web Service客户端,它简化了开发者编写Web客户端的操作,

开发者可以通过简单的接口和注解来调用HTTP API ,Spring Cloud Feign,

它整合了Ribbon和Hystrix,具有可插拔、基于注解、负载均衡、服务熔断

等一系列便捷功能。

相比较于Ribbon+RestTemplate的方式,Feign大大简化了代码的开发,

Feign支持多种注解,包括Feign注解、JAX-RS注解、Spring MVC注解等,

Spring Cloud 对Feign进行了优化,整合了Ribbon和Eureka,从而让Feign

的使用更加方便。

Ribbon和Feign的区别:

Ribbon是一个通用的HTTP客户端工具,Feign是基于Ribbon实现的。

Feign的特点:

1)Feign是一个声明式的Web Service客户端。

2)支持Feign注解、SpringMVC注解、JAX-RS注解。

3)Feign基于Ribbon实现,使用起来更加简单。

4)Feign集成了Hystrix,具备服务熔断的功能。

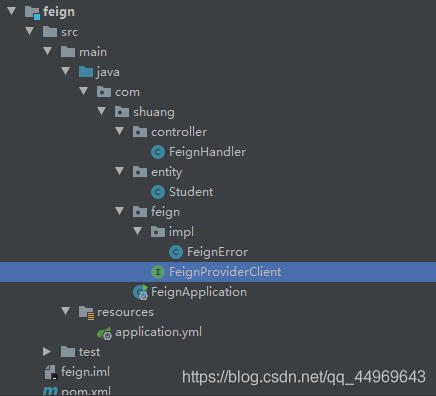

![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/20200713174109858.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQ0OTY5NjQz,size_16,color_FFFFFF,t_70)

创建Module,pom.xml添加依赖


```yaml

<dependencies>

   <dependency>

       <groupId>org.springframework.cloud</groupId>

       <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>

       <version>2.0.2.RELEASE</version>

   </dependency>


   <dependency>

       <groupId>org.springframework.cloud</groupId>

       <artifactId>spring-cloud-starter-openfeign</artifactId>

       <version>2.0.2.RELEASE</version>

   </dependency>

</dependencies>

```

创建配置文件,application.yml


```yaml

server:

 port: 8050

spring:

 application:

   name: feign

eureka:

 client:

   service-url:

     defaultZone: http://localhost:8761/eureka/

 instance:

   prefer-ip-address: true

```

创建启动类


```java

package com.shuang;


import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.openfeign.EnableFeignClients;


@SpringBootApplication

@EnableFeignClients

public class FeignApplication {

   public static void main(String[] args) {

       SpringApplication.run(FeignApplication.class,args);

   }

}

```

创建声明式接口


```java

package com.shuang.feign;


import com.shuang.entity.Student;

import org.springframework.cloud.openfeign.FeignClient;

import org.springframework.web.bind.annotation.GetMapping;


import java.util.Collection;


@FeignClient(value = "provider")

public interface FeignProviderClient {

   @GetMapping("/student/findAll")

   public Collection<Student> findAll();


   @GetMapping("/student/index")

   public String index();

}

```

Handler


```java

package com.shuang.controller;


import com.shuang.entity.Student;

import com.shuang.feign.FeignProviderClient;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.web.bind.annotation.GetMapping;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RestController;


import java.util.Collection;


@RestController

@RequestMapping("/feign")

public class FeignHandler {

   @Autowired

   private FeignProviderClient feignProviderClient;


   @GetMapping("/findAll")

   public Collection<Student> findAll(){

       return feignProviderClient.findAll();

   }


   @GetMapping("/index")

   public String index(){

       return feignProviderClient.index();

   }

}

```

服务熔断,application.yml中添加熔断机制


```java

server:

 port: 8050

spring:

 application:

   name: feign

eureka:

 client:

   service-url:

     defaultZone: http://localhost:8761/eureka/

 instance:

   prefer-ip-address: true

feign:

 hystrix:

   enabled: true

```

feign.hystrix.enable:是否开启熔断器。

创建 FeignProviderClient 接口的实现类FeignError,定义容错处理逻辑,通过@Component

注解将FeignError实例注入IOC容器中。




```java

package com.shuang.feign.impl;


import com.shuang.entity.Student;

import com.shuang.feign.FeignProviderClient;

import org.springframework.stereotype.Component;


import java.util.Collection;


@Component

public class FeignError implements FeignProviderClient {

   @Override

   public Collection<Student> findAll() {

       return null;

   }


   @Override

   public String index() {

       return "服务器维护中。。。。";

   }

}

```

在FeignProviderClient定义处通过@FeignClient的fallback属性设置映射。


```java

package com.shuang.feign;


import com.shuang.entity.Student;

import com.shuang.feign.impl.FeignError;

import org.springframework.cloud.openfeign.FeignClient;

import org.springframework.web.bind.annotation.GetMapping;


import java.util.Collection;


@FeignClient(value = "provider", fallback = FeignError.class)

public interface FeignProviderClient {

   @GetMapping("/student/findAll")

   public Collection<Student> findAll();


   @GetMapping("/student/index")

   public String index();

}


```


**依次启动:注册中心、Feign**



![在这里插入图片描述](https://ucc.alicdn.com/images/user-upload-01/20200713174030134.png)
