按最少次数开关点亮所有灯

简介: 按最少次数开关点亮所有灯

题目

给定一个数组arr,长度为N,arr中的值不是0就是1。arr[i]表示第i栈灯的状态,0代表灭灯,1代表亮灯
每一栈灯都有开关,但是按下i号灯的开关,会同时改变i-1、i、i+1栈灯的状态
问题一:如果N栈灯排成一条直线,请问最少按下多少次开关?
i为中间位置时,i号灯的开关能影响i-1、i和i+1
0号灯的开关只能影响0和1位置的灯
N-1号灯的开关只能影响N-2和N-1位置的灯

解题思路

递归:从左到右模型

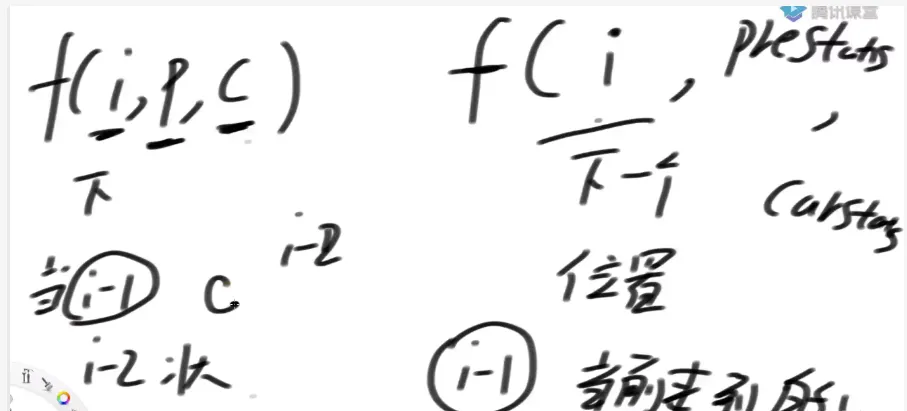

递归函数f(nextIndex,preStatus,curStatus)
nextIndex:当前位置的下一个位置,即当前来到的位置为nextIndex-1
preStatus:当前位置的前一个位置的状态
curStatus:当前位置的状态
潜台词0-i-1位置的灯是全亮的

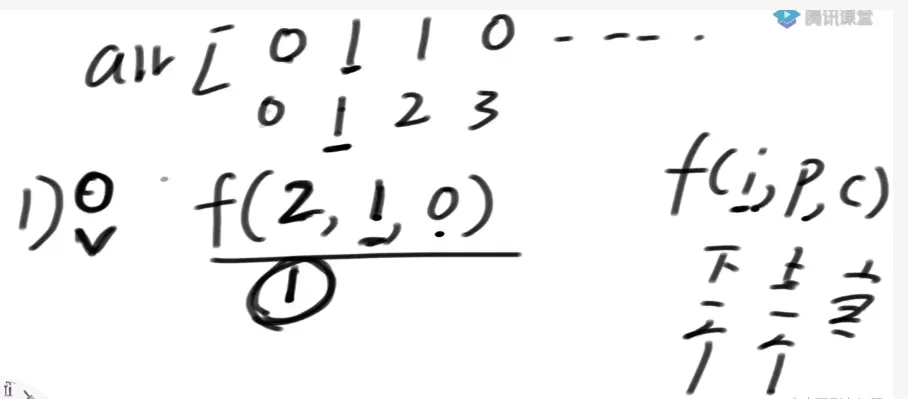

1)0位置按了开关.去1位置做选择,调用f(2,1,0)
2)0位置没按开关,调用f(2,0,1)
f返回值:
使之前做的决定都已经体现在参数上了,i位置怎么做决定能让整体的灯全亮,而且最少的开关数

递归代码

    public static int noLoopMinStep1(int[] arr) {
        if (arr == null || arr.length == 0) {
            return 0;
        }
        if (arr.length == 1) {
            return arr[0] ^ 1;
        }
        if (arr.length == 2) {
            return arr[0] != arr[1] ? Integer.MAX_VALUE : (arr[0] ^ 1);
        }
        // 不变0位置的状态
        int p1 = process1(arr, 2, arr[0], arr[1]);
        // 改变0位置的状态
        int p2 = process1(arr, 2, arr[0] ^ 1, arr[1] ^ 1);
        if (p2 != Integer.MAX_VALUE) {
            p2++;
        }
        return Math.min(p1, p2);
    }

    // 当前在哪个位置上,做选择,nextIndex - 1 = cur ,当前!
    // cur - 1 preStatus
    // cur  curStatus
    // 0....cur-2  全亮的!
    public static int process1(int[] arr, int nextIndex, int preStatus, int curStatus) {
        if (nextIndex == arr.length) { // 当前来到最后一个开关的位置
            return preStatus != curStatus ? (Integer.MAX_VALUE) : (curStatus ^ 1);
        }
        // 没到最后一个按钮呢!
        // i < arr.length
        if (preStatus == 0) { // 一定要改变
            curStatus ^= 1;
            int cur = arr[nextIndex] ^ 1;
            int next = process1(arr, nextIndex + 1, curStatus, cur);
            return next == Integer.MAX_VALUE ? next : (next + 1);
        } else { // 一定不能改变
            return process1(arr, nextIndex + 1, curStatus, arr[nextIndex]);
        }
    }

递归改迭代

你当初0位置,如果按下了按钮,你是一条唯一的路径,一直决策到N没分叉
如果你0位置没有按下按钮,它依然是一条单独的分支, 走到N没有分叉

    public static int noLoopMinStep(int[] arr) {
        if (arr == null || arr.length == 0) {
            return 0;
        }
        if (arr.length == 1) {
            return arr[0] == 1 ? 0 : 1;
        }
        if (arr.length == 2) {
            return arr[0] != arr[1] ? Integer.MAX_VALUE : (arr[0] ^ 1);
        }
        int p1 = traceNoLoop(arr, arr[0], arr[1]);
        int p2 = traceNoLoop(arr, arr[0] ^ 1, arr[1] ^ 1);
        p2 = (p2 == Integer.MAX_VALUE) ? p2 : (p2 + 1);
        return Math.min(p1, p2);
    }

进阶

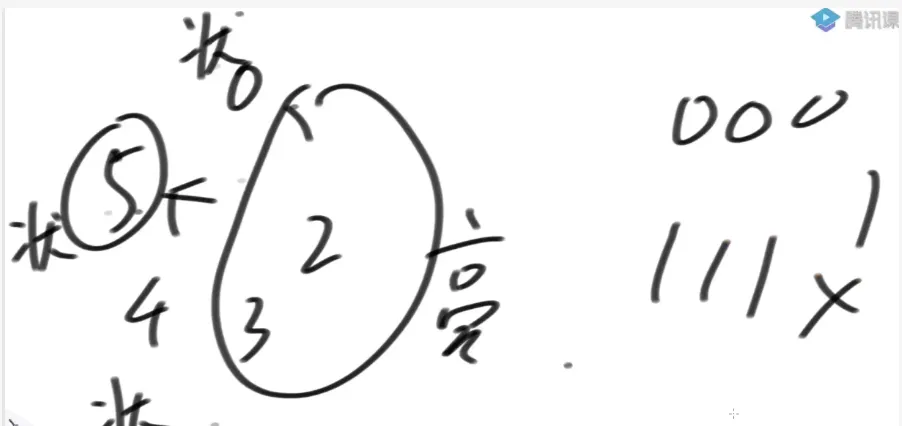

如果N栈灯排成一个圈,请问最少按下多少次开关,能让灯都亮起来
i为中间位置时,i号灯的开关能影响i-1、i和i+1
0号灯的开关能影响N-1、0和1位置的灯
N-1号灯的开关能影响N-2、N-1和0位置的灯

题解

在无环问题中的递归函数增加两个参数
firstStatus:可能当前来到了i位置,当初0位置的状态是firststatus,因为来到最后一盏灯时是可以改变零的
endStatus:可能当前来到了i位置,当初0位置做完决定最后一个状态是endStatus
来到一个位置,它后面的位置是i, 一个普遍位置,告诉你当初0位置的状态firstStatus,最后一个位置的状态endStatus,
把这两个东西作为可变参数告诉你,你给我做决策
接下来你的下一个位置,你之前的状态跟你当前的状态跟刚才的函数一样

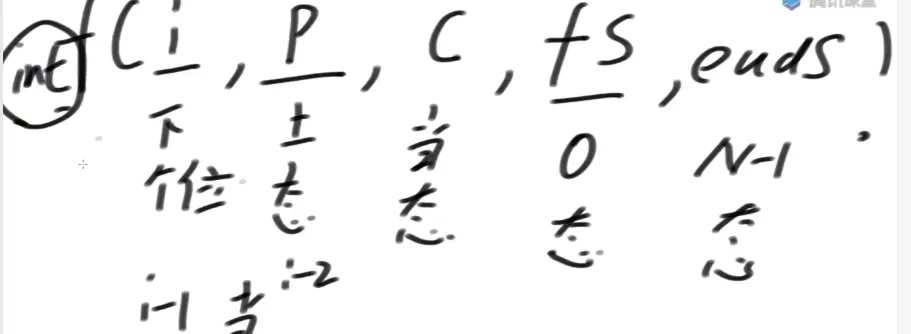

i:当前在i-1位置,是下一个位置
p:当前在i-1位置, i-2位置灯的状态
c:当前i-1位置,i-1位置灯的状态
fs: 0位置灯的状态
endS: N-1位置灯的状态

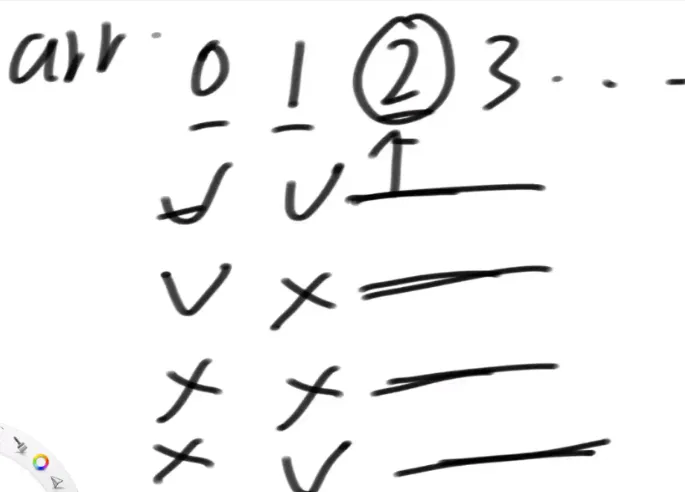

主函数调用4种分支
1)0按开关,1位置也按开关
2)0按开关,1位置不按开关
3)0不按开关,1位置不按开关
4)0不按开关,1位置按开关
来到最后一个位置,现在知道0位置的状态,最后一盖灯的状态和前一盖灯的状态,三个状态都要一样,否则没法解决了

一个普遍位置的i,它将遵循的原则:
它前面的状态如果是亮的,它就不按
它前面的位置,如果是灭了,它一定要按
这是一个普适性质的i,但这个普适性在1位置就不能适用这个原则了。
客观上来讲1位置前面这个0位置不管是亮还是灭都可以,因为0位置还能被最后一个N-1位置搬回来

代码

    public static int loopMinStep1(int[] arr) {
        if (arr == null || arr.length == 0) {
            return 0;
        }
        if (arr.length == 1) {
            return arr[0] == 1 ? 0 : 1;
        }
        if (arr.length == 2) {
            return arr[0] != arr[1] ? Integer.MAX_VALUE : (arr[0] ^ 1);
        }
        if (arr.length == 3) {
            return (arr[0] != arr[1] || arr[0] != arr[2]) ? Integer.MAX_VALUE : (arr[0] ^ 1);
        }
        // 0不变,1不变
        int p1 = process2(arr, 3, arr[1], arr[2], arr[arr.length - 1], arr[0]);
        // 0改变,1不变
        int p2 = process2(arr, 3, arr[1] ^ 1, arr[2], arr[arr.length - 1] ^ 1, arr[0] ^ 1);
        // 0不变,1改变
        int p3 = process2(arr, 3, arr[1] ^ 1, arr[2] ^ 1, arr[arr.length - 1], arr[0] ^ 1);
        // 0改变,1改变
        int p4 = process2(arr, 3, arr[1], arr[2] ^ 1, arr[arr.length - 1] ^ 1, arr[0]);
        p2 = p2 != Integer.MAX_VALUE ? (p2 + 1) : p2;
        p3 = p3 != Integer.MAX_VALUE ? (p3 + 1) : p3;
        p4 = p4 != Integer.MAX_VALUE ? (p4 + 2) : p4;
        return Math.min(Math.min(p1, p2), Math.min(p3, p4));
    }


    // 下一个位置是,nextIndex
    // 当前位置是,nextIndex - 1 -> curIndex
    // 上一个位置是, nextIndex - 2 -> preIndex   preStatus
    // 当前位置是,nextIndex - 1, curStatus
    // endStatus, N-1位置的状态
    // firstStatus, 0位置的状态
    // 返回,让所有灯都亮,至少按下几次按钮

    // 当前来到的位置(nextIndex - 1),一定不能是1!至少从2开始
    // nextIndex >= 3
    public static int process2(int[] arr,
            int nextIndex, int preStatus, int curStatus,
            int endStatus, int firstStatus) {

        if (nextIndex == arr.length) { // 最后一按钮!
            return (endStatus != firstStatus || endStatus != preStatus) ? Integer.MAX_VALUE : (endStatus ^ 1);
        }
        // 当前位置,nextIndex - 1
        // 当前的状态,叫curStatus
        // 如果不按下按钮,下一步的preStatus, curStatus
        // 如果按下按钮,下一步的preStatus, curStatus ^ 1
        // 如果不按下按钮,下一步的curStatus, arr[nextIndex]
        // 如果按下按钮,下一步的curStatus, arr[nextIndex] ^ 1
        int noNextPreStatus = 0;
        int yesNextPreStatus = 0;
        int noNextCurStatus =0;
        int yesNextCurStatus = 0;
        int noEndStatus = 0;
        int yesEndStatus = 0;
        if(nextIndex < arr.length - 1) {// 当前没来到N-2位置
             noNextPreStatus = curStatus;
             yesNextPreStatus = curStatus ^ 1;
             noNextCurStatus = arr[nextIndex];
             yesNextCurStatus = arr[nextIndex] ^ 1;
        } else if(nextIndex == arr.length - 1) {// 当前来到的就是N-2位置
            noNextPreStatus = curStatus;
            yesNextPreStatus = curStatus ^ 1;
            noNextCurStatus = endStatus;
            yesNextCurStatus = endStatus ^ 1;
            noEndStatus = endStatus;
            yesEndStatus = endStatus ^ 1;
        }
        if(preStatus == 0) {
            int next = process2(arr, nextIndex + 1, yesNextPreStatus, yesNextCurStatus,
                    nextIndex == arr.length - 1 ? yesEndStatus : endStatus, firstStatus);
            return next == Integer.MAX_VALUE ? next : (next + 1);
        }else {
            return process2(arr, nextIndex + 1, noNextPreStatus, noNextCurStatus,
                    nextIndex == arr.length - 1 ? noEndStatus : endStatus, firstStatus);

        }
//        int curStay = (nextIndex == arr.length - 1) ? endStatus : arr[nextIndex];
//        int curChange = (nextIndex == arr.length - 1) ? (endStatus ^ 1) : (arr[nextIndex] ^ 1);
//        int endChange = (nextIndex == arr.length - 1) ? curChange : endStatus;
//        if (preStatus == 0) {
//            int next = process2(arr, nextIndex + 1, curStatus ^ 1, curChange, endChange, firstStatus);
//            return next == Integer.MAX_VALUE ? next : (next + 1);
//        } else {
//            return process2(arr, nextIndex + 1, curStatus, curStay, endStatus, firstStatus);
//        }
    }

迭代

    public static int traceLoop(int[] arr, int preStatus, int curStatus, int endStatus, int firstStatus) {
        int i = 3;
        int op = 0;
        while (i < arr.length - 1) {
            if (preStatus == 0) {
                op++;
                preStatus = curStatus ^ 1;
                curStatus = (arr[i++] ^ 1);
            } else {
                preStatus = curStatus;
                curStatus = arr[i++];
            }
        }
        if (preStatus == 0) {
            op++;
            preStatus = curStatus ^ 1;
            endStatus ^= 1;
            curStatus = endStatus;
        } else {
            preStatus = curStatus;
            curStatus = endStatus;
        }
        return (endStatus != firstStatus || endStatus != preStatus) ? Integer.MAX_VALUE : (op + (endStatus ^ 1));
    }
