搭建SSM项目时一直搭建不了mybatis，大家帮帮忙?报错

小弟今天使用maven搭建SSM框架 （springMVC+spring4.0+mybatis3.2）

根据网上很多教程搭建了起来，springmvc可以运行，但是查询数据库始终不行

我的web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">
  <display-name>易额科技自定义后台</display-name>
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring/applicationContext-mvc.xml</param-value>
    </init-param>
  </servlet>
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>
    	classpath:spring/applicationContext.xml,
    	classpath:spring/spring-mybatis.xml
    </param-value>
  </context-param>

  <!-- 配置Spring字符编码过滤器 -->
  <filter>
      <filter-name>encodingFilter</filter-name>
      <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
      <init-param>
          <param-name>encoding</param-name>
          <param-value>UTF-8</param-value>
      </init-param>
      <init-param>
          <param-name>forceEncoding</param-name>
          <param-value>true</param-value>
      </init-param>
  </filter>
  <filter-mapping>
      <filter-name>encodingFilter</filter-name>
      <url-pattern>/*</url-pattern>
  </filter-mapping>
</web-app>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
		http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd">
	<!-- 启用spring mvc 注解 -->
	<context:annotation-config></context:annotation-config>
	<mvc:annotation-driven></mvc:annotation-driven>

	<!-- 设置使用注解的类所在的包 -->
	<context:component-scan base-package="appmanager.controller"></context:component-scan>
	<!-- 对静态资源文件的访问 -->
    <mvc:resources mapping="*.js" location="*.js" />
    <mvc:resources mapping="*.img" location="*.img" />
    <mvc:resources mapping="*.png" location="*.png" />
    <mvc:resources mapping="/static/" location="/static/**" />
    <!-- web.xml内定义的默认访问 -->
    <mvc:default-servlet-handler/>


    <bean class="org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping"></bean>

    <!-- 对转向页面的路径解析。prefix：前缀， suffix：后缀 -->
  	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
  		<property name="prefix" value="/"></property>
  		<property name="suffix" value=""></property>
  	</bean>
</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
	<!-- JDBC配置 -->
	<context:property-placeholder location="classpath:jdbc.properties"/>
	<!-- 扫描service -->
	<context:component-scan base-package="appmanager.service"></context:component-scan>
</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
		http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd">

	<!-- 开启自动扫描 -->
	<context:annotation-config></context:annotation-config>
	<!-- 引入JDBC配置文件 -->
	<!-- <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
		<property name="location" value="classpath:jdbc.properties"></property>
	</bean> -->

	<!-- 配置数据源 -->
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">

		<property name="driverClassName" value="${driver}" />
        <property name="url" value="${url}" />
        <property name="username" value="${username}" />
        <property name="password" value="${pwd}" />
        <!-- 初始化连接大小 -->
        <property name="initialSize" value="${initialSize}"></property>
        <!-- 连接池最大数量 -->
        <property name="maxActive" value="${maxActive}"></property>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="${maxIdle}"></property>
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="${minIdle}"></property>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="${maxWait}"></property>
        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="${timeBetweenEvictionRunsMillis}"></property>

	</bean>
	<!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!-- <property name="configLocation" value="classpath:mybatis/mybatis-config.xml"></property> -->
        <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath:appmanager/dao/impl/*.xml" ></property>
    </bean>
    <!-- <bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">
    	<constructor-arg ref="sqlSessionFactory"></constructor-arg>
    </bean>  -->
    <!-- DAO接口所在包名，Spring会自动查找其下的类  配置扫描器-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="appmanager.dao" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

</beans>

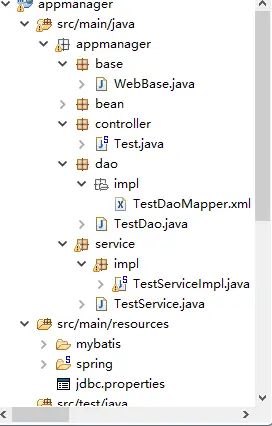

dao文件

appmanager.dao.TestDao 文件

package appmanager.dao;

public interface TestDao {
	public int getcount() ;
}

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC
    "-//mybatis.org//DTD Mapper 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="appmanager.dao.TestDao">

	<select id="getcount" resultType="int">
		select count(1) from dual
	</select>
</mapper>

appmanager.service.TestService 文件

package appmanager.service;

public interface TestService  {
	public int getcount1() ;
}

appmanager.service.impl.TestServiceImpl 文件

package appmanager.service.impl;

import javax.annotation.Resource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import appmanager.dao.TestDao;
import appmanager.service.TestService;

@Service("TestService")
public class TestServiceImpl implements TestService {
	@Autowired
	private TestDao bean ;
	@Override
	public int getcount1() {
		System.out.println(bean);
		System.out.println(bean.getcount());
		return bean.getcount();
	}

}

appmanager.controller.Test

package appmanager.controller;

import java.io.IOException;

import javax.servlet.http.HttpServletResponse;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import appmanager.base.WebBase;
import appmanager.service.impl.TestServiceImpl;

@Controller
public class Test {

	@RequestMapping("demo")
	public void test(HttpServletResponse res){
		res.setContentType(WebBase.RESPONSECONTENTTYPE_P);
		try {
			res.getWriter().print("nihao 1");
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		System.out.println(12345);
	}

	@RequestMapping("/demo2")
	public String test2(){
		System.out.println("demo2");
		System.out.println(new TestServiceImpl().getcount1());
		return "demo" ;
	}

}

下面是报错的信息
