阿里P8架构师教你Netty源码面试解析实战（二）- 基本组件

/**
 * @author JavaEdge
 */
public class ServerBoot {
    private static final int PORT = 8000;
    public static void main(String[] args) {
        Server server = new Server(PORT);
        server.start();
    }
}

/**
 * @author JavaEdge
 */
public class Server {
    private ServerSocket serverSocket;
    public Server(int port) {
        try {
            this.serverSocket = new ServerSocket(port);
            System.out.println("Server starts success，端口:" + port);
        } catch (IOException exception) {
            System.out.println("Server starts failed");
        }
    }
    public void start() {
        new Thread(() -> doStart()).start();
    }

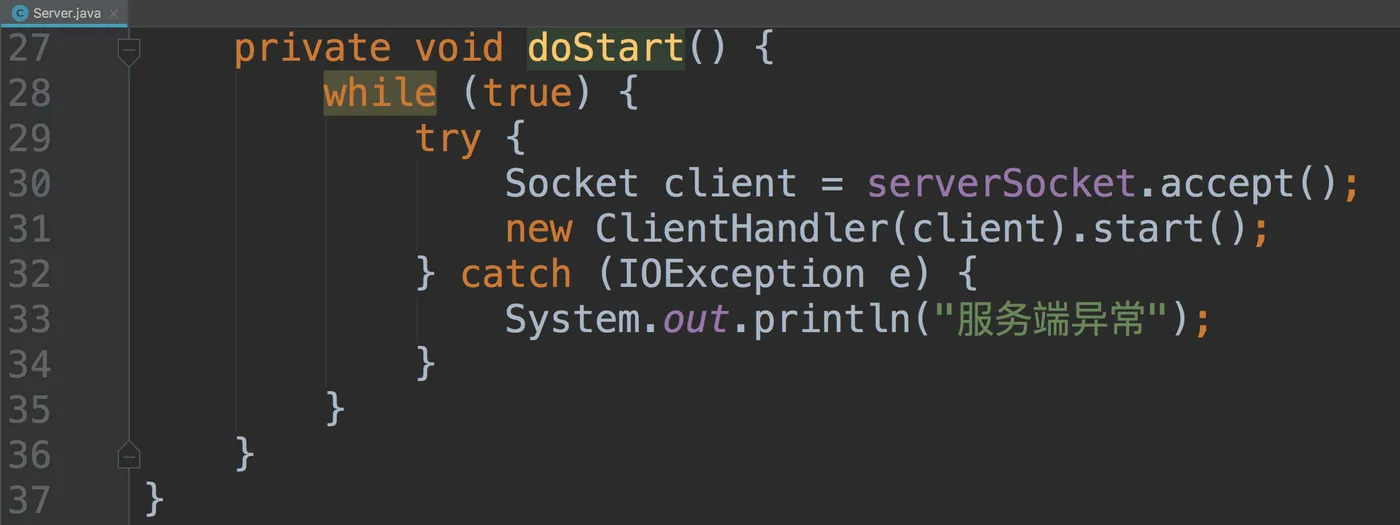

    private void doStart() {
        while (true) {
            try {
                Socket client = serverSocket.accept();
                new ClientHandler(client).start();
            } catch (IOException e) {
                System.out.println("Server failure");
            }
        }
    }
}

/**
 * @author JavaEdge
 */

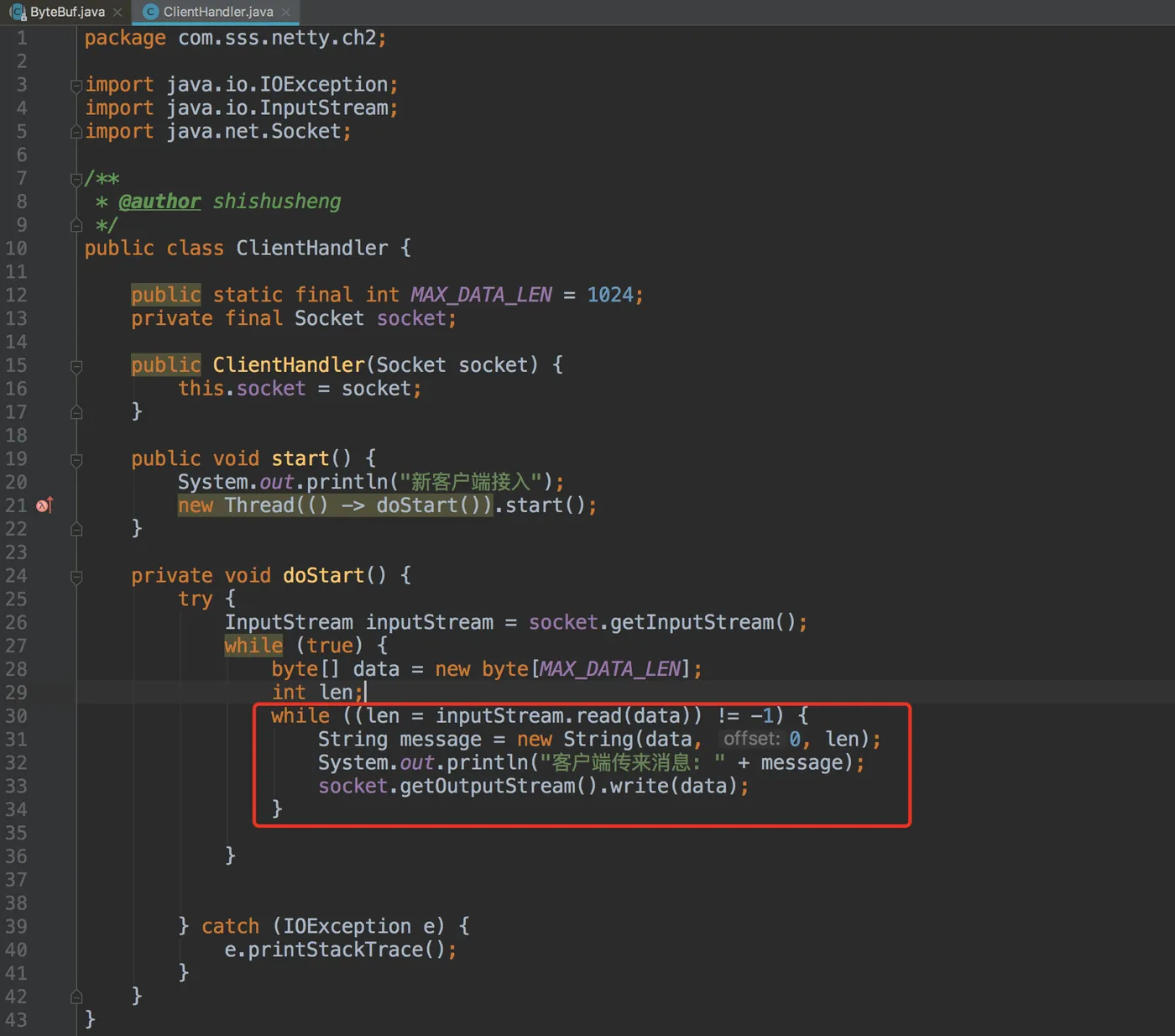

public class ClientHandler {
    public static final int MAX_DATA_LEN = 1024;
    private final Socket socket;
    public ClientHandler(Socket socket) {
        this.socket = socket;
    }
    public void start() {
        System.out.println("新客户端接入");
        new Thread(() -> doStart()).start();
    }

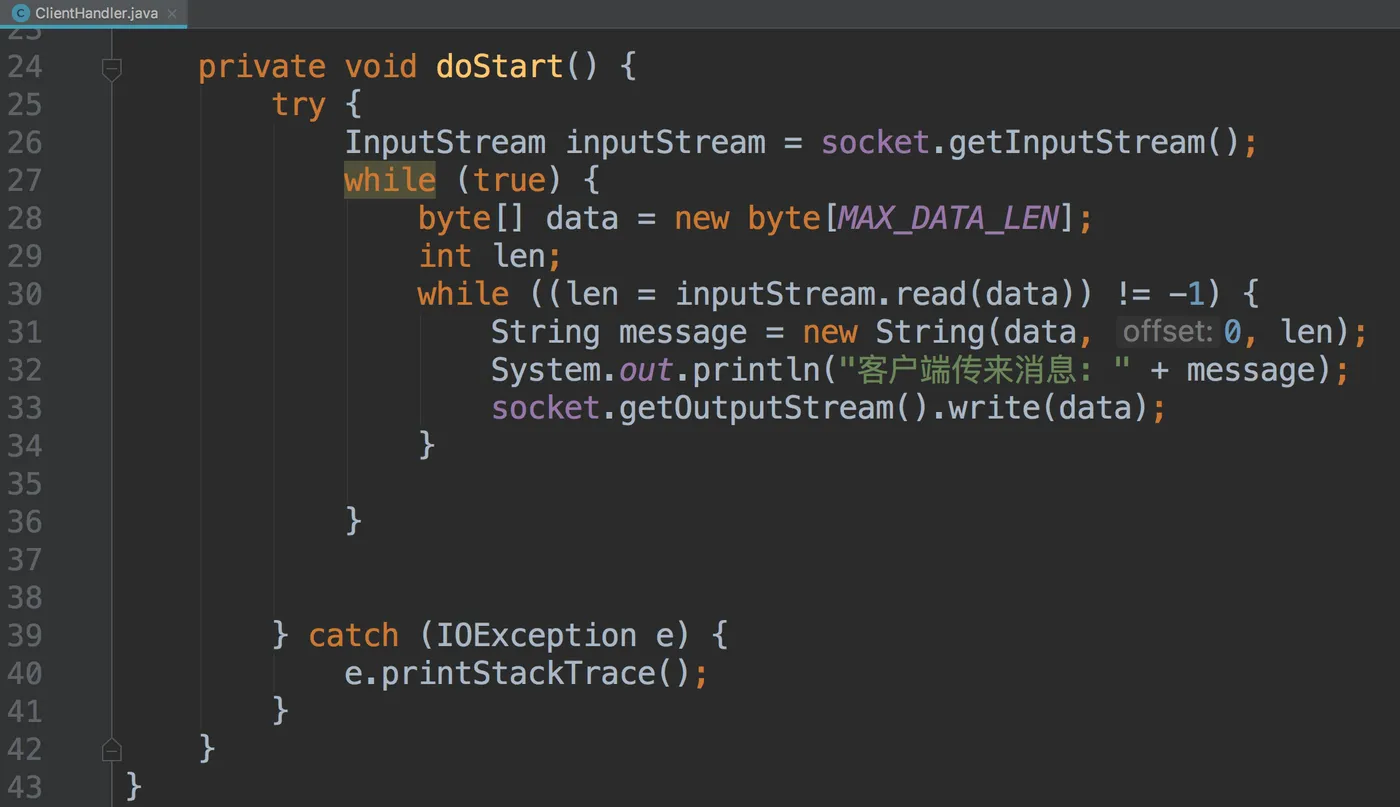

    private void doStart() {
        try {
            InputStream inputStream = socket.getInputStream();
            while (true) {
                byte[] data = new byte[MAX_DATA_LEN];
                int len;
                while ((len = inputStream.read(data)) != -1) {
                    String message = new String(data, 0, len);
                    System.out.println("客户端传来消息: " + message);
                    socket.getOutputStream().write(data);
                }
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

/**
 * @author JavaEdge
 */
public class Client {
    private static final String HOST = "127.0.0.1";
    private static final int PORT = 8000;
    private static final int SLEEP_TIME = 5000;
    public static void main(String[] args) throws IOException {
        final Socket socket = new Socket(HOST, PORT);
        new Thread(() -> {
            System.out.println("客户端启动成功!");
            while (true) {
                try {
                    String message = "hello world";
                    System.out.println("客户端发送数据: " + message);
                    socket.getOutputStream().write(message.getBytes());
                } catch (Exception e) {
                    System.out.println("写数据出错!");
                }
                sleep();
            }
        }).start();
    }
    private static void sleep() {
        try {
            Thread.sleep(SLEEP_TIME);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

Server starts success，端口:8000
新客户端接入
客户端传来消息: hello worldhello world
客户端传来消息: hello world
客户端传来消息: hello world
客户端传来消息: hello world
客户端传来消息: hello world

客户端启动成功!
客户端发送数据: hello world
客户端发送数据: hello world
客户端发送数据: hello world

package io.netty.channel;
import io.netty.util.concurrent.OrderedEventExecutor;
/**
 * 一旦Channel注册了，将处理所有的  I/O 操作
 * 一个 EventLoop 实例通常处理一个以上的Channel ，但这取决于执行的细节和内幕
 */
public interface EventLoop extends OrderedEventExecutor, EventLoopGroup {
    @Override
    EventLoopGroup parent();
}

@Override
    protected void run() {
        for (;;) {
            oldWakenUp = wakenUp.getAndSet(false);
            try {
                if (hasTasks()) {
                    selectNow();
                } else {
                    select();
                    // 'wakenUp.compareAndSet(false, true)' is always evaluated
                    // before calling 'selector.wakeup()' to reduce the wake-up
                    // overhead. (Selector.wakeup() is an expensive operation.)
                    //
                    // However, there is a race condition in this approach.
                    // The race condition is triggered when 'wakenUp' is set to
                    // true too early.
                    //
                    // 'wakenUp' is set to true too early if:
                    // 1) Selector is waken up between 'wakenUp.set(false)' and
                    //    'selector.select(...)'. (BAD)
                    // 2) Selector is waken up between 'selector.select(...)' and
                    //    'if (wakenUp.get()) { ... }'. (OK)
                    //
                    // In the first case, 'wakenUp' is set to true and the
                    // following 'selector.select(...)' will wake up immediately.
                    // Until 'wakenUp' is set to false again in the next round,
                    // 'wakenUp.compareAndSet(false, true)' will fail, and therefore
                    // any attempt to wake up the Selector will fail, too, causing
                    // the following 'selector.select(...)' call to block
                    // unnecessarily.
                    //
                    // To fix this problem, we wake up the selector again if wakenUp
                    // is true immediately after selector.select(...).
                    // It is inefficient in that it wakes up the selector for both
                    // the first case (BAD - wake-up required) and the second case
                    // (OK - no wake-up required).
                    if (wakenUp.get()) {
                        selector.wakeup();
                    }
                }
                cancelledKeys = 0;
                needsToSelectAgain = false;
                final int ioRatio = this.ioRatio;
                if (ioRatio == 100) {
                    processSelectedKeys();
                    runAllTasks();
                } else {
                    final long ioStartTime = System.nanoTime();

                   // 打断点
                    processSelectedKeys();
                    final long ioTime = System.nanoTime() - ioStartTime;
                    runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
                }
                if (isShuttingDown()) {
                    closeAll();
                    if (confirmShutdown()) {
                        break;
                    }
                }
            } catch (Throwable t) {
                logger.warn("Unexpected exception in the selector loop.", t);
                // Prevent possible consecutive immediate failures that lead to
                // excessive CPU consumption.
                try {
                    Thread.sleep(1000);
                } catch (InterruptedException e) {
                    // Ignore.
                }
            }
        }
    }

private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
        final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
        if (!k.isValid()) {
            final EventLoop eventLoop;
            try {
                eventLoop = ch.eventLoop();
            } catch (Throwable ignored) {
                // If the channel implementation throws an exception because there is no event loop, we ignore this
                // because we are only trying to determine if ch is registered to this event loop and thus has authority
                // to close ch.
                return;
            }
            // Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
            // and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
            // still healthy and should not be closed.
            // See https://github.com/netty/netty/issues/5125
            if (eventLoop == this) {
                // close the channel if the key is not valid anymore
                unsafe.close(unsafe.voidPromise());
            }
            return;
        }
        try {
            int readyOps = k.readyOps();
            // We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
            // the NIO JDK channel implementation may throw a NotYetConnectedException.
            if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
                // remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
                // See https://github.com/netty/netty/issues/924
                int ops = k.interestOps();
                ops &= ~SelectionKey.OP_CONNECT;
                k.interestOps(ops);
                unsafe.finishConnect();
            }
            // 首先处理 OP_WRITE,因为我们可写一些排队的缓冲区,从而释放内存
            if ((readyOps & SelectionKey.OP_WRITE) != 0) {
                // 调用 forceFlush,一旦无剩余可写内容,它也将清除 OP_WRITE
                // 可见，注册 OP_WRITE 事件，要执行的就是 flush 操作.
                ch.unsafe().forceFlush();
            }

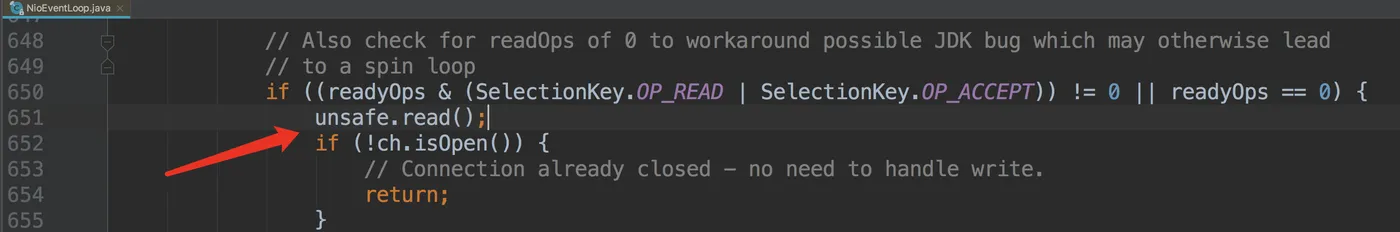

            // 还要校验 readOps 为0以解决可能的JDK bug,否则可能导致 spin loop
            // 处理读请求（断开连接）或接入连接
            if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
                unsafe.read();
            }
        } catch (CancelledKeyException ignored) {
            unsafe.close(unsafe.voidPromise());
        }
    }

private void processSelectedKeys() {
   if (selectedKeys != null) {
     // 不用 JDK 的 selector.selectedKeys，性能更好（%1-2%），GC更少
     processSelectedKeysOptimized();
   } else {
     processSelectedKeysPlain(selector.selectedKeys());
   }
 }

private void processSelectedKeysOptimized() {
    for (int i = 0; i < selectedKeys.size; ++i) {
        final SelectionKey k = selectedKeys.keys[i];
        // 数组中的空节点允许通道关闭后对其GC
        // 在SelectedSelectionKeySet中使用单数组
        // 动机:SelectedSelectionKeySet当前在内部使用2个数组，并且期望用户调用flip访问基础数组并切换活动数组。
        // 但是，我们不能同时使用2个数组，如果在重置数组元素时格外小心，就可以摆脱使用单数组。
        // 修改: 介绍包装了Selector的SelectedSelectionKeySetSelector并确保我们在选择之前重置基础的SelectedSelectionKeySet数据结构-
        // NioEventLoop＃processSelectedKeysOptimized中的循环边界可以更精确地定义，因为我们知道基础数组的实际大小
        selectedKeys.keys[i] = null;
        // attachment 就是 NioServerSocketChannel
        final Object a = k.attachment();
       // 打断点！！！
        if (a instanceof AbstractNioChannel) {
                    processSelectedKey(k, (AbstractNioChannel) a);
        } else {
            @SuppressWarnings("unchecked")
            NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
            processSelectedKey(k, task);
        }
        if (needsToSelectAgain) {
            // null out entries in the array to allow to have it GC'ed once the Channel close
            // See https://github.com/netty/netty/issues/2363
            selectedKeys.reset(i + 1);
            selectAgain();
            i = -1;
        }
    }
}

public interface EventLoopGroup extends EventExecutorGroup

/**
 * EventExecutorGroup实现的抽象基类，它同时处理多个线程的任务
 */
public abstract class MultithreadEventExecutorGroup extends AbstractEventExecutorGroup {
  // 底层数组存储
    private final EventExecutor[] children;

protected DefaultChannelPipeline newChannelPipeline() {
        return new DefaultChannelPipeline(this);
    }

protected DefaultChannelPipeline(Channel channel) {
        this.channel = ObjectUtil.checkNotNull(channel, "channel");
        succeededFuture = new SucceededChannelFuture(channel, null);
        voidPromise =  new VoidChannelPromise(channel, true);
        tail = new TailContext(this);
        head = new HeadContext(this);
        head.next = tail;
        tail.prev = head;
    }

// 主要入参的ChannelHandler
@Override
public final ChannelPipeline addAfter(
        EventExecutorGroup group, String baseName, String name, ChannelHandler handler) {
    final AbstractChannelHandlerContext newCtx;
    final AbstractChannelHandlerContext ctx;
    synchronized (this) {
        checkMultiplicity(handler);
        name = filterName(name, handler);
        ctx = getContextOrDie(baseName);
        newCtx = newContext(group, name, handler);
        addAfter0(ctx, newCtx);
        // If the registered is false it means that the channel was not registered on an eventLoop yet.
        // In this case we remove the context from the pipeline and add a task that will call
        // ChannelHandler.handlerRemoved(...) once the channel is registered.
        if (!registered) {
            newCtx.setAddPending();
            callHandlerCallbackLater(newCtx, true);
            return this;
        }
        EventExecutor executor = newCtx.executor();
        if (!executor.inEventLoop()) {
            callHandlerAddedInEventLoop(newCtx, executor);
            return this;
        }
    }
    callHandlerAdded0(newCtx);
    return this;
}
