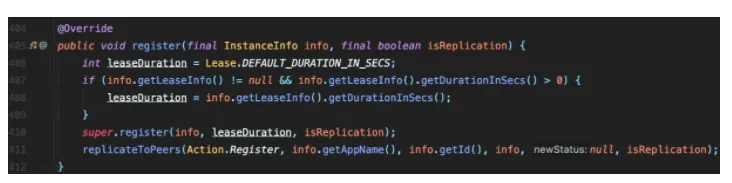

public void register(InstanceInfo registrant, int leaseDuration, boolean isReplication) {
        try {
          // 并发读锁
            read.lock();
            // 先获得微服务名，然后获得实例
            Map<String, Lease<InstanceInfo>> gMap = registry.get(registrant.getAppName());
            REGISTER.increment(isReplication);
            // 第一次注册时还不存在，所以 new 一个
            if (gMap == null) {
                final ConcurrentHashMap<String, Lease<InstanceInfo>> gNewMap = new ConcurrentHashMap<String, Lease<InstanceInfo>>();
                // 没有时才 put，有就不更新！ 因为registry还是可能被写的！毕竟他不在读锁范围内！
                gMap = registry.putIfAbsent(registrant.getAppName(), gNewMap);
                if (gMap == null) {
                    gMap = gNewMap;
                }
            }
            // 已存在的注册节点
            Lease<InstanceInfo> existingLease = gMap.get(registrant.getId());
            // Retain the last dirty timestamp without overwriting it, if there is already a lease
            if (existingLease != null && (existingLease.getHolder() != null)) {
              // 拿到已存在节点的注册时间
                Long existingLastDirtyTimestamp = existingLease.getHolder().getLastDirtyTimestamp();
                // 当前正在注册的节点的注册时间
                Long registrationLastDirtyTimestamp = registrant.getLastDirtyTimestamp();
                logger.debug("Existing lease found (existing={}, provided={}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);
                // this is a > instead of a >= because if the timestamps are equal, we still take the remote transmitted
                // InstanceInfo instead of the server local copy.
                // 注册ing 时，有更加新的节点注册了！
                if (existingLastDirtyTimestamp > registrationLastDirtyTimestamp) {
                    logger.warn("There is an existing lease and the existing lease's dirty timestamp {} is greater" +
                            " than the one that is being registered {}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);
                    logger.warn("Using the existing instanceInfo instead of the new instanceInfo as the registrant");
                    // 那么就用已存在的替换当前注册节点，因为考虑到尽量保证可用性，因为既然还在活跃说明老的还能用
                    registrant = existingLease.getHolder();
                }
            } else {
                // The lease does not exist and hence it is a new registration
                synchronized (lock) {
                    if (this.expectedNumberOfRenewsPerMin > 0) {
                        // Since the client wants to cancel it, reduce the threshold
                        // (1
                        // for 30 seconds, 2 for a minute)
                        this.expectedNumberOfRenewsPerMin = this.expectedNumberOfRenewsPerMin + 2;
                        this.numberOfRenewsPerMinThreshold =
                                (int) (this.expectedNumberOfRenewsPerMin * serverConfig.getRenewalPercentThreshold());
                    }
                }
                logger.debug("No previous lease information found; it is new registration");
            }
            // 新的心跳续约对象，包括注册信息，最后操作时间，注册事件，过期时间，剔除时间

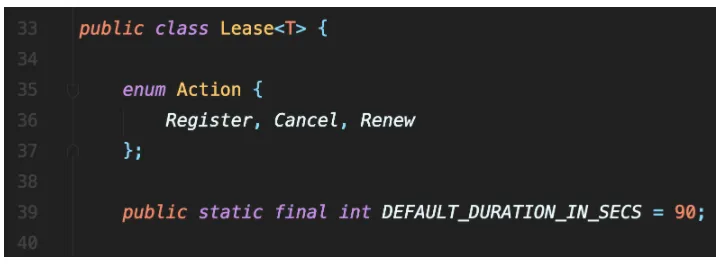

            Lease<InstanceInfo> lease = new Lease<InstanceInfo>(registrant, leaseDuration);
            if (existingLease != null) {
                lease.setServiceUpTimestamp(existingLease.getServiceUpTimestamp());
            }
            // 将新对象放入注册表
            gMap.put(registrant.getId(), lease);
            synchronized (recentRegisteredQueue) {
              // 加入注册队列
                recentRegisteredQueue.add(new Pair<Long, String>(
                        System.currentTimeMillis(),
                        registrant.getAppName() + "(" + registrant.getId() + ")"));
            }
            // This is where the initial state transfer of overridden status happens
            if (!InstanceStatus.UNKNOWN.equals(registrant.getOverriddenStatus())) {
                logger.debug("Found overridden status {} for instance {}. Checking to see if needs to be add to the "
                                + "overrides", registrant.getOverriddenStatus(), registrant.getId());
                if (!overriddenInstanceStatusMap.containsKey(registrant.getId())) {
                    logger.info("Not found overridden id {} and hence adding it", registrant.getId());
                    overriddenInstanceStatusMap.put(registrant.getId(), registrant.getOverriddenStatus());
                }
            }
            InstanceStatus overriddenStatusFromMap = overriddenInstanceStatusMap.get(registrant.getId());
            if (overriddenStatusFromMap != null) {
                logger.info("Storing overridden status {} from map", overriddenStatusFromMap);
                registrant.setOverriddenStatus(overriddenStatusFromMap);
            }
            // Set the status based on the overridden status rules
            InstanceStatus overriddenInstanceStatus = getOverriddenInstanceStatus(registrant, existingLease, isReplication);
            registrant.setStatusWithoutDirty(overriddenInstanceStatus);
            // If the lease is registered with UP status, set lease service up timestamp
            if (InstanceStatus.UP.equals(registrant.getStatus())) {
                lease.serviceUp();
            }
            registrant.setActionType(ActionType.ADDED);
            recentlyChangedQueue.add(new RecentlyChangedItem(lease));
            registrant.setLastUpdatedTimestamp();
            invalidateCache(registrant.getAppName(), registrant.getVIPAddress(), registrant.getSecureVipAddress());
            logger.info("Registered instance {}/{} with status {} (replication={})",
                    registrant.getAppName(), registrant.getId(), registrant.getStatus(), isReplication);
        } finally {
            read.unlock();
        }
    }

   public boolean renew(String appName, String id, boolean isReplication) {
        RENEW.increment(isReplication);
        Map<String, Lease<InstanceInfo>> gMap = registry.get(appName);
        Lease<InstanceInfo> leaseToRenew = null;
        if (gMap != null) {
          // 拿到具体的注册节点
            leaseToRenew = gMap.get(id);
        }
        if (leaseToRenew == null) {
          // 不存在，则重新注册续约
            RENEW_NOT_FOUND.increment(isReplication);
            logger.warn("DS: Registry: lease doesn't exist, registering resource: {} - {}", appName, id);
            return false;
        } else {
        //存在
          // 先得到节点信息
            InstanceInfo instanceInfo = leaseToRenew.getHolder();
            if (instanceInfo != null) {
                // touchASGCache(instanceInfo.getASGName());
                InstanceStatus overriddenInstanceStatus = this.getOverriddenInstanceStatus(
                        instanceInfo, leaseToRenew, isReplication);
                // 看是否处于宕机状态
                if (overriddenInstanceStatus == InstanceStatus.UNKNOWN) {
                    logger.info("Instance status UNKNOWN possibly due to deleted override for instance {}"
                            + "; re-register required", instanceInfo.getId());
                    RENEW_NOT_FOUND.increment(isReplication);
                    return false;
                }
                if (!instanceInfo.getStatus().equals(overriddenInstanceStatus)) {
                    logger.info(
                            "The instance status {} is different from overridden instance status {} for instance {}. "
                                    + "Hence setting the status to overridden status", instanceInfo.getStatus().name(),
                                    instanceInfo.getOverriddenStatus().name(),
                                    instanceInfo.getId());
                    instanceInfo.setStatusWithoutDirty(overriddenInstanceStatus);
                }
            }
            renewsLastMin.increment();
            // 正常则续约

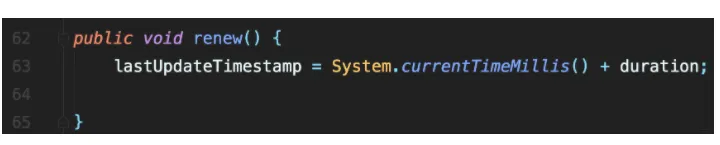

            leaseToRenew.renew();
            return true;
        }
    }

    public enum InstanceStatus {
        UP, // Ready to receive traffic
        DOWN, // Do not send traffic- healthcheck callback failed
        STARTING, // Just about starting- initializations to be done - do not
        // send traffic
        OUT_OF_SERVICE, // Intentionally shutdown for traffic
        UNKNOWN;
        public static InstanceStatus toEnum(String s) {
            if (s != null) {
                try {
                    return InstanceStatus.valueOf(s.toUpperCase());
                } catch (IllegalArgumentException e) {
                    // ignore and fall through to unknown
                    logger.debug("illegal argument supplied to InstanceStatus.valueOf: {}, defaulting to {}", s, UNKNOWN);
                }
            }
            return UNKNOWN;
        }
    }
