简介: PostgreSQL 支持的数字类型包括整型,浮点,以及PG自己实现的numeric数据类型。 src/backend/utils/adt/numeric.c src/backend/utils/adt/float.c numeric可以存储非常大的数字,超过2^17次方个数字

PostgreSQL 支持的数字类型包括整型,浮点,以及PG自己实现的numeric数据类型。

src/backend/utils/adt/numeric.c
src/backend/utils/adt/float.c

numeric可以存储非常大的数字,超过2^17次方个数字长度。提升了精度的同时,也带来了性能的损耗,不能充分利用CPU 的 “硬解码”能力。

typedef struct NumericVar
{
        int                     ndigits;                /* # of digits in digits[] - can be 0! */
        int                     weight;                 /* weight of first digit */
        int                     sign;                   /* NUMERIC_POS, NUMERIC_NEG, or NUMERIC_NAN */
        int                     dscale;                 /* display scale */
        NumericDigit *buf;                      /* start of palloc'd space for digits[] */
        NumericDigit *digits;           /* base-NBASE digits */
} NumericVar;

浮点类型就比numeric轻量很多,所以性能也会好很多,一倍左右。
在大数据的场合中,节约1倍的计算量是很可观的哦,特别是在金融行业,涉及到大量的数值计算。
如果你玩过greenplum, deepgreen, vitessedb ,也能发现在这些数据库产品的测试手册中,会提到使用money, float8类型来替换原有的numeric类型来进行测试。可以得到更好的性能。
但是money, float8始终是有一定的弊端的,超出精度时,结果可能不准确。
那么怎样提升numeric的性能又不会得到有误的结果呢?
我们可以使用fexeddecimal插件,如下:
https://github.com/2ndQuadrant/fixeddecimal

fixeddecimal的原理很简单,实际上它是使用int8来存储的,整数位和小数位是在代码中固定的:

/*
 * The scale which the number is actually stored.
 * For example: 100 will allow 2 decimal places of precision
 * This must always be a '1' followed by a number of '0's.
 */
#define FIXEDDECIMAL_MULTIPLIER 100LL

/*
 * Number of decimal places to store.
 * This number should be the number of decimal digits that it takes to
 * represent FIXEDDECIMAL_MULTIPLIER - 1
 */
#define FIXEDDECIMAL_SCALE 2

如果 FIXEDDECIMAL_SCALE 设置为2,则FIXEDDECIMAL_MULTIPLIER 设置为100,如果 FIXEDDECIMAL_SCALE 设置为3,FIXEDDECIMAL_MULTIPLIER 设置为1000。
也就是通过整型来存储,显示时除以multiplier得到整数部分,取余得到小数部分。

/*
 * fixeddecimal2str
 *              Prints the fixeddecimal 'val' to buffer as a string.
 *              Returns a pointer to the end of the written string.
 */
static char *
fixeddecimal2str(int64 val, char *buffer)
{
        char       *ptr = buffer;
        int64           integralpart = val / FIXEDDECIMAL_MULTIPLIER;
        int64           fractionalpart = val % FIXEDDECIMAL_MULTIPLIER;

        if (val < 0)
        {
                fractionalpart = -fractionalpart;

                /*
                 * Handle special case for negative numbers where the intergral part
                 * is zero. pg_int64tostr() won't prefix with "-0" in this case, so
                 * we'll do it manually
                 */
                if (integralpart == 0)
                        *ptr++ = '-';
        }
        ptr = pg_int64tostr(ptr, integralpart);
        *ptr++ = '.';
        ptr = pg_int64tostr_zeropad(ptr, fractionalpart, FIXEDDECIMAL_SCALE);
        return ptr;
}

所以fixeddecimal能存取的值范围就是INT8的范围除以multiplier。

postgres=# select 9223372036854775807::int8;
        int8
---------------------
 9223372036854775807
(1 row)

postgres=# select 9223372036854775808::int8;
ERROR:  22003: bigint out of range
LOCATION:  numeric_int8, numeric.c:2955

postgres=# select 92233720368547758.07::fixeddecimal;
     fixeddecimal
----------------------
 92233720368547758.07
(1 row)

postgres=# select 92233720368547758.08::fixeddecimal;
ERROR:  22003: value "92233720368547758.08" is out of range for type fixeddecimal
LOCATION:  scanfixeddecimal, fixeddecimal.c:499

另外需要注意,编译fixeddecimal需要用到支持__int128的编译器,gcc 4.9.3是支持的。所以如果你用的gcc版本比较低的话,需要提前更新好gcc。
http://blog.163.com/digoal@126/blog/static/163877040201601313814429/

下面测试一下fixeddecimal+PostgreSQL 9.5的性能表现,对1亿数据进行加减乘除以及聚合的运算,看float8, numeric, fixeddecimal类型的运算结果和速度:
使用auto_explain记录下对比float8,numeric,fixeddecimal的执行计划和耗时。

psql
\timing

postgres=# load 'auto_explain';
LOAD
Time: 2.328 ms

postgres=# set auto_explain.log_analyze =true;
SET
Time: 0.115 ms
postgres=# set auto_explain.log_buffers =true;
SET
Time: 0.080 ms
postgres=# set auto_explain.log_nested_statements=true;
SET
Time: 0.073 ms
postgres=# set auto_explain.log_timing=true;
SET
Time: 0.089 ms
postgres=# set auto_explain.log_triggers=true;
SET
Time: 0.076 ms
postgres=# set auto_explain.log_verbose=true;
SET
Time: 0.074 ms
postgres=# set auto_explain.log_min_duration=0;
SET
Time: 0.149 ms
postgres=# set client_min_messages ='log';
SET
Time: 0.144 ms

postgres=# set work_mem='8GB';
SET
Time: 0.152 ms

postgres=# select sum(i::numeric),min(i::numeric),max(i::numeric),avg(i::numeric),sum(3.0::numeric*(i::numeric+i::numeric)),avg(i::numeric/3.0::numeric) from generate_series(1,100000000) t(i);
LOG:  duration: 241348.655 ms  plan:
Query Text: select sum(i::numeric),min(i::numeric),max(i::numeric),avg(i::numeric),sum(3.0::numeric*(i::numeric+i::numeric)),avg(i::numeric/3.0::numeric) from generate_series(1,100000000) t(i);
Aggregate  (cost=50.01..50.02 rows=1 width=4) (actual time=241348.631..241348.631 rows=1 loops=1)
  Output: sum((i)::numeric), min((i)::numeric), max((i)::numeric), avg((i)::numeric), sum((3.0 * ((i)::numeric + (i)::numeric))), avg(((i)::numeric / 3.0))
  ->  Function Scan on pg_catalog.generate_series t  (cost=0.00..10.00 rows=1000 width=4) (actual time=12200.116..22265.586 rows=100000000 loops=1)
        Output: i
        Function Call: generate_series(1, 100000000)
       sum        | min |    max    |          avg          |         sum         |              avg
------------------+-----+-----------+-----------------------+---------------------+-------------------------------
 5000000050000000 |   1 | 100000000 | 50000000.500000000000 | 30000000300000000.0 | 16666666.83333333333333333333
(1 row)

Time: 243149.286 ms

postgres=# select sum(i::float8),min(i::float8),max(i::float8),avg(i::float8),sum(3.0::float8*(i::float8+i::float8)),avg(i::float8/3.0::float8) from generate_series(1,100000000) t(i);
LOG:  duration: 112407.004 ms  plan:
Query Text: select sum(i::float8),min(i::float8),max(i::float8),avg(i::float8),sum(3.0::float8*(i::float8+i::float8)),avg(i::float8/3.0::float8) from generate_series(1,100000000) t(i);
Aggregate  (cost=50.01..50.02 rows=1 width=4) (actual time=112406.967..112406.967 rows=1 loops=1)
  Output: sum((i)::double precision), min((i)::double precision), max((i)::double precision), avg((i)::double precision), sum(('3'::double precision * ((i)::double precision + (i)::double precision))), avg(((i)::double precision / '3'::double precision))
  ->  Function Scan on pg_catalog.generate_series t  (cost=0.00..10.00 rows=1000 width=4) (actual time=12157.571..20994.444 rows=100000000 loops=1)
        Output: i
        Function Call: generate_series(1, 100000000)
      sum       | min |    max    |    avg     |         sum          |       avg
----------------+-----+-----------+------------+----------------------+------------------
 5.00000005e+15 |   1 | 100000000 | 50000000.5 | 3.00000003225094e+16 | 16666666.8333333
(1 row)

Time: 114208.528 ms

postgres=# select sum(i::fixeddecimal),min(i::fixeddecimal),max(i::fixeddecimal),avg(i::fixeddecimal),sum(3.0::fixeddecimal*(i::fixeddecimal+i::fixeddecimal)),avg(i::fixeddecimal/3.0::fixeddecimal) from generate_series(1,100000000) t(i);
LOG:  duration: 97956.458 ms  plan:
Query Text: select sum(i::fixeddecimal),min(i::fixeddecimal),max(i::fixeddecimal),avg(i::fixeddecimal),sum(3.0::fixeddecimal*(i::fixeddecimal+i::fixeddecimal)),avg(i::fixeddecimal/3.0::fixeddecimal) from generate_series(1,100000000) t(i);
Aggregate  (cost=50.01..50.02 rows=1 width=4) (actual time=97956.431..97956.431 rows=1 loops=1)
  Output: sum((i)::fixeddecimal), min((i)::fixeddecimal), max((i)::fixeddecimal), avg((i)::fixeddecimal), sum(('3.00'::fixeddecimal * ((i)::fixeddecimal + (i)::fixeddecimal))), avg(((i)::fixeddecimal / '3.00'::fixeddecimal))
  ->  Function Scan on pg_catalog.generate_series t  (cost=0.00..10.00 rows=1000 width=4) (actual time=12168.630..20874.617 rows=100000000 loops=1)
        Output: i
        Function Call: generate_series(1, 100000000)
         sum         | min  |     max      |     avg     |         sum          |     avg
---------------------+------+--------------+-------------+----------------------+-------------
 5000000050000000.00 | 1.00 | 100000000.00 | 50000000.50 | 30000000300000000.00 | 16666666.83
(1 row)

Time: 99763.032 ms

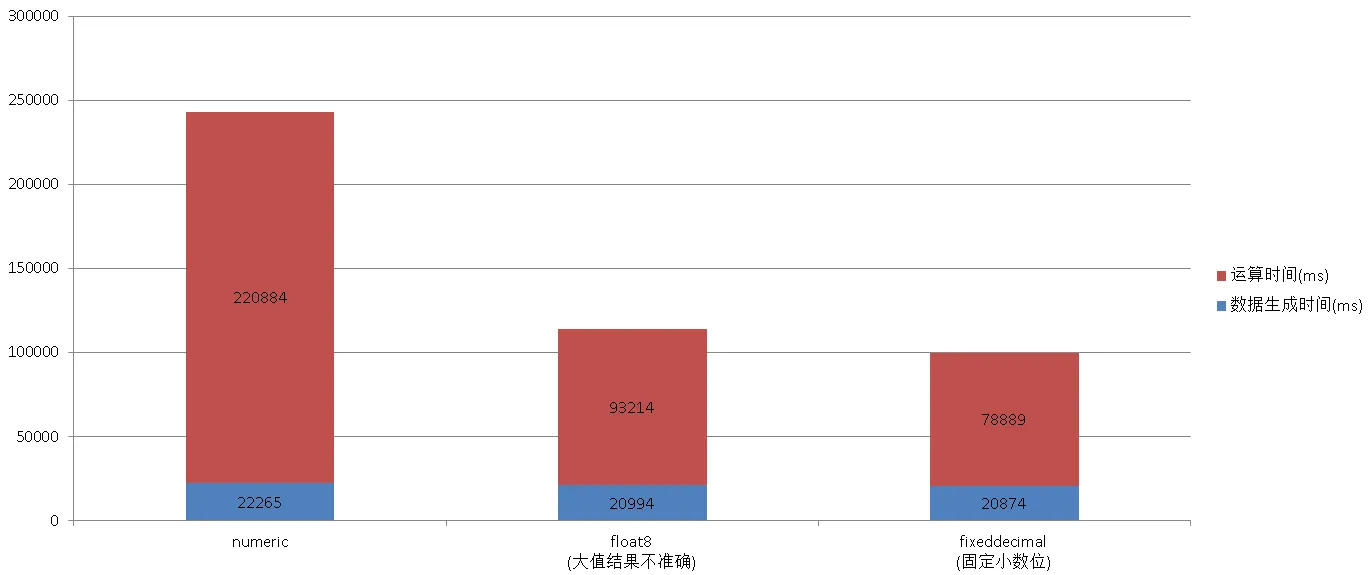

性能对比:
_

注意上面的测试case,
float8的结果已经不准确了,fixeddecimal使用了默认的scale=2,所以小数位保持2位精度。
numeric则精度更高,显示的部分没有显示全,这是PG内部控制的。
另外需要注意的是,fixeddecimal对于超出精度的部分是做的截断,不是round, 因此123.555是存的12355而不是12356。

postgres=# select '123.555'::fixeddecimal;
 fixeddecimal
--------------
 123.55
(1 row)

postgres=# select '123.555'::fixeddecimal/'123.556'::fixeddecimal;
 ?column?
----------
 1.00
(1 row)

postgres=# select '124.555'::fixeddecimal/'123.556'::fixeddecimal;
 ?column?
----------
 1.00
(1 row)

postgres=# select 124.555/123.556;
      ?column?
--------------------
 1.0080854025704944
(1 row)
