Spark Master启动源码分析
更多资源
- github: https://github.com/opensourceteams/spark-scala-maven
- csdn(汇总视频在线看): https://blog.csdn.net/thinktothings/article/details/84726769
Youtube 视频
- Spark master启动源码分析: https://youtu.be/74q1nddoaiY
BiliBili 视频
- Spark master启动源码分析: https://www.bilibili.com/video/av37442271/
启动 master
启动脚本 start-master.sh
加载配置文件
. "${SPARK_HOME}/sbin/spark-config.sh"
. "${SPARK_HOME}/bin/load-spark-env.sh"
默认配置
SPARK_MASTER_PORT=7077
SPARK_MASTER_IP=`hostname`
SPARK_MASTER_WEBUI_PORT=8080
CLASS="org.apache.spark.deploy.master.Master"
调用spark-daemon.sh
CLASS="org.apache.spark.deploy.master.Master"
ORIGINAL_ARGS="$@"
"${SPARK_HOME}/sbin"/spark-daemon.sh start $CLASS 1 \
--ip $SPARK_MASTER_IP --port $SPARK_MASTER_PORT --webui-port $SPARK_MASTER_WEBUI_PORT \
$ORIGINAL_ARGS
spark-daemon.sh
解析spark-daemon.sh
-
调用命令
nohup nice -n “SPARKNICENESS""SPARK_NICENESS" "SPARKNICENESS""{SPARK_HOME}”/bin/spark-class command"command "command"@" >> “KaTeX parse error: Expected 'EOF', got '&' at position 8: log" 2>&̲1 < /dev/null &…!”
;;
- 即
```shell
nohup nice -n "$SPARK_NICENESS" "${SPARK_HOME}"/bin/spark-class org.apache.spark.deploy.master.Master "$@" >> "$log" 2>&1 < /dev/null &
newpid="$!"
;;
run_command() {
mode="$1"
shift
mkdir -p "$SPARK_PID_DIR"
if [ -f "$pid" ]; then
TARGET_ID="$(cat "$pid")"
if [[ $(ps -p "$TARGET_ID" -o comm=) =~ "java" ]]; then
echo "$command running as process $TARGET_ID. Stop it first."
exit 1
fi
fi
if [ "$SPARK_MASTER" != "" ]; then
echo rsync from "$SPARK_MASTER"
rsync -a -e ssh --delete --exclude=.svn --exclude='logs/*' --exclude='contrib/hod/logs/*' "$SPARK_MASTER/" "${SPARK_HOME}"
fi
spark_rotate_log "$log"
echo "starting $command, logging to $log"
case "$mode" in
(class)
nohup nice -n "$SPARK_NICENESS" "${SPARK_HOME}"/bin/spark-class $command "$@" >> "$log" 2>&1 < /dev/null &
newpid="$!"
;;
(submit)
nohup nice -n "$SPARK_NICENESS" "${SPARK_HOME}"/bin/spark-submit --class $command "$@" >> "$log" 2>&1 < /dev/null &
newpid="$!"
;;
(*)
echo "unknown mode: $mode"
exit 1
;;
esac
echo "$newpid" > "$pid"
sleep 2
# Check if the process has died; in that case we'll tail the log so the user can see
if [[ ! $(ps -p "$newpid" -o comm=) =~ "java" ]]; then
echo "failed to launch $command:"
tail -2 "$log" | sed 's/^/ /'
echo "full log in $log"
fi
}
option=$1
case $option in
(submit)
run_command submit "$@"
;;
(start)
run_command class "$@"
;;
spark-class
加载配置文件
. "${SPARK_HOME}"/bin/load-spark-env.sh
调用Main入口类
# The launcher library will print arguments separated by a NULL character, to allow arguments with
# characters that would be otherwise interpreted by the shell. Read that in a while loop, populating
# an array that will be used to exec the final command.
CMD=()
while IFS= read -d '' -r ARG; do
CMD+=("$ARG")
done < <("$RUNNER" -cp "$LAUNCH_CLASSPATH" org.apache.spark.launcher.Main "$@")
exec "${CMD[@]}"
Main类入口
启动Master类命令调用
/**
* Usage: Main [class] [class args]
* <p>
* This CLI works in two different modes:
* <ul>
* <li>"spark-submit": if <i>class</i> is "org.apache.spark.deploy.SparkSubmit", the
* {@link SparkLauncher} class is used to launch a Spark application.</li>
* <li>"spark-class": if another class is provided, an internal Spark class is run.</li>
* </ul>
*
* This class works in tandem with the "bin/spark-class" script on Unix-like systems, and
* "bin/spark-class2.cmd" batch script on Windows to execute the final command.
* <p>
* On Unix-like systems, the output is a list of command arguments, separated by the NULL
* character. On Windows, the output is a command line suitable for direct execution from the
* script.
*/
public static void main(String[] argsArray) throws Exception {
checkArgument(argsArray.length > 0, "Not enough arguments: missing class name.");
List<String> args = new ArrayList<String>(Arrays.asList(argsArray));
String className = args.remove(0);
boolean printLaunchCommand = !isEmpty(System.getenv("SPARK_PRINT_LAUNCH_COMMAND"));
AbstractCommandBuilder builder;
if (className.equals("org.apache.spark.deploy.SparkSubmit")) {
try {
builder = new SparkSubmitCommandBuilder(args);
} catch (IllegalArgumentException e) {
printLaunchCommand = false;
System.err.println("Error: " + e.getMessage());
System.err.println();
MainClassOptionParser parser = new MainClassOptionParser();
try {
parser.parse(args);
} catch (Exception ignored) {
// Ignore parsing exceptions.
}
List<String> help = new ArrayList<String>();
if (parser.className != null) {
help.add(parser.CLASS);
help.add(parser.className);
}
help.add(parser.USAGE_ERROR);
builder = new SparkSubmitCommandBuilder(help);
}
} else {
builder = new SparkClassCommandBuilder(className, args);
}
Map<String, String> env = new HashMap<String, String>();
List<String> cmd = builder.buildCommand(env);
if (printLaunchCommand) {
System.err.println("Spark Command: " + join(" ", cmd));
System.err.println("========================================");
}
if (isWindows()) {
System.out.println(prepareWindowsCommand(cmd, env));
} else {
// In bash, use NULL as the arg separator since it cannot be used in an argument.
List<String> bashCmd = prepareBashCommand(cmd, env);
for (String c : bashCmd) {
System.out.print(c);
System.out.print('\0');
}
}
}
Master类
main方法
- 启动 ‘sparkMaster’ 服务
- 给自己发送消息: BoundPortsRequest
def main(argStrings: Array[String]) {
Utils.initDaemon(log)
val conf = new SparkConf
val args = new MasterArguments(argStrings, conf)
val (rpcEnv, _, _) = startRpcEnvAndEndpoint(args.host, args.port, args.webUiPort, conf)
rpcEnv.awaitTermination()
}
/**
* Start the Master and return a three tuple of:
* (1) The Master RpcEnv
* (2) The web UI bound port
* (3) The REST server bound port, if any
*/
def startRpcEnvAndEndpoint(
host: String,
port: Int,
webUiPort: Int,
conf: SparkConf): (RpcEnv, Int, Option[Int]) = {
val securityMgr = new SecurityManager(conf)
val rpcEnv = RpcEnv.create(SYSTEM_NAME, host, port, conf, securityMgr)
val masterEndpoint = rpcEnv.setupEndpoint(ENDPOINT_NAME,
new Master(rpcEnv, rpcEnv.address, webUiPort, securityMgr, conf))
val portsResponse = masterEndpoint.askWithRetry[BoundPortsResponse](BoundPortsRequest)
(rpcEnv, portsResponse.webUIPort, portsResponse.restPort)
}
onStart方法
- Started MasterWebUI
- 实例化默认的存储引擎，实例化Leader选举
- 默认每分钟检查worker的心跳，未保持连接的worker清除
override def onStart(): Unit = {
logInfo("Starting Spark master at " + masterUrl)
logInfo(s"Running Spark version ${org.apache.spark.SPARK_VERSION}")
webUi = new MasterWebUI(this, webUiPort)
webUi.bind()
masterWebUiUrl = "http://" + masterPublicAddress + ":" + webUi.boundPort
checkForWorkerTimeOutTask = forwardMessageThread.scheduleAtFixedRate(new Runnable {
override def run(): Unit = Utils.tryLogNonFatalError {
self.send(CheckForWorkerTimeOut)
}
}, 0, WORKER_TIMEOUT_MS, TimeUnit.MILLISECONDS)
if (restServerEnabled) {
val port = conf.getInt("spark.master.rest.port", 6066)
restServer = Some(new StandaloneRestServer(address.host, port, conf, self, masterUrl))
}
restServerBoundPort = restServer.map(_.start())
masterMetricsSystem.registerSource(masterSource)
masterMetricsSystem.start()
applicationMetricsSystem.start()
// Attach the master and app metrics servlet handler to the web ui after the metrics systems are
// started.
masterMetricsSystem.getServletHandlers.foreach(webUi.attachHandler)
applicationMetricsSystem.getServletHandlers.foreach(webUi.attachHandler)
val serializer = new JavaSerializer(conf)
val (persistenceEngine_, leaderElectionAgent_) = RECOVERY_MODE match {
case "ZOOKEEPER" =>
logInfo("Persisting recovery state to ZooKeeper")
val zkFactory =
new ZooKeeperRecoveryModeFactory(conf, serializer)
(zkFactory.createPersistenceEngine(), zkFactory.createLeaderElectionAgent(this))
case "FILESYSTEM" =>
val fsFactory =
new FileSystemRecoveryModeFactory(conf, serializer)
(fsFactory.createPersistenceEngine(), fsFactory.createLeaderElectionAgent(this))
case "CUSTOM" =>
val clazz = Utils.classForName(conf.get("spark.deploy.recoveryMode.factory"))
val factory = clazz.getConstructor(classOf[SparkConf], classOf[Serializer])
.newInstance(conf, serializer)
.asInstanceOf[StandaloneRecoveryModeFactory]
(factory.createPersistenceEngine(), factory.createLeaderElectionAgent(this))
case _ =>
(new BlackHolePersistenceEngine(), new MonarchyLeaderAgent(this))
}
persistenceEngine = persistenceEngine_
leaderElectionAgent = leaderElectionAgent_
}

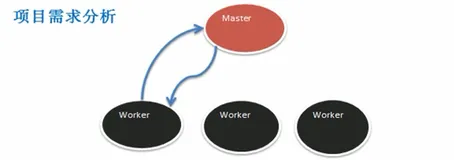

- 接受Worker注册
override def receiveAndReply(context: RpcCallContext): PartialFunction[Any, Unit] = {
case RegisterWorker(
id, workerHost, workerPort, workerRef, cores, memory, workerWebUiUrl) => {
logInfo("Registering worker %s:%d with %d cores, %s RAM".format(
workerHost, workerPort, cores, Utils.megabytesToString(memory)))
if (state == RecoveryState.STANDBY) {
context.reply(MasterInStandby)
} else if (idToWorker.contains(id)) {
context.reply(RegisterWorkerFailed("Duplicate worker ID"))
} else {
val worker = new WorkerInfo(id, workerHost, workerPort, cores, memory,
workerRef, workerWebUiUrl)
if (registerWorker(worker)) {
persistenceEngine.addWorker(worker)
context.reply(RegisteredWorker(self, masterWebUiUrl))
schedule()
} else {
val workerAddress = worker.endpoint.address
logWarning("Worker registration failed. Attempted to re-register worker at same " +
"address: " + workerAddress)
context.reply(RegisterWorkerFailed("Attempted to re-register worker at same address: "
+ workerAddress))
}
}
}
