PWESD-5VDDA ESD静电保护管响应时间＜1ns，适合高速信号线防护 [链接：响应时间测试报告]

PWESD-5VDDA ESD 防护器件宣传页
产品概述
Low capacitance bidirectional Electro Static Discharge (ESD) protection diode in a DFN1006(SOD882) leadless ultra small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
主要特性
Low Capacitance 2.8 pF(Typ)
Reverse stand-off voltage: 5V Max
Low leakage current: nA Level
Response time is typically < 1 ns
IEC61000−4−2 Level 4 ESD Protection
典型应用
Cellular Handsets & Accessories
Digital Cameras
Peripherals
MP3 Players
Portable Instrumentation
Notebooks & Desktop Computers
Keypads, Side Keys, USB 2.0,LCD Displays

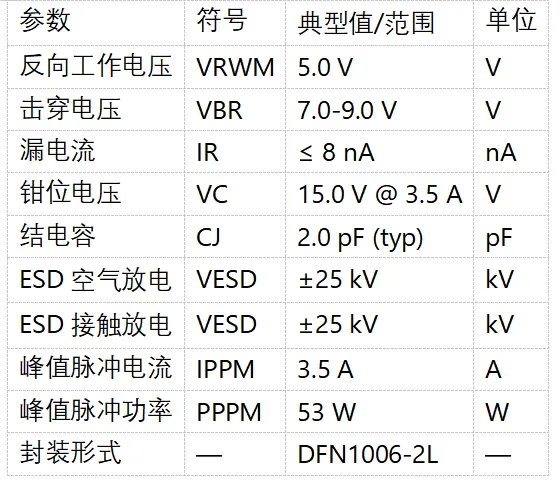

关键参数
