PWEDS-7VSSB ESD 防护器件宣传页
产品概述
These surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.
主要特性
Working Voltage 7.0V
Response time is typically < 1 ns
Low leakage current: nA Level
IEC 61000-4-2 (ESD Air): ±30kV
IEC 61000-4-2 (ESDContact): ±30kV
IEC61000-4-5(Lightning 8/20μS): 18A
典型应用
Cell Phone Handsets and Accessories
Microprocessor based equipment
Personal Digital Assistants (PDA’s)
Notebooks, Desktops, and Servers

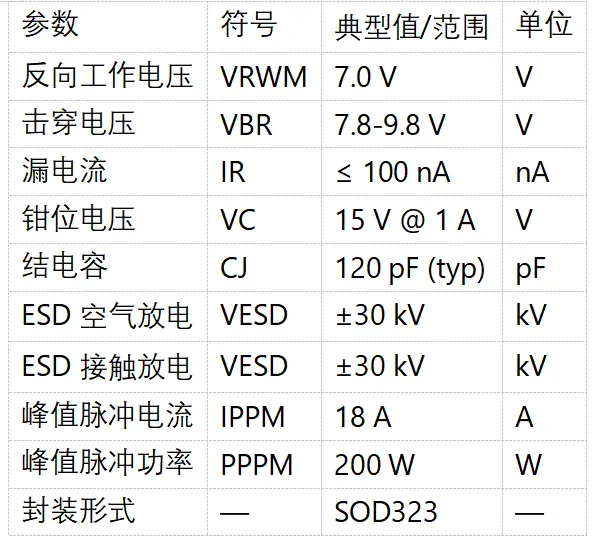

关键参数
