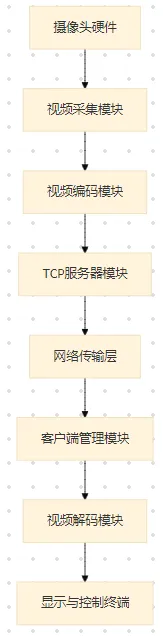

一、系统架构设计
二、核心模块实现
1. 视频采集模块（C# + OpenCV）
using OpenCvSharp;
public class VideoCaptureManager : IDisposable
{
private VideoCapture _capture;
private Mat _frameBuffer = new Mat();
public VideoCaptureManager(int cameraIndex = 0)
{
_capture = new VideoCapture(cameraIndex);
if (!_capture.IsOpened())
throw new InvalidOperationException("无法打开摄像头");
_capture.FrameWidth = 1280;
_capture.FrameHeight = 720;
_capture.FPS = 30;
}
public bool ReadFrame(out Mat frame)
{
return _capture.Read(out frame) && !frame.Empty();
}
public void Dispose()
{
_capture?.Release();
}
}
2. 视频编码模块（H.264压缩）
using Accord.Video.FFMPEG;
public class VideoEncoder
{
private AVCodecContext _encoder;
private AVFrame _frame;
private AVPacket _packet;
public VideoEncoder(int width, int height, int fps)
{
_encoder = new AVCodecContext();
_encoder.CodecId = AVCodecID.AV_CODEC_ID_H264;
_encoder.Width = width;
_encoder.Height = height;
_encoder.TimeBase = new AVRational {
Num = 1, Den = fps };
_encoder.Framerate = new AVRational {
Num = fps, Den = 1 };
avcodec_open2(_encoder, avcodec_find_encoder(_encoder.CodecId), null);
_frame = av_frame_alloc();
_packet = av_packet_alloc();
}
public byte[] Encode(Mat frame)
{
// YUV420P格式转换
var yuvFrame = new Mat();
Cv2.CvtColor(frame, yuvFrame, ColorConversionCodes.BGR2YUV_I420);
// 填充AVFrame数据
unsafe
{
fixed (byte* src = yuvFrame.DataPointer)
{
_frame.Data[0] = src;
_frame.Data[1] = src + (int)(yuvFrame.Height * yuvFrame.Width);
_frame.Data[2] = src + (int)(yuvFrame.Height * yuvFrame.Width * 5 / 4);
}
}
// 编码处理
avcodec_send_frame(_encoder, _frame);
avcodec_receive_packet(_encoder, _packet);
byte[] encodedData = new byte[_packet.Size];
Marshal.Copy(_packet.Data, encodedData, 0, _packet.Size);
av_packet_unref(_packet);
return encodedData;
}
}
3. TCP服务器模块（支持多客户端）
using System.Net.Sockets;
using System.Threading.Tasks;
public class TcpVideoServer
{
private TcpListener _listener;
private ConcurrentDictionary<TcpClient, ClientSession> _clients = new();
public async Task StartAsync(string ipAddress, int port)
{
_listener = new TcpListener(IPAddress.Parse(ipAddress), port);
_listener.Start();
while (true)
{
var client = await _listener.AcceptTcpClientAsync();
_ = HandleClientAsync(client);
}
}
private async Task HandleClientAsync(TcpClient client)
{
var session = new ClientSession(client);
_clients.TryAdd(client, session);
try
{
await session.ProcessVideoStreamAsync();
}
finally
{
_clients.TryRemove(client, out _);
client.Close();
}
}
}
public class ClientSession
{
private TcpClient _client;
private NetworkStream _stream;
private byte[] _buffer = new byte[1024 * 1024];
public ClientSession(TcpClient client)
{
_client = client;
_stream = client.GetStream();
}
public async Task ProcessVideoStreamAsync()
{
while (_client.Connected)
{
int bytesRead = await _stream.ReadAsync(_buffer, 0, _buffer.Length);
if (bytesRead == 0) break;
// 处理接收到的视频数据
await HandleVideoData(_buffer, bytesRead);
}
}
}
三、关键技术创新
1. 自适应码率控制
public class RateController
{
private int _targetBitrate = 2000; // kbps
private int _currentBitrate = 2000;
public void AdjustBitrate(double networkQuality)
{
_currentBitrate = (int)(_targetBitrate * networkQuality);
_encoder.SetBitRate(_currentBitrate * 1000);
}
}
2. 帧同步机制
public class FrameSync
{
private long _lastPts = 0;
public bool CheckFrameSync(long pts)
{
if (Math.Abs(pts - _lastPts - 33333) > 10000) // 30fps对应33ms间隔
return false;
_lastPts = pts;
return true;
}
}
四、客户端实现方案
1. 视频接收与解码
public class VideoPlayer
{
private AVCodecContext _decoder;
private AVFrame _frame;
public VideoPlayer()
{
_decoder = avcodec_find_decoder(AVCodecID.AV_CODEC_ID_H264);
avcodec_open2(_decoder, null, null);
_frame = av_frame_alloc();
}
public Mat Decode(byte[] encodedData)
{
unsafe
{
fixed (byte* src = encodedData)
{
_decoder.SendPacket(new AVPacket {
Data = src, Size = encodedData.Length });
avcodec_receive_frame(_decoder, _frame);
}
}
Mat mat = new Mat(_frame.Height, _frame.Width, MatType.CV_8UC3);
unsafe
{
byte* dst = (byte*)mat.DataPointer;
for (int y = 0; y < _frame.Height; y++)
{
System.Runtime.InteropServices.Marshal.Copy(
(IntPtr)(_frame.Data[0] + y * _frame.Width),
dst,
0,
_frame.Width);
dst += _frame.Width;
}
}
return mat;
}
}
2. 播放控制界面
public partial class VideoForm : Form
{
private VideoPlayer _player;
private Timer _renderTimer = new Timer(33); // ~30fps
public VideoForm()
{
InitializeComponent();
_player = new VideoPlayer();
_renderTimer.Tick += RenderFrame;
}
private void RenderFrame(object sender, EventArgs e)
{
if (_latestFrame != null)
{
pictureBox1.Image = _latestFrame.ToBitmap();
_latestFrame.Dispose();
}
}
public async Task ReceiveVideoAsync(TcpClient client)
{
using (var stream = client.GetStream())
{
while (client.Connected)
{
byte[] buffer = new byte[1024 * 1024];
int bytesRead = await stream.ReadAsync(buffer, 0, buffer.Length);
if (bytesRead > 0)
{
_latestFrame = _player.Decode(buffer);
}
}
}
}
}
五、性能优化
零拷贝技术
// 使用MemoryMappedFile实现零拷贝传输 using (var mmf = MemoryMappedFile.CreateFromFile("video.dat", FileMode.Open)) { var accessor = mmf.CreateViewAccessor(); unsafe { byte* src = (byte*)accessor.SafeMemoryMappedViewHandle.DangerousGetHandle(); avcodec_send_frame(_decoder, new AVFrame { Data = src }); } }多线程渲染
private void StartRenderThread() { _renderThread = new Thread(() => { while (!_stopFlag) { if (_frameQueue.TryDequeue(out var frame)) { pictureBox1.Invoke((Action)(() => pictureBox1.Image = frame.ToBitmap())); } } }); _renderThread.Start(); }
参考代码 采用TCP协议实现视频采集和通信 开发平台 www.youwenfan.com/contentalg/112706.html
六、完整部署方案
| 组件 | 推荐配置 | 说明 |
|---|---|---|
| 摄像头 | Basler ace2 4K | 支持1080p@60fps |
| 网络设备 | 千兆工业交换机 | 支持组播/广播 |
| 服务器 | i7-12700K/32GB/SSD | 支持10路1080p视频流 |
| 客户端 | i5-10400/8GB/WiFi6 | 支持4路视频同步解码 |
七、测试与调试工具
网络抓包分析
# 使用Wireshark过滤TCP视频流 tcp.port == 554 || tcp.port == 8554性能监控仪表盘
public class PerformanceMonitor { private PerformanceCounter _cpuCounter = new PerformanceCounter("Processor", "% Processor Time"); private PerformanceCounter _netCounter = new PerformanceCounter("Network Interface", "Bytes Received"); public void UpdateMetrics() { float cpuUsage = _cpuCounter.NextValue(); long networkTraffic = (long)_netCounter.NextValue(); Console.WriteLine($"CPU: {cpuUsage:F1}% | 网络流量: {networkTraffic / 1024} KB/s"); } }
八、扩展功能实现
动态分辨率切换
public void SwitchResolution(int width, int height) { _capture.FrameWidth = width; _capture.FrameHeight = height; _encoder.Reset(new AVCodecContext { Width = width, Height = height }); }安全传输增强
// 使用AES加密视频流 public byte[] EncryptFrame(byte[] data, byte[] key) { using (Aes aes = Aes.Create()) { aes.Key = key; aes.GenerateIV(); using (CryptoStream cs = new CryptoStream( new MemoryStream(), aes.CreateEncryptor(), CryptoStreamMode.Write)) { cs.Write(data, 0, data.Length); cs.FlushFinalBlock(); return cs.ToArray(); } } }
