1. 容错机制概述

1.1 什么是容错

容错（Fault Tolerance）是指系统在部分组件发生故障时，仍然能够继续正常运作的能力。在分布式系统中，容错不是避免故障，而是优雅地处理故障，保证系统的可用性和稳定性。

1.2 容错的业务价值

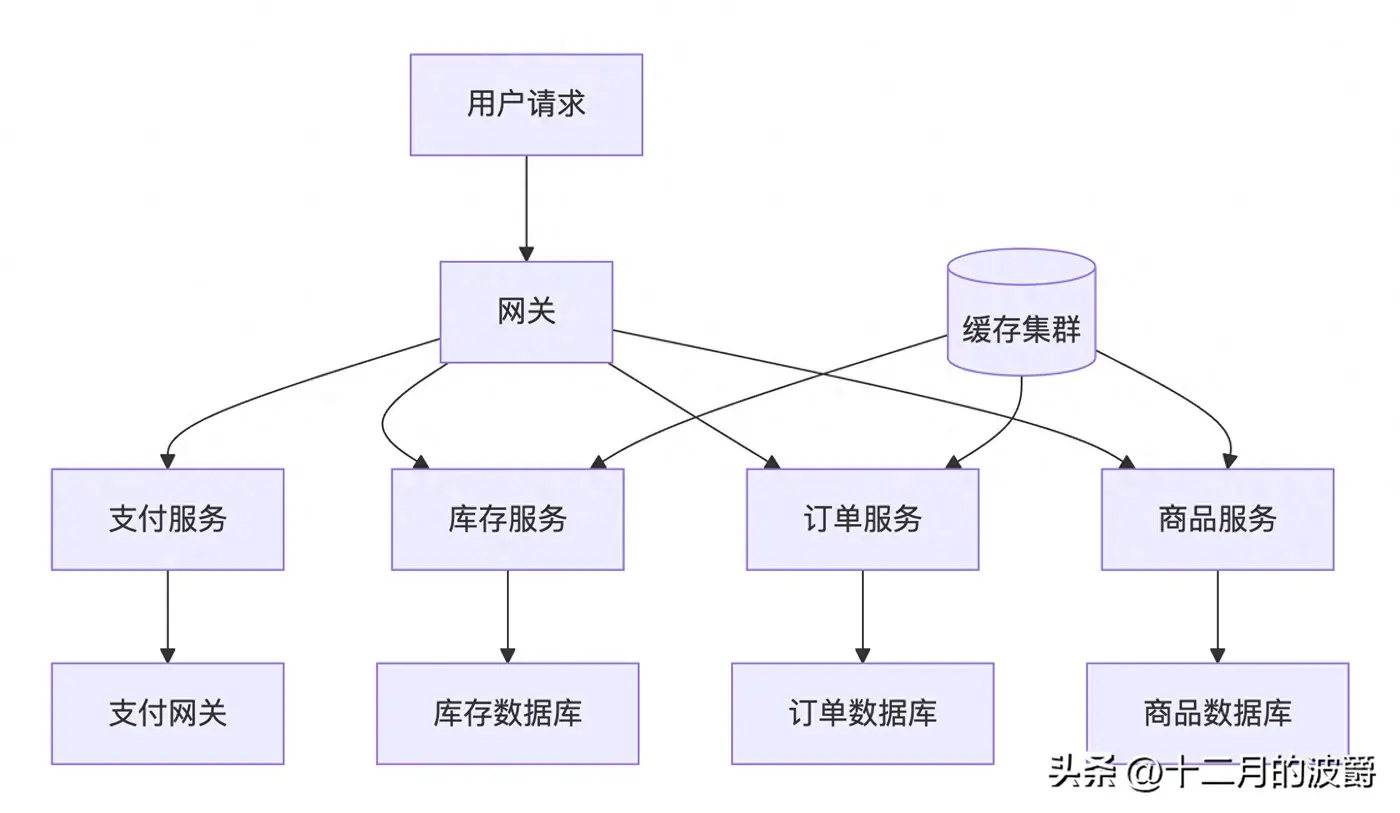

想象一个现代化的电商系统架构：

当某个组件故障时，容错机制能够：

维持核心功能：即使非关键服务不可用，核心业务流程仍可继续
快速自动恢复：系统能够自动检测故障并尝试恢复
防止雪崩效应：避免单个服务的故障扩散到整个系统

2. 容错设计原则

2.1 核心设计理念

2.1.1 故障隔离

@Component
public class BulkheadIsolation {
    // 使用舱壁模式隔离不同服务的资源
    @Autowired
    private BulkheadRegistry bulkheadRegistry;

    public <T> T executeWithIsolation(String serviceName,
                                    Supplier<T> operation) {
        Bulkhead bulkhead = bulkheadRegistry.bulkhead(serviceName);
        return bulkhead.executeSupplier(operation);
    }
}

2.1.2 快速失败

当故障发生时，立即返回错误而不是长时间等待，避免资源耗尽。

2.1.3 优雅降级

提供有损但可用的服务，而不是完全不可用。

2.2 容错模式对比

模式	适用场景	实现方式	优缺点
重试	临时性故障	自动重新执行	✅ 简单有效 ❌ 可能加重负载
熔断	持续性故障	快速失败+自动恢复	✅ 防止雪崩 ❌ 用户体验受影响
降级	资源不足	功能裁剪	✅ 保障核心业务 ❌ 功能完整性受损
超时	慢响应	限制等待时间	✅ 释放资源 ❌ 可能中断正常请求
舱壁	资源隔离	资源池隔离	✅ 故障隔离 ❌ 资源利用率降低

3. Resilience4j 容错实战

3.1 环境准备与配置

Maven依赖

<dependencies>
    <dependency>
        <groupId>io.github.resilience4j</groupId>
        <artifactId>resilience4j-spring-boot2</artifactId>
        <version>2.0.2</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-registry-prometheus</artifactId>
    </dependency>
</dependencies>

完整容错配置

resilience4j:
  # 熔断器配置
  circuitbreaker:
    instances:
      orderService:
        failureRateThreshold: 50
        waitDurationInOpenState: 10s
        permittedNumberOfCallsInHalfOpenState: 3
        slidingWindowSize: 10
        minimumNumberOfCalls: 5
        recordExceptions:
          - java.io.IOException
          - java.util.concurrent.TimeoutException
        ignoreExceptions:
          - com.example.BusinessException

  # 重试配置
  retry:
    instances:
      paymentService:
        maxAttempts: 3
        waitDuration: 500ms
        retryExceptions:
          - java.io.IOException
          - org.springframework.web.client.ResourceAccessException

  # 超时配置
  timelimiter:
    instances:
      externalApi:
        timeoutDuration: 5s
        cancelRunningFuture: true

  # 舱壁配置
  bulkhead:
    instances:
      inventoryService:
        maxConcurrentCalls: 20
        maxWaitDuration: 100ms

  # 速率限制器
  ratelimiter:
    instances:
      authService:
        limitForPeriod: 10
        limitRefreshPeriod: 1s
        timeoutDuration: 0
management:
  endpoints:
    web:
      exposure:
        include: health,metrics,circuitbreakers
  endpoint:
    health:
      show-details: always

3.2 综合容错策略实现

订单服务完整容错示例

@Service
@Slf4j
public class OrderServiceWithFaultTolerance {

    @Autowired
    private PaymentServiceClient paymentService;

    @Autowired
    private InventoryServiceClient inventoryService;

    @Autowired
    private NotificationServiceClient notificationService;

    /**
     * 创建订单 - 综合容错策略
     */
    @Retry(name = "orderService", fallbackMethod = "createOrderFallback")
    @CircuitBreaker(name = "orderService", fallbackMethod = "createOrderFallback")
    @TimeLimiter(name = "externalApi", fallbackMethod = "createOrderFallback")
    @Bulkhead(name = "orderService", fallbackMethod = "createOrderFallback")
    @RateLimiter(name = "orderService", fallbackMethod = "createOrderFallback")
    public CompletableFuture<OrderResult> createOrder(OrderRequest request) {
        return CompletableFuture.supplyAsync(() -> {
            log.info("开始处理订单: {}", request.getOrderId());

            // 1. 参数校验（同步，必须成功）
            validateOrderRequest(request);

            // 2. 库存检查（核心业务，重试+熔断）
            checkInventoryWithRetry(request);

            // 3. 支付处理（核心业务，重试+熔断+超时）
            processPaymentWithFaultTolerance(request);

            // 4. 创建订单记录
            Order order = saveOrder(request);

            // 5. 发送通知（非核心，可降级）
            sendNotificationAsync(order);

            log.info("订单处理完成: {}", order.getOrderId());
            return OrderResult.success(order);
        });
    }

    /**
     * 库存检查 - 带重试机制
     */
    @Retry(name = "inventoryService", fallbackMethod = "checkInventoryFallback")
    private void checkInventoryWithRetry(OrderRequest request) {
        InventoryCheckResult result = inventoryService.checkInventory(
            request.getProductId(),
            request.getQuantity()
        );

        if (!result.isAvailable()) {
            throw new InventoryException("库存不足，商品ID: " + request.getProductId());
        }
    }

    /**
     * 支付处理 - 综合容错
     */
    @CircuitBreaker(name = "paymentService", fallbackMethod = "processPaymentFallback")
    @TimeLimiter(name = "paymentService")
    @Retry(name = "paymentService")
    private PaymentResult processPaymentWithFaultTolerance(OrderRequest request) {
        PaymentRequest paymentRequest = buildPaymentRequest(request);
        return paymentService.processPayment(paymentRequest);
    }

    /**
     * 异步发送通知 - 可降级
     */
    @Async
    @CircuitBreaker(name = "notificationService", fallbackMethod = "notificationFallback")
    public void sendNotificationAsync(Order order) {
        try {
            notificationService.sendOrderCreatedNotification(order);
            log.debug("订单通知发送成功: {}", order.getOrderId());
        } catch (Exception e) {
            log.warn("订单通知发送失败，但不会影响主流程: {}", e.getMessage());
            // 非核心服务异常，只记录日志，不抛出异常
        }
    }

    /**
     * 综合降级方法
     */
    private CompletableFuture<OrderResult> createOrderFallback(OrderRequest request, Exception e) {
        log.error("订单创建容错降级, 订单ID: {}, 异常: {}", request.getOrderId(), e.getMessage());

        FaultToleranceContext context = analyzeFaultContext(e);

        switch (context.getSeverity()) {
            case CRITICAL:
                return CompletableFuture.completedFuture(handleCriticalFailure(request, context));
            case HIGH:
                return CompletableFuture.completedFuture(handleHighSeverityFailure(request, context));
            case MEDIUM:
                return CompletableFuture.completedFuture(handleMediumSeverityFailure(request, context));
            default:
                return CompletableFuture.completedFuture(handleLowSeverityFailure(request, context));
        }
    }

    /**
     * 库存检查降级
     */
    private void checkInventoryFallback(OrderRequest request, Exception e) {
        log.warn("库存检查降级, 使用本地缓存数据");

        // 使用本地缓存或最近的成功结果
        LocalInventoryCache cache = inventoryService.getLocalCache(request.getProductId());
        if (cache != null && cache.isValid()) {
            if (cache.getAvailableQuantity() < request.getQuantity()) {
                throw new InventoryException("本地缓存显示库存不足");
            }
            // 继续执行
        } else {
            throw new InventoryException("无法获取库存信息，请稍后重试");
        }
    }

    /**
     * 支付处理降级
     */
    private PaymentResult processPaymentFallback(OrderRequest request, Exception e) {
        log.warn("支付服务降级, 创建待支付订单");

        // 创建待支付订单，引导用户后续完成支付
        return PaymentResult.builder()
                .paymentId("PENDING-" + System.currentTimeMillis())
                .status(PaymentStatus.PENDING)
                .message("支付系统繁忙，订单已创建，请稍后完成支付")
                .build();
    }

    /**
     * 通知服务降级
     */
    private void notificationFallback(Order order, Exception e) {
        log.info("通知服务降级, 订单ID: {}", order.getOrderId());
        // 将通知任务放入重试队列
        notificationRetryQueue.add(order);
    }
}

3.3 容错上下文与决策引擎

容错上下文管理

@Component
@Slf4j
public class FaultToleranceContextManager {

    private final ThreadLocal<FaultToleranceContext> contextHolder = new ThreadLocal<>();

    /**
     * 开始容错上下文
     */
    public void beginContext(String operationName) {
        FaultToleranceContext context = FaultToleranceContext.builder()
                .operationName(operationName)
                .startTime(System.currentTimeMillis())
                .retryCount(0)
                .fallbackTriggered(false)
                .build();
        contextHolder.set(context);
    }

    /**
     * 记录重试事件
     */
    public void recordRetry(Exception exception) {
        FaultToleranceContext context = getCurrentContext();
        if (context != null) {
            context.incrementRetryCount();
            context.addException(exception);
            log.debug("记录重试事件: {}, 重试次数: {}",
                     context.getOperationName(), context.getRetryCount());
        }
    }

    /**
     * 记录降级事件
     */
    public void recordFallback(String fallbackMethod, Exception triggerException) {
        FaultToleranceContext context = getCurrentContext();
        if (context != null) {
            context.setFallbackTriggered(true);
            context.setFallbackMethod(fallbackMethod);
            context.setTriggerException(triggerException);
            context.setEndTime(System.currentTimeMillis());

            log.warn("降级触发: 操作={}, 降级方法={}, 触发异常={}",
                    context.getOperationName(), fallbackMethod, triggerException.getMessage());
        }
    }

    /**
     * 获取当前上下文
     */
    public FaultToleranceContext getCurrentContext() {
        return contextHolder.get();
    }

    /**
     * 结束上下文
     */
    public void endContext() {
        FaultToleranceContext context = contextHolder.get();
        if (context != null) {
            // 记录指标
            recordMetrics(context);
            contextHolder.remove();
        }
    }

    /**
     * 分析故障上下文
     */
    public FaultSeverity analyzeFaultSeverity(FaultToleranceContext context) {
        if (context == null) {
            return FaultSeverity.UNKNOWN;
        }

        List<Exception> exceptions = context.getExceptions();
        if (exceptions.isEmpty()) {
            return FaultSeverity.NONE;
        }

        // 基于异常类型和频率判断严重程度
        long timeoutCount = exceptions.stream()
                .filter(e -> e instanceof TimeoutException)
                .count();

        long circuitBreakerCount = exceptions.stream()
                .filter(e -> e instanceof CallNotPermittedException)
                .count();

        if (circuitBreakerCount > 0) {
            return FaultSeverity.CRITICAL;
        } else if (timeoutCount >= 3) {
            return FaultSeverity.HIGH;
        } else if (context.getRetryCount() >= 2) {
            return FaultSeverity.MEDIUM;
        } else {
            return FaultSeverity.LOW;
        }
    }

    private void recordMetrics(FaultToleranceContext context) {
        // 记录到监控系统
        Metrics.counter("fault_tolerance_operation_total",
                "operation", context.getOperationName(),
                "fallback_triggered", String.valueOf(context.isFallbackTriggered()))
                .increment();

        if (context.isFallbackTriggered()) {
            Metrics.counter("fault_tolerance_fallback_total",
                    "operation", context.getOperationName(),
                    "fallback_method", context.getFallbackMethod())
                    .increment();
        }
    }
}

智能容错决策引擎

@Component
@Slf4j
public class SmartFaultToleranceEngine {

    @Autowired
    private SystemMetricsCollector metricsCollector;

    @Autowired
    private CircuitBreakerRegistry circuitBreakerRegistry;

    @Autowired
    private RetryRegistry retryRegistry;

    /**
     * 动态调整容错策略
     */
    public void adjustFaultToleranceStrategies() {
        SystemMetrics metrics = metricsCollector.getCurrentMetrics();

        // 基于系统负载调整策略
        if (metrics.getCpuUsage() > 80) {
            tightenCircuitBreakerSettings();
            reduceRetryAttempts();
        } else if (metrics.getCpuUsage() < 30) {
            loosenCircuitBreakerSettings();
            increaseRetryAttempts();
        }

        // 基于时间特征调整
        if (isPeakBusinessHours()) {
            enableAggressiveDegradation();
        } else {
            disableAggressiveDegradation();
        }
    }

    /**
     * 收紧熔断器设置
     */
    private void tightenCircuitBreakerSettings() {
        circuitBreakerRegistry.getAllCircuitBreakers().forEach((name, circuitBreaker) -> {
            CircuitBreakerConfig newConfig = CircuitBreakerConfig.from(circuitBreaker.getCircuitBreakerConfig())
                    .failureRateThreshold(40)  // 降低阈值
                    .waitDurationInOpenState(Duration.ofSeconds(15))  // 延长等待时间
                    .build();

            circuitBreaker.getEventPublisher().onStateTransition(event -> {
                log.info("熔断器 {} 状态变更: {} -> {}",
                        name, event.getStateTransition().getFromState(),
                        event.getStateTransition().getToState());
            });
        });
    }

    /**
     * 智能重试策略
     */
    public RetryConfig buildSmartRetryConfig(String serviceName, Exception lastException) {
        RetryConfig.Builder builder = RetryConfig.custom();

        // 基于异常类型设置重试策略
        if (lastException instanceof TimeoutException) {
            builder.maxAttempts(2)
                   .waitDuration(Duration.ofMillis(200));
        } else if (lastException instanceof SocketException) {
            builder.maxAttempts(3)
                   .waitDuration(Duration.ofMillis(500));
        } else if (lastException instanceof ServerErrorException) {
            builder.maxAttempts(1)  // 服务器错误不重试
                   .waitDuration(Duration.ofMillis(100));
        } else {
            builder.maxAttempts(3)
                   .waitDuration(Duration.ofMillis(300));
        }

        // 基于服务重要性调整
        if (isCriticalService(serviceName)) {
            builder.maxAttempts(builder.build().getMaxAttempts() + 1);
        }

        return builder.build();
    }

    private boolean isPeakBusinessHours() {
        LocalTime now = LocalTime.now();
        return (now.isAfter(LocalTime.of(9, 0)) && now.isBefore(LocalTime.of(12, 0))) ||
               (now.isAfter(LocalTime.of(14, 0)) && now.isBefore(LocalTime.of(18, 0)));
    }

    private boolean isCriticalService(String serviceName) {
        return serviceName.contains("payment") ||
               serviceName.contains("order") ||
               serviceName.contains("inventory");
    }
}

4. 容错监控与管理

4.1 综合监控面板

@RestController
@RequestMapping("/fault-tolerance")
@Slf4j
public class FaultToleranceMonitorController {

    @Autowired
    private CircuitBreakerRegistry circuitBreakerRegistry;

    @Autowired
    private RetryRegistry retryRegistry;

    @Autowired
    private BulkheadRegistry bulkheadRegistry;

    @Autowired
    private TimeLimiterRegistry timeLimiterRegistry;

    /**
     * 获取所有容错组件状态
     */
    @GetMapping("/status")
    public Map<String, Object> getFaultToleranceStatus() {
        Map<String, Object> status = new HashMap<>();

        status.put("circuitBreakers", getCircuitBreakerStatus());
        status.put("retries", getRetryStatus());
        status.put("bulkheads", getBulkheadStatus());
        status.put("timeLimiters", getTimeLimiterStatus());
        status.put("systemMetrics", getSystemMetrics());

        return status;
    }

    /**
     * 熔断器状态详情
     */
    @GetMapping("/circuit-breakers/{name}")
    public Map<String, Object> getCircuitBreakerDetail(@PathVariable String name) {
        CircuitBreaker circuitBreaker = circuitBreakerRegistry.circuitBreaker(name);

        Map<String, Object> detail = new HashMap<>();
        detail.put("name", name);
        detail.put("state", circuitBreaker.getState().name());
        detail.put("metrics", buildCircuitBreakerMetrics(circuitBreaker.getMetrics()));
        detail.put("config", buildCircuitBreakerConfig(circuitBreaker.getCircuitBreakerConfig()));

        return detail;
    }

    /**
     * 手动操作熔断器状态
     */
    @PostMapping("/circuit-breakers/{name}/state")
    public ResponseEntity<String> changeCircuitBreakerState(
            @PathVariable String name,
            @RequestParam String state) {

        CircuitBreaker circuitBreaker = circuitBreakerRegistry.circuitBreaker(name);

        try {
            switch (state.toUpperCase()) {
                case "CLOSED":
                    circuitBreaker.transitionToClosedState();
                    break;
                case "OPEN":
                    circuitBreaker.transitionToOpenState();
                    break;
                case "HALF_OPEN":
                    circuitBreaker.transitionToHalfOpenState();
                    break;
                case "FORCED_OPEN":
                    circuitBreaker.transitionToForcedOpenState();
                    break;
                case "DISABLED":
                    circuitBreaker.transitionToDisabledState();
                    break;
                default:
                    return ResponseEntity.badRequest().body("无效的状态: " + state);
            }

            log.info("手动变更熔断器状态: {} -> {}", name, state);
            return ResponseEntity.ok("状态变更成功");

        } catch (Exception e) {
            log.error("变更熔断器状态失败", e);
            return ResponseEntity.status(500).body("状态变更失败: " + e.getMessage());
        }
    }

    /**
     * 重置容错组件
     */
    @PostMapping("/reset/{componentType}/{name}")
    public ResponseEntity<String> resetComponent(
            @PathVariable String componentType,
            @PathVariable String name) {

        try {
            switch (componentType.toLowerCase()) {
                case "circuitbreaker":
                    circuitBreakerRegistry.circuitBreaker(name).reset();
                    break;
                case "retry":
                    retryRegistry.retry(name).reset();
                    break;
                case "bulkhead":
                    bulkheadRegistry.bulkhead(name).reset();
                    break;
                default:
                    return ResponseEntity.badRequest().body("不支持的组件类型: " + componentType);
            }

            log.info("重置容错组件: {}/{}", componentType, name);
            return ResponseEntity.ok("重置成功");

        } catch (Exception e) {
            log.error("重置容错组件失败", e);
            return ResponseEntity.status(500).body("重置失败: " + e.getMessage());
        }
    }

    private Map<String, Object> getCircuitBreakerStatus() {
        Map<String, Object> breakers = new HashMap<>();

        circuitBreakerRegistry.getAllCircuitBreakers().forEach((name, cb) -> {
            Map<String, Object> info = new HashMap<>();
            info.put("state", cb.getState().name());
            info.put("metrics", buildCircuitBreakerMetrics(cb.getMetrics()));
            breakers.put(name, info);
        });

        return breakers;
    }

    private Map<String, Object> buildCircuitBreakerMetrics(CircuitBreaker.Metrics metrics) {
        Map<String, Object> metricsInfo = new HashMap<>();
        metricsInfo.put("failureRate", metrics.getFailureRate());
        metricsInfo.put("bufferedCalls", metrics.getNumberOfBufferedCalls());
        metricsInfo.put("failedCalls", metrics.getNumberOfFailedCalls());
        metricsInfo.put("successfulCalls", metrics.getNumberOfSuccessfulCalls());
        metricsInfo.put("notPermittedCalls", metrics.getNumberOfNotPermittedCalls());
        metricsInfo.put("slowCalls", metrics.getNumberOfSlowCalls());
        metricsInfo.put("slowCallRate", metrics.getSlowCallRate());
        return metricsInfo;
    }
}

4.2 容错事件监听与告警

@Component
@Slf4j
public class FaultToleranceEventListener {

    @Autowired
    private AlertService alertService;

    @Autowired
    private MetricsService metricsService;

    /**
     * 监听熔断器事件
     */
    @EventListener
    public void onCircuitBreakerEvent(CircuitBreakerEvent event) {
        metricsService.recordCircuitBreakerEvent(event);

        switch (event.getEventType()) {
            case STATE_TRANSITION:
                handleStateTransition(event);
                break;
            case ERROR:
                handleError(event);
                break;
            case CALL_NOT_PERMITTED:
                handleCallNotPermitted(event);
                break;
            case SLOW_CALL_RATE_EXCEEDED:
                handleSlowCallRateExceeded(event);
                break;
            case FAILURE_RATE_EXCEEDED:
                handleFailureRateExceeded(event);
                break;
        }
    }

    /**
     * 监听重试事件
     */
    @EventListener
    public void onRetryEvent(RetryEvent event) {
        metricsService.recordRetryEvent(event);

        if (event.getEventType() == RetryEvent.Type.RETRY) {
            log.warn("重试事件: {}, 异常: {}, 重试次数: {}",
                    event.getName(), event.getLastThrowable().getMessage(),
                    event.getNumberOfRetryAttempts());

            // 重试次数过多告警
            if (event.getNumberOfRetryAttempts() >= 3) {
                alertService.sendRetryAlert(event.getName(),
                        event.getNumberOfRetryAttempts(),
                        event.getLastThrowable());
            }
        }
    }

    /**
     * 处理熔断器状态转换
     */
    private void handleStateTransition(CircuitBreakerEvent event) {
        CircuitBreakerOnStateTransitionEvent transitionEvent =
                (CircuitBreakerOnStateTransitionEvent) event;

        String message = String.format("熔断器状态变更: %s [%s -> %s]",
                event.getCircuitBreakerName(),
                transitionEvent.getStateTransition().getFromState(),
                transitionEvent.getStateTransition().getToState());

        log.warn(message);

        // 状态转为OPEN时发送告警
        if (transitionEvent.getStateTransition().getToState() == CircuitBreaker.State.OPEN) {
            alertService.sendCircuitBreakerOpenAlert(event.getCircuitBreakerName(), message);
        }

        // 状态转为CLOSED时发送恢复通知
        if (transitionEvent.getStateTransition().getToState() == CircuitBreaker.State.CLOSED &&
            transitionEvent.getStateTransition().getFromState() == CircuitBreaker.State.OPEN) {
            alertService.sendCircuitBreakerRecoveredAlert(event.getCircuitBreakerName());
        }
    }

    /**
     * 处理调用被拒绝事件
     */
    private void handleCallNotPermitted(CircuitBreakerEvent event) {
        log.warn("调用被熔断器拒绝: {}", event.getCircuitBreakerName());

        // 记录被拒绝的调用，用于容量规划
        metricsService.recordRejectedCall(event.getCircuitBreakerName());

        // 发送业务影响告警
        if (isCriticalService(event.getCircuitBreakerName())) {
            alertService.sendBusinessImpactAlert(event.getCircuitBreakerName(),
                    "熔断器打开，影响业务功能");
        }
    }

    private boolean isCriticalService(String serviceName) {
        return serviceName.contains("payment") ||
               serviceName.contains("order") ||
               serviceName.contains("auth");
    }
}

5. 高级容错模式

5.1 自适应容错策略

@Component
@Slf4j
public class AdaptiveFaultToleranceStrategy {

    @Autowired
    private HistoricalDataAnalyzer historicalDataAnalyzer;

    @Autowired
    private MachineLearningPredictor mlPredictor;

    /**
     * 基于历史数据调整容错参数
     */
    public void adaptFaultToleranceParameters() {
        Map<String, ServiceBehavior> serviceBehaviors =
                historicalDataAnalyzer.analyzeServiceBehavior(Period.ofDays(7));

        serviceBehaviors.forEach((serviceName, behavior) -> {
            AdaptiveConfig config = calculateAdaptiveConfig(behavior);
            applyAdaptiveConfig(serviceName, config);
        });
    }

    /**
     * 预测性容错
     */
    public PredictiveFaultToleranceResult predictFaultToleranceNeeds(String serviceName) {
        ServiceMetrics currentMetrics = metricsService.getCurrentMetrics(serviceName);
        SeasonalPattern pattern = historicalDataAnalyzer.getSeasonalPattern(serviceName);

        // 使用机器学习预测故障概率
        double faultProbability = mlPredictor.predictFaultProbability(
                currentMetrics, pattern);

        return PredictiveFaultToleranceResult.builder()
                .serviceName(serviceName)
                .faultProbability(faultProbability)
                .recommendedAction(getRecommendedAction(faultProbability))
                .confidenceLevel(mlPredictor.getConfidenceLevel())
                .build();
    }

    private AdaptiveConfig calculateAdaptiveConfig(ServiceBehavior behavior) {
        return AdaptiveConfig.builder()
                .circuitBreakerThreshold(calculateOptimalThreshold(behavior))
                .retryAttempts(calculateOptimalRetryAttempts(behavior))
                .timeoutDuration(calculateOptimalTimeout(behavior))
                .bulkheadSize(calculateOptimalBulkheadSize(behavior))
                .build();
    }

    private double calculateOptimalThreshold(ServiceBehavior behavior) {
        // 基于历史故障率计算最优阈值
        double historicalFailureRate = behavior.getAverageFailureRate();
        double variability = behavior.getFailureRateVariability();

        // 故障率波动大时使用更保守的阈值
        if (variability > 0.3) {
            return Math.max(30, historicalFailureRate * 0.8);
        } else {
            return Math.max(40, historicalFailureRate * 1.2);
        }
    }
}

5.2 容错演练框架

@Service
@Slf4j
public class FaultToleranceDrillService {

    @Autowired
    private ChaosEngineeringService chaosService;

    @Autowired
    private FaultToleranceConfigManager configManager;

    /**
     * 执行容错演练
     */
    public DrillResult executeFaultToleranceDrill(DrillPlan drillPlan) {
        log.info("开始容错演练: {}", drillPlan.getName());

        DrillResult result = new DrillResult(drillPlan);

        try {
            // 1. 备份当前配置
            Map<String, Object> backupConfigs = configManager.backupAllConfigs();

            // 2. 应用演练配置
            applyDrillConfigs(drillPlan);

            // 3. 注入故障
            injectFaults(drillPlan.getFaultInjectionScenarios());

            // 4. 执行测试用例
            executeTestScenarios(drillPlan, result);

            // 5. 评估容错效果
            evaluateFaultToleranceEffectiveness(result);

            // 6. 恢复环境
            restoreEnvironment(backupConfigs);

            result.setStatus(DrillStatus.SUCCESS);

        } catch (Exception e) {
            log.error("容错演练执行失败", e);
            result.setStatus(DrillStatus.FAILED);
            result.setErrorMessage(e.getMessage());
        }

        // 7. 生成演练报告
        generateDrillReport(result);

        return result;
    }

    /**
     * 定期容错演练计划
     */
    @Scheduled(cron = "0 0 2 * * SUN") // 每周日凌晨2点执行
    public void scheduleWeeklyDrill() {
        DrillPlan weeklyPlan = buildWeeklyDrillPlan();
        executeFaultToleranceDrill(weeklyPlan);
    }

    /**
     * 大促前专项演练
     */
    public void executePrePromotionDrill() {
        DrillPlan promotionPlan = buildPromotionDrillPlan();
        DrillResult result = executeFaultToleranceDrill(promotionPlan);

        // 基于演练结果优化配置
        if (result.getStatus() == DrillStatus.SUCCESS) {
            optimizeConfigurationsBasedOnDrill(result);
        } else {
            log.error("大促前演练失败，需要人工干预");
            alertService.sendDrillFailureAlert(result);
        }
    }

    private void injectFaults(List<FaultInjectionScenario> scenarios) {
        for (FaultInjectionScenario scenario : scenarios) {
            try {
                switch (scenario.getFaultType()) {
                    case NETWORK_LATENCY:
                        chaosService.injectNetworkLatency(scenario.getTargetService(),
                                scenario.getDuration(), scenario.getParameters());
                        break;
                    case SERVICE_UNAVAILABLE:
                        chaosService.makeServiceUnavailable(scenario.getTargetService(),
                                scenario.getDuration());
                        break;
                    case HIGH_CPU:
                        chaosService.injectHighCpuLoad(scenario.getTargetService(),
                                scenario.getDuration());
                        break;
                    case MEMORY_LEAK:
                        chaosService.injectMemoryLeak(scenario.getTargetService(),
                                scenario.getDuration());
                        break;
                }
                log.info("故障注入成功: {}", scenario.getDescription());
            } catch (Exception e) {
                log.error("故障注入失败: {}", scenario.getDescription(), e);
            }
        }
    }
}

6. 生产环境最佳实践

6.1 容错配置模板

# 核心服务容错配置模板
fault-tolerance:
  templates:
    critical-service:
      circuit-breaker:
        failure-rate-threshold: 40
        wait-duration-in-open-state: 30s
        sliding-window-size: 20
        minimum-number-of-calls: 10
      retry:
        max-attempts: 3
        wait-duration: 1s
      time-limiter:
        timeout-duration: 5s
      bulkhead:
        max-concurrent-calls: 50
        max-wait-duration: 50ms

    normal-service:
      circuit-breaker:
        failure-rate-threshold: 50
        wait-duration-in-open-state: 10s
        sliding-window-size: 10
        minimum-number-of-calls: 5
      retry:
        max-attempts: 2
        wait-duration: 500ms
      time-limiter:
        timeout-duration: 3s
      bulkhead:
        max-concurrent-calls: 100
        max-wait-duration: 100ms
# 服务具体配置
resilience4j:
  circuitbreaker:
    configs:
      critical:
        baseConfig: critical-service
      normal:
        baseConfig: normal-service

  circuitbreaker:
    instances:
      paymentService:
        baseConfig: critical
      orderService:
        baseConfig: critical
      productService:
        baseConfig: normal
      recommendationService:
        baseConfig: normal

6.2 容错检查清单

@Component
@Slf4j
public class FaultToleranceChecklist {

    /**
     * 系统启动时容错配置检查
     */
    @EventListener(ApplicationReadyEvent.class)
    public void checkFaultToleranceConfigurations() {
        log.info("开始容错配置检查...");

        List<CheckItem> checkItems = Arrays.asList(
            checkCircuitBreakerConfigs(),
            checkRetryConfigs(),
            checkBulkheadConfigs(),
            checkTimeLimiterConfigs(),
            checkFallbackMethods(),
            checkMonitoringConfig()
        );

        boolean allPassed = checkItems.stream().allMatch(CheckItem::isPassed);

        if (allPassed) {
            log.info("容错配置检查通过");
        } else {
            log.error("容错配置检查发现以下问题:");
            checkItems.stream()
                    .filter(item -> !item.isPassed())
                    .forEach(item -> log.error(" - {}: {}", item.getName(), item.getMessage()));

            // 发送告警
            alertService.sendConfigurationCheckAlert(checkItems);
        }
    }

    /**
     * 定期健康检查
     */
    @Scheduled(fixedRate = 300000) // 5分钟执行一次
    public void performHealthCheck() {
        FaultToleranceHealth health = checkFaultToleranceHealth();

        if (health.getStatus() == HealthStatus.DEGRADED) {
            log.warn("容错系统健康度下降: {}", health.getMessage());
            alertService.sendHealthDegradationAlert(health);
        }

        if (health.getStatus() == HealthStatus.CRITICAL) {
            log.error("容错系统健康度严重下降: {}", health.getMessage());
            alertService.sendCriticalHealthAlert(health);

            // 尝试自动修复
            attemptAutoRecovery(health);
        }
    }

    private CheckItem checkCircuitBreakerConfigs() {
        try {
            circuitBreakerRegistry.getAllCircuitBreakers().forEach((name, cb) -> {
                CircuitBreakerConfig config = cb.getCircuitBreakerConfig();

                // 检查配置合理性
                if (config.getFailureRateThreshold() < 10) {
                    throw new ConfigurationException("熔断器失败率阈值过低: " + name);
                }

                if (config.getWaitDurationInOpenState().getSeconds() < 5) {
                    throw new ConfigurationException("熔断器等待时间过短: " + name);
                }
            });

            return CheckItem.passed("熔断器配置检查");
        } catch (Exception e) {
            return CheckItem.failed("熔断器配置检查", e.getMessage());
        }
    }
}

7. 总结

7.1 容错机制核心价值

通过本文的深入学习，你应该掌握容错机制在分布式系统中的核心价值：

系统韧性：在故障发生时保持系统部分可用
故障隔离：防止单个故障扩散到整个系统
快速恢复：自动检测和恢复故障组件
用户体验：提供优雅的降级体验而非完全不可用

7.2 关键实践要点

✅ 分层容错设计：不同层级采用不同的容错策略
✅ 智能决策：基于历史数据和实时指标动态调整
✅ 全面监控：实时跟踪容错组件状态和效果
✅ 定期演练：通过混沌工程验证容错有效性
✅ 持续优化：基于实际运行数据不断改进配置

7.3 演进路径建议

对于不同成熟度的团队，容错机制的演进路径：

初级阶段：

实现基本的熔断和重试
配置合理的超时时间
实现简单的降级策略

中级阶段：

引入舱壁隔离
实现多级降级
建立监控告警

高级阶段：

自适应容错策略
预测性容错
自动化容错演练

容错不是一蹴而就的，而是需要根据业务特点和技术架构不断演进的过程。合理的容错设计能够显著提升系统的稳定性和用户体验。

《服务治理》容错机制详解与实践

1. 容错机制概述

1.1 什么是容错

1.2 容错的业务价值

2. 容错设计原则

2.1 核心设计理念

2.1.1 故障隔离

2.1.2 快速失败

2.1.3 优雅降级

2.2 容错模式对比

3. Resilience4j 容错实战

3.1 环境准备与配置

Maven依赖

完整容错配置

3.2 综合容错策略实现

订单服务完整容错示例

3.3 容错上下文与决策引擎

容错上下文管理

智能容错决策引擎

4. 容错监控与管理

4.1 综合监控面板

4.2 容错事件监听与告警

5. 高级容错模式

5.1 自适应容错策略

5.2 容错演练框架

6. 生产环境最佳实践

6.1 容错配置模板

6.2 容错检查清单

7. 总结

7.1 容错机制核心价值

7.2 关键实践要点

7.3 演进路径建议

热门文章

最新文章

相关电子书

探索云世界

热门

云计算

大数据

云原生

人工智能

数据库

开发与运维

活动广场

任务中心

训练营

直播

乘风者计划

下载

镜像站

技术资料

《服务治理》容错机制详解与实践

1. 容错机制概述

1.1 什么是容错

1.2 容错的业务价值

2. 容错设计原则

2.1 核心设计理念

2.1.1 故障隔离

2.1.2 快速失败

2.1.3 优雅降级

2.2 容错模式对比

3. Resilience4j 容错实战

3.1 环境准备与配置

Maven依赖

完整容错配置

3.2 综合容错策略实现

订单服务完整容错示例

3.3 容错上下文与决策引擎

容错上下文管理

智能容错决策引擎

4. 容错监控与管理

4.1 综合监控面板

4.2 容错事件监听与告警

5. 高级容错模式

5.1 自适应容错策略

5.2 容错演练框架

6. 生产环境最佳实践

6.1 容错配置模板

6.2 容错检查清单

7. 总结

7.1 容错机制核心价值

7.2 关键实践要点

7.3 演进路径建议

热门文章

最新文章

相关电子书
