1. 配置中心的核心价值
1.1 什么是配置中心?
配置中心是微服务架构中集中管理所有应用配置的基础设施,它解决了分布式环境下配置管理的四大痛点:配置分散、变更困难、环境隔离、实时生效。
// 配置中心的现实比喻 public class ConfigCenterAnalogy { /** * 传统配置管理 vs 配置中心 */ public class TraditionalVsConfigCenter { // 传统方式:每个应用都有自己的配置文件 // - application.properties // - application-dev.properties // - application-prod.properties // 问题:配置分散,变更需要重新部署 // 配置中心:所有配置集中管理 // - 统一管理、实时推送、版本控制 // - 环境隔离、权限管控、审计日志 } /** * 没有配置中心的痛苦 */ public class WithoutConfigCenter { // 1. 配置散落在各个应用 // 2. 敏感信息硬编码 // 3. 配置变更需要重新部署 // 4. 多环境配置容易出错 // 5. 配置历史无法追溯 } }

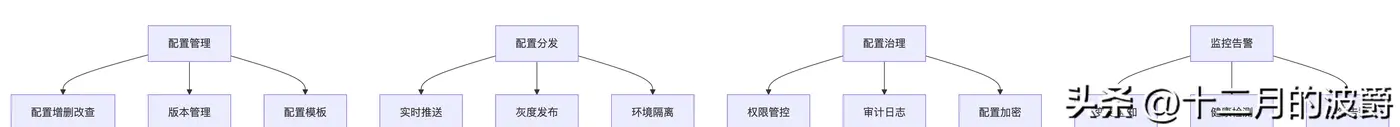

1.2 配置中心的核心能力
2. 主流配置中心技术选型
2.1 配置中心对比分析
特性 |
Nacos |
Apollo |
Spring Cloud Config |
Consul |
配置实时推送 |
支持 |
支持 |
需要配合Bus |
支持 |
版本管理 |
支持 |
强大 |
依赖Git |
基础 |
权限管理 |
基础 |
完善 |
依赖Git |
完善 |
配置格式 |
多种 |
多种 |
多种 |
Key-Value |
依赖组件 |
内嵌 |
MySQL+Eureka |
Git+MQ |
独立 |
易用性 |
高 |
中 |
中 |
中 |
配置加密 |
支持 |
支持 |
支持 |
支持 |

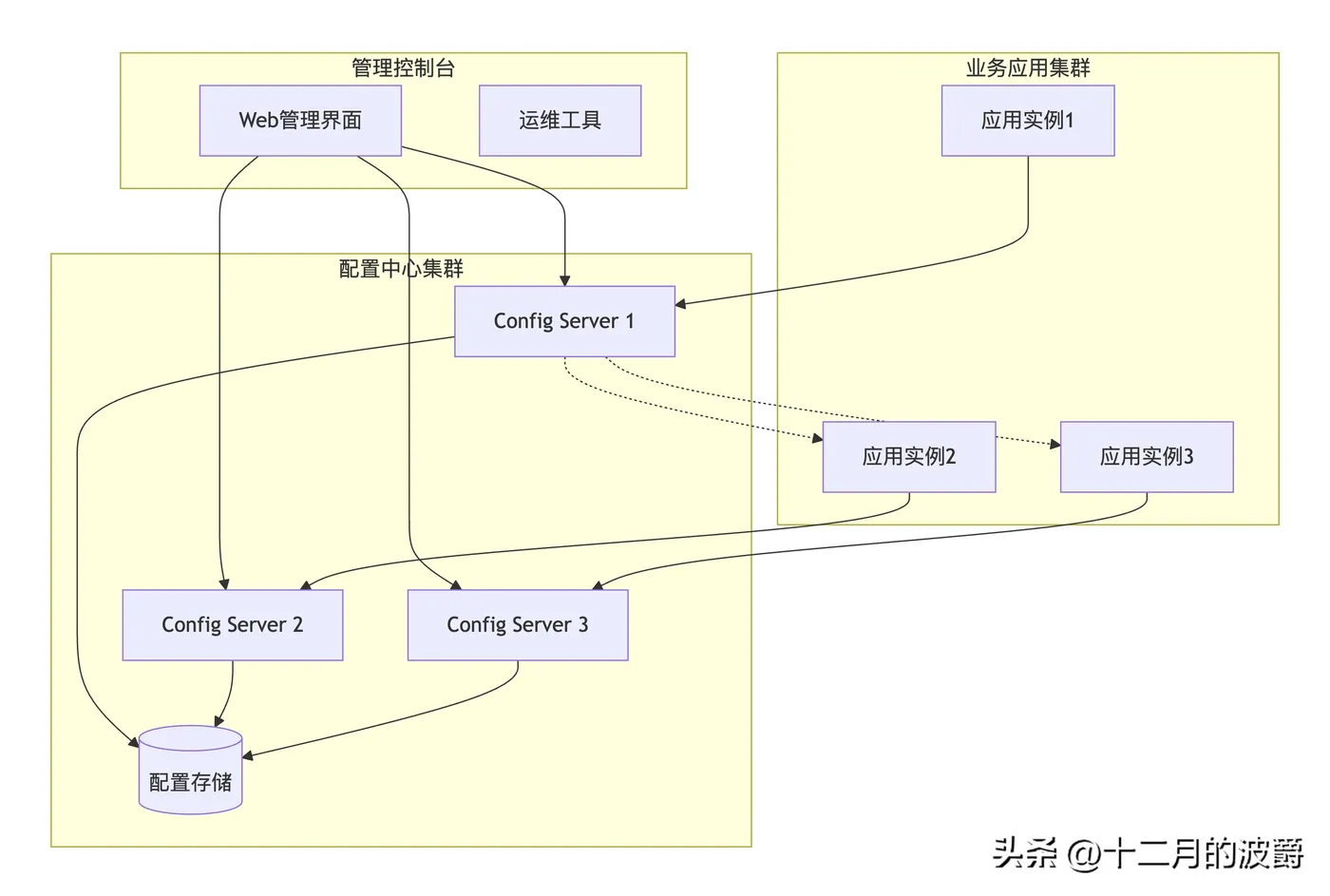

2.2 配置中心架构模式
3. Spring Cloud Alibaba Nacos Config 实战
3.1 环境准备与依赖配置
<!-- pom.xml 配置中心依赖 --> <dependencies> <!-- Nacos Config Starter --> <dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId> <version>2022.0.0.0</version> </dependency> <!-- Nacos Discovery Starter --> <dependency> <groupId>com.alibaba.cloud</groupId> <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId> <version>2022.0.0.0</version> </dependency> <!-- Spring Boot Actuator --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <!-- Spring Boot Web --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!-- Configuration Processor --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</optional> </dependency> </dependencies>
3.2 基础配置与引导文件
# bootstrap.yml - 引导配置文件 spring: application: name: order-service # 应用名称,对应Nacos Data ID profiles: active: dev # 环境标识 cloud: nacos: config: server-addr: 192.168.1.100:8848 # Nacos服务器地址 namespace: dev-environment # 命名空间 group: ORDER_GROUP # 配置分组 file-extension: yaml # 配置格式 prefix: order-service # 配置前缀 refresh-enabled: true # 开启自动刷新 # 共享配置 extension-configs: - data-id: common-config.yaml group: COMMON_GROUP refresh: true - data-id: datasource-config.yaml group: COMMON_GROUP refresh: true # 配置重试 retry: max-attempts: 3 initial-interval: 2000ms # 配置超时 timeout: 3000ms # 应用配置 server: port: 8080 # 监控端点 management: endpoints: web: exposure: include: refresh,health,configprops endpoint: refresh: enabled: true
3.3 配置数据模型设计
# Nacos配置示例:order-service-dev.yaml # 应用基础配置 app: name: order-service version: 1.0.0 description: 订单服务 # 数据源配置 datasource: url: jdbc:mysql://localhost:3306/order_db?useSSL=false&serverTimezone=Asia/Shanghai username: order_user password: encrypted_password_123 driver-class-name: com.mysql.cj.jdbc.Driver hikari: maximum-pool-size: 20 minimum-idle: 5 connection-timeout: 30000 idle-timeout: 600000 max-lifetime: 1800000 # Redis配置 redis: host: 127.0.0.1 port: 6379 password: encrypted_redis_password database: 0 timeout: 3000 lettuce: pool: max-active: 20 max-wait: -1 max-idle: 10 min-idle: 5 # 业务配置 order: max-quantity: 100 # 最大购买数量 timeout-cancel-minutes: 30 # 超时取消时间(分钟) auto-confirm-days: 7 # 自动确认收货天数 retry-times: 3 # 重试次数 enable-auto-cancel: true # 启用自动取消 # 线程池配置 thread-pool: core-size: 10 max-size: 50 queue-capacity: 100 keep-alive-seconds: 60 # 熔断器配置 hystrix: command: default: execution: isolation: thread: timeoutInMilliseconds: 5000 circuitBreaker: requestVolumeThreshold: 20 sleepWindowInMilliseconds: 5000 # 特性开关 feature: toggle: new-payment: false # 新支付功能 reward-points: true # 奖励积分功能 express-discount: false # 快递折扣功能 # 日志配置 logging: level: com.example.order: INFO org.springframework.web: WARN file: name: logs/order-service.log pattern: console: "%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n"
3.4 配置类与动态刷新
// 配置属性类 @Configuration @ConfigurationProperties(prefix = "order") @RefreshScope // 支持配置动态刷新 @Data public class OrderConfig { private Integer maxQuantity = 50; private Integer timeoutCancelMinutes = 30; private Integer autoConfirmDays = 7; private Integer retryTimes = 3; private Boolean enableAutoCancel = true; // 配置验证 @PostConstruct public void validate() { if (maxQuantity <= 0) { throw new IllegalStateException("maxQuantity必须大于0"); } if (timeoutCancelMinutes <= 0) { throw new IllegalStateException("timeoutCancelMinutes必须大于0"); } } } // 数据源配置类 @Configuration @ConfigurationProperties(prefix = "datasource") @RefreshScope @Data public class DataSourceConfig { private String url; private String username; private String password; private String driverClassName; private HikariConfig hikari; @Data public static class HikariConfig { private Integer maximumPoolSize = 10; private Integer minimumIdle = 2; private Long connectionTimeout = 30000L; private Long idleTimeout = 600000L; private Long maxLifetime = 1800000L; } @Bean @RefreshScope public DataSource dataSource() { HikariDataSource dataSource = new HikariDataSource(); dataSource.setJdbcUrl(url); dataSource.setUsername(username); dataSource.setPassword(password); dataSource.setDriverClassName(driverClassName); dataSource.setMaximumPoolSize(hikari.getMaximumPoolSize()); dataSource.setMinimumIdle(hikari.getMinimumIdle()); dataSource.setConnectionTimeout(hikari.getConnectionTimeout()); dataSource.setIdleTimeout(hikari.getIdleTimeout()); dataSource.setMaxLifetime(hikari.getMaxLifetime()); return dataSource; } } // 特性开关配置 @Configuration @ConfigurationProperties(prefix = "feature.toggle") @RefreshScope @Data public class FeatureToggleConfig { private Boolean newPayment = false; private Boolean rewardPoints = true; private Boolean expressDiscount = false; /** * 检查特性是否启用 */ public boolean isFeatureEnabled(String featureName) { switch (featureName) { case "new-payment": return Boolean.TRUE.equals(newPayment); case "reward-points": return Boolean.TRUE.equals(rewardPoints); case "express-discount": return Boolean.TRUE.equals(expressDiscount); default: return false; } } }
3.5 配置动态刷新实战
// 配置变更监听器 @Component @Slf4j public class ConfigChangeListener { @Autowired private OrderConfig orderConfig; @Autowired private FeatureToggleConfig featureToggleConfig; /** * 监听配置变更事件 */ @EventListener public void onConfigChange(EnvironmentChangeEvent event) { log.info("配置发生变更: {}", event.getKeys()); for (String key : event.getKeys()) { switch (key) { case "order.max-quantity": log.info("订单最大数量变更为: {}", orderConfig.getMaxQuantity()); break; case "order.timeout-cancel-minutes": log.info("超时取消时间变更为: {}分钟", orderConfig.getTimeoutCancelMinutes()); break; case "feature.toggle.new-payment": if (featureToggleConfig.isFeatureEnabled("new-payment")) { log.info("新支付功能已启用"); initializeNewPaymentSystem(); } else { log.info("新支付功能已禁用"); } break; } } } /** * 手动刷新配置端点 */ @RestController @RequestMapping("/config") public class ConfigRefreshController { @Autowired private ContextRefresher contextRefresher; /** * 手动刷新配置 */ @PostMapping("/refresh") public ResponseEntity<Map<String, Object>> refreshConfig() { log.info("手动触发配置刷新"); try { Set<String> refreshedKeys = contextRefresher.refresh(); Map<String, Object> result = new HashMap<>(); result.put("success", true); result.put("refreshedKeys", refreshedKeys); result.put("timestamp", Instant.now()); return ResponseEntity.ok(result); } catch (Exception e) { log.error("配置刷新失败", e); return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR) .body(Map.of("success", false, "error", e.getMessage())); } } /** * 查看当前配置 */ @GetMapping("/current") public ResponseEntity<Map<String, Object>> getCurrentConfig() { Map<String, Object> config = new HashMap<>(); config.put("orderConfig", orderConfig); config.put("featureToggle", featureToggleConfig); config.put("timestamp", Instant.now()); return ResponseEntity.ok(config); } } private void initializeNewPaymentSystem() { // 初始化新支付系统 log.info("初始化新支付系统..."); // 实现初始化逻辑 } } // 配置健康检查 @Component public class ConfigHealthIndicator implements HealthIndicator { @Autowired private NacosConfigProperties nacosConfigProperties; @Override public Health health() { try { // 检查配置中心连接状态 ConfigService configService = nacosConfigProperties.configServiceInstance(); // 尝试获取配置 String content = configService.getConfig( nacosConfigProperties.getName(), nacosConfigProperties.getGroup(), 3000 ); if (content != null) { return Health.up() .withDetail("configServer", nacosConfigProperties.getServerAddr()) .withDetail("namespace", nacosConfigProperties.getNamespace()) .withDetail("dataId", nacosConfigProperties.getName()) .build(); } else { return Health.down() .withDetail("error", "无法从配置中心获取配置") .build(); } } catch (Exception e) { return Health.down(e) .withDetail("configServer", nacosConfigProperties.getServerAddr()) .build(); } } }
4. 高级配置管理特性
4.1 多环境配置管理
# 共享配置:common-config.yaml # 公共数据库配置 spring: datasource: type: com.zaxxer.hikari.HikariDataSource hikari: connection-test-query: SELECT 1 validation-timeout: 3000 # 公共Redis配置 redis: jedis: pool: max-wait: 1000ms connect-timeout: 2000ms # 公共日志配置 logging: level: root: INFO pattern: dateformat: yyyy-MM-dd HH:mm:ss.SSS --- # 开发环境配置:order-service-dev.yaml # 继承共享配置,覆盖开发环境特定配置 app: env: dev debug: true datasource: url: jdbc:mysql://dev-db:3306/order_db username: dev_user password: dev_password_123 redis: host: dev-redis port: 6379 feature: toggle: new-payment: true # 开发环境开启新功能测试 --- # 测试环境配置:order-service-test.yaml app: env: test debug: false datasource: url: jdbc:mysql://test-db:3306/order_db username: test_user password: test_password_123 redis: host: test-redis port: 6379 feature: toggle: new-payment: true --- # 生产环境配置:order-service-prod.yaml app: env: prod debug: false datasource: url: jdbc:mysql://prod-db:3306/order_db username: prod_user password: ${DB_PASSWORD:default_prod_password} redis: host: prod-redis port: 6379 password: ${REDIS_PASSWORD:default_redis_password} feature: toggle: new-payment: false # 生产环境默认关闭新功能
4.2 配置加密与安全
// 配置加密处理器 @Component public class ConfigEncryptionProcessor { private static final String ENCRYPTION_PREFIX = "encrypted:"; private final StringEncryptor encryptor; public ConfigEncryptionProcessor() { // 使用Jasypt进行配置加密 PooledPBEStringEncryptor pooledEncryptor = new PooledPBEStringEncryptor(); SimpleStringPBEConfig config = new SimpleStringPBEConfig(); config.setPassword(System.getenv("CONFIG_ENCRYPTION_PASSWORD")); config.setAlgorithm("PBEWithMD5AndDES"); config.setKeyObtentionIterations("1000"); config.setPoolSize("1"); config.setProviderName("SunJCE"); config.setSaltGeneratorClassName("org.jasypt.salt.RandomSaltGenerator"); config.setStringOutputType("base64"); pooledEncryptor.setConfig(config); this.encryptor = pooledEncryptor; } /** * 加密配置值 */ public String encrypt(String value) { if (value == null) { return null; } return ENCRYPTION_PREFIX + encryptor.encrypt(value); } /** * 解密配置值 */ public String decrypt(String encryptedValue) { if (encryptedValue == null || !encryptedValue.startsWith(ENCRYPTION_PREFIX)) { return encryptedValue; } String realEncryptedValue = encryptedValue.substring(ENCRYPTION_PREFIX.length()); try { return encryptor.decrypt(realEncryptedValue); } catch (Exception e) { throw new RuntimeException("配置解密失败: " + encryptedValue, e); } } /** * 配置值解密器(用于@Value注解) */ @Component public static class DecryptPropertyProcessor implements BeanFactoryPostProcessor { @Override public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException { ConfigurableEnvironment environment = beanFactory.getBean(ConfigurableEnvironment.class); ConfigEncryptionProcessor encryptionProcessor = new ConfigEncryptionProcessor(); // 遍历所有配置属性并解密 for (PropertySource<?> propertySource : environment.getPropertySources()) { if (propertySource instanceof EnumerablePropertySource) { EnumerablePropertySource<?> enumerable = (EnumerablePropertySource<?>) propertySource; for (String key : enumerable.getPropertyNames()) { Object value = propertySource.getProperty(key); if (value instanceof String) { String stringValue = (String) value; if (stringValue.startsWith("encrypted:")) { String decryptedValue = encryptionProcessor.decrypt(stringValue); // 创建新的PropertySource包含解密后的值 Map<String, Object> decryptedProperties = new HashMap<>(); decryptedProperties.put(key, decryptedValue); environment.getPropertySources().addAfter( propertySource.getName(), new MapPropertySource("decrypted-" + propertySource.getName(), decryptedProperties) ); } } } } } } } } // 敏感配置管理 @Configuration public class SensitiveConfigManager { @Value("${datasource.password}") private String dbPassword; @Value("${redis.password}") private String redisPassword; @Autowired private ConfigEncryptionProcessor encryptionProcessor; /** * 获取解密的数据库密码 */ public String getDecryptedDbPassword() { return encryptionProcessor.decrypt(dbPassword); } /** * 获取解密的Redis密码 */ public String getDecryptedRedisPassword() { return encryptionProcessor.decrypt(redisPassword); } /** * 检查配置安全性 */ @PostConstruct public void checkSecurity() { if (!dbPassword.startsWith("encrypted:")) { log.warn("数据库密码未加密,建议使用加密配置"); } if (!redisPassword.startsWith("encrypted:")) { log.warn("Redis密码未加密,建议使用加密配置"); } } }
4.3 配置版本管理与回滚
// 配置版本管理服务 @Service @Slf4j public class ConfigVersionService { @Autowired private NacosConfigProperties nacosConfigProperties; /** * 发布新配置版本 */ public boolean publishConfig(String dataId, String group, String content, String versionDesc) { try { ConfigService configService = nacosConfigProperties.configServiceInstance(); // 发布配置 boolean success = configService.publishConfig(dataId, group, content); if (success) { log.info("配置发布成功: {}/{}, 描述: {}", dataId, group, versionDesc); // 记录配置发布历史 recordConfigHistory(dataId, group, content, versionDesc); return true; } else { log.error("配置发布失败: {}/{}", dataId, group); return false; } } catch (Exception e) { log.error("配置发布异常: {}/{}", dataId, group, e); return false; } } /** * 回滚配置到指定版本 */ public boolean rollbackConfig(String dataId, String group, String version) { try { ConfigService configService = nacosConfigProperties.configServiceInstance(); // 获取历史版本配置 String historyConfig = getConfigHistory(dataId, group, version); if (historyConfig == null) { log.error("找不到指定版本的配置: {}/{}@{}", dataId, group, version); return false; } // 发布历史版本 boolean success = configService.publishConfig(dataId, group, historyConfig); if (success) { log.info("配置回滚成功: {}/{}@{}", dataId, group, version); return true; } else { log.error("配置回滚失败: {}/{}@{}", dataId, group, version); return false; } } catch (Exception e) { log.error("配置回滚异常: {}/{}@{}", dataId, group, version, e); return false; } } /** * 获取配置变更历史 */ public List<ConfigHistory> getConfigHistoryList(String dataId, String group) { try { ConfigService configService = nacosConfigProperties.configServiceInstance(); // 这里需要调用Nacos的配置历史API // 实际实现可能依赖于具体的配置中心 List<ConfigHistory> historyList = new ArrayList<>(); // 模拟实现 historyList.add(new ConfigHistory("v1", "初始配置", "admin", Instant.now().minusSeconds(3600))); historyList.add(new ConfigHistory("v2", "优化数据库配置", "admin", Instant.now().minusSeconds(1800))); historyList.add(new ConfigHistory("v3", "开启新功能", "admin", Instant.now().minusSeconds(600))); return historyList; } catch (Exception e) { log.error("获取配置历史异常: {}/{}", dataId, group, e); return Collections.emptyList(); } } private void recordConfigHistory(String dataId, String group, String content, String description) { // 记录配置发布历史到数据库或文件 log.debug("记录配置历史: {}/{}, 描述: {}", dataId, group, description); } private String getConfigHistory(String dataId, String group, String version) { // 从历史记录中获取指定版本的配置内容 // 这里需要实现具体的历史配置存储和检索逻辑 return "模拟历史配置内容"; } @Data @AllArgsConstructor public static class ConfigHistory { private String version; private String description; private String operator; private Instant updateTime; } }
5. 配置中心最佳实践
5.1 配置分类与命名规范
// 配置分类管理 public class ConfigClassification { /** * 配置分类规范 */ public enum ConfigCategory { // 基础配置 DATASOURCE("数据源配置"), REDIS("缓存配置"), MQ("消息队列配置"), // 业务配置 BUSINESS_RULE("业务规则配置"), FEATURE_TOGGLE("特性开关配置"), LIMIT_CONFIG("限流配置"), // 运维配置 MONITOR_CONFIG("监控配置"), LOG_CONFIG("日志配置"), ALERT_CONFIG("告警配置"); private final String description; ConfigCategory(String description) { this.description = description; } } /** * 配置命名规范 */ public class NamingConvention { // 格式: {应用名}-{环境}-{配置类型}.{扩展名} // 示例: public static final String ORDER_SERVICE_DEV_DB = "order-service-dev-db.yaml"; public static final String ORDER_SERVICE_PROD_BUSINESS = "order-service-prod-business.yaml"; public static final String COMMON_REDIS_CONFIG = "common-redis-config.yaml"; // 分组命名规范 public static final String GROUP_DATASOURCE = "DATASOURCE_GROUP"; public static final String GROUP_BUSINESS = "BUSINESS_GROUP"; public static final String GROUP_COMMON = "COMMON_GROUP"; } /** * 配置模板管理 */ @Component public class ConfigTemplateManager { private final Map<String, String> configTemplates = new HashMap<>(); public ConfigTemplateManager() { // 初始化配置模板 configTemplates.put("mysql-datasource", loadTemplate("templates/mysql-datasource.yaml")); configTemplates.put("redis-config", loadTemplate("templates/redis-config.yaml")); configTemplates.put("business-rules", loadTemplate("templates/business-rules.yaml")); } /** * 根据模板创建配置 */ public String createConfigFromTemplate(String templateName, Map<String, Object> variables) { String template = configTemplates.get(templateName); if (template == null) { throw new IllegalArgumentException("未知的配置模板: " + templateName); } // 简单的变量替换 String result = template; for (Map.Entry<String, Object> entry : variables.entrySet()) { result = result.replace("${" + entry.getKey() + "}", String.valueOf(entry.getValue())); } return result; } private String loadTemplate(String templatePath) { // 从资源文件加载模板 try { return new String(Files.readAllBytes( Paths.get(getClass().getClassLoader().getResource(templatePath).toURI()))); } catch (Exception e) { throw new RuntimeException("加载配置模板失败: " + templatePath, e); } } } }
5.2 配置变更管控流程
// 配置变更管控服务 @Service @Slf4j public class ConfigChangeGovernance { @Autowired private ConfigVersionService configVersionService; /** * 配置变更审批流程 */ public boolean submitConfigChange(ConfigChangeRequest request) { log.info("提交配置变更请求: {}", request); // 1. 配置语法检查 if (!validateConfigSyntax(request.getContent())) { throw new IllegalArgumentException("配置语法错误"); } // 2. 配置冲突检查 if (hasConfigConflict(request)) { throw new IllegalStateException("存在配置冲突"); } // 3. 风险评估 ConfigRiskAssessment risk = assessConfigRisk(request); if (risk.isHighRisk()) { // 高风险变更需要额外审批 if (!request.isForce()) { throw new HighRiskConfigChangeException("高风险配置变更需要强制审批"); } } // 4. 等待审批 if (!waitForApproval(request)) { log.warn("配置变更审批未通过: {}", request.getId()); return false; } // 5. 执行变更 return executeConfigChange(request); } /** * 灰度发布配置 */ public void grayReleaseConfig(ConfigChangeRequest request, List<String> grayInstances) { log.info("开始灰度发布配置: {} 到实例: {}", request.getId(), grayInstances); // 1. 创建灰度配置 String grayDataId = request.getDataId() + "-gray"; configVersionService.publishConfig(grayDataId, request.getGroup(), request.getContent(), "灰度发布"); // 2. 将灰度配置推送到指定实例 pushConfigToInstances(grayDataId, request.getGroup(), grayInstances); // 3. 监控灰度实例状态 monitorGrayInstances(grayInstances); // 4. 根据监控结果决定是否全量发布 if (isGrayReleaseSuccessful(grayInstances)) { log.info("灰度发布成功,开始全量发布"); configVersionService.publishConfig(request.getDataId(), request.getGroup(), request.getContent(), "全量发布"); // 清理灰度配置 cleanGrayConfig(grayDataId, request.getGroup()); } else { log.warn("灰度发布失败,回滚配置"); rollbackGrayConfig(grayDataId, request.getGroup(), grayInstances); } } /** * 配置变更回滚机制 */ public boolean rollbackConfigChange(String changeId) { log.info("回滚配置变更: {}", changeId); // 1. 获取变更记录 ConfigChangeRecord record = getChangeRecord(changeId); if (record == null) { throw new IllegalArgumentException("找不到变更记录: " + changeId); } // 2. 执行回滚 boolean success = configVersionService.rollbackConfig( record.getDataId(), record.getGroup(), record.getPreviousVersion()); if (success) { // 3. 记录回滚操作 recordRollbackOperation(changeId, record); log.info("配置变更回滚成功: {}", changeId); } else { log.error("配置变更回滚失败: {}", changeId); } return success; } private boolean validateConfigSyntax(String content) { // 验证YAML/JSON语法 try { Yaml yaml = new Yaml(); yaml.load(content); return true; } catch (Exception e) { log.error("配置语法验证失败", e); return false; } } private boolean hasConfigConflict(ConfigChangeRequest request) { // 检查配置冲突 // 实现具体的冲突检测逻辑 return false; } private ConfigRiskAssessment assessConfigRisk(ConfigChangeRequest request) { // 评估配置变更风险 return new ConfigRiskAssessment(); } private boolean waitForApproval(ConfigChangeRequest request) { // 等待审批流程 // 实现具体的审批逻辑 return true; } private boolean executeConfigChange(ConfigChangeRequest request) { return configVersionService.publishConfig( request.getDataId(), request.getGroup(), request.getContent(), request.getDescription()); } // 内部类定义 @Data public static class ConfigChangeRequest { private String id; private String dataId; private String group; private String content; private String description; private String applicant; private boolean force; private Instant submitTime; } @Data public static class ConfigRiskAssessment { private boolean highRisk; private String riskDescription; private List<String> riskItems; } @Data public static class ConfigChangeRecord { private String changeId; private String dataId; private String group; private String previousVersion; private String newVersion; private String operator; private Instant changeTime; } }
6. 生产环境运维指南
6.1 配置中心监控告警
// 配置中心监控服务 @Component @Slf4j public class ConfigCenterMonitor { @Autowired private NacosConfigProperties nacosConfigProperties; @Value("${spring.application.name}") private String applicationName; /** * 配置健康监控 */ @Scheduled(fixedRate = 60000) // 每分钟检查一次 public void monitorConfigHealth() { try { ConfigService configService = nacosConfigProperties.configServiceInstance(); // 检查配置可访问性 String content = configService.getConfig( applicationName, nacosConfigProperties.getGroup(), 5000 ); if (content == null) { log.warn("配置中心连接异常,无法获取配置"); sendAlert("配置中心连接异常", "无法获取应用配置"); } else { log.debug("配置中心连接正常,配置大小: {} bytes", content.length()); } } catch (Exception e) { log.error("配置中心健康检查失败", e); sendAlert("配置中心健康检查失败", e.getMessage()); } } /** * 配置变更监控 */ public void monitorConfigChanges() { // 监听配置变更事件 // 记录变更历史、发送变更通知等 } /** * 配置一致性检查 */ @Scheduled(cron = "0 0 2 * * ?") // 每天凌晨2点执行 public void checkConfigConsistency() { log.info("开始配置一致性检查"); try { // 检查所有环境的配置一致性 checkEnvironmentConsistency(); // 检查配置依赖关系 checkConfigDependencies(); // 检查配置引用完整性 checkConfigReferences(); } catch (Exception e) { log.error("配置一致性检查失败", e); sendAlert("配置一致性检查失败", e.getMessage()); } } private void checkEnvironmentConsistency() { // 检查不同环境间的配置一致性 // 比如开发、测试、生产环境的配置差异 } private void checkConfigDependencies() { // 检查配置间的依赖关系 // 比如数据库配置依赖连接池配置 } private void checkConfigReferences() { // 检查配置引用完整性 // 比如特性开关引用的功能是否存在 } private void sendAlert(String title, String message) { // 发送告警通知 // 可以集成邮件、钉钉、企业微信等 log.error("发送配置中心告警: {} - {}", title, message); } } // 配置审计服务 @Service @Slf4j public class ConfigAuditService { /** * 记录配置操作审计日志 */ public void auditConfigOperation(String operation, String dataId, String group, String operator, String details) { ConfigAuditLog auditLog = new ConfigAuditLog(); auditLog.setOperation(operation); auditLog.setDataId(dataId); auditLog.setGroup(group); auditLog.setOperator(operator); auditLog.setDetails(details); auditLog.setOperationTime(Instant.now()); auditLog.setClientIp(getClientIp()); // 保存审计日志 saveAuditLog(auditLog); log.info("配置操作审计: {} - {}/{} by {}", operation, dataId, group, operator); } /** * 查询配置审计日志 */ public List<ConfigAuditLog> queryAuditLogs(String dataId, String group, Instant startTime, Instant endTime) { // 查询指定条件下的审计日志 return findAuditLogs(dataId, group, startTime, endTime); } /** * 生成配置审计报告 */ public ConfigAuditReport generateAuditReport(Instant startTime, Instant endTime) { ConfigAuditReport report = new ConfigAuditReport(); report.setReportPeriod(startTime + " - " + endTime); report.setTotalOperations(countOperations(startTime, endTime)); report.setTopOperators(getTopOperators(startTime, endTime)); report.setRiskOperations(findRiskOperations(startTime, endTime)); return report; } private void saveAuditLog(ConfigAuditLog auditLog) { // 保存审计日志到数据库或文件 } private List<ConfigAuditLog> findAuditLogs(String dataId, String group, Instant startTime, Instant endTime) { // 查询审计日志 return Collections.emptyList(); } private String getClientIp() { // 获取客户端IP return "127.0.0.1"; } // 审计相关类定义 @Data public static class ConfigAuditLog { private String id; private String operation; private String dataId; private String group; private String operator; private String details; private Instant operationTime; private String clientIp; } @Data public static class ConfigAuditReport { private String reportPeriod; private Long totalOperations; private Map<String, Long> topOperators; private List<ConfigAuditLog> riskOperations; private Instant generateTime = Instant.now(); } }
总结
配置中心作为微服务架构的核心基础设施,为分布式系统提供了统一、动态、安全的配置管理能力。通过本文的实战指南,我们掌握了:
核心价值:
- 配置集中化:统一管理所有环境、所有应用的配置
- 动态更新:配置变更实时推送到应用,无需重启
- 环境隔离:支持多环境配置管理,避免配置冲突
- 版本控制:配置变更可追溯,支持快速回滚
关键技术点:
- 配置的读取、解析和动态刷新机制
- 多环境、多租户的配置隔离策略
- 配置加密和敏感信息保护
- 配置变更的审批和灰度发布流程
生产实践:
- 建立配置分类和命名规范
- 实施配置变更管控流程
- 配置监控和审计体系
- 容灾和降级方案
配置中心的正确使用能够显著提升微服务架构的灵活性和可维护性,是现代化分布式系统不可或缺的基础设施。
