简介: 近日,上海人工智能实验室(上海AI实验室)重磅开源发布了多模态大模型书生·万象 InternVL3.5,通过创新的级联式强化学习(Cascade RL)、动态视觉分辨率路由与解耦部署架构,实现推理能力、部署效率与通用能力的全面升级。

近日,上海人工智能实验室(上海AI实验室)重磅开源发布了多模态大模型书生·万象 InternVL3.5,通过创新的级联式强化学习(Cascade RL)、动态视觉分辨率路由与解耦部署架构,实现推理能力、部署效率与通用能力的全面升级。



本次,InternVL3.5开源了从1B到241B 各尺寸参数的全量级版本,均刷新了开源模型性能标杆,在通用多模态感知、多模态推理、文本能力等各种任务均达到领先水平,同时在图形用户界面(GUI)智能体、具身空间感知、矢量图像理解与生成等多种特色任务上取得了显著的性能提升。



技术报告:

https://www.modelscope.cn/papers/2508.18265



代码开源/模型使用方法:

https://github.com/OpenGVLab/InternVL



模型合集:

https://www.modelscope.cn/collections/InternVL35-Full-3871e58bf21349



在线体验:

https://chat.intern-ai.org.cn/

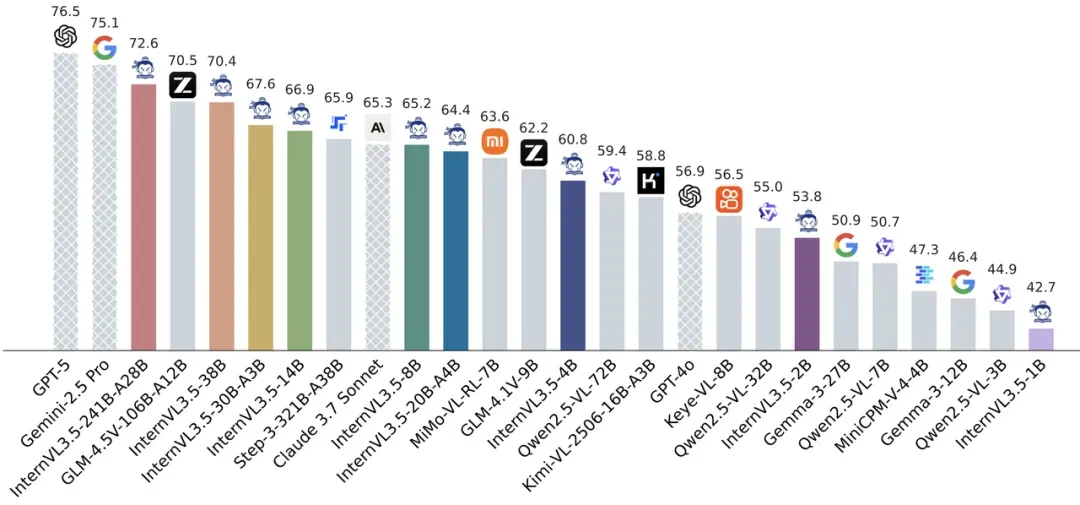

image.gif 编辑

01.模型亮点

  • 提供10亿至2410亿参数共九种尺寸模型,覆盖不同资源需求场景,包含稠密模型和专家混合模型(MoE),首个支持GPT-OSS语言模型基座的开源多模态大模型;
  • 旗舰模型InternVL3.5-241B-A28B在多学科推理基准MMMU中获得开源模型最高分77.7分,多模态通用感知基准MMStar和OCRBench分别取得77.9分和90.7分,超越GPT-5(75.7分/80.7分),文本推理基准AIME25和MMLU-Pro分别达到75.6和81.3分,全面领先现有开源多模态大模型;
  • 依托级联式强化学习框架(Cascade RL),全系列模型推理性能相比上一代平均提升16.0分。其中InternVL3.5-241B-A28B综合推理性能达到66.9分,超越上一代模型的54.6分以及Claude-3.7-Sonnet的53.9分,在数学推理、逻辑推理等复杂任务中表现突出;
  • 借助创新的视觉分辨率路由(ViR)与解耦部署框架(DvD),38B模型在896分辨率下的响应速度大幅提升,单次推理延迟由369 ms缩短至91 ms(提升约4倍);与此同时,轻量化的InternVL3.5-Flash在将视觉序列长度减少 50% 的情况下,仍能保持接近 100% 的性能水平;
  • 加强GUI智能体、具身智能体、SVG图形理解与生成等智能体核心能力,在ScreenSpot GUI定位(92.9分)、VSI-Bench空间推理(69.5分)、SGP-Bench矢量图理解(70.6分)等任务中超越主流开源模型。



image.gif 编辑

模型能力展示详见官方详细案例

开源多模态大模型新突破,书生·万象3.5发布,通用能力、推理能力与部署效率全面升级

02.模型推理

官方提供了使用 transformers 运行 InternVL3.5-8B 的示例代码。模型最多可以部署在单张 A100 GPU 上,而 38B 模型需要2张 A100 GPU,235B 模型则需要8张 A100 GPU

请使用 transformers>=4.52.1 以确保模型正常工作。对于20B 版本的模型,需要 transformers>=4.55.0。

import math
import numpy as np
import torch
import torchvision.transforms as T
from decord import VideoReader, cpu
from PIL import Image
from torchvision.transforms.functional import InterpolationMode
from modelscope import AutoModel, AutoTokenizer
IMAGENET_MEAN = (0.485, 0.456, 0.406)
IMAGENET_STD = (0.229, 0.224, 0.225)
def build_transform(input_size):
    MEAN, STD = IMAGENET_MEAN, IMAGENET_STD
    transform = T.Compose([
        T.Lambda(lambda img: img.convert('RGB') if img.mode != 'RGB' else img),
        T.Resize((input_size, input_size), interpolation=InterpolationMode.BICUBIC),
        T.ToTensor(),
        T.Normalize(mean=MEAN, std=STD)
    ])
    return transform
def find_closest_aspect_ratio(aspect_ratio, target_ratios, width, height, image_size):
    best_ratio_diff = float('inf')
    best_ratio = (1, 1)
    area = width * height
    for ratio in target_ratios:
        target_aspect_ratio = ratio[0] / ratio[1]
        ratio_diff = abs(aspect_ratio - target_aspect_ratio)
        if ratio_diff < best_ratio_diff:
            best_ratio_diff = ratio_diff
            best_ratio = ratio
        elif ratio_diff == best_ratio_diff:
            if area > 0.5 * image_size * image_size * ratio[0] * ratio[1]:
                best_ratio = ratio
    return best_ratio
def dynamic_preprocess(image, min_num=1, max_num=12, image_size=448, use_thumbnail=False):
    orig_width, orig_height = image.size
    aspect_ratio = orig_width / orig_height
    # calculate the existing image aspect ratio
    target_ratios = set(
        (i, j) for n in range(min_num, max_num + 1) for i in range(1, n + 1) for j in range(1, n + 1) if
        i * j <= max_num and i * j >= min_num)
    target_ratios = sorted(target_ratios, key=lambda x: x[0] * x[1])
    # find the closest aspect ratio to the target
    target_aspect_ratio = find_closest_aspect_ratio(
        aspect_ratio, target_ratios, orig_width, orig_height, image_size)
    # calculate the target width and height
    target_width = image_size * target_aspect_ratio[0]
    target_height = image_size * target_aspect_ratio[1]
    blocks = target_aspect_ratio[0] * target_aspect_ratio[1]
    # resize the image
    resized_img = image.resize((target_width, target_height))
    processed_images = []
    for i in range(blocks):
        box = (
            (i % (target_width // image_size)) * image_size,
            (i // (target_width // image_size)) * image_size,
            ((i % (target_width // image_size)) + 1) * image_size,
            ((i // (target_width // image_size)) + 1) * image_size
        )
        # split the image
        split_img = resized_img.crop(box)
        processed_images.append(split_img)
    assert len(processed_images) == blocks
    if use_thumbnail and len(processed_images) != 1:
        thumbnail_img = image.resize((image_size, image_size))
        processed_images.append(thumbnail_img)
    return processed_images
def load_image(image_file, input_size=448, max_num=12):
    image = Image.open(image_file).convert('RGB')
    transform = build_transform(input_size=input_size)
    images = dynamic_preprocess(image, image_size=input_size, use_thumbnail=True, max_num=max_num)
    pixel_values = [transform(image) for image in images]
    pixel_values = torch.stack(pixel_values)
    return pixel_values
path = 'OpenGVLab/InternVL3_5-8B'
model = AutoModel.from_pretrained(
    path,
    torch_dtype=torch.bfloat16,
    load_in_8bit=False,
    low_cpu_mem_usage=True,
    use_flash_attn=True,
    trust_remote_code=True,
    device_map="auto").eval()
tokenizer = AutoTokenizer.from_pretrained(path, trust_remote_code=True, use_fast=False)
# set the max number of tiles in `max_num`
pixel_values = load_image('./examples/image1.jpg', max_num=12).to(torch.bfloat16).cuda()
generation_config = dict(max_new_tokens=1024, do_sample=True)
# pure-text conversation (纯文本对话)
question = 'Hello, who are you?'
response, history = model.chat(tokenizer, None, question, generation_config, history=None, return_history=True)
print(f'User: {question}\nAssistant: {response}')
question = 'Can you tell me a story?'
response, history = model.chat(tokenizer, None, question, generation_config, history=history, return_history=True)
print(f'User: {question}\nAssistant: {response}')
# single-image single-round conversation (单图单轮对话)
question = '<image>\nPlease describe the image shortly.'
response = model.chat(tokenizer, pixel_values, question, generation_config)
print(f'User: {question}\nAssistant: {response}')
# single-image multi-round conversation (单图多轮对话)
question = '<image>\nPlease describe the image in detail.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config, history=None, return_history=True)
print(f'User: {question}\nAssistant: {response}')
question = 'Please write a poem according to the image.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config, history=history, return_history=True)
print(f'User: {question}\nAssistant: {response}')
# multi-image multi-round conversation, combined images (多图多轮对话,拼接图像)
pixel_values1 = load_image('./examples/image1.jpg', max_num=12).to(torch.bfloat16).cuda()
pixel_values2 = load_image('./examples/image2.jpg', max_num=12).to(torch.bfloat16).cuda()
pixel_values = torch.cat((pixel_values1, pixel_values2), dim=0)
question = '<image>\nDescribe the two images in detail.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config,
                               history=None, return_history=True)
print(f'User: {question}\nAssistant: {response}')
question = 'What are the similarities and differences between these two images.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config,
                               history=history, return_history=True)
print(f'User: {question}\nAssistant: {response}')
# multi-image multi-round conversation, separate images (多图多轮对话,独立图像)
pixel_values1 = load_image('./examples/image1.jpg', max_num=12).to(torch.bfloat16).cuda()
pixel_values2 = load_image('./examples/image2.jpg', max_num=12).to(torch.bfloat16).cuda()
pixel_values = torch.cat((pixel_values1, pixel_values2), dim=0)
num_patches_list = [pixel_values1.size(0), pixel_values2.size(0)]
question = 'Image-1: <image>\nImage-2: <image>\nDescribe the two images in detail.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config,
                               num_patches_list=num_patches_list,
                               history=None, return_history=True)
print(f'User: {question}\nAssistant: {response}')
question = 'What are the similarities and differences between these two images.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config,
                               num_patches_list=num_patches_list,
                               history=history, return_history=True)
print(f'User: {question}\nAssistant: {response}')
# batch inference, single image per sample (单图批处理)
pixel_values1 = load_image('./examples/image1.jpg', max_num=12).to(torch.bfloat16).cuda()
pixel_values2 = load_image('./examples/image2.jpg', max_num=12).to(torch.bfloat16).cuda()
num_patches_list = [pixel_values1.size(0), pixel_values2.size(0)]
pixel_values = torch.cat((pixel_values1, pixel_values2), dim=0)
questions = ['<image>\nDescribe the image in detail.'] * len(num_patches_list)
responses = model.batch_chat(tokenizer, pixel_values,
                             num_patches_list=num_patches_list,
                             questions=questions,
                             generation_config=generation_config)
for question, response in zip(questions, responses):
    print(f'User: {question}\nAssistant: {response}')
# video multi-round conversation (视频多轮对话)
def get_index(bound, fps, max_frame, first_idx=0, num_segments=32):
    if bound:
        start, end = bound[0], bound[1]
    else:
        start, end = -100000, 100000
    start_idx = max(first_idx, round(start * fps))
    end_idx = min(round(end * fps), max_frame)
    seg_size = float(end_idx - start_idx) / num_segments
    frame_indices = np.array([
        int(start_idx + (seg_size / 2) + np.round(seg_size * idx))
        for idx in range(num_segments)
    ])
    return frame_indices
def load_video(video_path, bound=None, input_size=448, max_num=1, num_segments=32):
    vr = VideoReader(video_path, ctx=cpu(0), num_threads=1)
    max_frame = len(vr) - 1
    fps = float(vr.get_avg_fps())
    pixel_values_list, num_patches_list = [], []
    transform = build_transform(input_size=input_size)
    frame_indices = get_index(bound, fps, max_frame, first_idx=0, num_segments=num_segments)
    for frame_index in frame_indices:
        img = Image.fromarray(vr[frame_index].asnumpy()).convert('RGB')
        img = dynamic_preprocess(img, image_size=input_size, use_thumbnail=True, max_num=max_num)
        pixel_values = [transform(tile) for tile in img]
        pixel_values = torch.stack(pixel_values)
        num_patches_list.append(pixel_values.shape[0])
        pixel_values_list.append(pixel_values)
    pixel_values = torch.cat(pixel_values_list)
    return pixel_values, num_patches_list
video_path = './examples/red-panda.mp4'
pixel_values, num_patches_list = load_video(video_path, num_segments=8, max_num=1)
pixel_values = pixel_values.to(torch.bfloat16).cuda()
video_prefix = ''.join([f'Frame{i+1}: <image>\n' for i in range(len(num_patches_list))])
question = video_prefix + 'What is the red panda doing?'
# Frame1: <image>\nFrame2: <image>\n...\nFrame8: <image>\n{question}
response, history = model.chat(tokenizer, pixel_values, question, generation_config,
                               num_patches_list=num_patches_list, history=None, return_history=True)
print(f'User: {question}\nAssistant: {response}')
question = 'Describe this video in detail.'
response, history = model.chat(tokenizer, pixel_values, question, generation_config,
                               num_patches_list=num_patches_list, history=history, return_history=True)
print(f'User: {question}\nAssistant: {response}')


03.模型微调

ms-swift已经支持对internvl-3.5系列模型进行训练。ms-swift是魔搭社区官方提供的大模型与多模态大模型训练部署框架。



ms-swift开源地址:

https://github.com/modelscope/ms-swift



下面以internvl-3.5-8B模型为例,展示可运行的微调demo,并给出自定义数据集的格式。

在开始微调之前,请确保您的环境已准备妥当。

# pip install git+https://github.com/modelscope/ms-swift.git
git clone https://github.com/modelscope/ms-swift.git
cd ms-swift
pip install -e .
pip install git+https://github.com/huggingface/transformers.git


如果您需要自定义数据集微调模型,你可以将数据准备成以下格式。

{"messages": [{"role": "user", "content": "<image><image>What is the difference between the two images?"}, {"role": "assistant", "content": "The first one is a kitten, and the second one is a puppy."}], "images": ["/xxx/x.jpg", "/xxx/x.png"]}


训练脚本:

# 33G
CUDA_VISIBLE_DEVICES=0 \
swift sft \
    --model OpenGVLab/InternVL3_5-8B \
    --dataset 'AI-ModelScope/LaTeX_OCR:human_handwrite#20000' \
    --split_dataset_ratio 0.01 \
    --train_type lora \
    --torch_dtype bfloat16 \
    --num_train_epochs 1 \
    --per_device_train_batch_size 1 \
    --per_device_eval_batch_size 1 \
    --learning_rate 1e-4 \
    --lora_rank 8 \
    --lora_alpha 32 \
    --target_modules all-linear \
    --freeze_vit true \
    --gradient_accumulation_steps 16 \
    --eval_steps 50 \
    --save_steps 50 \
    --save_total_limit 2 \
    --logging_steps 5 \
    --max_length 4096 \
    --output_dir output \
    --warmup_ratio 0.05 \
    --dataloader_num_workers 4

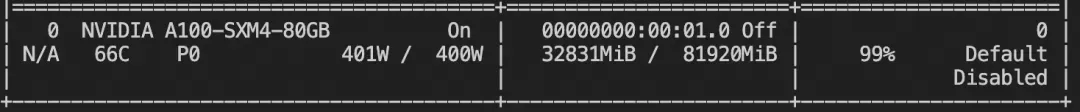

显存占用



image.gif 编辑

训练完成后,使用以下命令进行推理:

CUDA_VISIBLE_DEVICES=0 \
swift infer \
    --adapters output/vx-xxx/checkpoint-xxx \
    --stream true \
    --load_data_args true \
    --max_new_tokens 2048


推送模型到ModelScope:

swift export \
    --adapters output/vx-xxx/checkpoint-xxx \
    --push_to_hub true \
    --hub_model_id '<your-model-id>' \
    --hub_token '<your-sdk-token>'


点击阅读原文,跳转模型合集~

https://www.modelscope.cn/collections/InternVL35-Full-3871e58bf21349

目录
相关文章
|
17天前
|
人工智能 JavaScript 前端开发
实战使用 Qwen3-coder 低代码开发 HTML 个人网站
阿里巴巴开源的Qwen3-coder模型,凭借强大性能和低代码能力,助力用户快速搭建个人网站。本文详解环境配置、提示词设计与部署流程,适合编程新手快速上手,掌握AI辅助开发技能。
1140 8

热门文章

最新文章
