VMware ESXi 8.0U3g macOS Unlocker & OEM BIOS 2.7 Dell 戴尔 定制版
VMware ESXi 8.0U3g macOS Unlocker & OEM BIOS 2.7 标准版和厂商定制版
ESXi 8.0U3 标准版,Dell (戴尔)、HPE (慧与)、Lenovo (联想)、Inspur/IEIT SYSTEMS (浪潮)、H3C (新华三)、Cisco (思科)、Fujitsu (富士通)、Hitachi (日立)、NEC (日电)、Huawei (华为)、xFusion (超聚变) OEM 定制版
请访问原文链接:https://sysin.org/blog/vmware-esxi-8-u3-oem/ 查看最新版。原创作品,转载请保留出处。
作者主页:sysin.org
VMware vSphere 是 VMware 的虚拟化平台,可将数据中心转换为包括 CPU、存储和网络资源的聚合计算基础架构。vSphere 将这些基础架构作为一个统一的运行环境进行管理,并为您提供工具来管理加入该环境的数据中心。
vSphere 的两个核心组件是 ESXi 和 vCenter Server。ESXi 是用于创建并运行虚拟机和虚拟设备的虚拟化平台。vCenter Server 是一项服务,用于管理网络中连接的多个主机,并将主机资源池化。
通用特性概览
该版本在官方原版基础上新增以下特性:
- macOS Unlocker:来自 GitHub 的 Unlocker 4,现已支持 macOS Sequoia
- OEM BIOS 2.7:使用社区最流行的 OEM BIOS/EFI64,现已支持 Windows Server 2025
- LegacyCPU support,允许在不受官方支持的旧款 CPU 上安装 ESXi 8.0
- ESX-OSData 卷大小修改为 8GB,解决自 ESXi 7.0 起系统占用磁盘空间过大的问题(超过 142GB)
- 有限支持采用混合架构的第 12 代及以上 Intel 处理器,可实现正常引导和运行
- 同时提供 Dell、HPE 和 Lenovo 等厂商定制版镜像 (sysin),包含了必要的驱动和 OEM 软件
详情请访问原文链接:https://sysin.org/blog/vmware-esxi-8-u3-oem/ 查看。

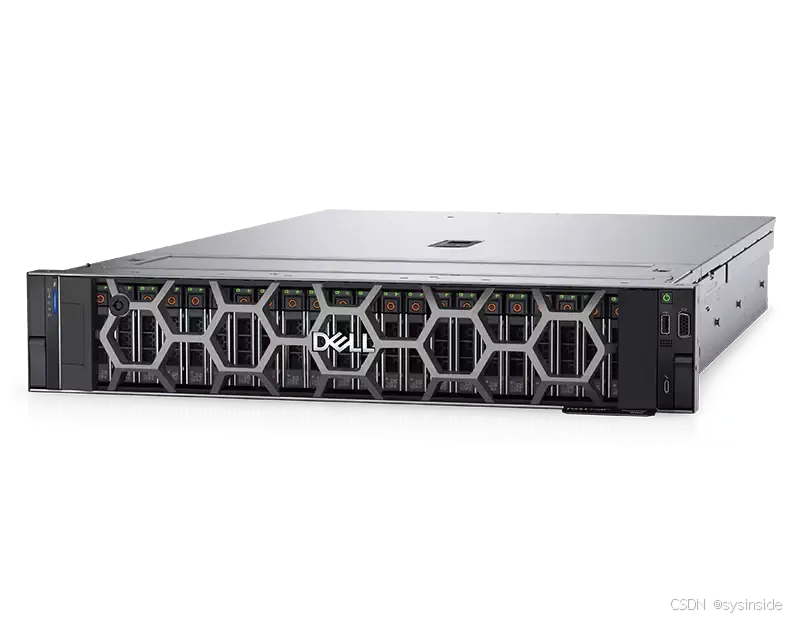

Dell (戴尔) 服务器兼容性
以下如未列出,欢迎提供机型和配置(CPU、RAID Controller、网卡)来询。
产品线 | 代表机型 | 官方兼容版本 | 定制版兼容性 | CPU | RAID controllers | NIC |
---|---|---|---|---|---|---|
Dell PowerEdge 11G Server | R210, R310, R410, R415, R510, R515, R710, R715, R810, R815, R910 T310, T610, T710 |
6.0-6.0U3 | 有限支持 8.0,推荐 6.7U3 | Intel Xeon 55xx 56xx 65xx 75xx series Intel Xeon E7-28xx E7-48xx E7-88xx series (sysin) AMD Opteron 43xx,42xx,41xx series AMD Opteron 63xx,62xx,61xx series |
PERC H200, PERC H700, PERC 6/i 皆不受支持 此系列机型不推荐,如有需求可来询。 |
部分可支持,此系列机型不推荐,如有需求可来询。 |
Dell PowerEdge 12G Server | R220, R320, R420, R420xr, R520, R620, R720, R720xd, R820, R920 T20, T320, T420, T620 |
6.0-6.0U3, 6.5-6.5U3 | 8.0 系列 | • Intel® Xeon® processor E5-2400 product family • Intel® Xeon® processor E5-2600 product family • Intel® Xeon® processor E5-4600 product family (sysin) • Intel® Xeon® processor E7-4800 v2 and E7-8800 v2 product families (up to 4) |
支持的 Internal controllers (sysin): PERC H710 PERC H710P 不支持 PERC H310 (6.5 U3) 不支持 PERC H810 (7.0 U3) |
Broadcom® 5720 quad-port 1GbE Base-T Broadcom 57840S quad-port 10GbE SFP+ Rack NDC Intel I350 quad-port 1GbE Base-T (sysin) Intel X520 dual-port 10Gb DA/SFP+ Server Adapter Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) 部分选配 NIC 可能不支持,具体可查询 |
Dell PowerEdge 13G Server | R230, R330, R430, R530, R530xd, R630, R730, R730xd, R830, R930 T30, T130, T330, T430, T630 |
6.x All, 7.0-7.0U3 | 8.0 系列 | • Intel Xeon processor E3-1200 v5 • Intel® Xeon® processor E5-2600 v3 v4 product family • Intel® Xeon® processor E5-4600 v3 v4 product family • Intel Xeon E7-8800 v3 v4 and E7-4800 v3 v4 processors |
Internal controllers (sysin): PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 不支持 PERC S130 (SW RAID) |
Broadcom® 5720 quad-port 1GbE Base-T Broadcom 57840S quad-port 10GbE SFP+ Rack NDC Intel I350 quad-port 1GbE Base-T (sysin) Intel X520 dual-port 10Gb DA/SFP+ Server Adapter Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) 部分选配 NIC 可能不支持,具体可查询 |
Dell PowerEdge 14G Server | R240, R340, R440, R540, R640, R6415, R740, R740xd, R740xd2, R7415, R7425, R840, R940, R940xa T40, T140, T340, T440, T640 |
6.7-6.7U3, 7.0-7.0U3, 8.0-8.0U3 | 同官方支持 | • Intel Xeon Scalable processors • 2nd Generation Intel® Xeon® Scalable processors (sysin) • AMD™ EPYC processors |
同官方支持 | 同官方支持 |
Dell PowerEdge 15G Server | R250, R350, R450, R550, R650, R650xs, R6515, R6525, R750, R750xa, R750xs, R7515, R7525 T150, T350, T550 |
6.7U3, 7.0U2-7.0U3, 8.0-8.0U3, 9.0 | 同官方支持 | • 3rd Generation Intel Xeon Scalable processors (sysin) • 2nd or 3rd Generation AMD EPYCTM Processor |
同官方支持 | 同官方支持 |
Dell PowerEdge 16G Server | R360, R660, R660xs, R6615, R6625, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960 T360, T560 |
7.0U3, 8.0-8.0U3, 9.0 | 同官方支持 | • 4th or 5th Generation Intel Xeon Scalable processors (sysin) • AMD EPYC 4th Generation 9004 Series |
同官方支持 | 同官方支持 |
Dell PowerEdge 17G Server | R370, R470, R570, R670, R6715, R6725, R770, R7715, R7725, R870, R970 T370, T570 |
8.0U3, 9.0 | 同官方支持 | • Intel Xeon 6 processors (sysin) • AMD EPYC 5th Generation 9005 Series |
同官方支持 | 同官方支持 |
💡 提示:
- ① 以上机型、CPU 等参数未全部列出,详尽信息可在官网查询。
- ② ESXi 不支持 SW RAID(仅 Intel VROC 等少数产品支持)。
- ③ 以上仅列出 Rack 和 Tower 机型,其他 C、F 和 M 机型理论上兼容性同。
✅ Dell ConnectX-3 网卡特殊定制版
ConnectX-3 系列网卡在 ESXi 8.0 中被弃用,最高兼容 7.0 系列。
此版本用于重新启用这些网卡的支持,仅限 Dell 原厂配件。
此项需要额外定制。
NOTE - None of the following devices will be recognized in 8.0 by default.
Model | VID | DID | SVID | SSID |
---|---|---|---|---|
Dell Mellanox ConnectX-3 Dual Port 40 GbE QSFP+ Network Adapter | 15b3 | 1003 | 15b3 | 0079 |
Dell Mellanox ConnectX-3 Dual Port 10 GbE KR Blade Mezzanine Card | 15b3 | 1003 | 15b3 | 0078 |
Dell Mellanox ConnectX-3 Dual Port 10 GbE DA/SFP+ Network Adapter | 15b3 | 1003 | 15b3 | 0080 |
Dell Mellanox ConnectX-3 Pro Dual Port 10 GbE KR Blade Mezzanine Card | 15B3 | 1007 | 15B3 | 0078 |
Dell Mellanox ConnectX-3 Pro Dual Port 10 GbE DA/SFP+ Network Adapter | 15B3 | 1007 | 15B3 | 0080 |
Dell Mellanox ConnectX-3 Pro Dual Port 40 GbE QSFP+ Network Adapter | 15B3 | 1007 | 15B3 | 0079 |
常见问题解答 (FAQ)
请访问原文链接:https://sysin.org/blog/vmware-esxi-8-u3-oem/ 查看。
下载地址
VMware ESXi 8.0U3g macOS Unlocker & OEM BIOS 标准版和厂商定制版:
发布日期:2025-07-29
若干已知问题修复,详见官方文档。
Standard (标准版):https://sysin.org/blog/vmware-esxi-8-u3-oem/
Dell (戴尔) PowerEdge 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
HPE (慧与) ProLiant 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
H3C (新华三) 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
Huawei (华为) FusionServer 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
Inspur (浪潮) 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
Lenovo (联想) 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
xFusion (超聚变) FusionServer 定制版:https://sysin.org/blog/vmware-esxi-8-u3-oem/
也可以选择原厂风格定制版(包括 depot.zip 并支持 vLCM),仅包含驱动程序和 OEM 组件,无上述 1-5 通用特性
Dell 和 HPE 都提供 ConnectX-3 网卡特殊定制版,仅限原厂配件,见文中列表
其他定制版:
- Cisco (思科) UCS 定制版
- Fujitsu (富士通) 定制版
- Hitachi (日立) 定制版
- HPE (慧与) SuperdomeFlex 定制版
- HPE (慧与) Synergy 定制版
- NEC (日电) 定制版
集成驱动版本,请访问:
官方原版,请访问:
上一个版本,请访问:
