做日报/周报模块别只图方便——要把数据结构化、把提醒做成可配置的可靠流程、把模板做成驱动引擎,并把“催报/审批/统计/归档”作为闭环来设计。下面给出从需求、架构、数据模型、业务流、开发技巧到运维部署的全流程落地方案,最后把所有关键代码集中成一个单独板块,方便你直接拿去用或二次开发。
本文你将了解
- 为什么要把日报/周报做进人事OA系统?
- 日报/周报模块到底要解决什么问题?核心价值和场景
- 需求拆解(功能清单与非功能需求)
- 系统架构(文字+简要架构图)
- 关键数据模型(重要表说明,包括日报提醒表)
- 业务流程与流程图(提交、催报、审批、归档、统计)
- 开发落地建议与实战技巧(不写代码,讲实操)
- 实现效果说明
- 部署、监控与运维要点
- 代码汇总
- FAQ
一、为什么要把日报/周报做进OA系统?
很多公司靠微信群+Excel在做日报,但问题一抓一大把:写得不规范、数据难统计、领导催得没人舒服、绩效与任务无法联动。把日报/周报纳入 OA 系统,有四个明显好处:
- 可结构化采集(方便统计与搜索)
- 自动化提醒与催报(减少人工跟进)
- 审批与评价闭环(提高执行力)
- 与任务/绩效系统打通(减少重复劳动)
一句话:把信息变成“可以被系统计算”的资产,而不是分散在聊天记录里。
二、日报/周报模块到底要解决什么问题?场景举例
典型场景:
- 研发/售前/客服等需要日报以便同步工作进展;
- 部门经理需要周报做周会材料;
- HR/行政需要统计考勤、出差影响到工作量的说明;
- 项目经理希望日报能自动关联任务并更新任务状态。
核心需求是:易填、能促、可审、好查、能统计。
三、需求拆解
1.必须实现的功能
- 多种报表类型:日报、周报、月报(按周期)
- 模板管理:部门/角色可自定义模板(字段、必填项、选项等)
- 自动提醒:在指定时间发站内信、邮件、企业微信/钉钉或短信
- 草稿与自动保存:防止写着写着丢数据
- 提交与审批:单层或多层审批(可配置)
- 审计与日志:记录谁在什么时间做了什么操作
- 导出/归档:Excel/PDF导出,历史归档与权限控制
- 搜索与统计:按人/部门/时间/字段统计与图表展示
2.推荐但非必须
- 模板版本管理与回滚
- 报表与任务/KPI联动(自动把报告中的完成项映射到任务)
- 智能预填(上周内容自动带入)
- 移动端优化或企业号内嵌(很多人手机上填写)
- 全文搜索(ElasticSearch)
3.非功能需求
- 性能:高峰期(早上提交高峰)要稳;草稿频繁保存走 Redis 缓存
- 安全:RBAC 权限、审计、传输层安全
- 可扩展性:模板驱动、模块化服务
四、系统架构(简要文字说明 + ASCII 架构图)
推荐微服务/模块化设计,重要模块:Report Service、Template Service、Auth Service、Notification Service、Scheduler、Search、DB、Object Storage、MQ、Cache。
ASCII 架构图(简化):
rust
[前端 Web/Mobile] <--> [API-Gateway / LB] <--> [Report Service]
|-> [Template Service]
|-> [Auth Service (JWT/RBAC)]
|-> [Notification Service]
|-> [Scheduler Service]
|-> [Search Service (ES)]
|-> [Audit Service]
|
-> [Postgres] (主数据)
-> [Redis] (草稿/锁/缓存)
-> [MinIO/S3] (附件)
-> [RabbitMQ] (异步)
说明:
- 所有外部通知(邮件/短信/企微)通过 Notification Service,消息异步走 MQ。
- Scheduler 负责定时生成草稿、发送催报任务、统计触发等;部署时用分布式锁避免重复触发。
- Search Service(可选)用于全文检索与聚合统计。
五、关键数据模型(重点表与字段含义)
关键表:users、departments、report_templates、reports、report_reminders(日报提醒表) 、report_audit、report_attachments、report_comments。

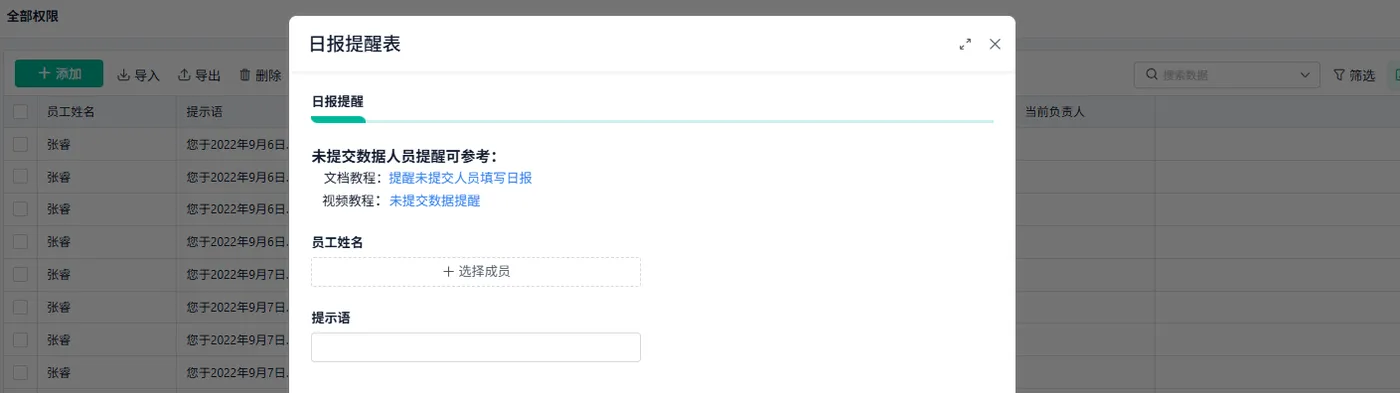

日报提醒表 (report_reminders) 说明:用于记录每一次发送提醒的尝试、渠道、结果与次数,便于统计催报效果、避免重复轰炸和生成未提交名单。 字段示例:id、user_id、department_id、reminder_date(针对哪天/哪周)、type(daily/weekly)、sent_at、send_channel、send_status(pending/sent/failed)、attempts、last_result(第三方返回内容)、created_at、updated_at。
模板表 (report_templates):保存模板名、所属部门、类型(日报/周报)、schema(JSON 描述字段列表与校验规则)、版本号、创建人、更新时间。
报表表 (reports):保存 template_id、user_id、department_id、type、title、content(富文本)和 structured(JSONB,结构化字段),以及状态(draft/submitted/approved/rejected)、审计字段等。
设计要点:
- 把模板字段定义成 JSON Schema,这样前端可以动态渲染,后端也能按 Schema 做校验。
- 把可统计字段放进 structured(JSONB),便于聚合查询;富文本放 content 保留表达性。
- 提醒行为都写到 report_reminders,方便回溯与统计。
六、业务流程与流程图
流程步骤(核心)
- 管理员在模板管理创建或更新模板(版本化)
- 系统在周期到达前(或当天)通过 Scheduler 生成草稿或在前端提供“快速创建”入口
- 到达提醒时间,Scheduler 在 report_reminders 写记录,并通过 MQ 推送通知任务到 Notification Service
- Notification Service 根据用户偏好选择渠道(站内/邮件/企微/短信)发送提醒,并更新 report_reminders 结果
- 用户打开草稿、填写、自动保存草稿(存 Redis 并周期持久化),最后点击提交 -> reports.status 改为 submitted,并写 report_audit
- 若设置审批,报表进入审批人待办,审批人 approve/reject 并写审计;审批通过触发统计/看板更新与归档
- 系统按周/月生成统计、导出、归档历史数据
ASCII 流程图(简化)
rust
[模板创建] -> [周期触发草稿/提醒] -> [通知用户] -> [用户填写/自动保存] -> [用户提交] -> (需要审批?) -> yes -> [审批人审批] -> [统计/归档] -> no -> [统计/归档]
重要节点:
- 催报策略需分层(站内 -> 邮件 -> 短信),并记录尝试次数。
- 自动保存避免频繁写 DB(Redis + 定时持久化)。
- 幂等性:以 (user_id + date + type) 做幂等 key,避免重复提交或重复触发统计。
七、开发落地建议与实战技巧(干货)
下面列出许多实战中能直接落地的技巧,能显著降低后期维护成本并提升用户体验。
1.模板驱动优先
把模板做成 JSON Schema,字段里包含 key、type、label、required、options、order 等,不同部门直接配置模板,前端根据 schema 动态渲染表单,后端统一做 schema 校验。
2.草稿与自动保存
自动保存走 Redis(key: report:draft:{userId}:{date}:{type}),前端每 20-30 秒保存一次,用户离开页面触发持久化到 DB。避免高并发写 DB。
3.催报策略可配置
默认策略:早上 9:00 站内 + APP 推送;11:00 邮件;15:30 短信(关键岗位)。每个渠道的尝试次数与时间间隔都可配置。所有发送结果写进 report_reminders。
4.队列异步处理
所有外部调用(邮件、企业微信、短信)通过 MQ 异步执行,避免 API 同步阻塞。失败重试策略在消费者实现。
5.审计与权限
每次提交/审批/修改都写 report_audit,并记录 IP、时间、actor、action、remark。权限采用 RBAC(部门管理者、报告对象、系统管理员等),数据按部门隔离,字段敏感数据可加密存储。
6.并发峰值保护
早上提交高峰可以采用限流 + 后端批量写入机制,或者前端做节流(例如防止重复点提交按钮)。Scheduler 应用分布式锁避免多实例重复触发。
7.导出与统计
导出时把结构化字段展开为列(例如将 structured 的 key 动态映射为列),便于 HR/管理层在 Excel 里做筛选。统计时把关键字段同步到分析表(例如 report_metrics),避免对主表做复杂聚合。
8.移动端体验
大多数人会在手机填写,注意表单简洁、字段少、支持拍照上传附件、支持企业号内嵌(微信/钉钉)。
9.与任务/绩效联动
通过事件总线(MQ)把 report.submitted、report.approved 等事件发送出去,任务服务和绩效服务可以消费这些事件来更新状态或累积分数,实现低耦合集成。
八、实现效果(用户与管理视角)
1.员工视角

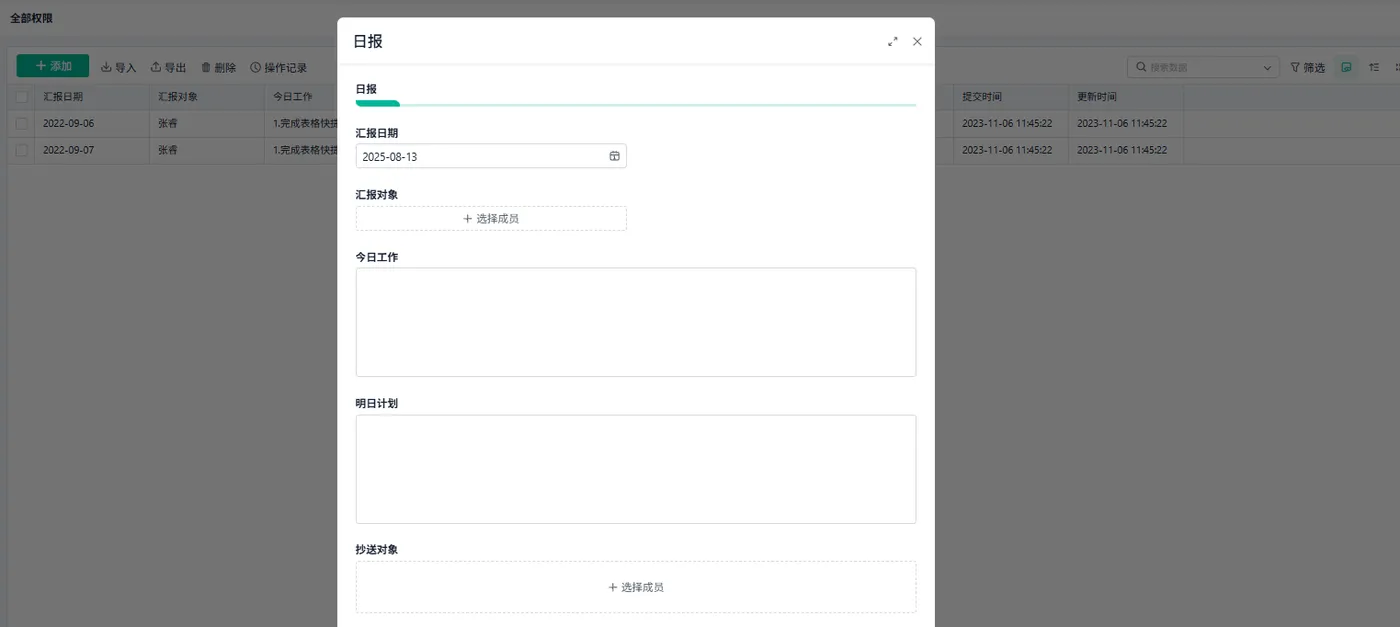

- 早上收到站内&邮件提醒,点击进入系统看到预填草稿,上周遗留未完成项自动带入“明日计划”。
- 支持富文本和结构化字段,填写后自动保存,点提交即可完成,不用再发群消息。
2.主管视角
- 待审批列表一目了然,审批时可以直接在线给出意见和评分。
- 仪表盘展示本周/本月提交率、遲交榜、部门间比较、质量评分分布以及未提交名单导出。
3.HR/管理层视角
- 可按期导出全公司日报/周报,能把结构化字段汇总成柱状图/折线图,为周会和绩效提供事实依据。
- 催报数据帮助优化流程:比如发现某渠道效果不好就改策略。
九、部署、监控与运维要点
- 使用容器化(Docker)+ K8s 部署,Report Service 做水平扩展。
- Scheduler 使用分布式锁(Redis RedLock)以避免多实例重复触发。
- 关键指标监控:未提交率、平均提交时间、催报成功率、审批平均时长、队列堆积量。
- 定期清理旧附件或冷存储归档,控制存储成本。
- 日志与审计需要保留一定周期(如 1 年),并支持导出。
- 灾备:数据库备份、对象存储快照、消息队列持久化策略。
十、代码汇总(独立板块 — 把所有示例代码都放在这里)
说明:下面把所有之前提及的示例代码(建表 SQL、后端 API 示例、调度与通知、前端提交示例)集中在一个地方,便于复制/落地。你可以直接把这部分复制到项目中做改造。示例采用 PostgreSQL、Node.js (TypeScript)、Express、TypeORM、node-cron、Redis、Nodemailer、React(简化)等技术栈。
1.数据库建表(PostgreSQL)
sql
-- report_templates
CREATE TABLE report_templates (
id SERIAL PRIMARY KEY,
name VARCHAR(100) NOT NULL,
department_id INT,
type VARCHAR(10) NOT NULL, -- 'daily'|'weekly'
schema JSONB, -- 字段定义与校验规则
version INT DEFAULT 1,
created_by INT,
created_at TIMESTAMP DEFAULT now(),
updated_at TIMESTAMP DEFAULT now()
);
-- reports
CREATE TABLE reports (
id BIGSERIAL PRIMARY KEY,
template_id INT REFERENCES report_templates(id),
user_id INT NOT NULL,
department_id INT,
type VARCHAR(10) NOT NULL,
title VARCHAR(255),
content TEXT, -- 富文本
structured JSONB, -- 结构化字段
status VARCHAR(20) DEFAULT 'draft', -- draft|submitted|approved|rejected
submitted_at TIMESTAMP,
approved_by INT,
approved_at TIMESTAMP,
created_at TIMESTAMP DEFAULT now(),
updated_at TIMESTAMP DEFAULT now()
);
-- report_reminders (日报提醒表)
CREATE TABLE report_reminders (
id BIGSERIAL PRIMARY KEY,
user_id INT NOT NULL,
department_id INT,
reminder_date DATE NOT NULL,
type VARCHAR(10) NOT NULL, -- 'daily'|'weekly'
sent_at TIMESTAMP,
send_channel VARCHAR(50), -- 'email','wecom','sms','inbox'
send_status VARCHAR(20), -- 'pending','sent','failed'
attempts INT DEFAULT 0,
last_result JSONB,
created_at TIMESTAMP DEFAULT now(),
updated_at TIMESTAMP DEFAULT now()
);
-- report_audit
CREATE TABLE report_audit (
id BIGSERIAL PRIMARY KEY,
report_id BIGINT REFERENCES reports(id),
action VARCHAR(50),
actor INT,
remark TEXT,
meta JSONB,
created_at TIMESTAMP DEFAULT now()
);
2.后端:提交 API 示例(Express + TypeORM + TypeScript)
ts
// src/controllers/reportController.ts
import { Request, Response } from 'express';
import { getRepository } from 'typeorm';
import { Report } from '../models/Report';
import { ReportAudit } from '../models/ReportAudit';
export async function submitReport(req: Request, res: Response) {
const userId = req.user.id;
const { templateId, title, content, structured } = req.body;
const repo = getRepository(Report);
// 幂等检查示例:查找是否已提交同一天的相同类型报告
const existing = await repo.findOne({ where: { userId, templateId, type: req.body.type, submittedAt: req.body.submittedAt }});
if (existing) {
return res.status(409).json({ ok: false, message: '已提交' });
}
const report = repo.create({
templateId,
userId,
title,
content,
structured,
status: 'submitted',
submittedAt: new Date()
});
await repo.save(report);
await getRepository(ReportAudit).save({
reportId: report.id,
action: 'submit',
actor: userId,
remark: '用户提交日报'
});
// 推事件到队列(伪代码)
// queue.publish('report.submitted', { reportId: report.id });
res.json({ ok: true, reportId: report.id });
}
3.Scheduler:每天催报(node-cron + Redis + MQ)
ts
// src/scheduler/dailyReminder.ts
import cron from 'node-cron';
import { getRepository } from 'typeorm';
import { User } from '../models/User';
import { ReportReminder } from '../models/ReportReminder';
import { queue } from '../lib/queue';
// 每天上午9:00 发日报提醒
cron.schedule('0 9 * * *', async () => {
const users = await getRepository(User).find({ where: { active: true }});
const date = new Date();
for (const u of users) {
const reminderRepo = getRepository(ReportReminder);
const reminder = reminderRepo.create({
userId: u.id,
departmentId: u.departmentId,
reminderDate: date,
type: 'daily',
send_status: 'pending',
attempts: 0
});
await reminderRepo.save(reminder);
queue.publish('notification.send', {
reminderId: reminder.id,
channels: ['inbox','email']
});
}
});
10.4 Notification Consumer(邮件 + 站内推送)
ts
// src/consumers/notificationConsumer.ts
import { queue } from '../lib/queue';
import { getRepository } from 'typeorm';
import { ReportReminder } from '../models/ReportReminder';
import { sendEmail } from '../notification/email';
import { pushInbox } from '../notification/inbox';
queue.subscribe('notification.send', async (msg) => {
const { reminderId, channels } = msg;
const repo = getRepository(ReportReminder);
const rem = await repo.findOne(reminderId);
if (!rem) return;
try {
if (channels.includes('email')) {
// fetch user email...
await sendEmail('user@example.com', '请提交日报', '
请在系统提交日报
');
}
if (channels.includes('inbox')) {
await pushInbox(rem.userId, '请提交日报', `/reports/draft?date=${rem.reminderDate}`);
}
rem.send_status = 'sent';
rem.sent_at = new Date();
rem.attempts += 1;
await repo.save(rem);
} catch (e) {
rem.send_status = 'failed';
rem.last_result = { error: e.message };
rem.attempts += 1;
await repo.save(rem);
}
});
5.Notification 邮件发送(nodemailer 示例)
ts
// src/notification/email.ts
import nodemailer from 'nodemailer';
const transporter = nodemailer.createTransport({
host: process.env.SMTP_HOST,
port: Number(process.env.SMTP_PORT || 587),
secure: false,
auth: { user: process.env.SMTP_USER, pass: process.env.SMTP_PASS }
});
export async function sendEmail(to: string, subject: string, html: string) {
const info = await transporter.sendMail({
from: '"OA系统" ',
to, subject, html
});
return info;
}
6.前端:提交页(React 简化示例)
jsx
// ReportForm.jsx (简化)
import React, { useState, useEffect } from 'react';
import axios from 'axios';
import Quill from 'react-quill';
export default function ReportForm({ templateId, date }) {
const [title, setTitle] = useState('');
const [content, setContent] = useState('');
const [structured, setStructured] = useState({});
const [saving, setSaving] = useState(false);
useEffect(() => {
const timer = setInterval(() => {
if (!saving) {
axios.post('/api/reports/draft', { templateId, title, content, structured });
}
}, 30000);
return () => clearInterval(timer);
}, [title, content, structured]);
const submit = async () => {
setSaving(true);
await axios.post('/api/reports/submit', { templateId, title, content, structured });
setSaving(false);
alert('提交成功');
};
return (
setTitle(e.target.value)} placeholder="标题" />
提交
);
}
十一、FAQ
FAQ 1:催报太频繁会不会骚扰员工?怎么设计不让人反感但有效?
催报要分层并可配置,默认的做法是先用低侵入渠道(站内消息 + APP 推送),这些是系统内通知,不会像短信那样打断用户。若在设定时间点仍未提交,再发邮件提醒;若在关键岗位或关键任务下仍未提交,才考虑短信或主管介入。系统要记录每次催报的结果和次数(写在 report_reminders 表里),并且每个人可以在个人设置中自定义免打扰时间段。对于跨部门或全员必填的报告,可以把“未提交名单”直接展示给直属主管,由主管二次跟进,这样既减少了对员工的直接骚扰,又能保证管理层有触达手段。总之,设计策略时优先考虑低侵入、逐级升级,且所有尝试都需要被记录以便统计和优化。
FAQ 2:模板如何设计才利于统计同时保留表达性?
推荐采用“混合型模板”:把关键指标和任务型字段做成结构化字段(例如:今日完成任务列表、未完成项数量、工时),这些字段存入 structured(JSONB)便于后端和分析服务做聚合统计。再保留一个或少数几个富文本字段用于“心得体会”“情绪与建议”等主观表达。模板用 JSON Schema 描述字段类型、是否必填、选项列表与校验规则,前端根据 Schema 渲染表单并在提交时进行校验。模板需要版本管理,避免模板变更后导致历史数据解析异常。结构化+富文本的混合能保证既能做数字化分析,又不丢失人性化表达。
FAQ 3:如何把日报/周报和任务、绩效系统打通以减少重复工作?
可以通过事件总线(消息队列)把关键事件(如 report.submitted、report.approved)发布出去,任务系统与绩效系统订阅这些事件并做相应处理。举例:在日报模板里把“今日完成任务”字段设计为可引用任务 ID 的多选项,用户在填写时选择任务会在提交时触发事件通知任务系统把这些任务标记为“已完成”,并记录完成时间。绩效系统可以订阅 report.approved 事件,根据审批评分或关键成果做绩效积分累积。关键是保持语义一致:任务 id、时间点、优先级等字段需在不同系统间统一标准,并通过中间层(API 网关或映射服务)做字段转换,确保数据一致性和可追溯性。通过事件驱动可实现松耦合、实时联动。
