一、前言
在 ArkUI 开发中,Web 组件(Web)允许开发者在应用内嵌入网页,实现混合开发场景。
本文将通过完整 DEMO,详解如何通过WebviewController实现 ArkUI 与内嵌网页的双向通信,涵盖 ArkUI 调用网页 JS、网页调用 ArkUI 对象的核心技术点。
二、双向通信实现原理
1、双向通信概念
Web 到 ArkUI(反向通信)通过registerJavaScriptProxy将 ArkUI 对象注册到网页的window对象,允许网页通过window.xxx调用 ArkUI 暴露的方法。
ArkUI 到 Web(正向通信)通过runJavaScript执行网页 JS 代码,支持回调获取返回值,实现原生代码调用网页函数。
2、双向通信流程图
ArkUI Web
┌──────────────┐ ┌──────────────┐
│ registerJS ├─────────────▶ window.objName │
│ (反向注册) │ ├──────────────┤
├──────────────┤ │ call test() │
│ runJavaScript├─────────────▶ execute JS code │
│ (正向调用) │ ├──────────────┤
└──────────────┘ └──────────────┘
三、双向通信实现步骤
1、ArkUI 定义可被网页调用的对象
创建一个TestObj类,声明允许网页调用的方法(白名单机制):
class TestObj { // 网页可调用的方法1:返回字符串 test(): string { return "ArkUI Web Component"; } // 网页可调用的方法2:打印日志 toString(): void { console.log('Web Component toString'); } // 网页可调用的方法3:接收网页消息 receiveMessageFromWeb(message: string): void { console.log(`Received from web: ${message}`); } }
2、ArkUI 组件核心代码
初始化控制器与状态
@Entry @Component struct WebComponent { // Webview控制器 controller: webview.WebviewController = new webview.WebviewController(); // 注册到网页的ArkUI对象 @State testObj: TestObj = new TestObj(); // 注册名称(网页通过window.[name]访问) @State regName: string = 'objName'; // 接收网页返回数据 @State webResult: string = ''; build() { /* 组件布局与交互逻辑 */ } }
布局与交互按钮,添加三个核心功能按钮:
Column() { // 显示网页返回数据 Text(`Web返回数据:${this.webResult}`).fontSize(16).margin(10); // 1. 注册ArkUI对象到网页 Button('注册到Window') .onClick(() => { this.controller.registerJavaScriptProxy( this.testObj, // ArkUI对象 this.regName, // 网页访问名称 ["test", "toString", "receiveMessageFromWeb"] // 允许调用的方法白名单 ); }) // 2. ArkUI调用网页JS Button('调用网页函数') .onClick(() => { this.controller.runJavaScript( 'webFunction("Hello from ArkUI!")', // 执行网页JS代码 (error, result) => { // 回调处理返回值 if (!error) this.webResult = result || '无返回值'; } ); }) // 3. Web组件加载 Web({ src: $rawfile('index.html'), controller: this.controller }) .javaScriptAccess(true) // 开启JS交互权限 .onPageEnd(() => { // 页面加载完成时触发 // 页面加载后自动调用网页测试函数 this.controller.runJavaScript('initWebData()'); }) }
3. registerJavaScriptProxy的实际作用是,将 ArkUI 对象绑定到网页window,实现反向通信。
registerJavaScriptProxy( obj: Object, // ArkUI中定义的对象 name: string, // 网页访问的名称(如window.name) methods: string[] // 允许调用的方法白名单(严格匹配方法名) );
源码示例
完整代码已上传至Gitee 仓库,欢迎下载调试!如果有任何问题,欢迎在评论区留言交流~
项目结构
├── xxx.ets # ArkUI组件代码
└── index.html # 内嵌网页文件

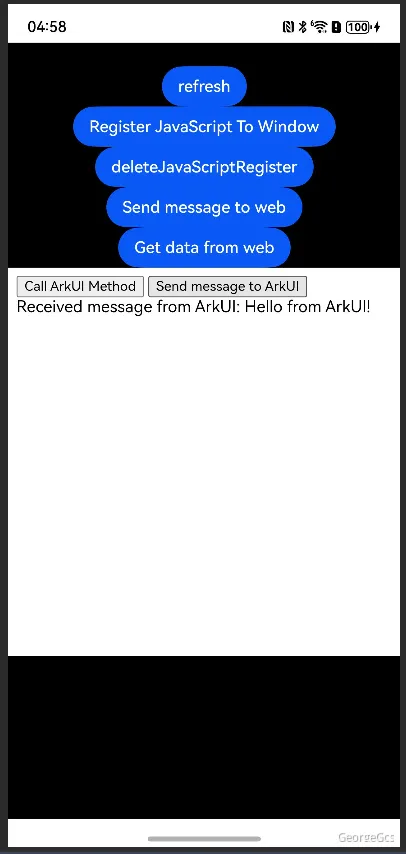

WebViewPage.ets
import { webview } from '@kit.ArkWeb'; import { BusinessError } from '@kit.BasicServicesKit'; class TestObj { constructor() { } test(): string { return "ArkUI Web Component"; } toString(): void { console.log('Web Component toString'); } receiveMessageFromWeb(message: string): void { console.log(`Received message from web: ${message}`); } } @Entry @Component struct WebViewPage { controller: webview.WebviewController = new webview.WebviewController(); @State testObjtest: TestObj = new TestObj(); @State name: string = 'objName'; @State webResult: string = ''; build() { Column() { Text(this.webResult).fontSize(20) Button('refresh') .onClick(() => { try { this.controller.refresh(); } catch (error) { console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); } }) Button('Register JavaScript To Window') .onClick(() => { try { this.controller.registerJavaScriptProxy(this.testObjtest, this.name, ["test", "toString", "receiveMessageFromWeb"]); } catch (error) { console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); } }) Button('deleteJavaScriptRegister') .onClick(() => { try { this.controller.deleteJavaScriptRegister(this.name); } catch (error) { console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); } }) Button('Send message to web') .onClick(() => { try { this.controller.runJavaScript( 'receiveMessageFromArkUI("Hello from ArkUI!")', (error, result) => { if (error) { console.error(`run JavaScript error, ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); return; } console.info(`Message sent to web result: ${result}`); } ); } catch (error) { console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); } }) Button('Get data from web') .onClick(() => { try { this.controller.runJavaScript( 'getWebPageData()', (error, result) => { if (error) { console.error(`run JavaScript error, ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); return; } if (result) { this.webResult = result; console.info(`Data from web: ${result}`); } } ); } catch (error) { console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); } }) Web({ src: $rawfile('index.html'), controller: this.controller }) .javaScriptAccess(true) .onPageEnd(e => { try { this.controller.runJavaScript( 'test()', (error, result) => { if (error) { console.error(`run JavaScript error, ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); return; } if (result) { this.webResult = result; console.info(`The test() return value is: ${result}`); } } ); if (e) { console.info('url: ', e.url); } } catch (error) { console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`); } }) .width("100%") .height("50%") } .width("100%") .height("100%") .backgroundColor(Color.Black) } }
index.html
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>Web Communication</title> </head> <body> <button onclick="callArkUIMethod()">Call ArkUI Method</button> <button onclick="sendMessageToArkUI()">Send message to ArkUI</button> <div id="messageFromArkUI"></div> <script> function callArkUIMethod() { const result = window.objName.test(); console.log("Result from ArkUI: ", result); } function sendMessageToArkUI() { window.objName.receiveMessageFromWeb('Hello from web!'); } function receiveMessageFromArkUI(message) { const messageDiv = document.getElementById('messageFromArkUI'); messageDiv.textContent = `Received message from ArkUI: ${message}`; } function getWebPageData() { return "Data from web page"; } function test() { return "Test function result from web"; } </script> </body> </html>
注意
组件销毁时调用deleteJavaScriptRegister(name)取消注册,避免内存泄漏:
onDestroy() { this.controller.deleteJavaScriptRegister(this.regName); }
