《分布式任务调度框架深度对比：Quartz/XXL-JOB/Elastic-Job/PowerJob选型指南》​

🚀 快速选型指南：
- 中小项目首选: XXL-JOB（23.4k Star）
- 分片密集型: Elastic-Job（Apache背书）
- 云原生架构: PowerJob（阿里系+K8s支持）
- 历史系统改造: Quartz（22年生态积累）

// 核心架构
graph TD
    A[Scheduler] --> B[JobStore]
    A --> C[ThreadPool]
    B --> D[RAMJobStore/JDBCJobStore]
    C --> E[Worker Threads]

public class QuartzDemo implements Job {
    @Override
    public void execute(JobExecutionContext context) {
        // 任务逻辑
    }
    public static void main(String[] args) throws SchedulerException {
        JobDetail job = JobBuilder.newJob(QuartzDemo.class)
            .withIdentity("demoJob").build();

        Trigger trigger = TriggerBuilder.newTrigger()
            .withSchedule(CronScheduleBuilder.cronSchedule("0/5 * * * * ?"))
            .build();

        Scheduler scheduler = new StdSchedulerFactory().getScheduler();
        scheduler.scheduleJob(job, trigger);
        scheduler.start();
    }
}

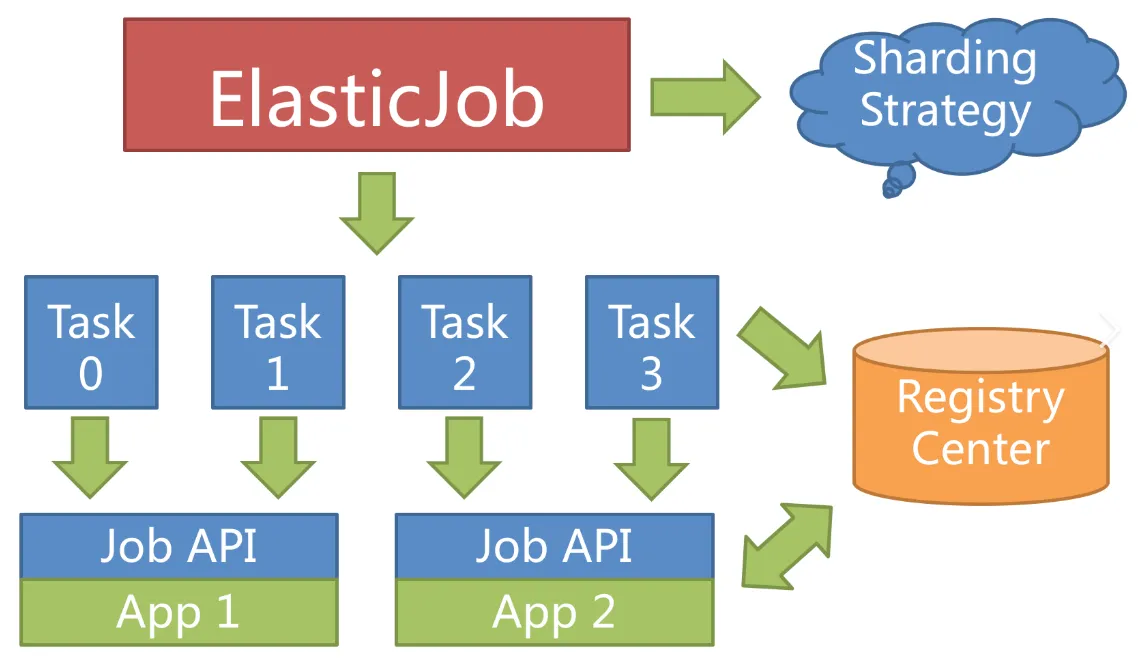

@Slf4j
public class ElasticJobDemo implements SimpleJob {
    @Override
    public void execute(ShardingContext context) {
        switch(context.getShardingItem()) {
            case 0:
                processShard0();
                break;
            case 1:
                processShard1();
                break;
        }
    }
    public static void main(String[] args) {
        new ScheduleJobBootstrap(
            new ZookeeperRegistryCenter(config),
            new ElasticJobDemo(),
            JobConfiguration.newBuilder("demoJob", "0/10 * * * * ?")
                .shardingTotalCount(2).build()
        ).schedule();
    }
}

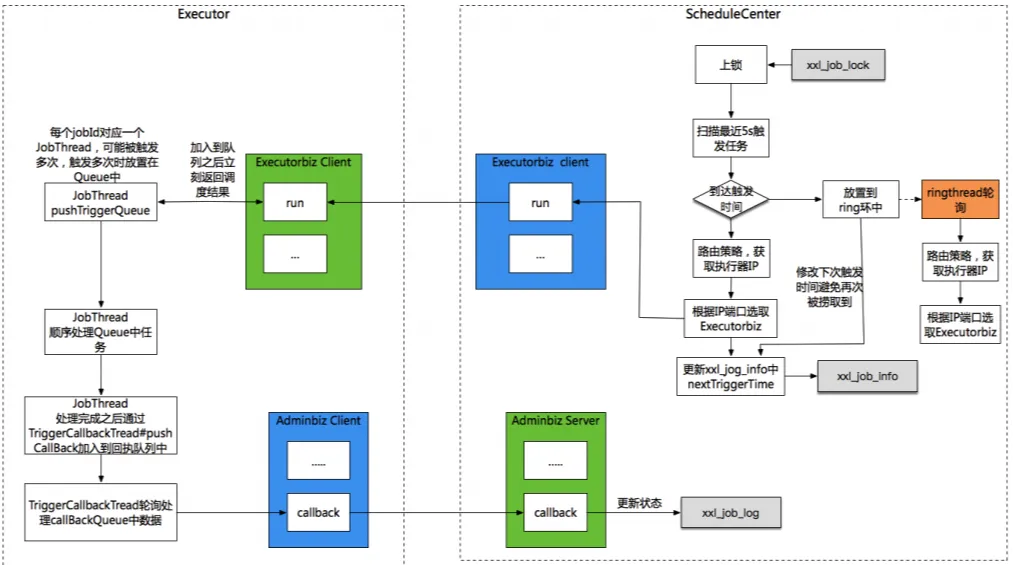

graph LR
    Admin[调度中心] --> Executor[执行器集群]
    Admin --> Dashboard[监控仪表盘]
    Executor --> DB[(任务日志库)]

// 美团外卖订单补偿任务（真实业务场景）
@XxlJob("orderCompensateHandler")
public ReturnT<String> compensateOrders(String param) {
    // 1. 获取分片参数
    ShardingUtil.ShardingVO sharding = ShardingUtil.getShardingVo();

    // 2. 按分片查询异常订单
    List<String> orderIds = orderService.findAbnormalOrders(
        sharding.getIndex(),
        sharding.getTotal()
    );

    // 3. 分布式锁处理
    orderIds.forEach(id -> {
        String lockKey = "order_compensate:" + id;
        if(redisLock.tryLock(lockKey)){
            compensateOrder(id); // 补偿逻辑
            redisLock.unlock(lockKey);
        }
    });

    return ReturnT.SUCCESS;
}

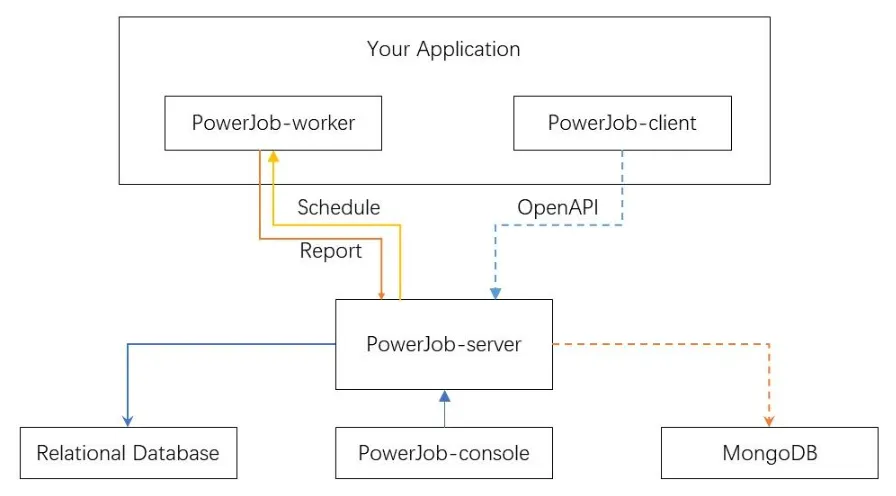

// 双十一库存预热工作流（DAG示例）
@PowerJobHandler
@Service
public class InventoryWarmUpJob implements BasicProcessor {

    @Resource
    private InventoryService inventoryService;
    @Override
    public ProcessResult process(TaskContext context) {
        // 1. 解析工作流上下文
        WorkflowContext workflowContext = context.getWorkflowContext();
        Long activityId = workflowContext.getLong("activityId");

        // 2. 子任务分发
        if(context.isRootTask()){
            List<Long> skuIds = inventoryService.getHotSkuIds(activityId);
            Map<String, Object> subTasks = skuIds.stream()
                .collect(Collectors.toMap(
                    id -> "预热SKU-" + id,
                    id -> new InventoryWarmUpTask(id)
                ));
            return new ProcessResult(true, subTasks);
        }

        // 3. 叶子任务执行
        Long skuId = context.getJobParams().getLong("skuId");
        inventoryService.warmUpCache(skuId);
        return new ProcessResult(true);
    }
}

graph TD
    A{业务规模}
    A -->|小型系统| B[单机Quartz]
    A -->|中大型系统| C{是否需要云原生?}
    C -->|是| D[PowerJob]
    C -->|否| E{是否需要智能分片?}
    E -->|是| F[Elastic-Job]
    E -->|否| G{是否需要快速落地?}
    G -->|是| H[XXL-JOB]
    G -->|否| I[Quartz集群]

    style D fill:#f9f,stroke:#333
    style F fill:#ccf,stroke:#333
    style H fill:#9f9,stroke:#333

// 响应式任务调度示例
ReactiveSchedulerFactory schedulerFactory = new ReactorSchedulerFactory();
Scheduler reactiveScheduler = schedulerFactory.getScheduler();
Mono<Void> schedulingFlow = Mono.fromRunnable(() -> {
    // 异步任务定义
    System.out.println("Reactive task triggered");
})
.delayElement(Duration.ofSeconds(5))
.subscribeOn(Schedulers.boundedElastic())
.repeat()
.subscribeWith(reactiveScheduler);

apiVersion: elasticjob.apache.org/v1alpha1
kind: ElasticJob
metadata:
  name: payment-processor
spec:
  jobClass: com.dangdang.PaymentJob
  shardingTotalCount: 10
  cron: "0/30 * * * * ?"
  kubernetes:
    affinity:
      nodeSelector:
        accelerator: nvidia-t4
    resourceProfile:
      limits:
        cpu: "2"
        memory: 4Gi

graph TD
    A[多租户管理] --> B[RBAC权限体系]
    A --> C[操作审计追踪]
    D[混合云支持] --> E[阿里云ACK]
    D --> F[华为云CCI]
    G[智能分析] --> H[任务热力图]
    G --> I[失败根因分析]

// 与阿里云函数计算集成示例
public class FCInvokeProcessor implements BasicProcessor {
    @Override
    public ProcessResult process(TaskContext context) {
        // 动态生成函数计算请求
        Map<String, Object> payload = new HashMap<>();
        payload.put("regionId", "cn-hangzhou");
        payload.put("serviceName", "image-processor");

        // 异步触发函数计算
        FCScheduler.invokeAsync(payload, response -> {
            if(response.getStatusCode() == 202) {
                log.info("FC invocation succeeded");
            }
        });

        return new ProcessResult(true);
    }
}

# 调度决策模型伪代码
class SchedulerModel(tf.keras.Model):
    def call(self, inputs):
        # 输入特征：历史负载、任务类型、资源规格
        x = self.lstm_layer(inputs)
        # 输出决策：最优节点、执行时段、资源配比
        return self.dense_layer(x)

graph LR
    A[业务逻辑层] --> B[调度策略层]
    B --> C[资源管理层]
    C --> D[基础设施层]

// 阶段一：代理模式接入
@Deprecated
public class LegacyQuartzJob implements Job {
    public void execute() {
        // 旧任务逻辑
        LegacySystem.process();

        // 新架构代理调用
        PowerJobClient.submit("legacy-task-wrapper");
    }
}
// 阶段二：双跑验证
public class MigrationValidator {
    @Scheduled(cron = "0 0 3 * * ?")
    public void checkConsistency() {
        List<Result> oldResults = QuartzExecutor.query();
        List<Result> newResults = PowerJobExecutor.query();
        Assert.isTrue(isConsistent(oldResults, newResults));
    }
}
