一、篇头
目标是把内核相关部分的实验都再做一次，虽然有现成源码，但从以往学习经历看，自己还是得多少做一些改动，对于要自虐的，可以从头打一遍，这样效果会好很多，练习完后，做个总结。实验简单，花的时间也不多，温故而知新。
二、源码
2.1 驱动关键部分
static int __init test_3_init(void)
{
int ret;
pr_info("test_3_init\n");
ret = alloc_chrdev_region(&dev, 0, count, DEMO_NAME);
if (ret) {
pr_err("failed to allocate char device region");
return ret;
}
test_3_cdev = cdev_alloc();
if (!test_3_cdev) {
pr_err("cdev_alloc failed\n");
goto unregister_chrdev;
}
cdev_init(test_3_cdev, &test_3_fops);
/*
(1) 下面语句会创建 /proc/devices/test_3_dev， 但不会创建/dev下的设备节点
*/
ret = cdev_add(test_3_cdev, dev, count);
if (ret) {
pr_err("cdev_add failed\n");
goto cdev_fail;
}
pr_err("succeeded register char device: %s\n", DEMO_NAME);
pr_err("Major number = %d, minor number = %d\n",
MAJOR(dev), MINOR(dev));
// …… 省略 ……
return ret;
}
AI 代码解读
2.2 APP：test_3_app.c
- 完成的linux app源码
#include <stdio.h>
#include <fcntl.h>
#include <unistd.h>
#define MY_DEV_NAME "/dev/test_3_dev"
int main()
{
char buffer[64];
int fd;
fd = open(MY_DEV_NAME, O_RDONLY);
if (fd < 0) {
printf("open device %s failded\n", MY_DEV_NAME);
return -1;
}
read(fd, buffer, 64);
close(fd);
return 0;
}
AI 代码解读
2.3 驱动完整源码
- test_3.c
#include <linux/module.h>
#include <linux/fs.h>
#include <linux/uaccess.h>
#include <linux/init.h>
#include <linux/cdev.h>
#define DEMO_NAME "test_3_dev"
static dev_t dev;
static struct cdev *test_3_cdev;
static signed count = 1;
static int test_3_open(struct inode *inode, struct file *file)
{
int major = MAJOR(inode->i_rdev);
int minor = MINOR(inode->i_rdev);
pr_info("%s: major=%d, minor=%d\n", __func__, major, minor);
return 0;
}
static int test_3_release(struct inode *inode, struct file *file)
{
pr_info("%s \n", __func__);
return 0;
}
static ssize_t
test_3_read(struct file *file, char __user *buf, size_t lbuf, loff_t *ppos)
{
pr_info("%s \n", __func__);
return 0;
}
static ssize_t
test_3_write(struct file *file, const char __user *buf, size_t count, loff_t *f_pos)
{
pr_info("%s \n", __func__);
return 0;
}
static const struct file_operations test_3_fops = {
.owner = THIS_MODULE,
.open = test_3_open,
.release = test_3_release,
.read = test_3_read,
.write = test_3_write
};
static int __init test_3_init(void)
{
int ret;
pr_info("test_3_init\n");
ret = alloc_chrdev_region(&dev, 0, count, DEMO_NAME);
if (ret) {
pr_err("failed to allocate char device region");
return ret;
}
test_3_cdev = cdev_alloc();
if (!test_3_cdev) {
pr_err("cdev_alloc failed\n");
goto unregister_chrdev;
}
cdev_init(test_3_cdev, &test_3_fops);
ret = cdev_add(test_3_cdev, dev, count);
if (ret) {
pr_err("cdev_add failed\n");
goto cdev_fail;
}
pr_err("succeeded register char device: %s\n", DEMO_NAME);
pr_err("Major number = %d, minor number = %d\n",
MAJOR(dev), MINOR(dev));
return 0;
cdev_fail:
cdev_del(test_3_cdev);
unregister_chrdev:
unregister_chrdev_region(dev, count);
return ret;
}
static void __exit test_3_exit(void)
{
pr_info("test_3_exit\n");
if (test_3_cdev)
cdev_del(test_3_cdev);
unregister_chrdev_region(dev, count);
}
module_init(test_3_init);
module_exit(test_3_exit);
MODULE_LICENSE("Dual BSD/GPL");
MODULE_AUTHOR("szhou <66176468@qq.com>");
MODULE_DESCRIPTION("test_1, simple char kernel module");
AI 代码解读
2.4 Makefile
- 实验和之前几篇文章有集成性，本文实验只需要在 obj-m 后面添加 test_3.o 即可
KDIR := /home/szhou/works/qemu_linux/linux-stable
obj-m := test_1.o test_2.o test_3.o
all :
$(MAKE) -C $(KDIR) M=$(PWD) modules
clean:
$(MAKE) -C $(KDIR) SUBDIRS=$(PWD) clean
rm -f *.ko
AI 代码解读
三、编译
3.1 编译ko
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$ ls
Makefile modules.order Module.symvers test_1.c test_1.ko test_1.mod test_1.mod.c test_1.mod.o test_1.o test_2.c test_2.ko test_2.mod test_2.mod.c test_2.mod.o test_2.o test_3_app.c test_3.c
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$ make
make -C /home/szhou/works/qemu_linux/linux-stable M=/home/szhou/works/qemu_linux/linux-stable/my_kmodules modules
make[1]: Entering directory '/home/szhou/works/qemu_linux/linux-stable'
CC [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_3.o
MODPOST /home/szhou/works/qemu_linux/linux-stable/my_kmodules/Module.symvers
CC [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_1.mod.o
LD [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_1.ko
CC [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_2.mod.o
LD [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_2.ko
CC [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_3.mod.o
LD [M] /home/szhou/works/qemu_linux/linux-stable/my_kmodules/test_3.ko
make[1]: Leaving directory '/home/szhou/works/qemu_linux/linux-stable'
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$
AI 代码解读
3.2 编译app
- 因为使用qemu模拟，而我们之前建立的mini Linux系统尚未添加 so 等各种依赖库，所以需要在编译app时候添加 --static标志，使用静态链接，这样就可以不依赖于so文件。
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$ arm-linux-gnueabi-gcc test_3_app.c -o test_3_app --static
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$ file test_3_app
test_3_app: ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), statically linked, BuildID[sha1]=1a479f0e5a7f3cba6fb0ea4121337f56623cb5a5, for GNU/Linux 3.2.0, not stripped
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$
AI 代码解读
四、测试
4.1 部署
- 透过NFS部署，不了解的，请参考之前的内核实验（四）
- 将测试文件复制到nfs共享目录下
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$ cp test_3.ko ~/works/nfs_share/
szhou@bc01:~/works/qemu_linux/linux-stable/my_kmodules$ cp test_3_app ~/works/nfs_share/
AI 代码解读
4.2 测试
4.2.1 启动qemu虚拟机
qemu-system-arm -nographic -M vexpress-a9 -m 1024M -kernel arch/arm/boot/zImage -initrd ../busybox/rootfs.ext4.img.gz -dtb arch/arm/boot/dts/vexpress-v2p-ca9.dtb
AI 代码解读

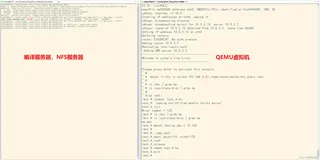

4.2.2 运行测试文件
----------------------------------------
Welcome to szhou's tiny Linux
----------------------------------------
Please press Enter to activate this console.
~ #
~ #
~ # mount -t nfs -o nolock 192.168.3.67:/home/szhou/works/nfs_share /mnt
~ # cd /mnt/
/mnt # ls
abc_client bcd_server test_3.ko
/mnt # insmod test_3.ko
test_3: loading out-of-tree module taints kernel.
test_3_init
succeeded register char device: test_3_dev
Major number = 248, minor number = 0
/mnt #
/mnt # mknod /dev/test_3_dev c 248 0
/mnt # ./test_3_app
test_3_open: major=248, minor=0
test_3_read
test_3_release
/mnt #
/mnt # rmmod test_3.ko
test_3_exit
/mnt #
AI 代码解读

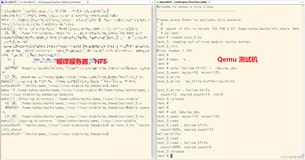

4.2.3 查看设备情况
- 注意，此处尚未使用mknod手动创建设备文件
（1） insmod ko
/mnt # insmod test_3.ko
test_3: loading out-of-tree module taints kernel.
test_3_init
succeeded register char device: test_3_dev
Major number = 248, minor number = 0
（2）查看 /dev 可见无目标设备
（3）查看 /proc/devices ，则创建了test_3_dev
/dev # cat /proc/devices
Character devices:
1 mem
2 pty
3 ttyp
4 /dev/vc/0
4 tty
5 /dev/tty
5 /dev/console
// …… 省略 ……
248 test_3_dev
// …… 省略 ……
Block devices:
// …… 省略 ……
/dev #
AI 代码解读
五、篇尾
略……
用这个简单的实验， 再次检验了内核实验四，NFS环境的高效。
