1 创建maven web项目;
2 添加jar包(所有的依赖)
<dependencies> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> <scope>test</scope> </dependency> <!--json依赖--> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> <version>2.9.8</version> </dependency> <!--添加springwebmvc依赖--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>4.3.6.RELEASE</version> </dependency> <!--mybatis依赖--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.4.6</version> </dependency> <!--mybatis的spring接口实现依赖--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>1.3.2</version> </dependency> <!--数据源依赖--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>4.3.6.RELEASE</version> </dependency> <!--数据库驱动依赖--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.32</version> </dependency> <!--druid依赖--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>1.0.26</version> </dependency> <!--jstl依赖--> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!----> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-validator</artifactId> <version>5.4.0.Final</version> </dependency> </dependencies>
添加最主要的Tomact目录
<plugins> <!--添加tomcat-plugin插件用于web发布执行--> <plugin> <groupId>org.apache.tomcat.maven</groupId> <artifactId>tomcat7-maven-plugin</artifactId> <version>2.2</version> <configuration> <path>/</path> <port>8080</port> </configuration> </plugin> </plugins>

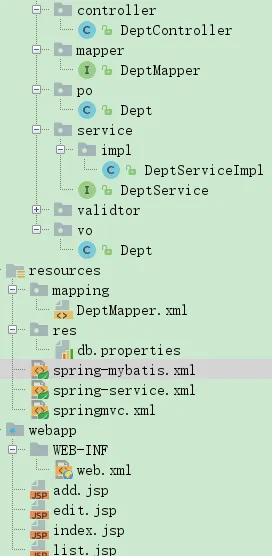

3 补充目录及配置文件
我们用的是idea所以目录是不完整的,需要我们自己来配置,
4 整合spring与mybatis
spring-mybatis.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"> <!--4.1加载数据库参数文件--> <context:property-placeholder location="classpath:res/db.properties"/> <!--4.2配置数据库连接池druid--> <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"> <property name="driverClassName" value="${jdbc.driver}"/> <property name="url" value="${jdbc.url}"/> <property name="username" value="${jdbc.username}"/> <property name="password" value="${jdbc.password}"/> </bean> <!--4.3配置sqlSessionFactory--> <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"> <property name="dataSource" ref="dataSource"/> <property name="mapperLocations" value="classpath*:mapping/*.xml"/> </bean> <!--4.4 配置mapper扫描器--> <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"> <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/> <!--配置dao扫描接口--> <property name="basePackage" value="mapper"/> </bean> </beans>
db.properties
jdbc.driver=com.mysql.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/mmmm jdbc.username=root jdbc.password=root
mapper路径下的DeptController
public interface DeptMapper { public List<Dept> findAll(); public Dept findById(int deptno); public boolean updateDept(Dept dept); public boolean insertDept(Dept dept); public boolean deleteDept(int deptno); }
resources资源目录下的mapping文件夹的DeptMapper.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.zyzy.day54.mapper.DeptMapper"> <select id="findAll" resultType="com.zyzy.day54.po.Dept"> SELECT * FROM DEPT </select> <select id="findById" parameterType="int" resultType="com.zyzy.day54.po.Dept"> SELECT * FROM DEPT WHERE deptno = #{deptno} </select> <update id="updateDept" parameterType="com.zyzy.day54.po.Dept"> UPDATE DEPT SET dname=#{dname},loc=#{loc} WHERE deptno=#{deptno} </update> <insert id="insertDept" parameterType="com.zyzy.day54.po.Dept"> INSERT INTO DEPT (dname,loc) VALUES (#{dname},#{loc}) </insert> <delete id="deleteDept" parameterType="int" > DELETE FROM DEPT WHERE deptno=#{deptno} </delete> </mapper>
po里面我们封装的实体类
public class Dept { private Integer deptno; private String dname; private String loc; public Dept(Integer deptno, String dname, String loc) { this.deptno = deptno; this.dname = dname; this.loc = loc; } public Dept() { } @Override public String toString() { return "Dept{" + "deptno=" + deptno + ", dname='" + dname + '\'' + ", loc='" + loc + '\'' + '}'; } public Integer getDeptno() { return deptno; } public void setDeptno(Integer deptno) { this.deptno = deptno; } public String getDname() { return dname; } public void setDname(String dname) { this.dname = dname; } public String getLoc() { return loc; } public void setLoc(String loc) { this.loc = loc; } }
5 整合web容器与spring
web.xml
<!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd" > <web-app> <display-name>Archetype Created Web Application</display-name> <!--5整合spring和web容器 begin--> <!--配置全局参数上下文--> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath*:spring-*.xml</param-value> </context-param> <!--7.1 配置编码过滤器--> <filter> <filter-name>characterFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>UTF-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>characterFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!--配置侦听器--> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!--整合spring和web容器 end--> <!--7 整合springmvc+web容器begin--> <!--因为web.xml书写规范必须要求过滤器在监听前所以提到前面--> <!--7.2配置核心处理器--> <servlet> <servlet-name>springmvc</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:springmvc.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>springmvc</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> </web-app>
先完成service和mapper层的解耦
public interface DeptService { public List<Dept> findDepts(); public Dept findById(int deptno); public boolean updateDept(Dept dept); public boolean insertDept(Dept dept); public boolean deleteDept(int deptno); } service的实现类 @Service public class DeptServiceImpl implements DeptService { @Autowired private DeptMapper deptMapper; @Override public List<Dept> findDepts() { List<Dept> all = deptMapper.findAll(); return all; } @Override public Dept findById(int deptno) { Dept dept = deptMapper.findById(deptno); return dept; } @Override public boolean updateDept(Dept dept) { boolean b = deptMapper.updateDept(dept); return b; } @Override public boolean insertDept(Dept dept) { boolean b = deptMapper.insertDept(dept); return b; } @Override public boolean deleteDept(int deptno) { boolean b = deptMapper.deleteDept(deptno); return b; } }
配置spring-service.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"> <context:component-scan base-package="com.zyzy.day54.service"/> </beans>
完成controller和service解耦
DeptController
@Controller public class DeptController { @Autowired public DeptService deptService; @RequestMapping(value = "/depts",method = RequestMethod.GET) public String findAll(Model model){ List<Dept> depts = deptService.findDepts(); model.addAttribute("depts",depts); return "list"; } @RequestMapping(value = "/edit",method = RequestMethod.GET) public String findById(@RequestParam("deptno") int deptno ,Map map){ Dept dept = deptService.findById(deptno); map.put("dept",dept); return "edit"; } @RequestMapping( value = "/update" , method = RequestMethod.POST) public String updateDept( Dept dept){ boolean b = deptService.updateDept(dept); if (b){ return "redirect:/depts"; } return null; } @RequestMapping(value = "/add" , method = RequestMethod.POST) public String insertDept(Dept dept){ boolean b = deptService.insertDept(dept); if (b){ return "redirect:/depts"; } return null; } @RequestMapping(value = "/delete" , method = RequestMethod.GET) public String deleteDept(@RequestParam("deptno") int deptno){ boolean b = deptService.deleteDept(deptno); if (b){ return "redirect:/depts"; }else return null; } }
6 完善springmvc配置
springmvc.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd"> <!--6.1 配置controller(c处理器)扫描包路径--> <context:component-scan base-package="com.zyzy.day54.controller"/> <!--6.2 配置注解驱动--> <mvc:annotation-driven/> <!--6.3 配置静态资源处理器--> <mvc:default-servlet-handler/> <!--5.4 配置视图解析器--> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/"/> <property name="suffix" value=".jsp"/> </bean> </beans>
7 整合web容器与springmvc
web.xml(看第五步)
8 检验整合效果
附上所用的前端页面
add.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %> <%@page isELIgnored="false" %> <%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <html> <head> <title>Title</title> </head> <body> <form action="add" method="post"> 部门名称<input type="text" name="dname" > <br> 部门地址<input type="text" name="loc" > <br> <input type="submit" value="add"> </form> </body> </html>
edit.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %> <%@ page isELIgnored="false" %> <html> <head> <title>Title</title> </head> <body> <form action="update" method="post"> 部门id<input type="text" name="deptno" value="${dept.deptno}" readonly><br> 部门名称<input type="text" name="dname" value="${dept.dname}"> <br> 部门地址<input type="text" name="loc" value="${dept.loc}"> <br> <input type="submit" value="update"> </form> </body> </html>
index.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %> <html> <body> <h2>Hello World!</h2> <a href="/depts">查看全部信息</a> <br> <a href="/add.jsp">添加</a> </body> </html>
list.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %> <%@ page isELIgnored="false" %> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <html> <head> <title>Title</title> </head> <body> <c:forEach items="${depts}" var="dept"> ${dept.deptno} ${dept.dname} ${dept.loc} <a href="/edit?deptno=${dept.deptno}">修改</a> <a href="/delete?deptno=${dept.deptno}">删除</a> <br> </c:forEach> </body> </html>
水平有限,有什么错误希望大家指出!!!
