一、Affine介绍

AFFiNE 是一个下一代知识库，将规划、分类和创建结合在一起。隐私至上、开源、可定制且随时可用 - Notion & Miro 的免费替代品。

二、检查本地docker状态

[root@node ~]# systemctl status docker
● docker.service - Docker Application Container Engine
   Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-11-06 06:02:26 CST; 4 days ago
     Docs: https://docs.docker.com
 Main PID: 9869 (dockerd)
    Tasks: 104
   Memory: 1.1G
   CGroup: /system.slice/docker.service
           ├─  9869 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
           ├─ 45650 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 3522 -container-ip 192.168.48.2 -container-port 3306
           ├─ 45656 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 3522 -container-ip 192.168.48.2 -container-port 3306
           ├─ 46338 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 9300 -container-ip 172.17.0.2 -container-port 9000
           ├─ 46344 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 9300 -container-ip 172.17.0.2 -container-port 9000
           ├─ 46357 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 443 -container-ip 172.17.0.2 -container-port 443
           ├─ 46363 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 443 -container-ip 172.17.0.2 -container-port 443
           ├─ 46376 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8011 -container-ip 172.17.0.2 -container-port 80
           ├─ 46382 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8011 -container-ip 172.17.0.2 -container-port 80
           ├─101732 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 9200 -container-ip 192.168.32.3 -container-port 9100
           ├─101746 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 9200 -container-ip 192.168.32.3 -container-port 9100
           ├─101760 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 3010 -container-ip 192.168.32.4 -container-port 3000
           ├─101766 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 3010 -container-ip 192.168.32.4 -container-port 3000
           ├─102555 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 9122 -container-ip 192.168.32.2 -container-port 9090
           └─102561 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 9122 -container-ip 192.168.32.2 -container-port 9090

Nov 07 17:12:26 node dockerd[9869]: time="2022-11-07T17:12:26.635724329+08:00" level=info msg="ignoring event" container=4fd3f498ff0be1...skDelete"
Nov 07 17:12:28 node dockerd[9869]: time="2022-11-07T17:12:28.508253025+08:00" level=info msg="ignoring event" container=4fd3f498ff0be1...skDelete"
Nov 07 17:12:31 node dockerd[9869]: time="2022-11-07T17:12:31.979456972+08:00" level=info msg="ignoring event" container=4fd3f498ff0be1...skDelete"
Nov 07 17:12:38 node dockerd[9869]: time="2022-11-07T17:12:38.726985355+08:00" level=info msg="ignoring event" container=4fd3f498ff0be1...skDelete"
Nov 07 17:12:51 node dockerd[9869]: time="2022-11-07T17:12:51.865626579+08:00" level=info msg="ignoring event" container=4fd3f498ff0be1...skDelete"
Nov 07 17:13:13 node dockerd[9869]: time="2022-11-07T17:13:13.437764628+08:00" level=info msg="ignoring event" container=5c2c7245e3d7c9...skDelete"
Nov 07 17:22:59 node dockerd[9869]: time="2022-11-07T17:22:59.706854426+08:00" level=info msg="ignoring event" container=9ee6365478b1b3...skDelete"
Nov 09 17:39:21 node dockerd[9869]: time="2022-11-09T17:39:21.635764314+08:00" level=info msg="ignoring event" container=3e1008e973becd...skDelete"
Nov 09 17:48:07 node dockerd[9869]: time="2022-11-09T17:48:07.633429323+08:00" level=info msg="Pull session cancelled"
Nov 09 17:48:08 node dockerd[9869]: time="2022-11-09T17:48:08.335184004+08:00" level=error msg="Not continuing with pull after error: c...canceled"
Hint: Some lines were ellipsized, use -l to show in full.












          AI 代码解读




三、下载Affine镜像

[root@node ~]# docker pull ghcr.io/toeverything/affine:nightly-latest
nightly-latest: Pulling from toeverything/affine
8663204ce13b: Pull complete
fe024ea85c2d: Pull complete
438e4a77a6e9: Pull complete
2a6d2ebbfc85: Pull complete
e5c5f60dbd2d: Pull complete
03a60b3a07a2: Pull complete
e93cb5827013: Pull complete
Digest: sha256:2b93601d51dcfa03891a500274707c853bb03c13c2be8ad31cb8b835bd92a609
Status: Downloaded newer image for ghcr.io/toeverything/affine:nightly-latest
ghcr.io/toeverything/affine:nightly-latest











          AI 代码解读




四、部署Affine

1.创建安装目录

[root@node ~]# mkdir -p /data/affine
[root@node ~]# cd /data/affine/
[root@node affine]#











          AI 代码解读




2.创建Affine容器

[root@node affine]# docker run -d --name affine -p 3520:3000  --restart always  ghcr.io/toeverything/affine:nightly-latest
0b7ec584598315ccd69f71ec25e4c4dc88862ca1a8e233562305c4a3a830985e












          AI 代码解读




3.查看容器状态

[root@node affine]# docker ps
CONTAINER ID   IMAGE                                                   COMMAND                  CREATED          STATUS          PORTS                                                                                                                     NAMES
0b7ec5845983   ghcr.io/toeverything/affine:nightly-latest              "caddy run"              23 seconds ago   Up 22 seconds   80/tcp, 443/tcp, 2019/tcp, 0.0.0.0:3520->3000/tcp, :::3520->3000/tcp                                                      affine










          AI 代码解读

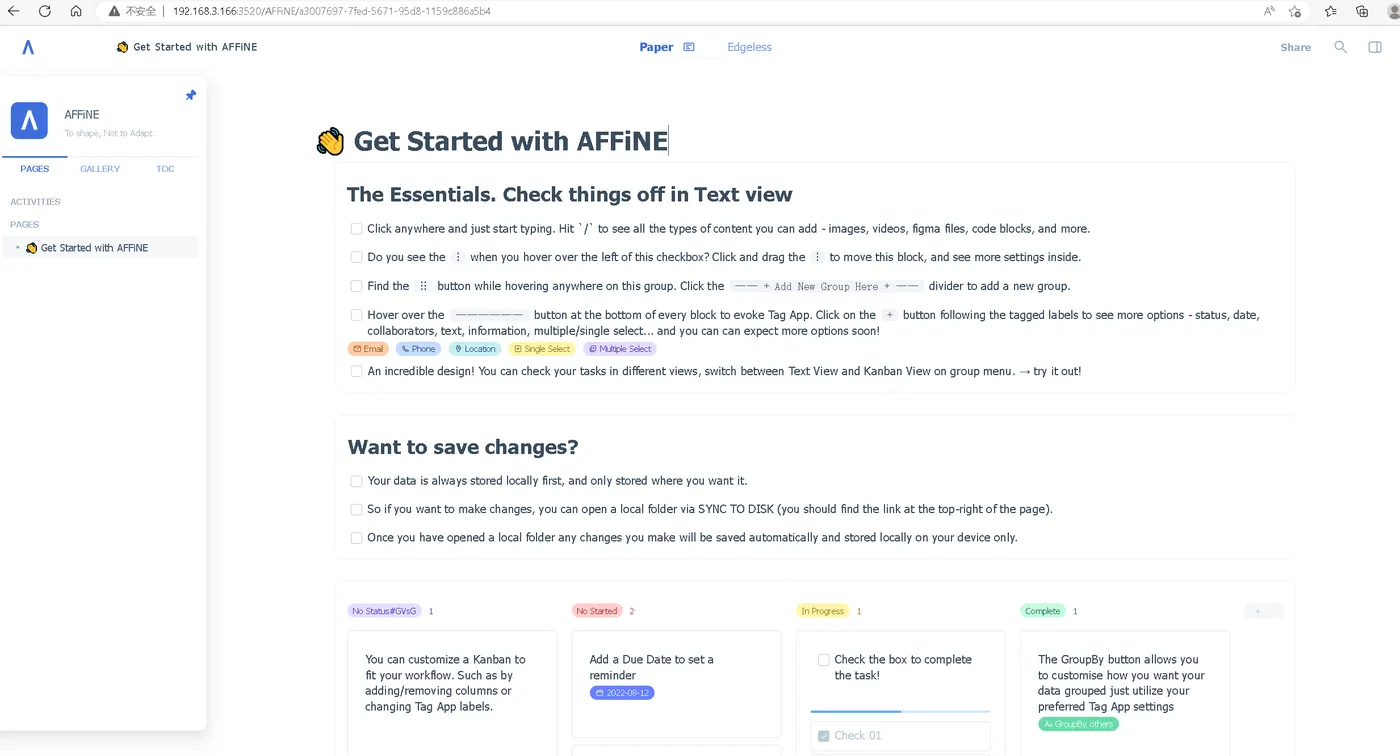

五、访问Affine

六、Affine的基本使用

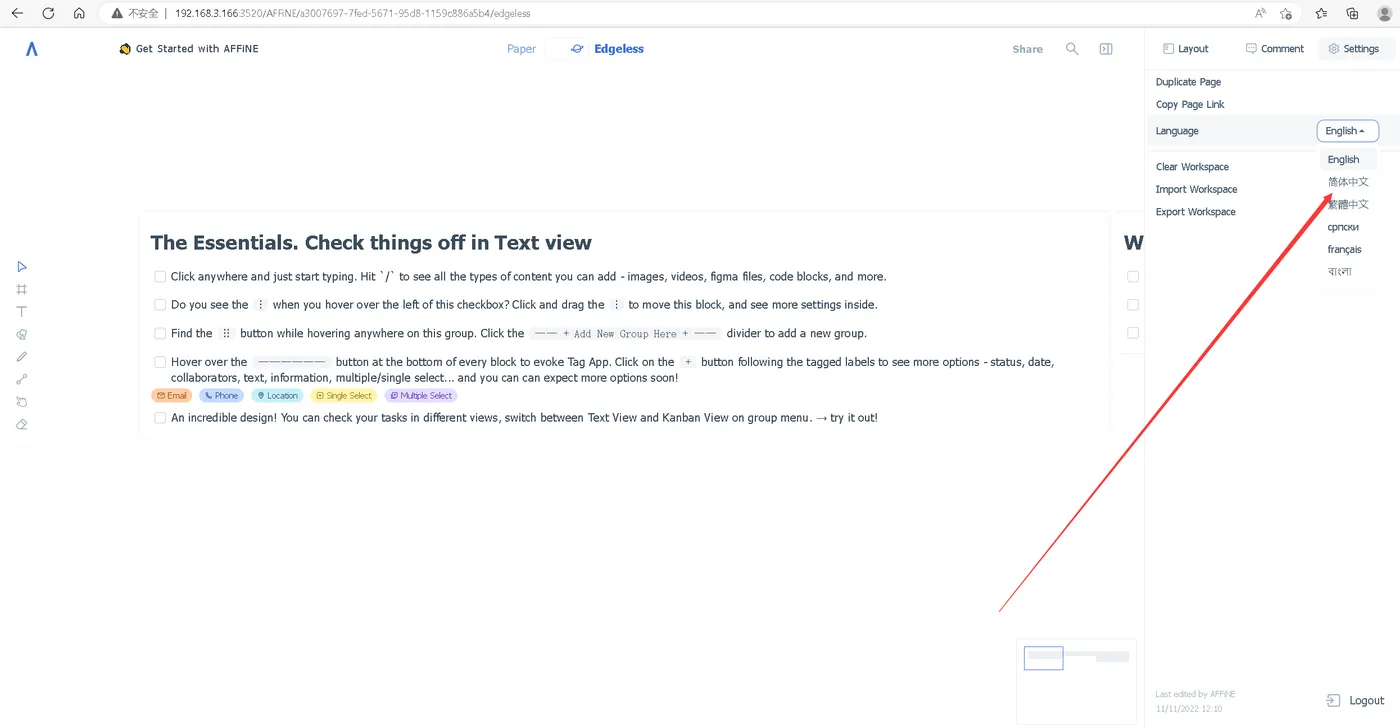

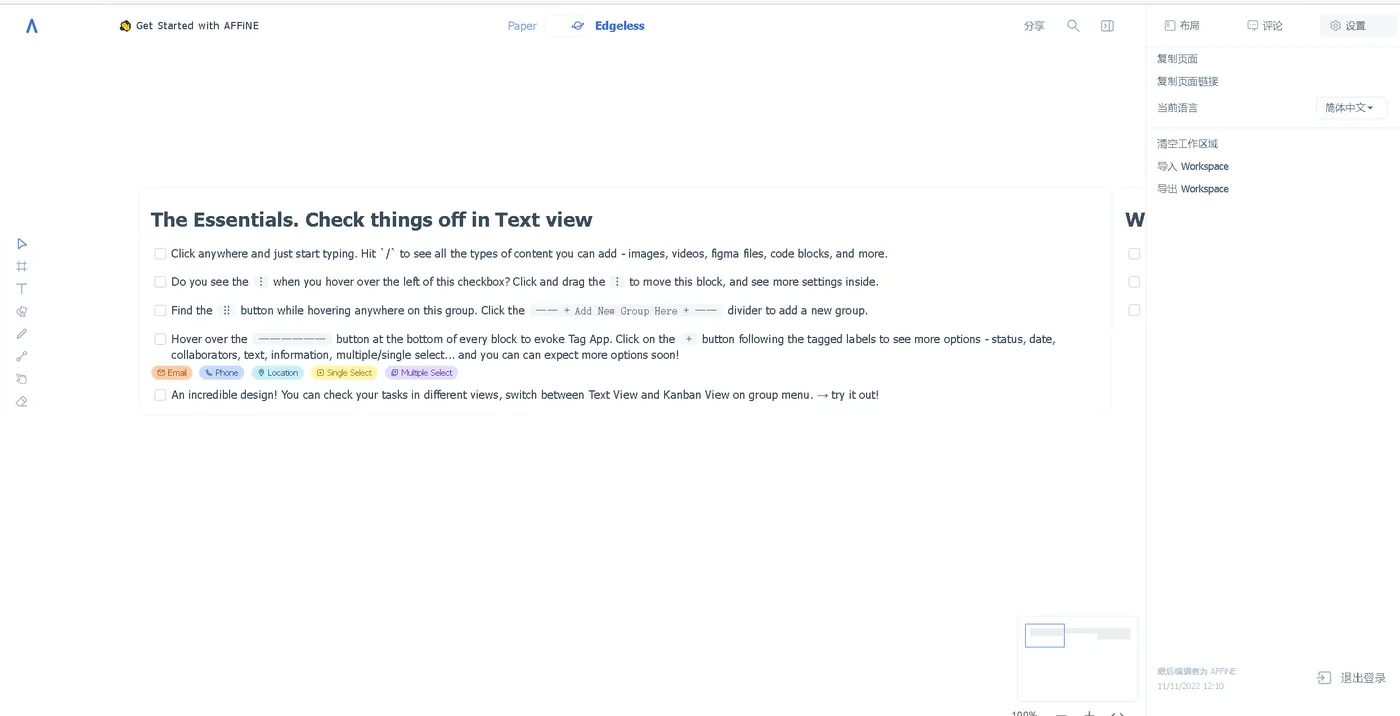

1.设置中文语言

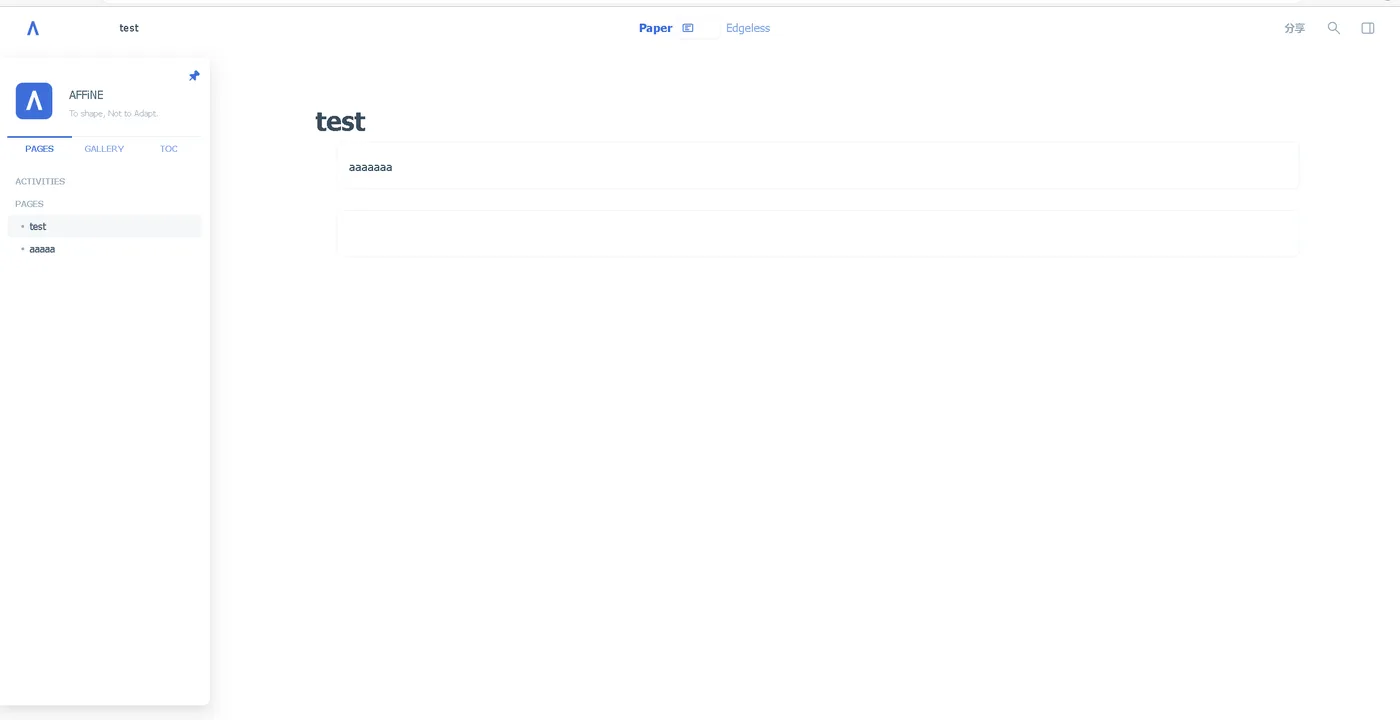

2.新建笔记

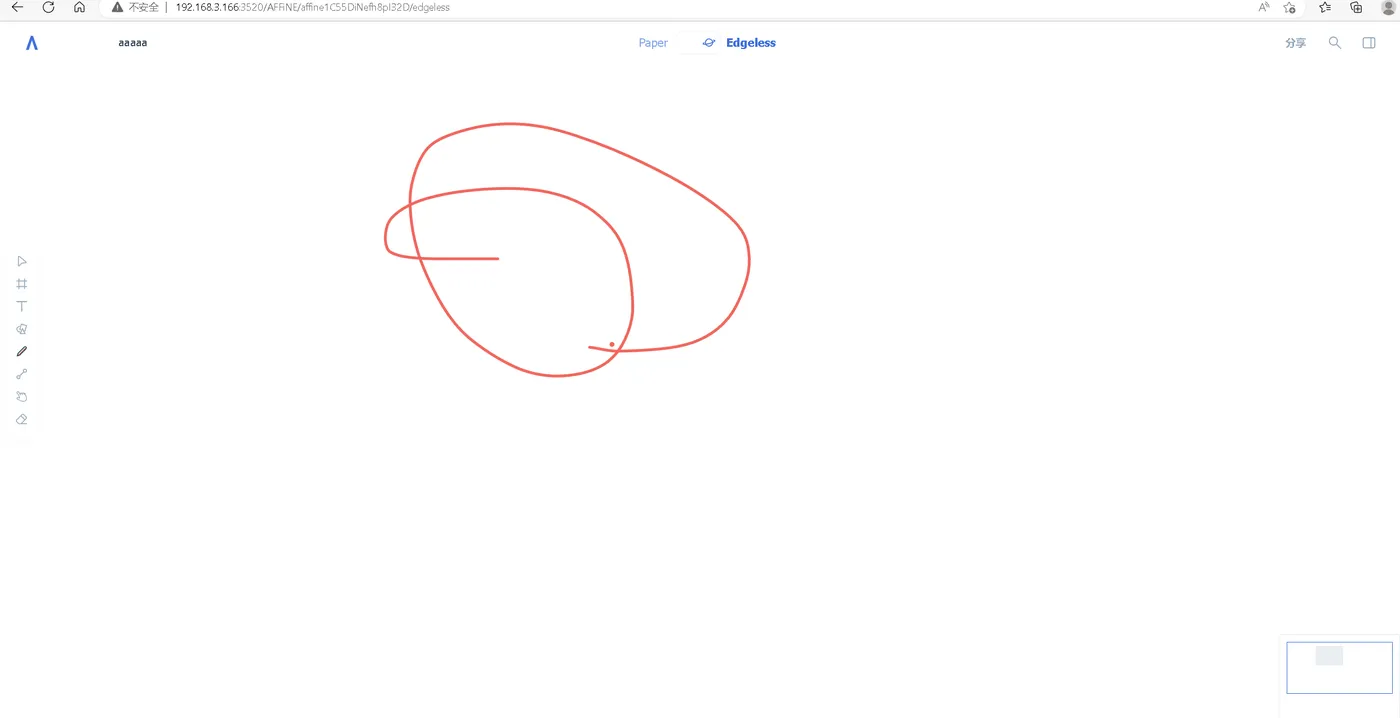

3.画图操作
