本篇概览
- 本文是《Kubernetes深入学习》系列的第二篇，上一章我们下载了Kubernetes1.13源码，然后修改kubectl源码再构建运行进行验证，在整个源码包中，除了kubectl这样的可执行程序，还有api-server、controller-manager这些docker容器，今天的实战是修改这些容器镜像的源码，再部署新的镜像，验证我们修改的代码是否生效；
系列文章链接汇总
- 《Kubernetes源码学习之一:下载和编译源码》
- 《Kubernetes深入学习之二:编译和部署镜像(api-server)》
环境信息
- 为了验证修改的结果在Kubernetes环境是否生效，需要您准备好Kubernetes1.13版本的环境，实战中涉及的应用和版本信息如下：
- 操作系统：CentOS 7.6.1810
- go版本：1.12
- Docker：17.03.2-ce
- Kubernetes：1.13
关于依赖镜像的下载
- 在编译过程中会用到以下三个镜像，但是docker pull命令是无法下载到这些镜像的（你懂的）：
- k8s.gcr.io/kube-cross:v1.11.5-1
- k8s.gcr.io/debian-iptables-amd64:v11.0
- k8s.gcr.io/debian-base-amd64:0.4.0
- 如果您的环境无法下载这三个镜像，可通过以下方式来下载：
- 执行以下命令，下载我上传的三个镜像：
docker pull bolingcavalry/kube-cross:v1.11.5-1 \
&& docker pull bolingcavalry/debian-iptables-amd64:v11.0 \
&& docker pull bolingcavalry/debian-base-amd64:0.4.0
- 下载完毕后，通过docker images命令可以看到这三个镜像：
[root@hedy kubernetes]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
bolingcavalry/kube-cross v1.11.5-1 b16987a9b305 7 weeks ago 1.75 GB
bolingcavalry/debian-iptables-amd64 v11.0 48319fdf4d25 4 months ago 45.4 MB
bolingcavalry/debian-base-amd64 0.4.0 8021d54711e6 4 months ago 42.3 MB
- 执行以下命令，将下载的镜像更名，并且删除不再用到的镜像：
docker tag b16987a9b305 k8s.gcr.io/kube-cross:v1.11.5-1 \
&& docker tag 48319fdf4d25 k8s.gcr.io/debian-iptables-amd64:v11.0 \
&& docker tag 8021d54711e6 k8s.gcr.io/debian-base-amd64:0.4.0 \
&& docker rmi bolingcavalry/kube-cross:v1.11.5-1 \
&& docker rmi bolingcavalry/debian-iptables-amd64:v11.0 \
&& docker rmi bolingcavalry/debian-base-amd64:0.4.0
- 此时再执行docker images查看本地镜像，可见正是编译所需那三个：
[root@hedy kubernetes]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
k8s.gcr.io/kube-cross v1.11.5-1 b16987a9b305 7 weeks ago 1.75 GB
k8s.gcr.io/debian-iptables-amd64 v11.0 48319fdf4d25 4 months ago 45.4 MB
k8s.gcr.io/debian-base-amd64 0.4.0 8021d54711e6 4 months ago 42.3 MB
- 打开文件build/lib/release.sh，找到下面这段内容，将其中的---pull删除，这样就不会重新去远程下载镜像了：
"${DOCKER[@]}" build --pull -q -t "${docker_image_tag}" "${docker_build_path}" >/dev/null

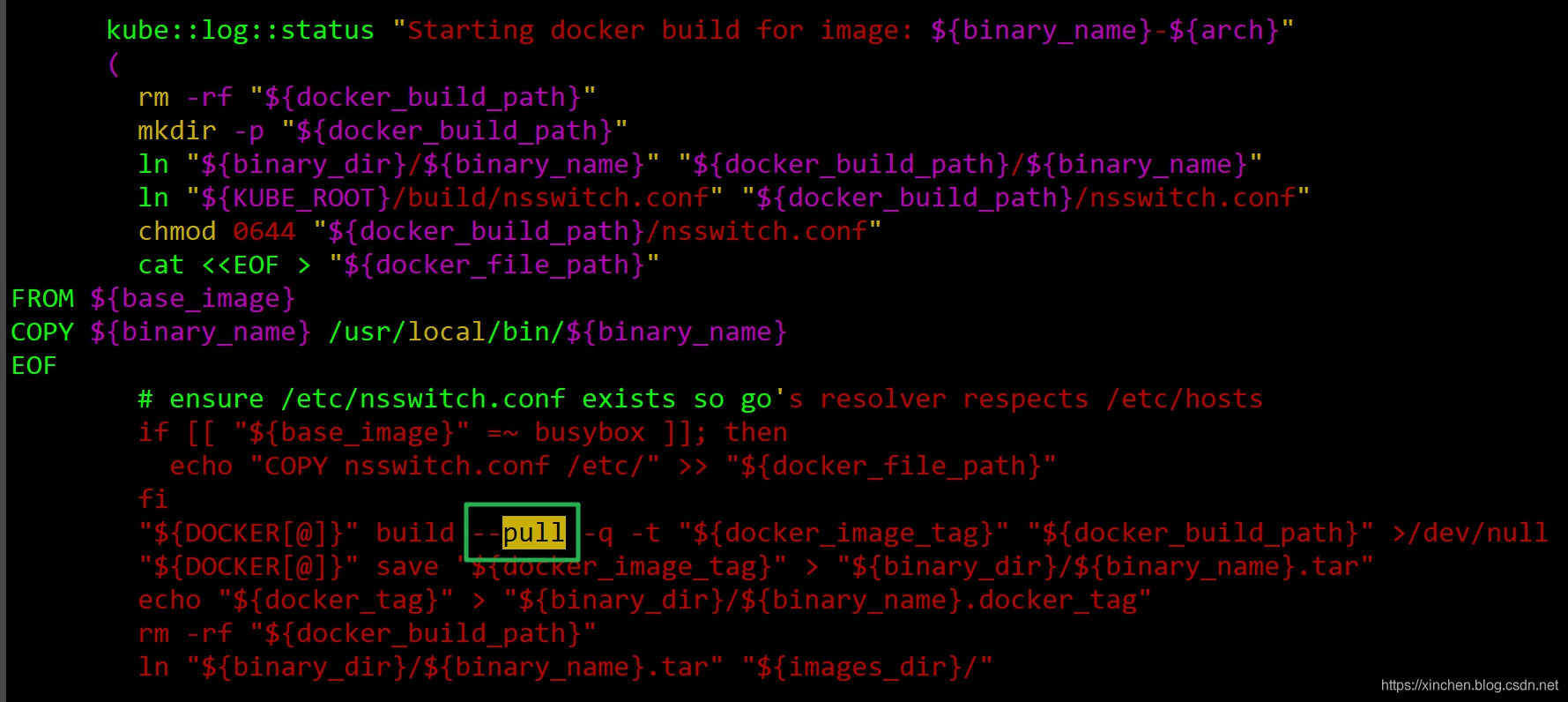

- 这段代码的具体位置如下图绿框所示，将绿框中的内容删除：
修改源码
- 接下来的工作是修改源码，本次实战要修改的是api-server的源码，我们在里面加一些日志，最后在验证环节只要能看见这些日志就说明我们修改的源码可以成功运行；
- 修改的文件是create.go路径如下，这个文件是创建资源的响应入口：
$GOPATH/src/k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/endpoints/handlers/create.go
- 在create.go处理请求的位置增加日志代码，如下所示，所有fmt.Println的调用都是本次新增的内容：
func createHandler(r rest.NamedCreater, scope RequestScope, admit admission.Interface, includeName bool) http.HandlerFunc {
return func(w http.ResponseWriter, req *http.Request) {
fmt.Println("***********************************************************************************************")
fmt.Println("start create", req)
fmt.Println("-----------------------------------------------------------------------------------------------")
fmt.Printf("%s\n", debug.Stack())
fmt.Println("***********************************************************************************************")
- 上述代码的作用是在api-server接收到创建资源的请求时打印日志，日志内容是http请求内容和当前方法的调用堆栈打印出来；
开始构建
- 进入目录$GOPATH/src/k8s.io/kubernetes，执行以下命令开始构建镜像：
KUBE_BUILD_PLATFORMS=linux/amd64 KUBE_BUILD_CONFORMANCE=n KUBE_BUILD_HYPERKUBE=n make release-images
- 根据build/root/Makefile中的描述，KUBE_BUILD_CONFORMANCE参数用来控制是否创建一致性测试镜像，KUBE_BUILD_HYPERKUBE控制是否创建hyperkube镜像(各种工具集成在一起)，这两个目前都用不上，因此是设置为"n"表示不构建；
- 大约10多分钟后，镜像构建成功，控制台输出如下：
[root@hedy kubernetes]# KUBE_BUILD_PLATFORMS=linux/amd64 KUBE_BUILD_CONFORMANCE=n KUBE_BUILD_HYPERKUBE=n make release-images
+++ [0316 19:11:40] Verifying Prerequisites....
+++ [0316 19:11:40] Building Docker image kube-build:build-b58720d1c7-5-v1.11.5-1
+++ [0316 19:15:46] Creating data container kube-build-data-b58720d1c7-5-v1.11.5-1
+++ [0316 19:17:02] Syncing sources to container
+++ [0316 19:17:11] Running build command...
+++ [0316 19:17:21] Building go targets for linux/amd64:
./vendor/k8s.io/code-generator/cmd/deepcopy-gen
+++ [0316 19:17:28] Building go targets for linux/amd64:
./vendor/k8s.io/code-generator/cmd/defaulter-gen
+++ [0316 19:17:34] Building go targets for linux/amd64:
./vendor/k8s.io/code-generator/cmd/conversion-gen
+++ [0316 19:17:43] Building go targets for linux/amd64:
./vendor/k8s.io/kube-openapi/cmd/openapi-gen
2019/03/16 19:17:51 Code for OpenAPI definitions generated
+++ [0316 19:17:52] Building go targets for linux/amd64:
./vendor/github.com/jteeuwen/go-bindata/go-bindata
+++ [0316 19:17:53] Building go targets for linux/amd64:
cmd/cloud-controller-manager
cmd/kube-apiserver
cmd/kube-controller-manager
cmd/kube-scheduler
cmd/kube-proxy
+++ [0316 19:20:41] Syncing out of container
+++ [0316 19:20:55] Building images: linux-amd64
+++ [0316 19:20:56] Starting docker build for image: cloud-controller-manager-amd64
+++ [0316 19:20:56] Starting docker build for image: kube-apiserver-amd64
+++ [0316 19:20:56] Starting docker build for image: kube-controller-manager-amd64
+++ [0316 19:20:56] Starting docker build for image: kube-scheduler-amd64
+++ [0316 19:20:56] Starting docker build for image: kube-proxy-amd64
+++ [0316 19:21:37] Deleting docker image k8s.gcr.io/kube-proxy:v1.13.5-beta.0.7_6c1e64b94a3e11-dirty
+++ [0316 19:21:41] Deleting docker image k8s.gcr.io/kube-scheduler:v1.13.5-beta.0.7_6c1e64b94a3e11-dirty
+++ [0316 19:21:42] Deleting docker image k8s.gcr.io/cloud-controller-manager:v1.13.5-beta.0.7_6c1e64b94a3e11-dirty
+++ [0316 19:21:42] Deleting docker image k8s.gcr.io/kube-controller-manager:v1.13.5-beta.0.7_6c1e64b94a3e11-dirty
+++ [0316 19:21:44] Deleting docker image k8s.gcr.io/kube-apiserver:v1.13.5-beta.0.7_6c1e64b94a3e11-dirty
+++ [0316 19:21:48] Docker builds done
- 在目录下可见构建的tar文件，可以通过docker load命令加载到本地镜像仓库使用：
[root@hedy amd64]# cd $GOPATH/src/k8s.io/kubernetes/_output/release-images/amd64
[root@hedy amd64]# ls
cloud-controller-manager.tar kube-apiserver.tar kube-controller-manager.tar kube-proxy.tar kube-scheduler.tar
- 将新生成的kube-apiserver.tar上传到kubernetes环境的master节点；
- 执行命令docker load < kube-apiserver.tar，将文件kube-apiserver.tar导入本地镜像仓库；
- 执行命令docker images，如下所示，可见本地仓库多了个TAG为v1.13.5-beta.0.7_6c1e64b94a3e11-dirty的kube-apiserver镜像：
[root@master 16]# docker load < kube-apiserver.tar
efd6f8f1a8c2: Loading layer [==================================================>] 138.5MB/138.5MB
Loaded image: k8s.gcr.io/kube-apiserver:v1.13.5-beta.0.7_6c1e64b94a3e11-dirty
[root@master 16]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
k8s.gcr.io/kube-apiserver v1.13.5-beta.0.7_6c1e64b94a3e11-dirty c9482a699ba7 About an hour ago 181MB
quay.io/coreos/flannel v0.11.0-amd64 ff281650a721 6 weeks ago 52.6MB
k8s.gcr.io/kube-proxy v1.13.0 8fa56d18961f 3 months ago 80.2MB
k8s.gcr.io/kube-scheduler v1.13.0 9508b7d8008d 3 months ago 79.6MB
k8s.gcr.io/kube-controller-manager v1.13.0 d82530ead066 3 months ago 146MB
k8s.gcr.io/kube-apiserver v1.13.0 f1ff9b7e3d6e 3 months ago 181MB
k8s.gcr.io/coredns 1.2.6 f59dcacceff4 4 months ago 40MB
k8s.gcr.io/etcd 3.2.24 3cab8e1b9802 5 months ago 220MB
k8s.gcr.io/pause 3.1 da86e6ba6ca1 15 months ago 742kB
- 先看看当前的api-server这个Pod的基本情况，命令是kubectl describe pod kube-apiserver-master -n kube-system，如下所示，当前的镜像是k8s.gcr.io/kube-apiserver:v1.13.0：
[root@master 16]# kubectl describe pod kube-apiserver-master -n kube-system
Name: kube-apiserver-master
Namespace: kube-system
Priority: 2000000000
PriorityClassName: system-cluster-critical
Node: master/192.168.182.130
Start Time: Sat, 16 Mar 2019 21:53:22 +0800
Labels: component=kube-apiserver
tier=control-plane
Annotations: kubernetes.io/config.hash: 38da173e77f3fd0c39712abbb79b5529
kubernetes.io/config.mirror: 38da173e77f3fd0c39712abbb79b5529
kubernetes.io/config.seen: 2019-02-23T13:46:43.135821321+08:00
kubernetes.io/config.source: file
scheduler.alpha.kubernetes.io/critical-pod:
Status: Running
IP: 192.168.182.130
Containers:
kube-apiserver:
Container ID: docker://cb0234269ee2fbef23078cc1bbf6a2d6edd4b248cb733f793853dbfec2f0d814
Image: k8s.gcr.io/kube-apiserver:v1.13.0
- 修改文件/etc/kubernetes/manifests/kube-apiserver.yaml，修改完毕后，执行命令kubectl apply -f kube-apiserver.yaml使修改生效；
验证源码修改是否生效
- 执行命令kubectl logs -f kube-apiserver-master -n kube-system查看Pod的日志，内容如下，可见请求的详细信息已经打印出来了，证明之前修改的代码已经生效，这是个系统事件对象的创建请求：
***********************************************************************************************
start create &{POST /api/v1/namespaces/kube-system/events HTTP/2.0 2 0 map[Accept:[application/vnd.kubernetes.protobuf, */*] Content-Type:[application/vnd.kubernetes.protobuf] User-Agent:[kubelet/v1.13.3 (linux/amd64) kubernetes/721bfa7] Content-Length:[359] Accept-Encoding:[gzip]] 0xc00ccd0870 <nil> 359 [] false 192.168.182.130:6443 map[] map[] <nil> map[] 192.168.182.131:58558 /api/v1/namespaces/kube-system/events 0xc00908cf20 <nil> <nil> 0xc00ccd0990}
-----------------------------------------------------------------------------------------------
goroutine 49344 [running]:
runtime/debug.Stack(0xc007076760, 0x1, 0x1)
/usr/local/go/src/runtime/debug/stack.go:24 +0xa7
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/handlers.createHandler.func1(0x5da9e80, 0xc00b83ce88, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/handlers/create.go:49 +0x185
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints.restfulCreateResource.func1(0xc00ccd09f0, 0xc0087d4ae0)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/installer.go:1038 +0xb1
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/metrics.InstrumentRouteFunc.func1(0xc00ccd09f0, 0xc0087d4ae0)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/metrics/metrics.go:225 +0x20d
k8s.io/kubernetes/vendor/github.com/emicklei/go-restful.(*Container).dispatch(0xc000120510, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/github.com/emicklei/go-restful/container.go:277 +0x9b8
k8s.io/kubernetes/vendor/github.com/emicklei/go-restful.(*Container).Dispatch(0xc000120510, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/github.com/emicklei/go-restful/container.go:199 +0x57
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server.director.ServeHTTP(0x3eae926, 0xe, 0xc000120510, 0xc0006e22a0, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/handler.go:146 +0x4b1
k8s.io/kubernetes/vendor/k8s.io/kube-aggregator/pkg/apiserver.(*proxyHandler).ServeHTTP(0xc0002cc230, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/kube-aggregator/pkg/apiserver/handler_proxy.go:90 +0x16a
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux.(*pathHandler).ServeHTTP(0xc00a07f740, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux/pathrecorder.go:248 +0x394
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux.(*PathRecorderMux).ServeHTTP(0xc008edc9a0, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux/pathrecorder.go:234 +0x8a
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server.director.ServeHTTP(0x3eb1a2a, 0xf, 0xc008d095f0, 0xc008edc9a0, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/handler.go:154 +0x661
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters.WithAuthorization.func1(0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters/authorization.go:64 +0x4c3
net/http.HandlerFunc.ServeHTTP(0xc008eea740, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters.WithMaxInFlightLimit.func1(0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters/maxinflight.go:160 +0x3ff
net/http.HandlerFunc.ServeHTTP(0xc008ef11d0, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters.WithImpersonation.func1(0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters/impersonation.go:50 +0x1eeb
net/http.HandlerFunc.ServeHTTP(0xc008eea780, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46b00)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters.WithAuthentication.func1(0x7fd553098398, 0xc00b83ce78, 0xc00bb46a00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters/authentication.go:81 +0x456
net/http.HandlerFunc.ServeHTTP(0xc008ebd1d0, 0x7fd553098398, 0xc00b83ce78, 0xc00bb46a00)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters.(*timeoutHandler).ServeHTTP.func1(0xc005f2ccc0, 0xc008f1c2e0, 0x5db4f80, 0xc00b83ce78, 0xc00bb46a00)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters/timeout.go:108 +0xb3
created by k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters.(*timeoutHandler).ServeHTTP
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters/timeout.go:97 +0x1b0
***********************************************************************************************
- 接下来我们自己创建个rc资源试试，新开一个控制台窗口连接Kubernetes的master，输入以下命令创建一个名为nginx-rc.yaml的文件，内容是nginx的rc：
tee nginx-rc.yaml <<-'EOF'
apiVersion: v1
kind: ReplicationController
metadata:
name: nginx-controller
spec:
replicas: 2
selector:
name: nginx
template:
metadata:
labels:
name: nginx
spec:
containers:
- name: nginx
image: nginx:latest
imagePullPolicy: Never
ports:
- containerPort: 80
EOF
- 在nginx-rc.yaml所在目录执行命令kubectl apply -f nginx-rc.yaml，即可创建资源；
- 在输出api-server日志的窗口可见如下内容，就是我们刚刚创建的rc资源：
***********************************************************************************************
start create &{POST /api/v1/namespaces/default/replicationcontrollers HTTP/2.0 2 0 map[Accept:[application/json] Content-Type:[application/json] User-Agent:[kubectl/v1.13.3 (linux/amd64) kubernetes/721bfa7] Content-Length:[818] Accept-Encoding:[gzip]] 0xc004b4dfb0 <nil> 818 [] false 192.168.182.130:6443 map[] map[] <nil> map[] 192.168.182.130:57856 /api/v1/namespaces/default/replicationcontrollers 0xc007b83600 <nil> <nil> 0xc004bc40f0}
-----------------------------------------------------------------------------------------------
goroutine 133183 [running]:
runtime/debug.Stack(0xc00a08c760, 0x1, 0x1)
/usr/local/go/src/runtime/debug/stack.go:24 +0xa7
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/handlers.createHandler.func1(0x5da9e80, 0xc006e07e58, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/handlers/create.go:49 +0x185
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints.restfulCreateResource.func1(0xc004bc4150, 0xc00a435680)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/installer.go:1038 +0xb1
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/metrics.InstrumentRouteFunc.func1(0xc004bc4150, 0xc00a435680)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/metrics/metrics.go:225 +0x20d
k8s.io/kubernetes/vendor/github.com/emicklei/go-restful.(*Container).dispatch(0xc000120510, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/github.com/emicklei/go-restful/container.go:277 +0x9b8
k8s.io/kubernetes/vendor/github.com/emicklei/go-restful.(*Container).Dispatch(0xc000120510, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/github.com/emicklei/go-restful/container.go:199 +0x57
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server.director.ServeHTTP(0x3eae926, 0xe, 0xc000120510, 0xc0006e22a0, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/handler.go:146 +0x4b1
k8s.io/kubernetes/vendor/k8s.io/kube-aggregator/pkg/apiserver.(*proxyHandler).ServeHTTP(0xc0002cc230, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/kube-aggregator/pkg/apiserver/handler_proxy.go:90 +0x16a
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux.(*pathHandler).ServeHTTP(0xc00a07f740, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux/pathrecorder.go:248 +0x394
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux.(*PathRecorderMux).ServeHTTP(0xc008edc9a0, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/mux/pathrecorder.go:234 +0x8a
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server.director.ServeHTTP(0x3eb1a2a, 0xf, 0xc008d095f0, 0xc008edc9a0, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/handler.go:154 +0x661
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters.WithAuthorization.func1(0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters/authorization.go:64 +0x4c3
net/http.HandlerFunc.ServeHTTP(0xc008eea740, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters.WithMaxInFlightLimit.func1(0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters/maxinflight.go:160 +0x3ff
net/http.HandlerFunc.ServeHTTP(0xc008ef11d0, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters.WithImpersonation.func1(0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters/impersonation.go:50 +0x1eeb
net/http.HandlerFunc.ServeHTTP(0xc008eea780, 0x7fd553098398, 0xc006e07e48, 0xc002cc0100)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters.WithAuthentication.func1(0x7fd553098398, 0xc006e07e48, 0xc002cc0000)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/endpoints/filters/authentication.go:81 +0x456
net/http.HandlerFunc.ServeHTTP(0xc008ebd1d0, 0x7fd553098398, 0xc006e07e48, 0xc002cc0000)
/usr/local/go/src/net/http/server.go:1964 +0x44
k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters.(*timeoutHandler).ServeHTTP.func1(0xc00a28ae40, 0xc008f1c2e0, 0x5db4f80, 0xc006e07e48, 0xc002cc0000)
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters/timeout.go:108 +0xb3
created by k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters.(*timeoutHandler).ServeHTTP
/go/src/k8s.io/kubernetes/_output/dockerized/go/src/k8s.io/kubernetes/vendor/k8s.io/apiserver/pkg/server/filters/timeout.go:97 +0x1b0
***********************************************************************************************
- 至此，Kubernetes的镜像的源码的修改、构建、运行实战就全部完成了，在学习源码的过程中如果遇到了有兴趣或有疑惑的代码，您不妨也尝试一下；
欢迎关注阿里云开发者社区博客：程序员欣宸
学习路上，你不孤单，欣宸原创一路相伴...
