1 时间序列
时间序列是指将某种现象某一个统计指标在不同时间上的各个数值，按时间先后顺序排列而形成的序列。典型的时间序列问题，例如股价预测、制造业中的电力预测、传统消费品行业的销售预测、客户日活跃量预测等等，本文以客户日活跃量预测为例。
2 预测方法
时间序列的预测方法可以归纳为三类： 1、时间序列基本规则法-周期因子法； 2、传统序列预测方法，如均值回归、ARIMA等线性模型； 3、机器学习方法，将序列预测转为有监督建模预测，如XGBOOST集成学习方法，LSTM长短期记忆神经网络模型。
2.1 周期因子法
当序列存在周期性时，通过加工出数据的周期性特征预测。这种比较麻烦，简述下流程不做展开。 1、计算周期的因子 。 2、计算base 3、预测结果=周期因子*base
2.2 Ariama
ARIMA模型，差分整合移动平均自回归模型，又称整合移动平均自回归模型 （移动也可称作滑动），时间序列预测分析方法之一。ARIMA（p，d，q）中， AR是"自回归"，p为自回归项数；MA为"滑动平均"，q为滑动平均项数， d为使之成为平稳序列所做的差分次数（阶数）。 建模的主要步骤是： 1、数据需要先做平稳法处理：采用（对数变换或差分）平稳化后，并检验符合平稳非白噪声序列； 2、观察PACF和ACF截尾/信息准则定阶确定(p, q); 3、 建立ARIMA（p，d，q）模型做预测;
""" ARIMA（ 差分自回归移动平均模型）预测DAU指标 """ import numpy as np import pandas as pd import seaborn as sns import scipy import matplotlib.pyplot as plt import statsmodels.api as sm import warnings from math import sqrt from pandas import Series from sklearn.metrics import mean_squared_error from statsmodels.graphics.tsaplots import acf, pacf,plot_acf, plot_pacf from statsmodels.stats.diagnostic import acorr_ljungbox from statsmodels.tsa.arima_model import ARIMA, ARMA, ARIMAResults from statsmodels.tsa.stattools import adfuller as ADF from keras.models import load_model warnings.filterwarnings("ignore") df = pd.read_csv('DAU.csv') dau = df["dau"] # 折线图 df.plot() plt.show() # 箱线图 ax = sns.boxplot(y=dau) plt.show() # pearsonr时间相关性 # a = df['dau'] # b = df.index # print(scipy.stats.pearsonr(a,b)) # 自相关性 plot_acf(dau) plot_pacf(dau) plt.show() print('raw序列的ADF') # p值大于0.05为非平衡时间序列 print(ADF(dau)) #对数变换平稳处理 # dau_log = np.log(dau) # dau_log = dau_log.ewm(com=0.5, span=12).mean() # plot_acf(dau_log) # plot_pacf(dau_log) # plt.show() # print('log序列的ADF') # print(ADF(dau_log)) # print('log序列的白噪声检验结果') # # 大于0.05为白噪声序列 # print(acorr_ljungbox(dau_log, lags=1)) #差分平稳处理 diff_1_df = dau.diff(1).dropna(how=any) diff_1_df = diff_1_df diff_1_df.plot() plot_acf(diff_1_df) plot_pacf(diff_1_df) plt.show() print('差分序列的ADF') print(ADF(diff_1_df)) print('差分序列的白噪声检验结果') # 大于0.05为白噪声序列 print(acorr_ljungbox(diff_1_df, lags=1)) # # 在满足检验条件后，给出最优p q值 () r, rac, Q = sm.tsa.acf(diff_1_df, qstat=True) prac = pacf(diff_1_df, method='ywmle') table_data = np.c_[range(1,len(r)), r[1:], rac, prac[1:len(rac)+1], Q] table = pd.DataFrame(table_data, columns=['lag', "AC","Q", "PAC", "Prob(>Q)"]) order = sm.tsa.arma_order_select_ic(diff_1_df, max_ar=7, max_ma=7, ic=['aic', 'bic', 'hqic']) p, q =order.bic_min_order print("p,q") print(p, q) # 建立ARIMA(p, d, q)模型 d=1 order = (p, 1, q) train_X = diff_1_df[:] arima_model = ARIMA(train_X, order).fit() # 模型报告 # print(arima_model.summary2()) # 保存模型 arima_model.save('./data/arima_model.h5') # # load model arima_model = ARIMAResults.load('./data/arima_model.h5') # 预测未来两天数据 predict_data_02 = arima_model.predict(start=len(train_X), end=len(train_X) + 1, dynamic = False) # 预测历史数据 predict_data = arima_model.predict(dynamic = False) # 逆log化 # original_series = np.exp(train_X.values[1:] + np.log(dau.values[1:-1])) # predict_series = np.exp(predict_data.values + np.log(dau.values[1:-1])) # 逆差分 original_series = train_X.values[1:] + dau.values[1:-1] predict_series = predict_data.values + dau.values[1:-1] # comp = pd.DataFrame() # comp['original'] = original_series # comp['predict'] = predict_series split_num = int(len(dau.values)/3) or 1 rmse = sqrt(mean_squared_error(original_series[-split_num:], predict_series[-split_num:])) print('Test RMSE: %.3f' % rmse) # (0,1,0)Test RMSE plt.title('ARIMA RMSE: %.3f' % rmse) plt.plot(original_series[-split_num:], label="original_series") plt.plot(predict_series[-split_num:], label="predict_series") plt.legend() plt.show()
2.3 LSTM
Long Short Term 网络是一种 RNN 特殊的类型，可以学习长期依赖序列信息。 LSTM区别于RNN的地方，主要就在于它在算法中加入了一个判断信息有用与否的“处理器”，这个处理器作用的结构被称为cell。一个cell当中被放置了三扇门，分别叫做输入门、遗忘门和输出门。一个信息进入LSTM的网络当中，只有符合信息才会留下，不符的信息则通过遗忘门被遗忘。通过这机制减少梯度爆炸/消失的风险。
建模主要的步骤： 1、数据处理：差分法数据平稳化；MAX-MIN法数据标准化；构建监督学习训练集；（对于LSTM，差分及标准化不是必要的） 2、模型训练并预测；

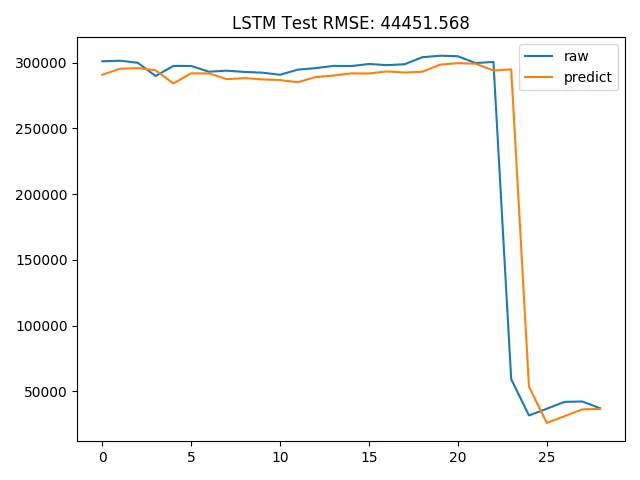

""" LSTM预测DAU指标 """ import numpy as np from pandas import DataFrame, datetime, concat,read_csv, Series from matplotlib import pyplot as plt from sklearn.metrics import mean_squared_error from math import sqrt from sklearn.preprocessing import MinMaxScaler from keras.models import Sequential from keras.models import load_model from keras.layers import Dense from keras.layers import LSTM from keras.callbacks import EarlyStopping from keras import regularizers from statsmodels.stats.diagnostic import acorr_ljungbox from statsmodels.tsa.stattools import adfuller as ADF # convert date def parser(x): return datetime.strptime(x,"%Y-%m-%d") #supervised def timeseries_to_supervised(data, lag=1): df = DataFrame(data) columns = [df.shift(1) for i in range(1, lag+1)] columns.append(df) df = concat(columns, axis=1) df.fillna(0, inplace=True) return df # diff series def difference(dataset, interval=1): diff = list() for i in range(interval, len(dataset)): value = dataset[i] - dataset[i - interval] diff.append(value) return Series(diff) # invert diff value def inverse_difference(history, yhat, interval=1): return yhat + history[-interval] # max_min标准化 [-1, 1] def scale(train, test): # fit scaler scaler = MinMaxScaler(feature_range=(-1, 1)) scaler = scaler.fit(train) # transform train train = train.reshape(train.shape[0], train.shape[1]) train_scaled = scaler.transform(train) # transform test test = test.reshape(test.shape[0], test.shape[1]) test_scaled = scaler.transform(test) return scaler, train_scaled, test_scaled # invert scale transform def invert_scale(scaler, X, value): new_row = [x for x in X] + [value] array = np.array(new_row) array = array.reshape(1, len(array)) inverted = scaler.inverse_transform(array) return inverted[0, -1] # model train def fit_lstm(train, batch_size, nb_epoch, neurons): X, y = train[:,0:-1], train[:,-1] # reshp X = X.reshape(X.shape[0], 1, X.shape[1]) model = Sequential() # stateful # input(samples:batch row, time steps:1, features:one time observed) model.add(LSTM(neurons, batch_input_shape=(batch_size, X.shape[1], X.shape[2]), stateful=True, return_sequences=True, dropout=0.2)) model.add(Dense(1)) model.compile(loss="mean_squared_error", optimizer="adam") # train train_loss = [] val_loss = [] for i in range(nb_epoch): # shuffle=false history = model.fit(X, y, batch_size=batch_size, epochs=1,verbose=0,shuffle=False,validation_split=0.3) train_loss.append(history.history['loss'][0]) val_loss.append(history.history['val_loss'][0]) # clear state model.reset_states() # 提前停止训练 if i > 50 and sum(val_loss[-10:]) < 0.3: print(sum(val_loss[-5:])) print("better epoch", i) break # print(history.history['loss']) plt.plot(train_loss) plt.plot(val_loss) plt.title('model train vs validation loss') plt.ylabel('loss') plt.xlabel('epoch') plt.legend(['train', 'validation'], loc='upper right') plt.show() return model # model predict def forecast_lstm(model, batch_size, X): X = X.reshape(1, 1, len(X)) yhat = model.predict(X, batch_size=batch_size) return yhat[0,0] # 开始加载数据 series = read_csv('DAU.csv')["dau"] print(series.head()) series.plot() plt.show() # 数据平稳化 raw_values = series.values diff_values = difference(raw_values, 1) print(diff_values.head()) plt.plot(raw_values, label="raw") plt.plot(diff_values, label="diff") plt.legend() plt.show() print('差分序列的ADF') print(ADF(diff_values)[1]) print('差分序列的白噪声检验结果') # (array([13.95689179]), array([0.00018705])) print(acorr_ljungbox(diff_values, lags=1)[1][0]) # 序列转监督数据 supervised = timeseries_to_supervised(diff_values, 1) print(supervised.head()) supervised_values = supervised.values # split data split_num = int(len(supervised_values)/3) or 1 train, test = supervised_values[0:-split_num], supervised_values[-split_num:] # 标准化 scaler, train_scaled, test_scaled = scale(train, test) #fit model lstm_model = fit_lstm(train_scaled, 1, 200, 5) train_reshaped = train_scaled[:, 0].reshape(len(train_scaled), 1, 1) train_predict = lstm_model.predict(train_reshaped, batch_size=1) train_raw = train_scaled[:, 0] # # train RMSE plot # train_raw = raw_values[0:-split_num] # predictions = list() # for i in range(len(train_scaled)): # # make one-step forecast # X, y = train_scaled[i, 0:-1], train_scaled[i, -1] # yhat = forecast_lstm(lstm_model, 1, X) # # invert scaling # yhat = invert_scale(scaler, X, yhat) # # invert differencing # yhat = inverse_difference(raw_values, yhat, len(train_scaled)+1-i) # # store forecast # predictions.append(yhat) # expected = train_raw[i] # mae = abs(yhat-expected) # print('data=%d, Predicted=%f, Expected=%f, mae=%.3f' % (i+1, yhat, expected,mae)) # print(mae) # plt.plot(train_raw, label="train_raw") # plt.plot(predictions, label="predict") # plt.legend() # plt.show() # 保存模型 lstm_model.save('./data/lstm_model_epoch50.h5') # # load model lstm_model = load_model('./data/lstm_model_epoch50.h5') # validation predictions = list() for i in range(len(test_scaled)): # make one-step forecast X, y = test_scaled[i, 0:-1], test_scaled[i, -1] yhat = forecast_lstm(lstm_model, 1, X) # invert scaling yhat = invert_scale(scaler, X, yhat) # invert differencing yhat = inverse_difference(raw_values, yhat, len(test_scaled)+1-i) # store forecast predictions.append(yhat) expected = raw_values[len(train) + i + 1] mae = abs(yhat-expected) print('data=%d, Predicted=%f, Expected=%f, mae=%.3f' % (i+1, yhat, expected, mae)) mae = np.average(abs(predictions - raw_values[-split_num:])) print("Test MAE: %.3f",mae) #report performance rmse = sqrt(mean_squared_error(raw_values[-split_num:], predictions)) print('Test RMSE: %.3f' % rmse) # line plot of observed vs predicted plt.plot(raw_values[-split_num:], label="raw") plt.plot(predictions, label="predict") plt.title('LSTM Test RMSE: %.3f' % rmse) plt.legend() plt.show()
# 附 数据集dau.csv log_date,dau 2018-06-01,257488 2018-06-02,286612 2018-06-03,287405 2018-06-04,246955 2018-06-05,249926 2018-06-06,252951 2018-06-07,255467 2018-06-08,262498 2018-06-09,288368 2018-06-10,288440 2018-06-11,255447 2018-06-12,251316 2018-06-13,251654 2018-06-14,250515 2018-06-15,262155 2018-06-16,288844 2018-06-17,296143 2018-06-18,298142 2018-06-19,264124 2018-06-20,262992 2018-06-21,263549 2018-06-22,271631 2018-06-23,296452 2018-06-24,296986 2018-06-25,271197 2018-06-26,270546 2018-06-27,271208 2018-06-28,275496 2018-06-29,284218 2018-06-30,307498 2018-07-01,316097 2018-07-02,295106 2018-07-03,290675 2018-07-04,292231 2018-07-05,297510 2018-07-06,298839 2018-07-07,302083 2018-07-08,301238 2018-07-09,296398 2018-07-10,300986 2018-07-11,301459 2018-07-12,299865 2018-07-13,289830 2018-07-14,297501 2018-07-15,297443 2018-07-16,293097 2018-07-17,293866 2018-07-18,292902 2018-07-19,292368 2018-07-20,290766 2018-07-21,294669 2018-07-22,295811 2018-07-23,297514 2018-07-24,297392 2018-07-25,298957 2018-07-26,298101 2018-07-27,298740 2018-07-28,304086 2018-07-29,305269 2018-07-30,304827 2018-07-31,299689 2018-08-01,300526 2018-08-02,59321 2018-08-03,31731 2018-08-04,36838 2018-08-05,42043 2018-08-06,42366 2018-08-07,37209
