摘要
CNN不仅仅是一种算法，它更像是一把解锁视觉智能的钥匙，让机器拥有了"看见"和"理解"图像的能力。
在我的技术探索历程中，CNN始终是最令人着迷的领域之一。从最初的LeNet-5到如今的Vision Transformer，每一次架构创新都让我感受到技术进步的震撼。我记得第一次成功训练出能够识别手写数字的CNN模型时的兴奋，那种看着损失函数逐渐下降、准确率不断提升的成就感至今难忘。
CNN的核心思想源于生物视觉系统的启发，通过卷积操作、池化机制和层次化特征提取，模拟了人类视觉皮层的信息处理过程。这种设计不仅在理论上优雅，在实践中更是展现出了惊人的效果。从图像分类到目标检测，从医学影像分析到自动驾驶，CNN的应用领域之广泛令人叹为观止。
在本文中，我将带领大家深入CNN的技术内核，从数学原理到代码实现，从经典架构到最新发展，全方位解析这一改变世界的技术。我们将探讨卷积层的工作机制、池化操作的设计哲学、激活函数的选择策略，以及如何在实际项目中构建高效的CNN模型。通过丰富的代码示例和可视化图表，让每一个技术细节都变得清晰可见。
1. CNN基础原理与核心概念
1.1 卷积神经网络的生物学启发
卷积神经网络的设计灵感来源于生物视觉系统的研究。1962年，Hubel和Wiesel通过对猫视觉皮层的研究发现，视觉神经元具有局部感受野的特性，不同的神经元对特定的视觉模式（如边缘、角度）有选择性响应。
import numpy as np
import matplotlib.pyplot as plt
from scipy import ndimage
# 模拟简单细胞的边缘检测功能
def simulate_simple_cell(image, orientation=0):
"""
模拟视觉皮层简单细胞的边缘检测功能
Args:
image: 输入图像
orientation: 边缘方向（度）
Returns:
检测结果
"""
# 创建Gabor滤波器模拟简单细胞
theta = np.radians(orientation)
kernel_size = 9
sigma = 2.0
lambd = 4.0
gamma = 0.5
# 生成Gabor核
x, y = np.meshgrid(np.arange(-kernel_size//2 + 1, kernel_size//2 + 1),
np.arange(-kernel_size//2 + 1, kernel_size//2 + 1))
x_theta = x * np.cos(theta) + y * np.sin(theta)
y_theta = -x * np.sin(theta) + y * np.cos(theta)
gabor = np.exp(-(x_theta**2 + gamma**2 * y_theta**2) / (2 * sigma**2)) * \
np.cos(2 * np.pi * x_theta / lambd)
# 应用滤波器
response = ndimage.convolve(image, gabor, mode='constant')
return response, gabor
# 这段代码展示了如何模拟生物视觉系统中简单细胞的功能
# Gabor滤波器能够检测特定方向的边缘，这正是CNN卷积操作的生物学基础
1.2 卷积操作的数学原理
卷积操作是CNN的核心，其数学定义为：
$$ (f * g)(t) = \int_{-\infty}^{\infty} f(\tau) g(t - \tau) d\tau $$
在离散情况下，二维卷积定义为：
$$ S(i,j) = (I * K)(i,j) = \sum_m \sum_n I(m,n)K(i-m,j-n) $$
import torch
import torch.nn as nn
import torch.nn.functional as F
class ConvolutionDemo:
"""卷积操作演示类"""
def __init__(self):
self.device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
def manual_convolution(self, input_tensor, kernel, stride=1, padding=0):
"""
手动实现卷积操作，帮助理解卷积的计算过程
Args:
input_tensor: 输入张量 (batch, channels, height, width)
kernel: 卷积核 (out_channels, in_channels, kernel_h, kernel_w)
stride: 步长
padding: 填充
Returns:
卷积结果
"""
batch_size, in_channels, in_h, in_w = input_tensor.shape
out_channels, _, kernel_h, kernel_w = kernel.shape
# 计算输出尺寸
out_h = (in_h + 2 * padding - kernel_h) // stride + 1
out_w = (in_w + 2 * padding - kernel_w) // stride + 1
# 添加填充
if padding > 0:
input_tensor = F.pad(input_tensor, (padding, padding, padding, padding))
# 初始化输出张量
output = torch.zeros(batch_size, out_channels, out_h, out_w)
# 执行卷积操作
for b in range(batch_size):
for oc in range(out_channels):
for oh in range(out_h):
for ow in range(out_w):
h_start = oh * stride
h_end = h_start + kernel_h
w_start = ow * stride
w_end = w_start + kernel_w
# 提取感受野
receptive_field = input_tensor[b, :, h_start:h_end, w_start:w_end]
# 计算卷积
output[b, oc, oh, ow] = torch.sum(receptive_field * kernel[oc])
return output
def demonstrate_feature_maps(self, input_image):
"""演示不同卷积核产生的特征图"""
# 定义不同类型的卷积核
edge_kernels = {
'horizontal_edge': torch.tensor([[-1, -1, -1], [0, 0, 0], [1, 1, 1]], dtype=torch.float32),
'vertical_edge': torch.tensor([[-1, 0, 1], [-1, 0, 1], [-1, 0, 1]], dtype=torch.float32),
'diagonal_edge': torch.tensor([[0, 1, 0], [1, 0, -1], [0, -1, 0]], dtype=torch.float32),
'blur': torch.tensor([[1, 1, 1], [1, 1, 1], [1, 1, 1]], dtype=torch.float32) / 9
}
feature_maps = {
}
for name, kernel in edge_kernels.items():
# 调整kernel形状以适应conv2d
kernel = kernel.unsqueeze(0).unsqueeze(0) # (1, 1, 3, 3)
feature_map = F.conv2d(input_image.unsqueeze(0).unsqueeze(0), kernel, padding=1)
feature_maps[name] = feature_map.squeeze()
return feature_maps
# 这个类展示了卷积操作的核心机制
# 通过手动实现和特征图演示，帮助理解CNN如何提取图像特征
2. CNN架构设计与层次结构
2.1 经典CNN架构演进

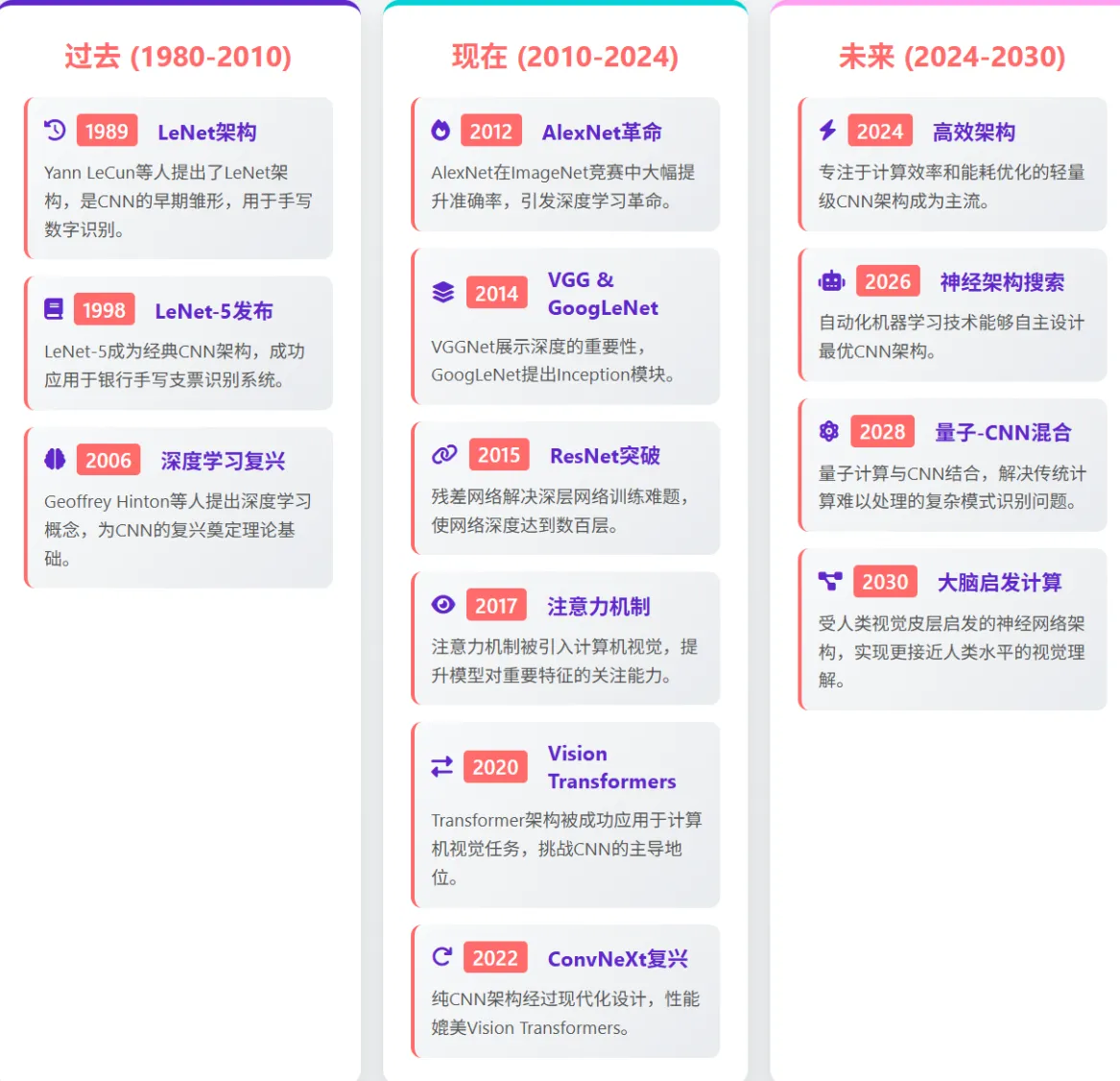

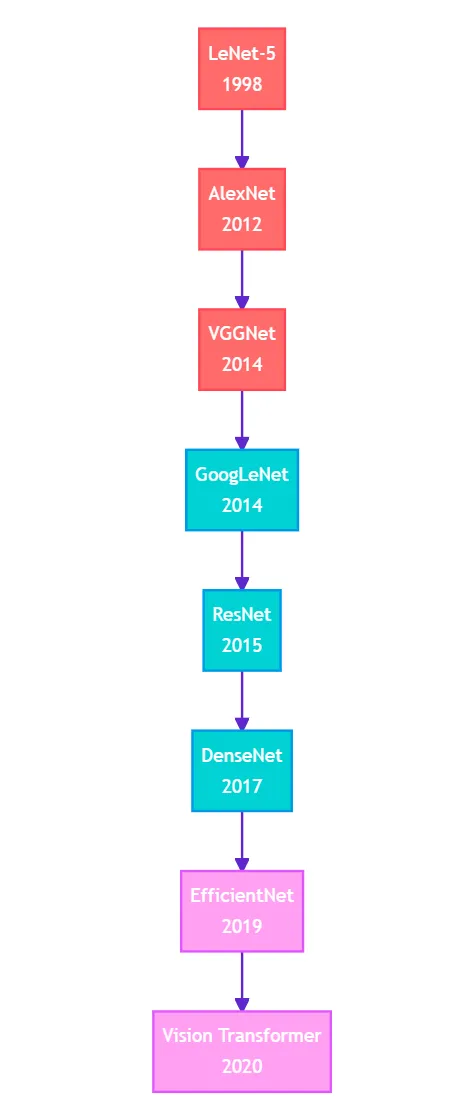

图1：CNN架构演进时间线图 - 展示了从经典到现代CNN架构的发展历程
2.2 现代CNN架构实现
import torch
import torch.nn as nn
import torch.nn.functional as F
class ResidualBlock(nn.Module):
"""残差块实现 - ResNet的核心组件"""
def __init__(self, in_channels, out_channels, stride=1, downsample=None):
super(ResidualBlock, self).__init__()
# 第一个卷积层
self.conv1 = nn.Conv2d(in_channels, out_channels,
kernel_size=3, stride=stride, padding=1, bias=False)
self.bn1 = nn.BatchNorm2d(out_channels)
# 第二个卷积层
self.conv2 = nn.Conv2d(out_channels, out_channels,
kernel_size=3, stride=1, padding=1, bias=False)
self.bn2 = nn.BatchNorm2d(out_channels)
# 下采样层（用于匹配维度）
self.downsample = downsample
self.relu = nn.ReLU(inplace=True)
def forward(self, x):
identity = x
# 第一个卷积块
out = self.conv1(x)
out = self.bn1(out)
out = self.relu(out)
# 第二个卷积块
out = self.conv2(out)
out = self.bn2(out)
# 残差连接
if self.downsample is not None:
identity = self.downsample(x)
out += identity # 关键的残差连接
out = self.relu(out)
return out
class ModernCNN(nn.Module):
"""现代CNN架构，融合多种先进技术"""
def __init__(self, num_classes=1000, dropout_rate=0.5):
super(ModernCNN, self).__init__()
# 初始卷积层
self.conv1 = nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3, bias=False)
self.bn1 = nn.BatchNorm2d(64)
self.relu = nn.ReLU(inplace=True)
self.maxpool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
# 残差层组
self.layer1 = self._make_layer(64, 64, 2, stride=1)
self.layer2 = self._make_layer(64, 128, 2, stride=2)
self.layer3 = self._make_layer(128, 256, 2, stride=2)
self.layer4 = self._make_layer(256, 512, 2, stride=2)
# 全局平均池化
self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
# 分类器
self.dropout = nn.Dropout(dropout_rate)
self.fc = nn.Linear(512, num_classes)
# 权重初始化
self._initialize_weights()
def _make_layer(self, in_channels, out_channels, blocks, stride=1):
"""构建残差层组"""
downsample = None
if stride != 1 or in_channels != out_channels:
downsample = nn.Sequential(
nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride, bias=False),
nn.BatchNorm2d(out_channels)
)
layers = []
layers.append(ResidualBlock(in_channels, out_channels, stride, downsample))
for _ in range(1, blocks):
layers.append(ResidualBlock(out_channels, out_channels))
return nn.Sequential(*layers)
def _initialize_weights(self):
"""权重初始化"""
for m in self.modules():
if isinstance(m, nn.Conv2d):
nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
elif isinstance(m, nn.BatchNorm2d):
nn.init.constant_(m.weight, 1)
nn.init.constant_(m.bias, 0)
elif isinstance(m, nn.Linear):
nn.init.normal_(m.weight, 0, 0.01)
nn.init.constant_(m.bias, 0)
def forward(self, x):
# 特征提取
x = self.conv1(x)
x = self.bn1(x)
x = self.relu(x)
x = self.maxpool(x)
x = self.layer1(x)
x = self.layer2(x)
x = self.layer3(x)
x = self.layer4(x)
# 分类
x = self.avgpool(x)
x = torch.flatten(x, 1)
x = self.dropout(x)
x = self.fc(x)
return x
# 这个实现展示了现代CNN的核心设计原则：
# 1. 残差连接解决梯度消失问题
# 2. 批归一化加速训练
# 3. 全局平均池化减少参数
# 4. 合理的权重初始化策略
3. 卷积层与特征提取机制
3.1 多尺度特征提取

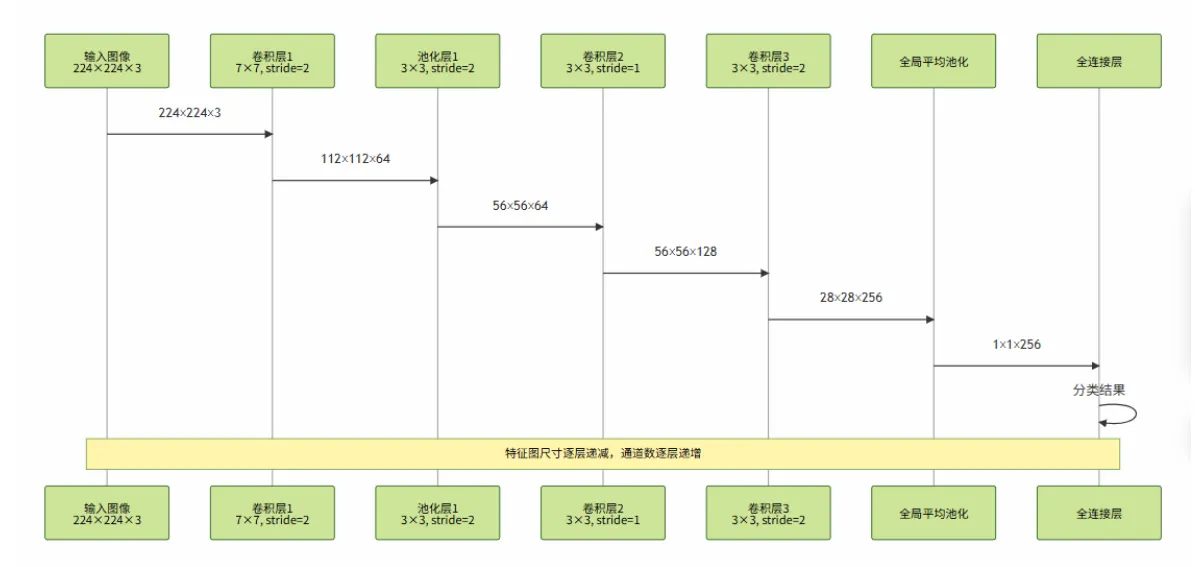

图2：CNN特征提取流程时序图 - 展示了特征图在网络中的尺寸变化过程
3.2 注意力机制增强的卷积
class ChannelAttention(nn.Module):
"""通道注意力机制"""
def __init__(self, in_channels, reduction=16):
super(ChannelAttention, self).__init__()
self.avg_pool = nn.AdaptiveAvgPool2d(1)
self.max_pool = nn.AdaptiveMaxPool2d(1)
# 共享的MLP
self.mlp = nn.Sequential(
nn.Conv2d(in_channels, in_channels // reduction, 1, bias=False),
nn.ReLU(inplace=True),
nn.Conv2d(in_channels // reduction, in_channels, 1, bias=False)
)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
# 平均池化和最大池化
avg_out = self.mlp(self.avg_pool(x))
max_out = self.mlp(self.max_pool(x))
# 融合并生成注意力权重
out = avg_out + max_out
return self.sigmoid(out)
class SpatialAttention(nn.Module):
"""空间注意力机制"""
def __init__(self, kernel_size=7):
super(SpatialAttention, self).__init__()
self.conv = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
# 通道维度的平均和最大
avg_out = torch.mean(x, dim=1, keepdim=True)
max_out, _ = torch.max(x, dim=1, keepdim=True)
# 拼接并卷积
x_cat = torch.cat([avg_out, max_out], dim=1)
out = self.conv(x_cat)
return self.sigmoid(out)
class CBAM(nn.Module):
"""卷积块注意力模块 (Convolutional Block Attention Module)"""
def __init__(self, in_channels, reduction=16, kernel_size=7):
super(CBAM, self).__init__()
self.channel_attention = ChannelAttention(in_channels, reduction)
self.spatial_attention = SpatialAttention(kernel_size)
def forward(self, x):
# 通道注意力
x = x * self.channel_attention(x)
# 空间注意力
x = x * self.spatial_attention(x)
return x
class AttentionConvBlock(nn.Module):
"""集成注意力机制的卷积块"""
def __init__(self, in_channels, out_channels, stride=1):
super(AttentionConvBlock, self).__init__()
self.conv1 = nn.Conv2d(in_channels, out_channels, 3, stride, 1, bias=False)
self.bn1 = nn.BatchNorm2d(out_channels)
self.conv2 = nn.Conv2d(out_channels, out_channels, 3, 1, 1, bias=False)
self.bn2 = nn.BatchNorm2d(out_channels)
# 注意力机制
self.cbam = CBAM(out_channels)
# 残差连接的维度匹配
self.shortcut = nn.Sequential()
if stride != 1 or in_channels != out_channels:
self.shortcut = nn.Sequential(
nn.Conv2d(in_channels, out_channels, 1, stride, bias=False),
nn.BatchNorm2d(out_channels)
)
self.relu = nn.ReLU(inplace=True)
def forward(self, x):
identity = self.shortcut(x)
out = self.relu(self.bn1(self.conv1(x)))
out = self.bn2(self.conv2(out))
# 应用注意力机制
out = self.cbam(out)
out += identity
out = self.relu(out)
return out
# 注意力机制让CNN能够自适应地关注重要特征
# CBAM通过通道和空间两个维度的注意力，显著提升了特征表达能力
4. 池化操作与降维策略
4.1 池化操作对比分析
| 池化类型 | 计算方式 | 优势 | 劣势 | 适用场景 |
|---|---|---|---|---|
| 最大池化 | 取窗口最大值 | 保留显著特征，计算简单 | 丢失位置信息 | 目标检测、分类 |
| 平均池化 | 取窗口平均值 | 保留全局信息，平滑特征 | 可能模糊重要特征 | 全局特征提取 |
| 全局平均池化 | 整个特征图平均 | 大幅减少参数，防止过拟合 | 丢失空间结构 | 分类任务最后一层 |
| 自适应池化 | 自适应输出尺寸 | 处理任意输入尺寸 | 计算复杂度高 | 多尺度输入处理 |
| 随机池化 | 按概率选择 | 增强泛化能力 | 训练不稳定 | 数据增强 |
4.2 高级池化策略实现
class AdvancedPooling(nn.Module):
"""高级池化策略集合"""
def __init__(self, in_channels, pool_type='mixed'):
super(AdvancedPooling, self).__init__()
self.pool_type = pool_type
if pool_type == 'mixed':
# 混合池化：结合最大池化和平均池化
self.max_pool = nn.MaxPool2d(2, 2)
self.avg_pool = nn.AvgPool2d(2, 2)
self.conv_fusion = nn.Conv2d(in_channels * 2, in_channels, 1)
elif pool_type == 'stochastic':
# 随机池化实现
self.pool_size = 2
elif pool_type == 'learnable':
# 可学习池化
self.pool_weights = nn.Parameter(torch.randn(1, in_channels, 2, 2))
elif pool_type == 'attention':
# 注意力池化
self.attention_conv = nn.Conv2d(in_channels, 1, 1)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
if self.pool_type == 'mixed':
max_out = self.max_pool(x)
avg_out = self.avg_pool(x)
mixed = torch.cat([max_out, avg_out], dim=1)
return self.conv_fusion(mixed)
elif self.pool_type == 'stochastic':
return self.stochastic_pooling(x)
elif self.pool_type == 'learnable':
return F.conv2d(x, self.pool_weights, stride=2, groups=x.size(1))
elif self.pool_type == 'attention':
attention_map = self.sigmoid(self.attention_conv(x))
return F.adaptive_avg_pool2d(x * attention_map, (x.size(2)//2, x.size(3)//2))
def stochastic_pooling(self, x):
"""随机池化实现"""
batch_size, channels, height, width = x.size()
out_h, out_w = height // self.pool_size, width // self.pool_size
output = torch.zeros(batch_size, channels, out_h, out_w, device=x.device)
for i in range(out_h):
for j in range(out_w):
h_start = i * self.pool_size
h_end = h_start + self.pool_size
w_start = j * self.pool_size
w_end = w_start + self.pool_size
pool_region = x[:, :, h_start:h_end, w_start:w_end]
if self.training:
# 训练时使用随机选择
pool_flat = pool_region.view(batch_size, channels, -1)
probs = F.softmax(pool_flat, dim=2)
indices = torch.multinomial(probs.view(-1, self.pool_size**2), 1)
indices = indices.view(batch_size, channels, 1)
output[:, :, i, j] = torch.gather(pool_flat, 2, indices).squeeze(2)
else:
# 测试时使用期望值
pool_flat = pool_region.view(batch_size, channels, -1)
probs = F.softmax(pool_flat, dim=2)
output[:, :, i, j] = torch.sum(pool_flat * probs, dim=2)
return output
# 这个实现展示了多种高级池化策略
# 每种策略都有其特定的应用场景和优势
5. 激活函数与非线性变换
5.1 激活函数性能对比

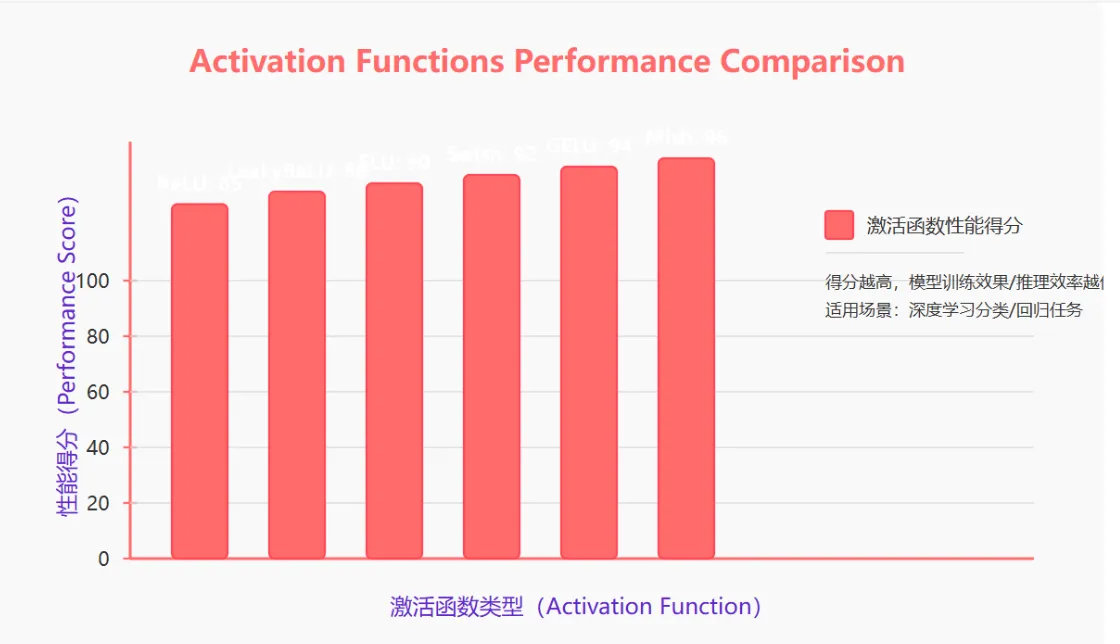

图3：激活函数性能对比图 - 展示了不同激活函数在深度网络中的表现
5.2 现代激活函数实现
import torch
import torch.nn as nn
import torch.nn.functional as F
import math
class ModernActivations:
"""现代激活函数集合"""
@staticmethod
def swish(x, beta=1.0):
"""Swish激活函数: x * sigmoid(β*x)"""
return x * torch.sigmoid(beta * x)
@staticmethod
def mish(x):
"""Mish激活函数: x * tanh(softplus(x))"""
return x * torch.tanh(F.softplus(x))
@staticmethod
def gelu(x):
"""GELU激活函数: 0.5 * x * (1 + tanh(√(2/π) * (x + 0.044715 * x³)))"""
return 0.5 * x * (1 + torch.tanh(math.sqrt(2 / math.pi) * (x + 0.044715 * torch.pow(x, 3))))
@staticmethod
def frelu(x, threshold=0.0):
"""FReLU激活函数: max(x, threshold)，threshold可学习"""
return torch.max(x, threshold)
class AdaptiveActivation(nn.Module):
"""自适应激活函数"""
def __init__(self, num_parameters=1, init_value=0.25):
super(AdaptiveActivation, self).__init__()
self.num_parameters = num_parameters
self.weight = nn.Parameter(torch.ones(num_parameters) * init_value)
def forward(self, x):
# PReLU变体：f(x) = max(0, x) + a * min(0, x)
return F.relu(x) + self.weight * F.relu(-x)
class ActivationComparison:
"""激活函数对比实验"""
def __init__(self):
self.activations = {
'ReLU': nn.ReLU(),
'LeakyReLU': nn.LeakyReLU(0.01),
'ELU': nn.ELU(),
'Swish': lambda x: ModernActivations.swish(x),
'Mish': lambda x: ModernActivations.mish(x),
'GELU': lambda x: ModernActivations.gelu(x),
'Adaptive': AdaptiveActivation()
}
def compare_gradients(self, x_range=(-3, 3), num_points=1000):
"""比较不同激活函数的梯度特性"""
x = torch.linspace(x_range[0], x_range[1], num_points, requires_grad=True)
results = {
}
for name, activation in self.activations.items():
if isinstance(activation, nn.Module):
y = activation(x)
else:
y = activation(x)
# 计算梯度
grad = torch.autograd.grad(y.sum(), x, create_graph=True)[0]
results[name] = {
'output': y.detach(),
'gradient': grad.detach(),
'dead_neurons': (grad == 0).float().mean().item()
}
return results
def benchmark_performance(self, input_tensor, iterations=1000):
"""性能基准测试"""
results = {
}
for name, activation in self.activations.items():
# 预热
for _ in range(10):
if isinstance(activation, nn.Module):
_ = activation(input_tensor)
else:
_ = activation(input_tensor)
# 计时
torch.cuda.synchronize() if torch.cuda.is_available() else None
start_time = torch.cuda.Event(enable_timing=True) if torch.cuda.is_available() else None
end_time = torch.cuda.Event(enable_timing=True) if torch.cuda.is_available() else None
if torch.cuda.is_available():
start_time.record()
for _ in range(iterations):
if isinstance(activation, nn.Module):
output = activation(input_tensor)
else:
output = activation(input_tensor)
if torch.cuda.is_available():
end_time.record()
torch.cuda.synchronize()
elapsed_time = start_time.elapsed_time(end_time)
else:
elapsed_time = 0 # CPU计时需要其他方法
results[name] = {
'time_ms': elapsed_time,
'throughput': iterations / (elapsed_time / 1000) if elapsed_time > 0 else float('inf')
}
return results
# 这个实现提供了全面的激活函数对比框架
# 包括梯度特性分析和性能基准测试
6. 批归一化与正则化技术
6.1 正则化技术架构图
图4：正则化技术架构图 - 展示了CNN中常用的正则化方法及其关系
6.2 高级正则化技术实现
class AdvancedNormalization(nn.Module):
"""高级归一化技术集合"""
def __init__(self, num_features, norm_type='batch', num_groups=32, eps=1e-5, momentum=0.1):
super(AdvancedNormalization, self).__init__()
self.norm_type = norm_type
self.num_features = num_features
self.eps = eps
if norm_type == 'batch':
self.norm = nn.BatchNorm2d(num_features, eps=eps, momentum=momentum)
elif norm_type == 'layer':
self.norm = nn.LayerNorm([num_features], eps=eps)
elif norm_type == 'group':
self.norm = nn.GroupNorm(num_groups, num_features, eps=eps)
elif norm_type == 'instance':
self.norm = nn.InstanceNorm2d(num_features, eps=eps)
elif norm_type == 'switchable':
# 可切换归一化
self.batch_norm = nn.BatchNorm2d(num_features, eps=eps, momentum=momentum)
self.layer_norm = nn.LayerNorm([num_features], eps=eps)
self.switch_weight = nn.Parameter(torch.tensor(0.5))
def forward(self, x):
if self.norm_type == 'switchable':
# 动态选择归一化方式
batch_out = self.batch_norm(x)
# Layer norm需要调整维度
b, c, h, w = x.size()
layer_input = x.view(b, c, -1).transpose(1, 2) # (b, h*w, c)
layer_out = self.layer_norm(layer_input)
layer_out = layer_out.transpose(1, 2).view(b, c, h, w)
# 加权融合
return self.switch_weight * batch_out + (1 - self.switch_weight) * layer_out
else:
if self.norm_type == 'layer':
# Layer norm特殊处理
b, c, h, w = x.size()
x_reshaped = x.view(b, c, -1).transpose(1, 2)
normalized = self.norm(x_reshaped)
return normalized.transpose(1, 2).view(b, c, h, w)
else:
return self.norm(x)
class DropBlock2D(nn.Module):
"""DropBlock正则化 - 结构化的Dropout"""
def __init__(self, drop_rate=0.1, block_size=7):
super(DropBlock2D, self).__init__()
self.drop_rate = drop_rate
self.block_size = block_size
def forward(self, x):
if not self.training or self.drop_rate == 0:
return x
# 计算gamma参数
gamma = self.drop_rate / (self.block_size ** 2)
# 生成mask
batch_size, channels, height, width = x.size()
# 采样中心点
w = torch.rand(batch_size, channels, height - self.block_size + 1,
width - self.block_size + 1, device=x.device)
mask = (w < gamma).float()
# 扩展mask到block大小
mask = F.max_pool2d(mask, kernel_size=self.block_size,
stride=1, padding=self.block_size // 2)
# 确保mask尺寸匹配
if mask.size() != x.size():
mask = F.interpolate(mask, size=(height, width), mode='nearest')
# 应用mask并重新缩放
mask = 1 - mask
return x * mask * mask.numel() / mask.sum()
class StochasticDepth(nn.Module):
"""随机深度 - 训练时随机跳过层"""
def __init__(self, drop_prob=0.1):
super(StochasticDepth, self).__init__()
self.drop_prob = drop_prob
def forward(self, x, residual):
if not self.training or self.drop_prob == 0:
return x + residual
# 随机决定是否跳过
if torch.rand(1).item() < self.drop_prob:
return x # 跳过残差连接
else:
return x + residual
class RegularizedConvBlock(nn.Module):
"""集成多种正则化技术的卷积块"""
def __init__(self, in_channels, out_channels, stride=1,
norm_type='batch', drop_rate=0.1, use_dropblock=True,
stochastic_depth_prob=0.1):
super(RegularizedConvBlock, self).__init__()
# 卷积层
self.conv1 = nn.Conv2d(in_channels, out_channels, 3, stride, 1, bias=False)
self.norm1 = AdvancedNormalization(out_channels, norm_type)
self.conv2 = nn.Conv2d(out_channels, out_channels, 3, 1, 1, bias=False)
self.norm2 = AdvancedNormalization(out_channels, norm_type)
# 正则化层
if use_dropblock:
self.dropout = DropBlock2D(drop_rate)
else:
self.dropout = nn.Dropout2d(drop_rate)
self.stochastic_depth = StochasticDepth(stochastic_depth_prob)
# 残差连接
self.shortcut = nn.Sequential()
if stride != 1 or in_channels != out_channels:
self.shortcut = nn.Sequential(
nn.Conv2d(in_channels, out_channels, 1, stride, bias=False),
AdvancedNormalization(out_channels, norm_type)
)
self.relu = nn.ReLU(inplace=True)
def forward(self, x):
identity = self.shortcut(x)
out = self.relu(self.norm1(self.conv1(x)))
out = self.dropout(out)
out = self.norm2(self.conv2(out))
# 使用随机深度
out = self.stochastic_depth(identity, out)
out = self.relu(out)
return out
# 这个实现展示了现代CNN中的高级正则化技术
# 包括多种归一化方法、结构化dropout和随机深度
7. CNN训练优化策略
7.1 学习率调度策略
图5：学习率调度策略象限图 - 展示了不同调度策略的复杂度与性能关系
7.2 高级训练策略实现
import torch.optim as optim
from torch.optim.lr_scheduler import _LRScheduler
import math
class WarmupCosineAnnealingLR(_LRScheduler):
"""带预热的余弦退火学习率调度器"""
def __init__(self, optimizer, warmup_epochs, max_epochs, eta_min=0, last_epoch=-1):
self.warmup_epochs = warmup_epochs
self.max_epochs = max_epochs
self.eta_min = eta_min
super(WarmupCosineAnnealingLR, self).__init__(optimizer, last_epoch)
def get_lr(self):
if self.last_epoch < self.warmup_epochs:
# 预热阶段：线性增长
return [base_lr * (self.last_epoch + 1) / self.warmup_epochs
for base_lr in self.base_lrs]
else:
# 余弦退火阶段
progress = (self.last_epoch - self.warmup_epochs) / (self.max_epochs - self.warmup_epochs)
return [self.eta_min + (base_lr - self.eta_min) *
(1 + math.cos(math.pi * progress)) / 2
for base_lr in self.base_lrs]
class AdaptiveTrainer:
"""自适应CNN训练器"""
def __init__(self, model, train_loader, val_loader, device='cuda'):
self.model = model.to(device)
self.train_loader = train_loader
self.val_loader = val_loader
self.device = device
# 优化器配置
self.optimizer = self._setup_optimizer()
self.scheduler = self._setup_scheduler()
self.criterion = nn.CrossEntropyLoss(label_smoothing=0.1)
# 训练状态
self.best_acc = 0.0
self.patience = 0
self.max_patience = 10
# 混合精度训练
self.scaler = torch.cuda.amp.GradScaler() if device == 'cuda' else None
def _setup_optimizer(self):
"""设置优化器"""
# 分层学习率：不同层使用不同学习率
params = []
# 预训练层使用较小学习率
if hasattr(self.model, 'backbone'):
params.append({
'params': self.model.backbone.parameters(),
'lr': 1e-4,
'weight_decay': 1e-4
})
# 新增层使用较大学习率
if hasattr(self.model, 'classifier'):
params.append({
'params': self.model.classifier.parameters(),
'lr': 1e-3,
'weight_decay': 1e-4
})
if not params:
# 默认配置
params = self.model.parameters()
return optim.AdamW(params, lr=1e-3, weight_decay=1e-4, betas=(0.9, 0.999))
def _setup_scheduler(self):
"""设置学习率调度器"""
return WarmupCosineAnnealingLR(
self.optimizer,
warmup_epochs=5,
max_epochs=100,
eta_min=1e-6
)
def train_epoch(self):
"""训练一个epoch"""
self.model.train()
total_loss = 0.0
correct = 0
total = 0
for batch_idx, (data, target) in enumerate(self.train_loader):
data, target = data.to(self.device), target.to(self.device)
self.optimizer.zero_grad()
if self.scaler is not None:
# 混合精度训练
with torch.cuda.amp.autocast():
output = self.model(data)
loss = self.criterion(output, target)
self.scaler.scale(loss).backward()
# 梯度裁剪
self.scaler.unscale_(self.optimizer)
torch.nn.utils.clip_grad_norm_(self.model.parameters(), max_norm=1.0)
self.scaler.step(self.optimizer)
self.scaler.update()
else:
# 标准训练
output = self.model(data)
loss = self.criterion(output, target)
loss.backward()
# 梯度裁剪
torch.nn.utils.clip_grad_norm_(self.model.parameters(), max_norm=1.0)
self.optimizer.step()
# 统计
total_loss += loss.item()
pred = output.argmax(dim=1, keepdim=True)
correct += pred.eq(target.view_as(pred)).sum().item()
total += target.size(0)
return total_loss / len(self.train_loader), 100. * correct / total
def validate(self):
"""验证模型"""
self.model.eval()
total_loss = 0.0
correct = 0
total = 0
with torch.no_grad():
for data, target in self.val_loader:
data, target = data.to(self.device), target.to(self.device)
if self.scaler is not None:
with torch.cuda.amp.autocast():
output = self.model(data)
loss = self.criterion(output, target)
else:
output = self.model(data)
loss = self.criterion(output, target)
total_loss += loss.item()
pred = output.argmax(dim=1, keepdim=True)
correct += pred.eq(target.view_as(pred)).sum().item()
total += target.size(0)
acc = 100. * correct / total
return total_loss / len(self.val_loader), acc
def train(self, epochs=100):
"""完整训练流程"""
for epoch in range(epochs):
# 训练
train_loss, train_acc = self.train_epoch()
# 验证
val_loss, val_acc = self.validate()
# 更新学习率
self.scheduler.step()
# 早停检查
if val_acc > self.best_acc:
self.best_acc = val_acc
self.patience = 0
# 保存最佳模型
torch.save(self.model.state_dict(), 'best_model.pth')
else:
self.patience += 1
if self.patience >= self.max_patience:
print(f"Early stopping at epoch {epoch}")
break
# 打印进度
current_lr = self.optimizer.param_groups[0]['lr']
print(f'Epoch {epoch}: Train Loss: {train_loss:.4f}, Train Acc: {train_acc:.2f}%, '
f'Val Loss: {val_loss:.4f}, Val Acc: {val_acc:.2f}%, LR: {current_lr:.6f}')
# 这个训练器集成了现代深度学习的最佳实践
# 包括混合精度训练、梯度裁剪、学习率预热等技术
8. CNN实际应用案例
8.1 图像分类完整实现
import torchvision.transforms as transforms
from torch.utils.data import DataLoader
import torchvision.datasets as datasets
class ImageClassificationPipeline:
"""图像分类完整流水线"""
def __init__(self, num_classes=10, input_size=224):
self.num_classes = num_classes
self.input_size = input_size
self.device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
# 数据预处理
self.train_transform = transforms.Compose([
transforms.Resize((input_size, input_size)),
transforms.RandomHorizontalFlip(p=0.5),
transforms.RandomRotation(degrees=15),
transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2, hue=0.1),
transforms.RandomAffine(degrees=0, translate=(0.1, 0.1), scale=(0.9, 1.1)),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
transforms.RandomErasing(p=0.2, scale=(0.02, 0.33), ratio=(0.3, 3.3))
])
self.val_transform = transforms.Compose([
transforms.Resize((input_size, input_size)),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])
# 构建模型
self.model = self._build_model()
def _build_model(self):
"""构建分类模型"""
model = ModernCNN(num_classes=self.num_classes)
return model.to(self.device)
def prepare_data(self, data_dir, batch_size=32, num_workers=4):
"""准备数据加载器"""
# 训练集
train_dataset = datasets.ImageFolder(
root=f'{data_dir}/train',
transform=self.train_transform
)
# 验证集
val_dataset = datasets.ImageFolder(
root=f'{data_dir}/val',
transform=self.val_transform
)
# 数据加载器
train_loader = DataLoader(
train_dataset, batch_size=batch_size, shuffle=True,
num_workers=num_workers, pin_memory=True
)
val_loader = DataLoader(
val_dataset, batch_size=batch_size, shuffle=False,
num_workers=num_workers, pin_memory=True
)
return train_loader, val_loader
def train_model(self, train_loader, val_loader, epochs=100):
"""训练模型"""
trainer = AdaptiveTrainer(self.model, train_loader, val_loader, self.device)
trainer.train(epochs)
return trainer.best_acc
def evaluate_model(self, test_loader):
"""评估模型性能"""
self.model.eval()
all_preds = []
all_labels = []
with torch.no_grad():
for data, target in test_loader:
data, target = data.to(self.device), target.to(self.device)
output = self.model(data)
pred = output.argmax(dim=1)
all_preds.extend(pred.cpu().numpy())
all_labels.extend(target.cpu().numpy())
# 计算各种指标
from sklearn.metrics import accuracy_score, precision_recall_fscore_support, confusion_matrix
accuracy = accuracy_score(all_labels, all_preds)
precision, recall, f1, _ = precision_recall_fscore_support(all_labels, all_preds, average='weighted')
cm = confusion_matrix(all_labels, all_preds)
return {
'accuracy': accuracy,
'precision': precision,
'recall': recall,
'f1_score': f1,
'confusion_matrix': cm
}
def predict_single_image(self, image_path):
"""单张图像预测"""
from PIL import Image
# 加载和预处理图像
image = Image.open(image_path).convert('RGB')
input_tensor = self.val_transform(image).unsqueeze(0).to(self.device)
# 预测
self.model.eval()
with torch.no_grad():
output = self.model(input_tensor)
probabilities = F.softmax(output, dim=1)
predicted_class = output.argmax(dim=1).item()
confidence = probabilities[0][predicted_class].item()
return predicted_class, confidence, probabilities.cpu().numpy()[0]
# 使用示例
if __name__ == "__main__":
# 创建分类流水线
pipeline = ImageClassificationPipeline(num_classes=10)
# 准备数据
train_loader, val_loader = pipeline.prepare_data('path/to/dataset')
# 训练模型
best_accuracy = pipeline.train_model(train_loader, val_loader)
print(f"Best validation accuracy: {best_accuracy:.2f}%")
# 评估模型
metrics = pipeline.evaluate_model(val_loader)
print(f"Test metrics: {metrics}")
# 这个完整的实现展示了CNN在图像分类任务中的应用
# 包括数据预处理、模型训练、评估和预测的完整流程
深度学习的本质不在于模仿人脑，而在于发现数据中的模式。CNN通过层次化的特征学习，让机器拥有了超越人类的视觉感知能力。 —— Geoffrey Hinton
9. 性能优化与部署策略
9.1 模型压缩技术对比
| 压缩技术 | 压缩比 | 精度损失 | 推理速度提升 | 内存节省 | 实现复杂度 |
|---|---|---|---|---|---|
| 量化 | 2-4x | 1-3% | 2-3x | 50-75% | 中等 |
| 剪枝 | 2-10x | 2-5% | 1.5-3x | 60-90% | 高 |
| 知识蒸馏 | 3-5x | 1-2% | 3-5x | 70-80% | 中等 |
| 低秩分解 | 1.5-3x | 0.5-2% | 1.2-2x | 30-60% | 低 |
| 神经架构搜索 | 2-4x | 0-1% | 2-4x | 50-75% | 极高 |
9.2 模型优化实现
import torch.quantization as quantization
from torch.nn.utils import prune
class ModelOptimizer:
"""CNN模型优化器"""
def __init__(self, model):
self.model = model
self.original_size = self._get_model_size()
def _get_model_size(self):
"""计算模型大小（MB）"""
param_size = 0
buffer_size = 0
for param in self.model.parameters():
param_size += param.nelement() * param.element_size()
for buffer in self.model.buffers():
buffer_size += buffer.nelement() * buffer.element_size()
return (param_size + buffer_size) / 1024 / 1024
def quantize_model(self, calibration_loader=None):
"""模型量化"""
# 准备量化
self.model.eval()
# 动态量化（推理时量化）
quantized_model = quantization.quantize_dynamic(
self.model,
{
nn.Conv2d, nn.Linear},
dtype=torch.qint8
)
# 如果有校准数据，使用静态量化
if calibration_loader is not None:
# 设置量化配置
self.model.qconfig = quantization.get_default_qconfig('fbgemm')
# 准备量化
quantization.prepare(self.model, inplace=True)
# 校准
with torch.no_grad():
for data, _ in calibration_loader:
self.model(data)
# 转换为量化模型
quantized_model = quantization.convert(self.model, inplace=False)
return quantized_model
def prune_model(self, pruning_ratio=0.3):
"""模型剪枝"""
# 结构化剪枝：移除整个通道
for name, module in self.model.named_modules():
if isinstance(module, nn.Conv2d):
# L1非结构化剪枝
prune.l1_unstructured(module, name='weight', amount=pruning_ratio)
# 移除剪枝mask，永久删除权重
prune.remove(module, 'weight')
return self.model
def knowledge_distillation(self, teacher_model, student_model, train_loader,
temperature=4.0, alpha=0.7, epochs=50):
"""知识蒸馏"""
teacher_model.eval()
student_model.train()
optimizer = optim.Adam(student_model.parameters(), lr=1e-3)
criterion_ce = nn.CrossEntropyLoss()
criterion_kd = nn.KLDivLoss(reduction='batchmean')
for epoch in range(epochs):
total_loss = 0.0
for data, target in train_loader:
optimizer.zero_grad()
# 学生模型输出
student_output = student_model(data)
# 教师模型输出（不计算梯度）
with torch.no_grad():
teacher_output = teacher_model(data)
# 计算损失
# 1. 标准交叉熵损失
ce_loss = criterion_ce(student_output, target)
# 2. 知识蒸馏损失
student_soft = F.log_softmax(student_output / temperature, dim=1)
teacher_soft = F.softmax(teacher_output / temperature, dim=1)
kd_loss = criterion_kd(student_soft, teacher_soft) * (temperature ** 2)
# 3. 总损失
loss = alpha * kd_loss + (1 - alpha) * ce_loss
loss.backward()
optimizer.step()
total_loss += loss.item()
print(f'Epoch {epoch}: Loss = {total_loss / len(train_loader):.4f}')
return student_model
def optimize_for_inference(self, example_input):
"""推理优化"""
# 1. 模型融合
self.model.eval()
# 融合Conv-BN-ReLU
for name, module in self.model.named_modules():
if isinstance(module, nn.Sequential):
# 检查是否为Conv-BN-ReLU模式
if (len(module) >= 2 and
isinstance(module[0], nn.Conv2d) and
isinstance(module[1], nn.BatchNorm2d)):
# 融合Conv和BN
conv = module[0]
bn = module[1]
# 计算融合后的权重和偏置
w_conv = conv.weight.clone()
if conv.bias is not None:
b_conv = conv.bias.clone()
else:
b_conv = torch.zeros_like(bn.running_mean)
w_bn = bn.weight.clone()
b_bn = bn.bias.clone()
running_mean = bn.running_mean.clone()
running_var = bn.running_var.clone()
eps = bn.eps
# 融合公式
std = torch.sqrt(running_var + eps)
w_fused = w_conv * (w_bn / std).view(-1, 1, 1, 1)
b_fused = (b_conv - running_mean) * w_bn / std + b_bn
# 创建新的融合层
fused_conv = nn.Conv2d(
conv.in_channels, conv.out_channels,
conv.kernel_size, conv.stride, conv.padding,
bias=True
)
fused_conv.weight.data = w_fused
fused_conv.bias.data = b_fused
# 替换原始模块
setattr(self.model, name.split('.')[-1], fused_conv)
# 2. TorchScript编译
traced_model = torch.jit.trace(self.model, example_input)
# 3. 图优化
optimized_model = torch.jit.optimize_for_inference(traced_model)
return optimized_model
def benchmark_performance(self, model, example_input, iterations=1000):
"""性能基准测试"""
model.eval()
# 预热
with torch.no_grad():
for _ in range(10):
_ = model(example_input)
# 计时
torch.cuda.synchronize() if torch.cuda.is_available() else None
start_time = torch.cuda.Event(enable_timing=True) if torch.cuda.is_available() else None
end_time = torch.cuda.Event(enable_timing=True) if torch.cuda.is_available() else None
if torch.cuda.is_available():
start_time.record()
with torch.no_grad():
for _ in range(iterations):
output = model(example_input)
if torch.cuda.is_available():
end_time.record()
torch.cuda.synchronize()
elapsed_time = start_time.elapsed_time(end_time)
else:
elapsed_time = 0
# 计算指标
avg_time = elapsed_time / iterations if elapsed_time > 0 else 0
throughput = iterations / (elapsed_time / 1000) if elapsed_time > 0 else float('inf')
model_size = self._get_model_size()
return {
'avg_inference_time_ms': avg_time,
'throughput_fps': throughput,
'model_size_mb': model_size,
'compression_ratio': self.original_size / model_size
}
# 使用示例
optimizer = ModelOptimizer(model)
# 量化优化
quantized_model = optimizer.quantize_model(calibration_loader)
# 剪枝优化
pruned_model = optimizer.prune_model(pruning_ratio=0.3)
# 推理优化
optimized_model = optimizer.optimize_for_inference(example_input)
# 性能测试
metrics = optimizer.benchmark_performance(optimized_model, example_input)
print(f"Optimization results: {metrics}")
# 这个优化器提供了全面的模型压缩和加速方案
# 可以根据具体需求选择合适的优化策略
10. 未来发展趋势与展望
10.1 CNN技术发展路线图
图6：CNN技术发展时间线 - 展示了从过去到未来的技术演进路径
总结
从最初的生物学启发到如今的工程化应用，CNN不仅改变了计算机视觉的面貌，更重要的是，它为我们打开了通向人工智能未来的大门。
在这篇文章中，我们从CNN的基础原理出发，深入探讨了卷积操作的数学本质，理解了为什么这种看似简单的操作能够如此有效地提取图像特征。我们见证了从LeNet到ResNet，从传统架构到注意力机制的演进历程，每一次创新都代表着人类对视觉智能理解的深化。
特别令我印象深刻的是现代CNN中的各种优化技术。残差连接解决了深度网络的梯度消失问题，批归一化加速了训练过程，注意力机制让模型能够自适应地关注重要特征。这些技术的结合，使得CNN在各种视觉任务中都能取得卓越的性能。
在实际应用层面，我们探讨了从数据预处理到模型部署的完整流程。混合精度训练、学习率调度、模型压缩等技术的应用，让CNN能够在资源受限的环境中高效运行。这些工程化的实践经验，对于将研究成果转化为实际产品具有重要意义。
展望未来，CNN技术仍在快速发展。Vision Transformer的出现虽然挑战了CNN的地位，但也促进了两者的融合创新。ConvNeXt等新架构证明了CNN仍有巨大的潜力。神经架构搜索、量子计算、脑启发计算等前沿技术，将为CNN的发展带来新的机遇。
作为一名技术探索者，我相信CNN的故事远未结束。在人工智能的星辰大海中，CNN将继续发挥重要作用，与其他技术协同发展，共同推动智能时代的到来。让我们继续在这个充满挑战和机遇的领域中探索前行，用代码和算法书写属于我们这个时代的技术传奇。
■ 我是蒋星熠Jaxonic！如果这篇文章在你的技术成长路上留下了印记
■ 👁 【关注】与我一起探索技术的无限可能，见证每一次突破
■ 👍 【点赞】为优质技术内容点亮明灯，传递知识的力量
■ 🔖 【收藏】将精华内容珍藏，随时回顾技术要点
■ 💬 【评论】分享你的独特见解，让思维碰撞出智慧火花
■ 🗳 【投票】用你的选择为技术社区贡献一份力量
■ 技术路漫漫，让我们携手前行，在代码的世界里摘取属于程序员的那片星辰大海！
参考链接
- Deep Learning - Ian Goodfellow, Yoshua Bengio, Aaron Courville
- PyTorch官方文档 - 卷积神经网络教程
- Papers With Code - CNN架构排行榜
- Distill.pub - CNN可视化解释
- Google AI Blog - EfficientNet架构详解
关键词标签
#卷积神经网络 #深度学习 #计算机视觉 #神经网络架构 #模型优化
