1. 模型搭建
这里直接贴上代码，这部分框架比较清晰，没有改动，可以正常使用。

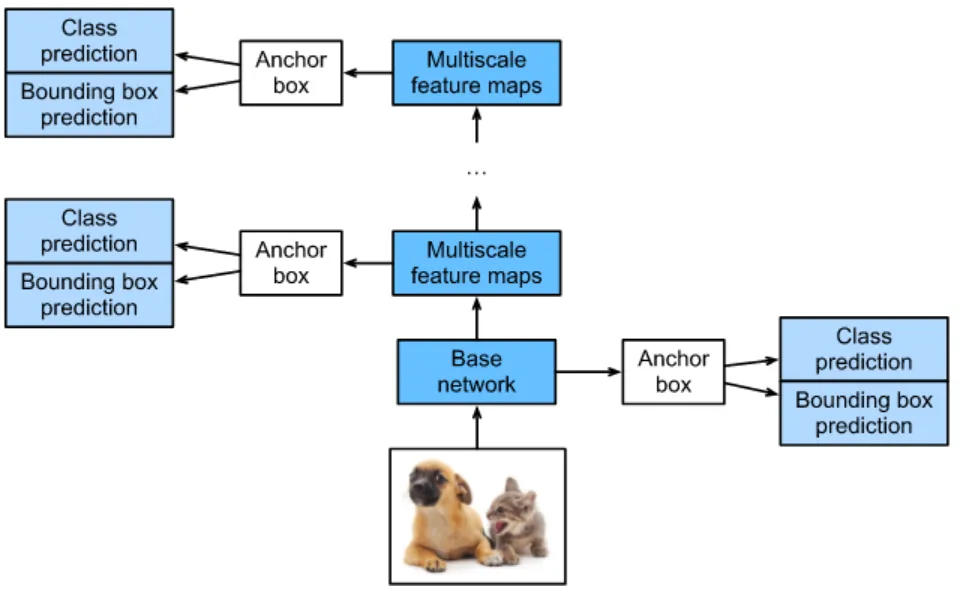

SSD的框架图：
详细具体的搭建流程可以查看参考资料，以下是参考代码：
# 以下属于ssd模型的定义 def cls_predictor(num_inputs, num_anchors, num_classes): return nn.Conv2d(num_inputs, num_anchors * (num_classes + 1), kernel_size=3, padding=1) def bbox_predictor(num_inputs, num_anchors): return nn.Conv2d(num_inputs, num_anchors * 4, kernel_size=3, padding=1) def flatten_pred(pred): return torch.flatten(pred.permute(0, 2, 3, 1), start_dim=1) def concat_preds(preds): return torch.cat([flatten_pred(p) for p in preds], dim=1) def down_sample_blk(in_channels, out_channels): blk = [] for _ in range(2): blk.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1)) blk.append(nn.BatchNorm2d(out_channels)) blk.append(nn.ReLU()) in_channels = out_channels blk.append(nn.MaxPool2d(2)) return nn.Sequential(*blk) def base_net(): blk = [] num_filters = [3, 16, 32, 64] for i in range(len(num_filters) - 1): blk.append(down_sample_blk(num_filters[i], num_filters[i+1])) return nn.Sequential(*blk) def get_blk(i): if i == 0: blk = base_net() elif i == 1: blk = down_sample_blk(64, 128) elif i == 4: blk = nn.AdaptiveMaxPool2d((1,1)) else: blk = down_sample_blk(128, 128) return blk def blk_forward(X, blk, size, ratio, cls_predictor, bbox_predictor): Y = blk(X) anchors = multibox_prior(Y, sizes=size, ratios=ratio) cls_preds = cls_predictor(Y) bbox_preds = bbox_predictor(Y) return (Y, anchors, cls_preds, bbox_preds) class TinySSD(nn.Module): def __init__(self, num_classes=1, **kwargs): super(TinySSD, self).__init__(**kwargs) self.num_classes = num_classes idx_to_in_channels = [64, 128, 128, 128, 128] for i in range(5): # 即赋值语句 `self.blk_i = get_blk(i)` setattr(self, f'blk_{i}', get_blk(i)) setattr(self, f'cls_{i}', cls_predictor(idx_to_in_channels[i], num_anchors, num_classes)) setattr(self, f'bbox_{i}', bbox_predictor(idx_to_in_channels[i], num_anchors)) def forward(self, X): anchors, cls_preds, bbox_preds = [None] * 5, [None] * 5, [None] * 5 for i in range(5): # `getattr(self, 'blk_%d' % i)` 即访问 `self.blk_i` X, anchors[i], cls_preds[i], bbox_preds[i] = blk_forward( X, getattr(self, f'blk_{i}'), sizes[i], ratios[i], getattr(self, f'cls_{i}'), getattr(self, f'bbox_{i}')) anchors = torch.cat(anchors, dim=1) cls_preds = concat_preds(cls_preds) cls_preds = cls_preds.reshape( cls_preds.shape[0], -1, self.num_classes + 1) bbox_preds = concat_preds(bbox_preds) return anchors, cls_preds, bbox_preds
其中模型框架打印如下：
<bound method Module.modules of TinySSD( (blk_0): Sequential( (0): Sequential( (0): Conv2d(3, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (1): BatchNorm2d(16, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (2): ReLU() (3): Conv2d(16, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (4): BatchNorm2d(16, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (5): ReLU() (6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) ) (1): Sequential( (0): Conv2d(16, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (1): BatchNorm2d(32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (2): ReLU() (3): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (4): BatchNorm2d(32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (5): ReLU() (6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) ) (2): Sequential( (0): Conv2d(32, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (2): ReLU() (3): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (4): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (5): ReLU() (6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) ) ) (cls_0): Conv2d(64, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (bbox_0): Conv2d(64, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (blk_1): Sequential( (0): Conv2d(64, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (2): ReLU() (3): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (4): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (5): ReLU() (6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) ) (cls_1): Conv2d(128, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (bbox_1): Conv2d(128, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (blk_2): Sequential( (0): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (2): ReLU() (3): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (4): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (5): ReLU() (6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) ) (cls_2): Conv2d(128, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (bbox_2): Conv2d(128, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (blk_3): Sequential( (0): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (2): ReLU() (3): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (4): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True) (5): ReLU() (6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False) ) (cls_3): Conv2d(128, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (bbox_3): Conv2d(128, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (blk_4): AdaptiveMaxPool2d(output_size=(1, 1)) (cls_4): Conv2d(128, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) (bbox_4): Conv2d(128, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)) )>
对于模型搭建的核心代码是：
anchors = multibox_prior(Y, sizes=size, ratios=ratio)
对多个特征图的每一个像素点为中心，生成多个anchor
2. 自定义数据集
在上一篇blog中简单介绍过了这里使用的数据集：多尺度检测及检测数据集，不过直接使用代码出现了各种各样的问题，所以这里不得不重新构建了一个自定义数据集。
参考代码：
# 一个用于加载香蕉检测数据集的自定义数据集 class BananasDataset(Dataset): def __init__(self, is_train): # 加载图像与标签信息 self.images, self.labels = self.read_data_bananas(is_train) # 根据训练集或测试集打印出数量 print('read ' + str(len(self.images)) + (' training examples' if is_train else ' validation examples')) def __getitem__(self, item): image = self.images[item] label = self.labels[item] # print("image: ", image, "label: ", label) # 对图像进行预处理 transform = transforms.Compose([ # 转换为RGB图像 lambda x: Image.open(x).convert('RGB'), # 转换为Tensor格式 transforms.ToTensor(), # 使数据分布在0附近 transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]) ]) image = transform(image) # label是int形式，转换为tensor格式 label = torch.tensor(label) return image, label # 对每一张图像的处理, 这里转变为了浮点数 # return (self.images[idx].float(), self.labels[idx]) def __len__(self): # 返回图像数量 return len(self.images) def read_data_bananas(self, is_train=True): # 保存测试集与训练集的图像是一致的 datapath = 'E:\学习\机器学习\数据集\\banana-detection' csv_file = os.path.join(datapath, 'bananas_train' if is_train else 'bananas_val', 'label.csv') csv_data = pd.read_csv(csv_file) csv_data = csv_data.set_index('img_name') images, targets = [], [] # 迭代每一行，添加信息 for img_name, target in csv_data.iterrows(): # 每张图像的路径 imagepath = os.path.join(datapath, 'bananas_train' if is_train else 'bananas_val', 'images', f'{img_name}') # 读取图片数据, 类似于Image.open(x).convert('RGB') # images.append(torchvision.io.read_image(imagepath)) images.append(imagepath) # target中包含了类别与边界框信息(左上角与右下角组成)，eg:[0, 104, 20, 143, 58]组成的一个列表 targets.append(list(target)) # 对于边界框与类别信息在第2个维度前做了增维处理, 并且进行归一化处理, 图像的尺寸是256 # labels.shape: torch.Size([1000, 1, 5]) return images, torch.tensor(targets).unsqueeze(1) / 256
3. 模型训练
在训练过程中的核心代码是bbox_labels, bbox_masks, cls_labels = multibox_target(anchors, Y)一句，根据生成的anchor与真实边界框，对anchor进行分配。计算出anchor相对于真实边界框的偏移量，掩码，既类别。为下一步做损失计算做准备。
参考代码：
# 训练代码 def ssd_train(): # net = TinySSD(num_classes=1) # X = torch.zeros((32, 3, 256, 256)) # anchors, cls_preds, bbox_preds = net(X) # # print('output anchors:', anchors.shape) # print('output class preds:', cls_preds.shape) # print('output bbox preds:', bbox_preds.shape) # 对于测试集，无须按随机顺序读取 train_iter = DataLoader(BananasDataset(is_train=True), batch_size, shuffle=True) val_iter = DataLoader(BananasDataset(is_train=False), batch_size) print(len(train_iter), len(val_iter)) device = torch.device('cuda' if torch.cuda.is_available() else 'cpu') net = TinySSD(num_classes=1) optimizer = torch.optim.SGD(net.parameters(), lr=0.2, weight_decay=5e-4) cls_loss = nn.CrossEntropyLoss(reduction='none') bbox_loss = nn.L1Loss(reduction='none') # 总损失 = 类别损失 + 偏移量损失 def calc_loss(cls_preds, cls_labels, bbox_preds, bbox_labels, bbox_masks): batch_size, num_classes = cls_preds.shape[0], cls_preds.shape[2] cls = cls_loss(cls_preds.reshape(-1, num_classes), cls_labels.reshape(-1)).reshape(batch_size, -1).mean(dim=1) bbox = bbox_loss(bbox_preds * bbox_masks, bbox_labels * bbox_masks).mean(dim=1) return cls + bbox # 分类结果评价 def cls_eval(cls_preds, cls_labels): # 由于类别预测结果放在最后一维， `argmax` 需要指定最后一维。 return float((cls_preds.argmax(dim=-1).type( cls_labels.dtype) == cls_labels).sum()) # 边界框偏移评价 def bbox_eval(bbox_preds, bbox_labels, bbox_masks): return float((torch.abs((bbox_labels - bbox_preds) * bbox_masks)).sum()) # 模型训练 net = net.to(device) for epoch in range(num_epochs): # 训练精确度的和，训练精确度的和中的示例数 # 绝对误差的和，绝对误差的和中的示例数 result = [] net.train() for iteridx, (features, target) in enumerate(train_iter): optimizer.zero_grad() X, Y = features.to(device), target.to(device) # 生成多尺度的锚框，为每个锚框预测类别和偏移量 anchors, cls_preds, bbox_preds = net(X) # 为每个锚框标注类别和偏移量 bbox_labels, bbox_masks, cls_labels = multibox_target(anchors, Y) # 根据类别和偏移量的预测和标注值计算损失函数 loss = calc_loss(cls_preds, cls_labels, bbox_preds, bbox_labels, bbox_masks) loss = loss.mean() loss.backward() optimizer.step() result.append([cls_eval(cls_preds, cls_labels), # 计算正确个数 cls_labels.numel(), # 真实对象标签总数量 bbox_eval(bbox_preds, bbox_labels, bbox_masks), # 计算边界框偏移 bbox_labels.numel()]) # anchor标签总数量 if iteridx % 9 == 0: print("epoch:{}/{}, batch:{}/{}, loss:{}" .format(epoch + 1, num_epochs, iteridx, len(train_iter), loss)) # print(len(result), result) result = torch.tensor(result) print("result.shape:", result.shape) cls_rig = result[:, 0] / result[:, 1] bbox_mae = result[:, 2] / result[:, 3] print("len: cls_rig:{}, cls_rig:{}".format(len(cls_rig), cls_rig)) print("len: bbox_mae:{}, bbox_mae:{}".format(len(bbox_mae), bbox_mae)) print("cls_rig:{}, bbox_mae:{}".format(cls_rig.mean(), bbox_mae.mean())) torch.save(net.state_dict(), 'ssd_model.mdl')
在开始训练初期，在置信度比较高时，有时候得到的边界框可能是负数，不过训练的epoch数增加了之后就可以看见变化。
4. 模型测试
这里随便挑一张验证集的图像进行测试，输出置信度前3的边界框。
# 测试结果 def ssd_test(): imagepath = 'E:\学习\机器学习\数据集\\banana-detection\\bananas_val\images\\0.png' device = torch.device('cuda' if torch.cuda.is_available() else 'cpu') transform = transforms.Compose([ # 转换为RGB图像 lambda x: Image.open(x).convert('RGB'), # 转换为Tensor格式 transforms.ToTensor(), # 使数据分布在0附近 transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]) ]) def predict(X): # 加载模型 net = TinySSD(num_classes=1) net.load_state_dict(torch.load('ssd_model.mdl')) net.eval() # 这里测试的时候需要注意, 传入的数据不是cuda类型的，也就是不要使用GPU加速 anchors, cls_preds, bbox_preds = net(X) print("len(anchors):{}, len(cls_preds):{}, len(bbox_preds):{}".format(len(anchors[0]), len(cls_preds[0]), len(bbox_preds[0]))) # len(anchors): 5444, len(cls_preds): 5444, len(bbox_preds): 21776 # shape: torch.Size([1, 5444, 4]) torch.Size([1, 5444, 2]) torch.Size([1, 21776]) # 利用softmax计算概率: torch.Size([1, 5444, 2]) -> torch.Size([1, 2, 5444]) cls_probs = F.softmax(cls_preds, dim=2).permute(0, 2, 1) # 使用非极大值抑制来预测边界框：torch.Size([1, 5444, 6]) # 1表示当前只传入了一张图像, 5444表示一共生成的anchor数量, 6表示anchor信息(第一列为类别，第二列为置信度, 第三到六列为边界框坐标信息) output = multibox_detection(cls_probs, bbox_preds, anchors) # 挑选出类别信息不为-1的索引，也就是要挑选出类别为香蕉(类别0)的anchor的索引 idx = [i for i, row in enumerate(output[0]) if row[0] != -1] # 返回类别正确的预测anchor return output[0, idx] def denormalize(x_hat): mean = [0.485, 0.456, 0.406] std = [0.229, 0.224, 0.225] # x_hat = (x-mean)/std # x = x_hat*std = mean # x: [c, h, w] # mean: [3] => [3, 1, 1] mean = torch.tensor(mean).unsqueeze(1).unsqueeze(1) std = torch.tensor(std).unsqueeze(1).unsqueeze(1) # print(mean.shape, std.shape) x = x_hat * std + mean return x def show_box(sample, axes): # label = sample[0] # confidence = sample[1] bbox = sample[2:].detach().numpy() * 255 print(bbox) rect = plt.Rectangle((bbox[0], bbox[1]), bbox[2] - bbox[0], bbox[3] - bbox[1], fill=False, edgecolor='red', linewidth=2) axes.add_patch(rect) image = transform(imagepath) # 这里获取的output为类别正确的anchor output = predict(image.unsqueeze(0)) print(len(output), output) # [ 0.0000, 0.3077, 0.1768, -0.1711, 0.8515, 1.0493] # 将前5个框绘制出来 fig = plt.imshow(denormalize(image).permute(1,2,0)) for i in range(3): sample = output[i] show_box(sample, fig.axes) plt.show()

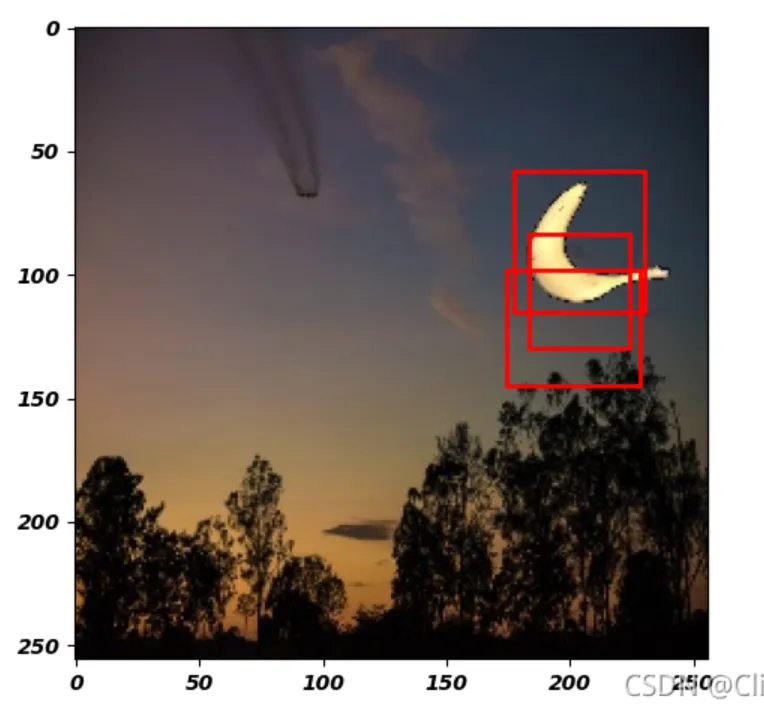

查看效果：
可以看见，置信度最高的anchor（0.9966）可以准确的框选出目标的，其余两个若有偏差。
[[ 0.0000, 0.9966, 0.6949, 0.2278, 0.9027, 0.4500], [ 0.0000, 0.0728, 0.7195, 0.3263, 0.8781, 0.5081], [ 0.0000, 0.0434, 0.6839, 0.3844, 0.8962, 0.5677],
在测试阶段的核心代码是：
output = multibox_detection(cls_probs, bbox_preds, anchors)
使用非极大值抑制来预测边界框，返回一个二维列表, 第一列表示预测类别, 第二列表置信度, 其余四列表示预测边界框的左上角与右下角。
